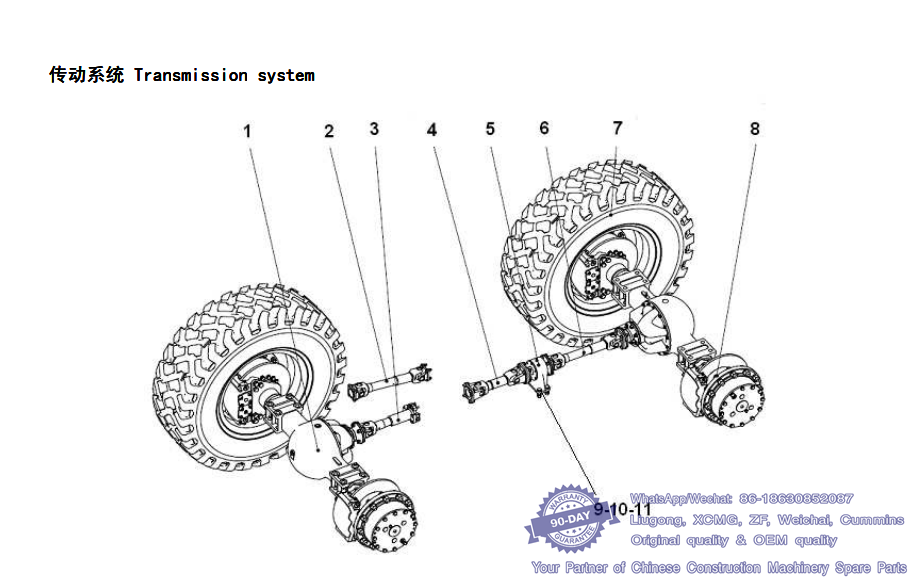

001 传动系统 Transmission system -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 后桥总成 Rear axle assembly W043200000 1 whatsapp 86-18630852087
2 639C 主传动轴 Main drive shaft Z3B355001 1
3 后传动轴 Rear drive shaft Z321260050 1
4 中间传动轴 Intermediate drive shaft Z320730160 1
5 传动轴支座 Driving shaft bracket W045000000 1
6 前传动轴 Front drive shaft Z321260010 1
7 轮胎&轮辋总成 Tire and rim assembly NZ32010005000 4
轮胎 Tire W110000020 4 whatsapp 86-18630852087
轮辋总成 Rim assembly Z321260030 4
8 前桥总成 Front axle assembly W043100000 1
9 螺栓 M16 Bolt M16 B040811660 4
10 螺母 M16 Nut M16 B050331614 4
11 垫圈 16 Washer 16 B060111604 4 whatsapp 86-18630852087

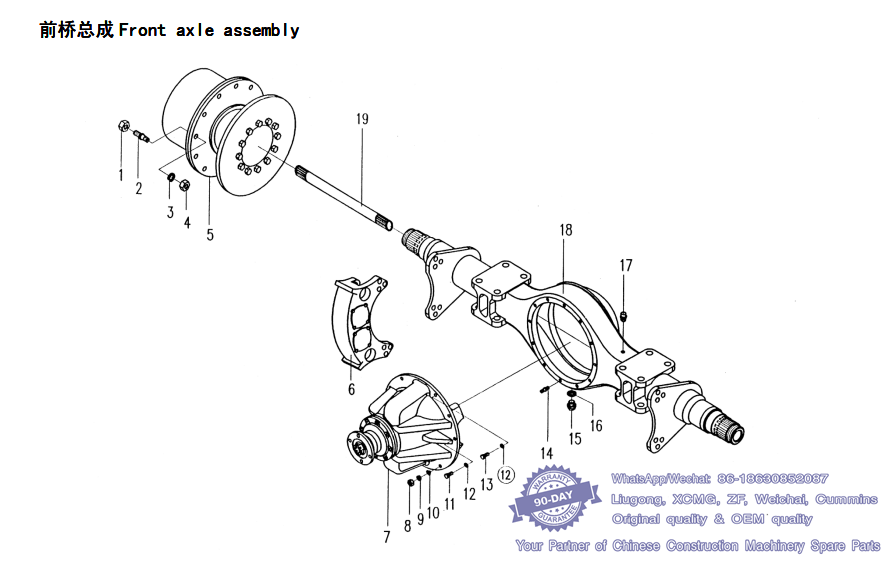

002 前桥总成 Front axle assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 轮辋螺母 Nut W043900370 24 whatsapp 86-18630852087
2 轮辋螺栓 Rim bolt W043900370 24
3 垫圈 20 Washer 20 W043900370 24
4 螺母 M20×1.5 Nut M20×1.5 B050462017 24
5 轮边减速器总成 Wheel-end-reducer 2
6 制动器总成 Pliers assembly W041200000 2
7 主减速器总成 Main reducer assembly W043100140 1
8 螺母 M10 Nut M10 B050331008 3
9 垫圈 10 Washer10 B060111003 3
10 固定锥套 Fixed cone W043100460 3 whatsapp 86-18630852087
11 螺栓 M10×30 Bolt M10×30 B040911030 7
12 垫圈 10 Washer10 B060111003 11
13 螺栓 M10×40 Bolt M10×40 B040811040 4
14 螺柱 M10×50 Double-screw bolt M10×50 B100311050 3
15 螺塞 M24×1.5 Thread plug M24×1.5 W041400941 2
16 组合密封垫圈 Compound seal B060802403 2
17 通气塞 Air bleed valve W043100490 1
18 桥壳总成 Housing assembly W043100130 1
19 半轴 Axle shaft W043100180 2 whatsapp 86-18630852087

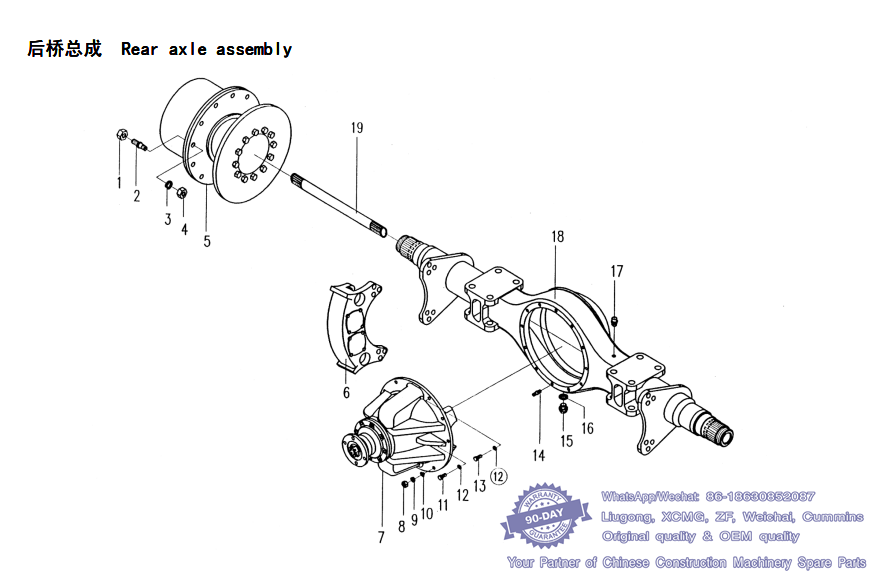

003 后桥总成 Rear axle assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 轮辋螺母 Nut W043900370 24 whatsapp 86-18630852087
2 轮辋螺栓 Rim bolt W043900370 24
3 垫圈 20 Washer 20 W043900370 24
4 螺母 M20×1.5 Nut M20×1.5 B050462017 24
5 轮边减速器总成 Wheel-end-reducer ass. 2
6 制动器总成 Pliers assembly W041200000 2
7 主减速器总成 Main reducer assembly W043200120 1
8 螺母 M10 Nut M10 B050331008 3
9 垫圈 10 Washer10 B060111003 3 whatsapp 86-18630852087
10 固定锥套 Fixed cone W043100460 3
11 螺栓 M10×30 Bolt M10×30 B040911030 7
12 垫圈 10 Washer10 B060111003 11
13 螺栓 M10×40 Bolt M10×40 B040811040 4
14 螺柱 M10×50 Double-screw bolt M10×50 B100311050 3
15 螺塞 M24×1.5 Thread plug M24×1.5 W041400941 2
16 组合密封垫圈 Compound seal B060802403 2
17 通气塞 Air bleed valve W043100490 1
18 桥壳总成 Housing assembly W043200110 1
19 半轴 Axle shaft W043100180 2 whatsapp 86-18630852087

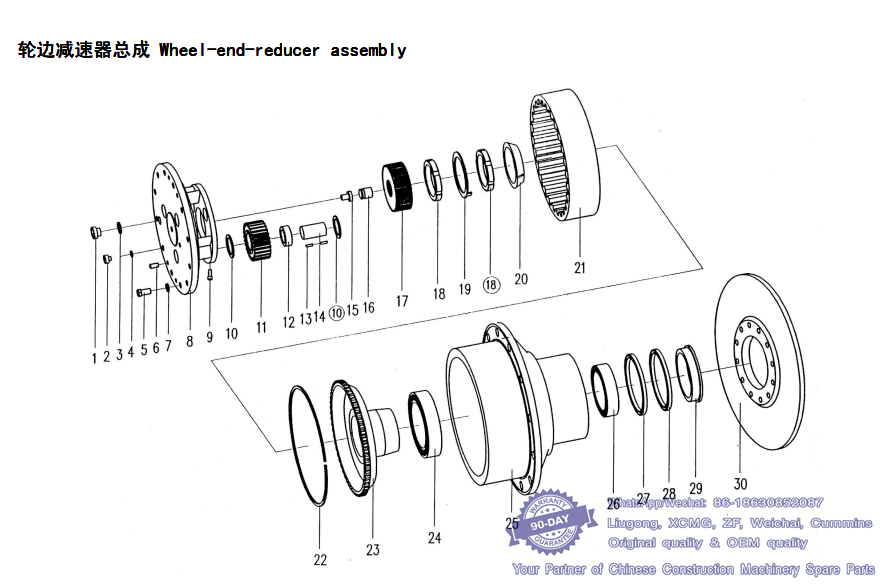

004 轮边减速器总成 Wheel-end-reducer assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 油塞 M24×1.5 Plug M24×1.5 W041400941 1 whatsapp 86-18630852087
2 螺塞 M12×1.25×9 Thread plug M12×1.25×9 W043100570 1
3 组合密封垫圈 Compound seal B060802403 1
4 组合密封垫圈 Compound seal B060811203 1
5 螺栓 M16×1.5×30 Bolt M16×1.5×30 B041111630 12
6 销 B12×24 Pin B12×24 2
7 垫圈 16 Washer 16 B060411603 12
8 行星轮架 Planet gear spider W043100270 1
9 螺钉 M8×15 Screw M8×15 W043100580 3
10 行星轮垫片 Planet gear washer W043100200 6 whatsapp 86-18630852087
11 行星轮 Planet gear W043100250 3
12 隔套 Sleeve W043100380 3
13 滚针 Roll W043100300 126
14 行星轮轴 Planet gear pin W043100410 3
15 限位块 Block W043100600 4
16 调整支柱 Adjusting support W043100400 1
17 太阳轮 Sun gear W043100240 1
18 螺母 M75×2 Nut M75×2 W043100280 2
19 锁紧垫片 Lock washer W043100110 1 whatsapp 86-18630852087

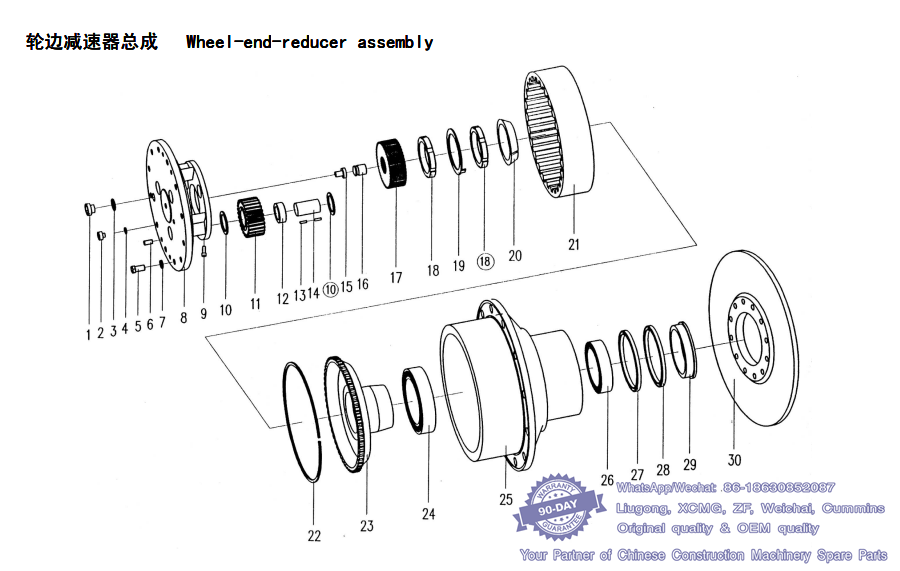

005 轮边减速器总成 Wheel-end-reducer assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
20 锥套 Sleeve W043100370 1 whatsapp 86-18630852087
21 齿圈 Gear ring W043100150 1
22 卡环 Lock ring W043100260 1
23 齿圈支撑 Gear ring support W043100160 1
24 轴承 2007124E Bearing 2007124E B120400013 1
25 轮毂 Hub W043100210 1 whatsapp 86-18630852087
26 轴承 2007122E Bearing 2007122E B120400012 1
27 油封 Oil seal W043100620 1
28 油封 Oil seal W043100620 1
29 油封座 Oil seal cage W043100190 1
30 制动盘 Brake disc W043100220 1 whatsapp 86-18630852087

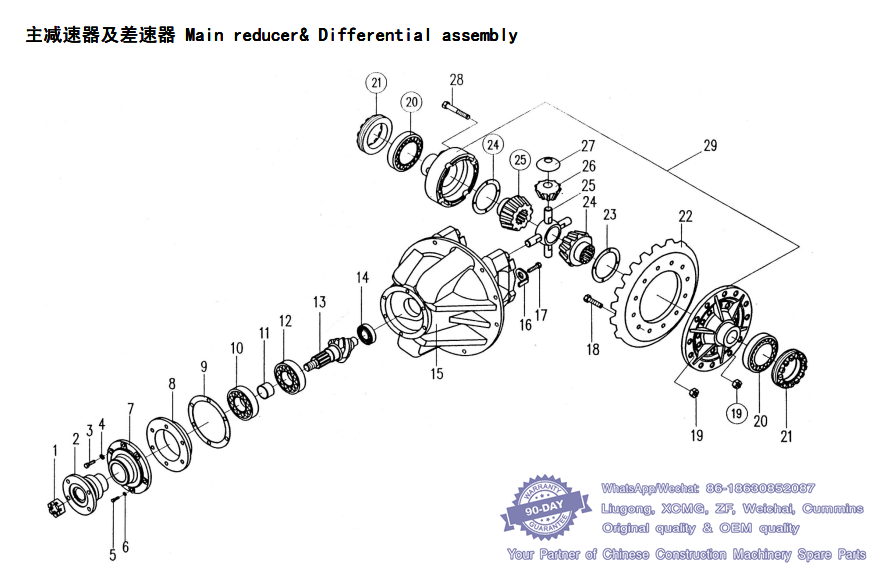

006 主减速器及差速器 Main reducer & Differential assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 锁紧螺母 Lock Nut W043100310 1 whatsapp 86-18630852087
2 连接法兰组件 Flange assembly W043100420 1
3 螺栓 M14×1.5×45 Bolt M14×1.5×45 B041111445 5
4 垫圈 14 Washer 14 B060111404 5
5 螺栓 M12×1.5×45 Bolt M12×1.5×45 B041111245 1
6 垫圈 12 Washer 12 B060111203 1
7 盖总成 Cage assembly W043100500 1
8 轴承座 Bearing cage W043100510 1
9 垫片 Washer W043100520 1 组 whatsapp 86-18630852087
10 轴承 27309E Bearing 27309E B120400084 1
11 隔套 Sleeve W043100290 1
12 轴承 27310E Bearing 27310E B120400085 1
13 主从动螺旋伞齿轮 Spiral bevel driving gear W043100120 1 Front axle
主从动螺旋伞齿轮 Spiral bevel driving gear W043200130 1 Rear axle
14 轴承 102306 Bearing 102306 B120400086 1
15 主减速器总成 Main reducer assembly W043100140 1
16 锁紧片 Lock plate 2
17 螺栓 M10×20 Bolt M10×20 B040911020 2
18 螺栓 M12×1.25×50 Bolt M12×1.25×50 W043100530 12 whatsapp 86-18630852087

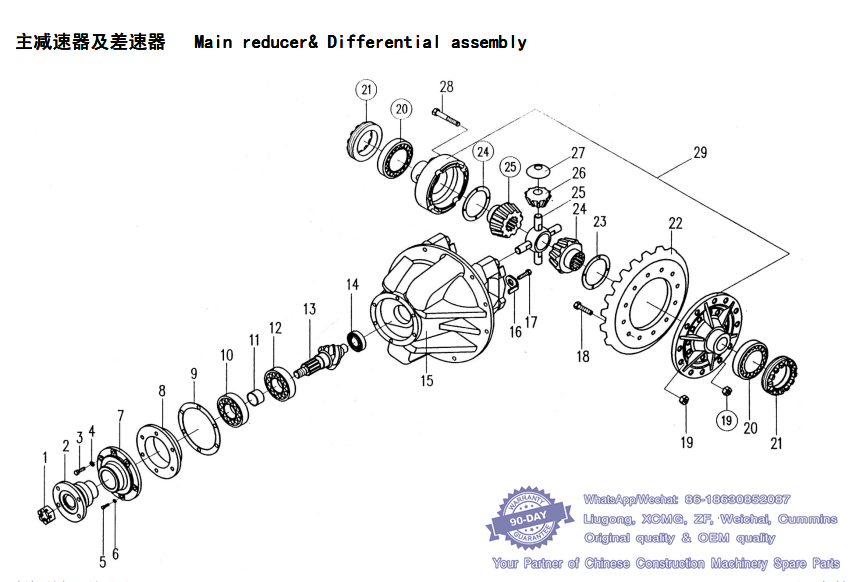

007 主减速器及差速器 Main reducer & Differential assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
19 螺母 M12×1.25 Bolt M12×1.25 B050410001 20 whatsapp 86-18630852087
20 轴承 7814E Bearing 7814E B120400083 2
21 调整螺母 Adjusting nut 2
22 主从动螺旋伞齿轮 Spiral bevel driving gear W043100120 1 Front axle
主从动螺旋伞齿轮 Spiral bevel driving gear W043200130 1 Rear axle
23 半轴齿轮垫片 Axle shaft gear washer W043100360 2
24 半轴齿轮 Axle shaft gear W043100350 2
25 十字轴 Cardan shaft W043100320 1
26 行星轮 Planet gear W043100330 4
27 行星齿轮垫片 Planet gear washer W043100340 4 whatsapp 86-18630852087
28 差速器螺栓 Differential bolt W043100550 8
29 差速器总成 Differential case ass. W043100170 1
主减油封 60×80×8 Oil seal 60×80×8 W043100680 双唇 double
主减油封 60×80×8 Oil seal 60×80×8 W043100670 1 单唇 single whatsapp 86-18630852087

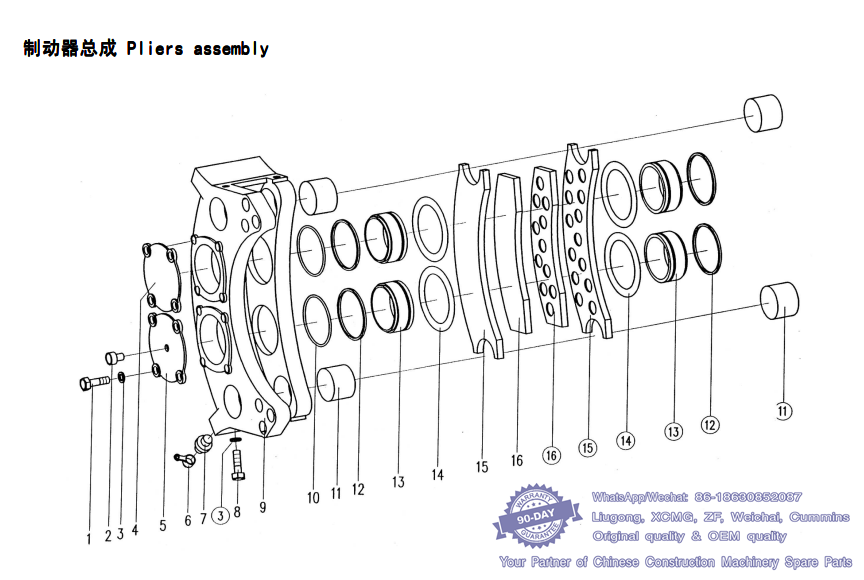

008 制动器总成 Pliers assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 螺栓 M10×35 Bolt M10×35 B040911035 8 whatsapp 86-18630852087
2 孔塞 Plug 1
3 垫圈 10 Washer 10 B060111003 12
4 封油分泵盖 Cover 1
5 进油分泵盖 Cover 1
6 放气嘴保护罩 Protect cover W110040130 2
7 放气嘴 Air bleed valve W041400681 2
8 螺栓 M10×35 Bolt M10×35 B040911035 4 whatsapp 86-18630852087
9 夹钳体 Clamp body 1
10 O 型密封圈 75×3.1 O-ring 75×3.1 W110010620 2
11 销轴 Pin 4
12 矩形密封圈 Rectangle ring W041200050 4
13 活塞 Piston W041400661 4
14 防尘圈 Dustproof ring W041200040 4
15 摩擦垫块底板 Friction slice soleplate W080200010 4
16 摩擦片 Friction slice W080200010 4 whatsapp 86-18630852087

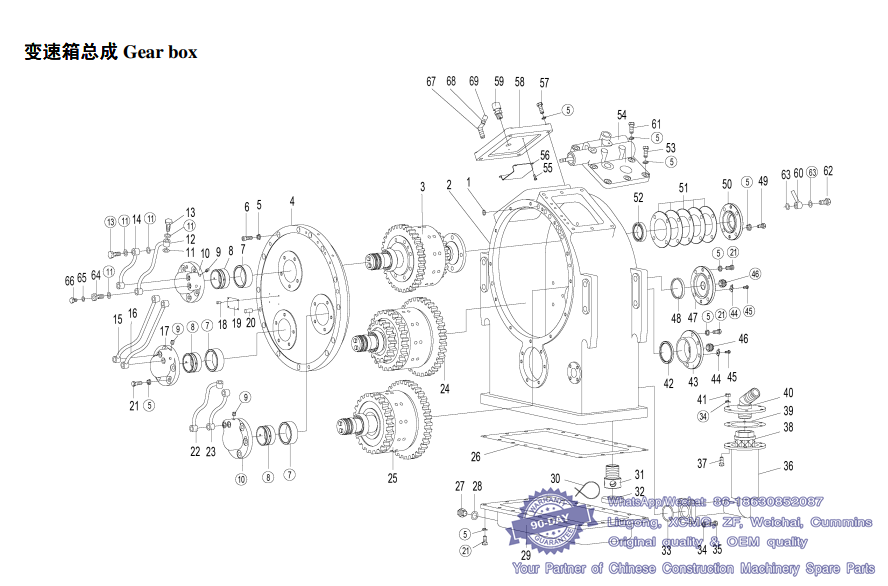

009 变速箱总成 Gear box -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 0 型圈 14x2.65 O ring 14x2.65 B160120085 6 whatsapp 86-18630852087
2 箱体 Housing Z3204700102 1
3 输入轴总成 Clutch Z320470720 1
4 大端盖 Large end cover Z320470031 1
5 垫圈 10 Washer 10 B060111003 90
6 螺钉 M10x30 Screw M10x30 B010411030 13
7 轴套 Sleeve Z320470040 3
8 外封油套 Sleeve Z320470060 3 whatsapp 86-18630852087
9 螺塞 Z1/8” Plug Z1/8” B110400108 6
10 输入、倒档轴进油盖组件 Oil inlet cover NZ32047005100 2
11 垫圈 A12 Washer A12 B060811203 24
12 Ⅰ档油管 Ⅰst gear vitta Z320471530 1
13 空心螺栓 Hollow bolt Z320471500 11
14 润滑油管Ⅰ Wbricating vitta Ⅰ Z320471510 1
15 Ⅱ档油管 Ⅱst gear vitta Z320471550 1
16 润滑油管Ⅱ Wbricating vitta Ⅱ Z320471570 1
17 中间轴进油盖组件 Inlet cover NZ32047007100 1
18 铆钉 2x5 Rivet 2x5 B090110205 4
19 变速箱标牌 Plate 1
20 销 B12x40 Pin B12x40 B080121240 2
21 螺栓 M10x30 Bolt M10x30 B040911030 30
22 润滑油管Ⅲ Wbricating vitta Ⅲ Z320471590 1
23 倒档油管 Reveres gear vitta Z320471610 1
24 中间轴总成 Clutch Z320470460 1
25 倒档轴总成 Clutch Z320470770 1
26 油底壳纸垫 Paper gasket Z320470190 1
27 螺钉 Screw Z200020720 1
28 0 型圈 22.4x2.65 O ring 22.4x2.65 B160120224 1
29 油底壳 Oil pan Z320470180 1
30 防松丝φ2x120 Slack wire φ2x120 2 whatsapp 86-18630852087
31 吸油管 Suction tube Z320470400 1
32 永久磁铁 Magnet Z320470390 1
33 0 型圈 42.5x3.55 O ring 42.5x3.55 B160130425 1
34 垫圈 8 Washer 8 B060110802 14
35 螺栓 M8x30 Bolt M8x30 B040910835 4
36 滤油器总成 Oil filter W031600000 1
37 螺栓 M8x25 Bolt M8x25 B040910825 6
38 滤芯 Element Z320470910 WL-100x100-J 1
39 垫片 Spacer 1
40 接头总成 Adapter say 1
41 螺母 M8 Nut M8
42 中间轴调整环 Adjusting spacer B050330807 6
Z3204702401 1
43 中间轴端盖 End cover Middle shaft Z3204702301 1
44 止动片 Lock plate Z320470210 2
45 螺栓 M6x6 Bolt M6x6 B040910606 2
46 调整螺丝 Adjusting screw Z320470220 2
47 倒档轴端盖 End cover reverse Z3204703201 1
48 倒档轴调整环 Adjusting spacer Z3204703301 1 whatsapp 86-18630852087
49 小六角头螺栓 Bolt Z320471420 4
50 输入轴端盖 End cover, input shaft Z320470261 1
51 输入轴调整垫片δ0.05 Shim, input shaft δ0.05 Z320470271 2
输入轴调整垫片δ0.1 Shim, input shaft δ0.1 Z320470281 2
输入轴调整垫片δ0.2 Shim, input shaft δ0.2 Z320470291 2
输入轴调整垫片δ0.3 Shim, input shaft δ0.3 Z320470301 1
输入轴调整垫片δ0.5 Shim, input shaft δ0.5 Z320470311 1
52 油封 PD45x62x12 Oil seal PD45x62x12 B160210036 1
53 螺栓 M10x50 Bolt M10x50 B040911050 6
54 变速操纵阀总成 Gear control valve Z320471140 1
55 螺钉 M4x10 Screw M4x10 B010210410 4
56 挡油盖 Cover Z320470410 1
57 螺栓 M10x35 Bolt M10x35 B040911035 4 whatsapp 86-18630852087
58 变速箱盖 Transmission cover Z320470422 1
59 呼吸器总成 Breather assembly Z320471040 1
60 M14×1.5 低压软管 Low pressure hose M14×1.5 Z3204716701 1
61 螺栓 M10×55 Bolt M10x55 B040811055 2
62 螺栓 M10×1×25 Bolt M10×1×25 B041200002 1
63 组合垫圈 A10 Washer A10 B060811002 2
64 清洁度测试螺栓 Bolt Z320471700 1
65 螺塞 Plug M10×1 B110601010 1
66 垫圈 Washer 10 B060901002 1
67 接头总成 Connector Z321260060 1
68 喉箍 d25 Hose clamp d25 B190120250 1
69 油管 Hose Z3B302001 1 whatsapp 86-18630852087

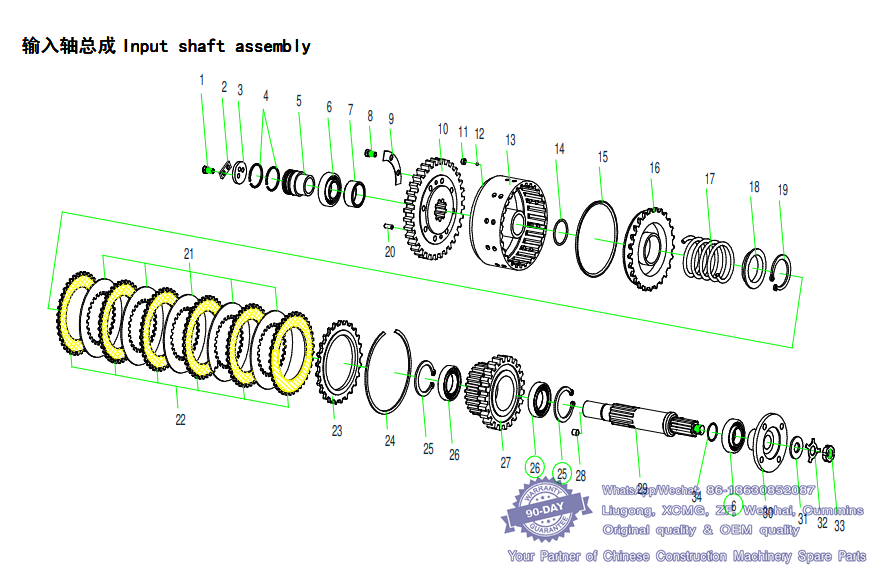

010 输入轴总成 Input shaft assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 螺栓 M8x16 Bolt M8x16 B040910816 2 whatsapp 86-18630852087
2 止动垫 Lock plate Z320470470 1
3 轴端挡板 Apron Z320470480 1
4 活塞环 Piston seal ring Z320470490 2
5 内封油套 Stud sleeve Z320470500 1
6 轴承 7507E Bearing 7507E B120400025 2
7 输入轴轴套 Sleeve Z320470740 1
8 螺栓 M10x25 Bolt M10x25 B040911025 8
9 锁止片 Lock skim Plug Z320470550 1
10 输入轴 2、4 档齿轮 2st,4nd speed gear NZ32047075010 1 Contains 11.12.13
11 球座 Ball seat Z320471680 1
12 钢球 φ5 Steel ball φ5 B120710500 1 whatsapp 86-18630852087
13 齿圈总成 Gear ring seat 1 No supply
14 0 型圈 53x3.55 O ring 53×3.55 B160130001 1
15 活塞外封环 Piston output seal ring Z320470590 1
16 活塞 Piston Z320470580 1
17 弹簧 Spring Z320470630 1
18 弹簧座 Spring retainer Z320470640 1
19 挡圈 60 Snap ring 60 B070256002 1
20 销 A8x22 Pin A8x22 B080110822 2
21 内摩擦片 Driven disc Z320470600 5
22 外摩擦片 Driven disc Z320470680 6
23 外端盘 Output end disc Z320470620 1
24 挡圈 Snap ring Z320470610 1 whatsapp 86-18630852087
25 挡圈 75 Snap ring 75 B070157503 2
26 轴承 109 Bearing 109 B120114516 2
27 输入轴 1、3 档齿轮 1st,3nd speed gear Z320470760 1
28 闷塞 Plug Z320470560 1
29 输入轴 Input shaft Z3204707301 1
30 输入法兰总成 Input shaft flange Z3204706901 1
31 输入轴压板 Input shaft set plate Z320470250 1
32 垫圈 20 Washer 20 B061302004 1
33 螺母 M20x1.5 Nut M20 x1.5 B051312008 1
34 0 型圈 28×5.3 O ring 28×5.3 1 whatsapp 86-18630852087
