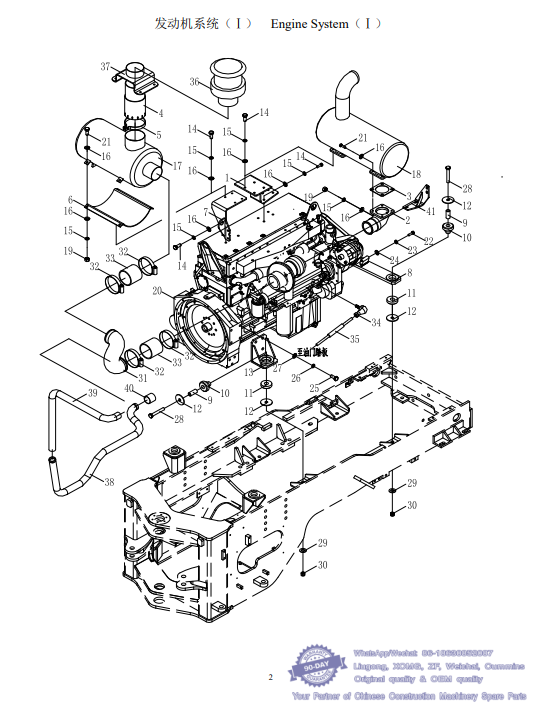

001 发动机系统（Ⅰ） Engine System（Ⅰ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-95H-01C-00009 1 消声器支架957H.1C.3 Silencer holder 1 957H0556-
2 Z-15H-01A-00025 1 排气接管Z50H.1A-11 Pipe 1 957H0556-
3 Z-15H-01A-00026 1 垫板Z50H.1A-4 Plate 1 957H0556-
4 Z-95H-01F-00011 1 预滤器接管957H.1F-7 Pipe 1 957H0556-
5 W-02-00831 1 预紧力卡箍d140 Clamp 1 957H0556-
6 Z-95H-01C-00015 1 空滤器上支架957H.1C.5 Holder 1 957H0556-
7 Z-95H-01C-00018 1 空滤器下支架957H.1C.6 Holder 1 957H0556-
8 Z-96T-01C-00003 1 柴油机右前支座956T.1C.1 Plate 1 957H0556-
9 Z-96T-01C-00007 1 发动机左前支座956T.1C.2 Plate 1 957H0556-
10 Z-95T-010-00024 1 套管955T.1.1-2 Drivepipe 4 957H0556-
11 Z-95T-010-00023 1 缓冲橡胶955T.1.1-1 Cushion 4 957H0556-
12 Z-95T-010-00049 1 盖955T.1-7 Washer 8 957H0556-
13 Z-95H-01F-00002 1 柴油机后支座957H.1F.2 Engine accessory 2 957H0556-
14 B-G057830-00006 1 螺栓 M10×25ZnD Bolt 15 957H0556-
15 B-G000930-00001 1 垫圈 10 Washer 23 957H0556-
16 B-G00097B-00002 1 垫圈 10ZnD Washer 31 957H0556-
17 W-02-00044 1 空滤器总成 Air cleaner ass' y 1 957H0556-
18 W-02-00653 1 消声器结合组 Noise suppresser 1 957H0556-
19 B-G061700-00003 1 螺母 M10ZnD Nut 8 957H0556-
20 W-02-00949 1 康明斯 6LTAA9.3 Engine 1 957H0556-
21 B-G057830-00015 1 螺栓 M10×40ZnD Bolt 8 957H0556-
22 B-G057830-00036 1 螺栓M12×35-10.9ZnD Bolt 8 957H0556-
23 B-G000930-00003 1 垫圈12 Washer 8 957H0556-
24 B-G00097B-00004 1 垫圈12 ZnD Washer 8 957H0556-
25 B-G057830-00075 1 螺栓 M16×45-10.9ZnD Bolt 8 957H0556-
26 B-G000930-00006 1 垫圈 16 Washer 8 957H0556-
27 B-G00097B-00008 1 垫圈 16ZnD Washer 8 957H0556-
28 B-G057850-00119 1 螺栓 M20x1.5x140ZnD Bolt 4 957H0556-
29 B-Q020490-00011 1 垫圈20 Washer 4 957H0556-
30 B-G061710-00014 1 螺母M20x1.5ZnD Nut 4 957H0556-
31 Z-95H-01C-00061 1 进气接管957H.1C-24 Hose 1 957H0556-
32 W-02-00130 1 预紧力弹簧卡箍 115 Clamp 4 957H0556-
33 Z-15H-01A-00032 1 进气胶管 Z50H.1A-15 Hose 2 957H0556-
34 Z-130-01A-00001 1 球铰接头Z30.1A.1 Jiont 2 957H0556-
35 Z-966-01C-00002 1 油门软轴966.1C.2 Flexible shaft 1 957H0556-
36 W-02-00548 1 预滤器 KA17-5 Air Precleaner 1 957H0556-
37 Z-95H-01C-00022 1 预滤器支架957H.1C.7 Holder 1 957H0556-
38 Z-95H-01C-00067 1 空压泵进气钢管957H.1C-25 Hose 1 957H0556-
39 Z-95H-01C-00068 1 空压泵进气胶管957H.1C-26 Hose 1 957H0556-
40 Z-95H-01C-00058 1 双层夹布胶管φ30×160957H.1C-21 Hose 1 957H0556-
41 Z-95H-01C-00012 1 排气接管支架957H.1C.4 Holder 1 957H0556-

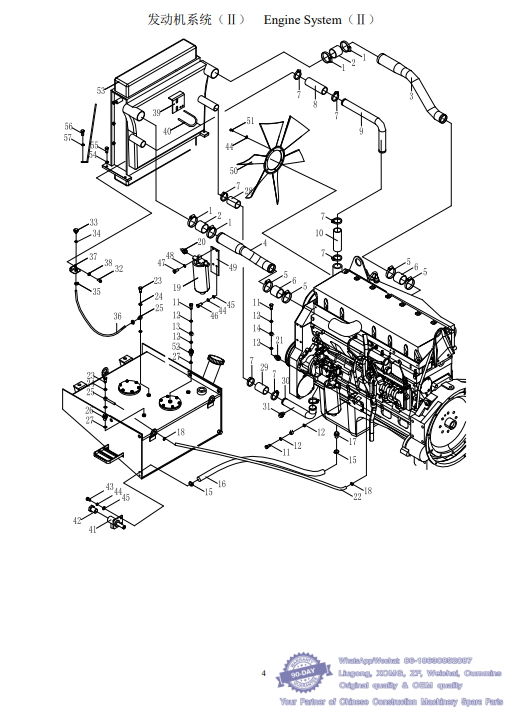

002 发动机系统（Ⅱ） Engine System（Ⅱ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 W-02-00129 1 预紧力弹簧卡箍 99 Clamp 4 957H0556-
2 W-02-00127 1 中冷器进气接管 89×140 Hose 2 957H0556-
3 957H.1F-2 1 中冷器进气管 Hose 1 957H0556-
4 957H.1F-3 1 中冷器出气管 Hose 1 957H0556-
5 1 卡箍（柴油机附件） Clamp 4 957H0556-
6 1 进气接管（柴油机附件） Hose 2 957H0556-
7 W-02-00241 1 预紧力弹簧卡箍 d70 Clamp 8 957H0556-
8 957H.1F-1 1 出水接管 Hose 4 957H0556-
9 956T.1C.6 1 柴油机出水管 Hose 1 957H0556-
10 T-JG-DY-57-170 1 低压输油胶管 Hose 1 957H0556-
11 B-J009990-00005 1 铰接螺栓M18X1.5X38 Bolt 5 957H0556-
12 W-12-00799 1 组合垫圈-320 Washer 6 957H0556-
13 957H.1C-9 1 进油管 Hose 1 957H0556-
14 957H.1C-23 1 进油管 Hose 1 957H0556-
15 B-J088700-00014 1 喉箍 d32 Clamp 2 957H0556-
16 T-JG-DY-19-750 1 低压输油胶管 Hose 1 957H0556-
17 Z50H.1A-7 1 油底壳放油接头 Hose 1 957H0556-
18 B-J088700-00007 1 喉箍 d16 Clamp 2 957H0556-
19 W-02-00155 1 燃油滤清器|F076-B-001 1 957H0556-
20 957H.1C-8 1 油水分离器接头 Hose 2 957H0556-
21 957H.1C-7 1 输油泵进油接头 Hose 1 957H0556-
22 T-JG-DY-8-1700 1 低压输油胶管 Hose 1 957H0556-
23 B-J009990-00001 1 铰接螺栓M14X1.5X32 Bolt 2 957H0556-
24 W-12-00802 1 组合垫圈-316（D14） Washer 4 957H0556-
25 Z-29C-01A-00017 1 接头190C.1A.5 Jiont 2 957H0556-
26 957H.1F-4 1 过渡接头16-14 Jiont 1 957H0556-
27 W-12-00798 1 组合垫圈-317（D16） Washer 2 957H0556-
28 Z-96T-01C-00019 1 水管接管956T.1C-2 Hose 1 957H0556-
29 Z-95H-01F-00001 1 发动机进水管957H.1F.1 Hose 1 957H0556-
30 Z-96T-01C-00020 1 发动机进水接管956T.1C-3 Hose 1 957H0556-
31 W-12-00835 1 球阀QSR-6*M22 Jiont 1 957H0556-
32 B-G057830-00034 1 螺栓M12×30ZnD Bolt 2 957H0556-
33 W-02-00794 1 C型空气滤清器C-M12 Air filter 1 957H0556-
34 W-12-00683 1 组合垫圈-313 Washer 1 957H0556-
35 B-J088700-00010 1 喉箍d20 Clamp 2 957H0556-
36 T-JG-DY-10-660 1 低压输油胶管 Hose 1 957H0556-
37 Z-96T-010-00044 1 油箱透气管支架956T.1.5 Holder 1 957H0556-
38 B-Q020490-00003 1 垫圈12 Washer 2 957H0556-
39 Z-96T-01C-00022 1 出水管支架956T.1C-5 Holder 1 957H0556-
40 W-02-00887 1 圆钢管夹 Clamp 1 957H0556-
41 Z-15B-010-00049 1 螺塞Z50B.1-12 Plug 1 957H0556-
42 Z-15B-010-00040 1 接管Z50B.1.11 Hose 1 957H0556-
43 B-G057830-00003 1 螺栓M10X20ZnD Bolt 3 957H0556-
44 B-G000930-00001 1 垫圈10 Washer 8 957H0556-
45 B-G00097B-00002 1 垫圈10ZnD Washer 4 957H0556-
46 B-G057830-00006 1 螺栓M10X25ZnD Bolt 2 957H0556-
47 B-G057830-00143 1 螺栓M8X25ZnD Bolt 2 957H0556-
48 B-Q020490-00023 1 垫圈8 Washer 2 957H0556-
49 Z-95H-01C-00050 1 连接板957H.1C-14 Board 1 957H0556-
50 W-02-00950 1 BDFSS812X25.4F-5-C Fan 1 957H0556-
51 B-G057830-00194 1 螺栓M10×110ZnD Bolt 4 957H0556-
52 Z-95H-01F-00010 1 过渡接头16-18 957H.1F-5 Joint 1 957H0556-
53 W-08-00461 1 散热器总成 CL-957H-GK Radiator assy 1 957H0556-
54 B-Q020490-00005 1 垫圈14 Washer 4 957H0556-
55 B-G057830-00157 1 螺栓M14×55ZnD Bolt 4 957H0556-
56 B-Q020490-00001 1 垫圈10 Washer 2 957H0556-
57 B-G057830-00010 1 螺栓M10×30ZnD Bolt 2 957H0556-

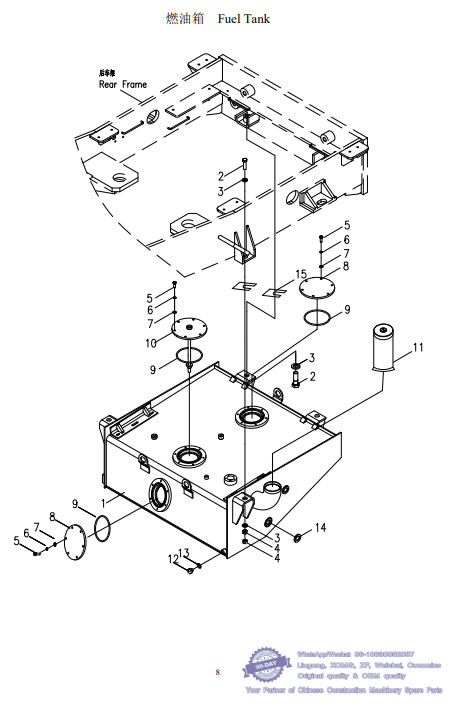

003 燃油箱 Fuel Tank - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-96T-010-00002 1 柴油箱箱体956T.1.1.1 Fuel tank 1 957H0556-
2 B-G057850-00039 1 螺栓M24×2×80-10.9ZnD Bolt 4 957H0556-
3 B-Q020490-00015 1 垫圈24 Washer 6 957H0556-
4 B-G061710-00026 1 螺母 M24×2-10ZnD Nut 4 957H0556-
5 B-G057830-00010 1 螺栓M10×30ZnD Bolt 18 957H0556-
6 B-G000930-00001 1 弹簧垫圈 - 10 Washer 18 957H0556-
7 B-G00097B-00002 1 垫圈 10ZnD Washer 18 957H0556-
8 Z-96T-010-00032 1 盖956T.1.1-1 Cover 2 957H0556-
9 B-G03452A-00102 1 o-ring150×5.3 O-ring 3 957H0556-
10 Z-96T-010-00023 1 吸油盖956T.1.1.2 Cover 1 957H0556-
11 W-12-00647 1 燃油箱加油盖总成 Oil cap 1 957H0556-
12 B-J010000-00004 1 螺塞 M16x1.5ZnD Plug screw 1 957H0556-
13 W-12-00798 1 组合垫圈-317（D16） Washer 1 957H0556-
14 W-02-00793 1 圆形油标YB-M42×1.5 Oil pointer 2 957H0556-
15 Z-96T-010-00057 1 垫片956T.1-9 Washer 6 957H0556-
二、液力变矩器系统 Torque Converter System - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

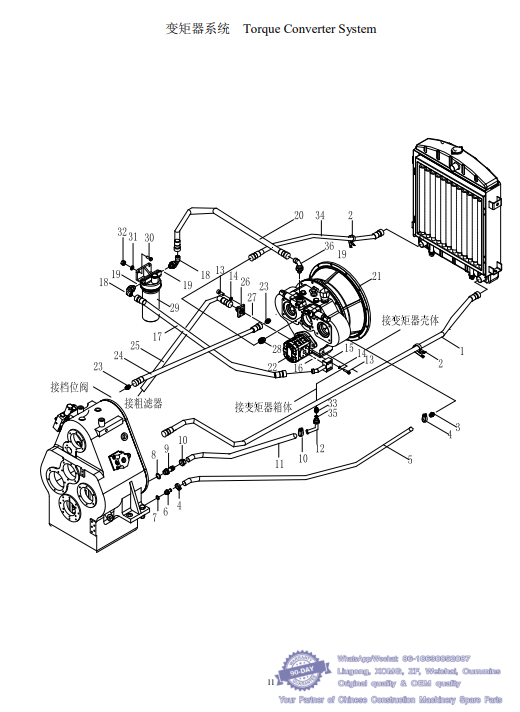

004 变矩器系统 Torque Converter System - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 液力变矩器系统 957H.2D Torque Converter System 1 957H0556-
1 956M.2.1A 1 软管总成 956M.2.1A Tube 1 957H0556-
2 Z-95T-140-00171 1 线夹 955T.14.35 Clamp 2 957H0556-
3 956M.2-1A 1 接头 956M.2-1A Joint 1 957H0556-
4 B-J088700-00014 1 喉箍 d32 Clamp 2 957H0556-
5 T-JG-DY-16-1300 1 低压输油胶管 Tube 1 957H0556-
6 Z-15B-020-00043 1 接头 Z50B.2.9-1 Joint 1 957H0556-
7 B-J010020-00006 1 垫圈 20 Washer 1 957H0556-
8 B-J010020-00010 1 垫圈 30 Washer 1 957H0556-
9 Z-130-020-00067 1 接头 Z30.2.6-2 Joint 1 957H0556-
10 B-J088700-00016 1 喉箍 d50 Clamp 2 957H0556-
11 T-JG-DY-25-750 1 低压输油胶管 Tube 1 957H0556-
12 Z-95M-020-00016 1 接头体 956M.2.6A Joint 1 957H0556-
13 B-G000700-00008 1 螺钉 M10×40 Screw 4 957H0556-
14 B-G000930-00001 1 垫圈 10 Washer 8 957H0556-
15 Z-956-020-00010 1 油泵接头 956.2.3 Pump outlet oil pipe 1 957H0556-
16 B-Q020710-00056 1 O 形圈 35×3.5 O-ring 1 957H0556-
17 Z-95M-020-00003 1 软管总成 956M.2.3 Tube 1 957H0556-
18 Z-936-020-00013 1 接头 936.2.6 Joint 2 957H0556-
19 B-Q020710-00045 1 O 形圈 28×3.5 O-ring 3 957H0556-
20 Z-95M-020-00002 1 软管总成 956M.2.2 Tube 1 957H0556-
21 1 液力变矩器 957H.2D.1 Torque converter 1 957H0556-
22 W-01-00141 1 油泵(左旋)（SAE） Pump 1 957H0556-
23 Z-956-02A-00006 1 过渡接头 956.2A.6 Joint 2 957H0556-
24 Z-956-02A-00003 1 软管总成 956.2A.3 Tube 1 957H0556-
25 Z-956-02A-00005 1 软管总成 956.2A.5 Tube 1 957H0556-
26 Z-956-020-00012 1 管接头 956.2.4 Pump inlet oil joint 1 957H0556-
27 B-Q020710-00126 1 O 形圈 40×3.1 O-ring 1 957H0556-
28 Z-956-02A-00007 1 过渡接头 956.2A.7 Joint 1 957H0556-
29 W-15-01500 1 精滤清器 Fine filter 1 957H0556-
30 B-G057830-00037 1 螺栓 M12×35ZnD Bolt 2 957H0556-
31 B-G000930-00003 1 垫圈 12 Washer 2 957H0556-
32 B-G061700-00007 1 螺母 M12ZnD Nut 2 957H0556-
33 Z-95M-020-00013 1 直角接头 956M.2.6B Joint 1 957H0556-
34 956M.2.1B 软管总成 956M.2.1B Tube 1 957H0556-
35 B-Q020710-00023 1 O 形圈 16x2.4 O-ring 1 957H0556-
36 Z-936-02N-00004 1 接头 936.2N.2 Joint 1 957H0556-

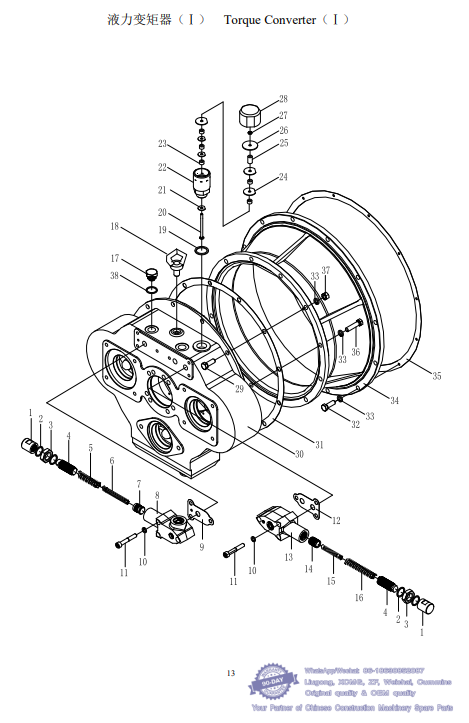

005 液力变矩器（Ⅰ） Torque Converter（Ⅰ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 液力变矩器 957H.2D.1 Torque converter 1 957H0556-
1 Z-130-020-00040 1 螺套 Z30.2.3.1-7 Plug 2 957H0556- N
2 Z-130-020-00038 1 垫圈 24 Z30.2.3.1-6 Washer 4 957H0556- N
3 B-G061730-00012 1 螺母 M24X1.5 Nut 2 957H0556- N
4 Z-130-020-00034 1 螺塞 Z30.2.3.1-5 Plug 2 957H0556- N
5 Z-130-020-00045 1 大弹簧 Z30.2.3.2-3 Big spring 1 957H0556- N
6 Z-130-020-00046 1 小弹簧 Z30.2.3.2-2 Small spring 1 957H0556- N
7 Z-130-020-00043 1 阀芯 Z30.2.3.2-4 Valve core 1 957H0556- N
8 Z-130-020-00044 1 阀体 Z30.2.3.2-1 Valve body 1 957H0556- N
9 Z-130-020-00023 1 密封垫 Z30.2.3-31 Seal washer 1 957H0556-
10 B-G000930-00001 1 垫圈 10 Spring washer 6 957H0556-
11 B-G000700-00010 1 螺钉 M10×65 Screw 6 957H0556-
12 Z-130-020-00047 1 密封垫 Z30.2.3-29 Seal washer 1 957H0556-
13 Z-130-020-00044 1 阀体 Z30.2.3.1-2 Valve body 1 957H0556- N
14 Z-130-020-00043 1 阀芯 Z30.2.3.1-1 Valve core 1 957H0556- N
15 Z-130-020-00046 1 小弹簧 Z30.2.3.1-4 Small spring 1 957H0556- N
16 Z-130-020-00045 1 大弹簧 Z30.2.3.1-3 Big spring 1 957H0556- N
17 Z-130-020-00032 1 螺塞 Z30.2.3-30 Plug 2 957H0556-
18 B-G008250-00001 1 螺钉 M16 Screw 1 957H0556-
19 B-J010020-00010 1 垫圈 30 Spring washer 1 957H0556-
20 Z-316-04D-00007 1 螺栓 YZ16.4D.6-6 Bolt 1 957H0556- N
21 Z-316-04D-00002 1 垫 YZ16.4D.6-1 Disc 3 957H0556- N
22 Z-316-04D-00001 1 通气杯 YZ16.4D.6-8 Aerated cup 1 957H0556- N
23 Z-316-04D-00003 1 短套 YZ16.4D.6-2 Short sleeve 5 957H0556- N
24 Z-316-04D-00004 1 垫 YZ16.4D.6-3 Washer 3 957H0556- N
25 Z-316-04D-00005 1 长套 YZ16.4D.6-4 Long sleeve 1 957H0556- N
26 Z-316-04D-00006 1 垫圈 YZ16.4D.6-5 Washer 1 957H0556- N
27 B-G061720-00016 1 螺母 M6ZnD Nut 1 957H0556-
28 Z-316-04D-00008 1 外套 YZ16.4D.6-7 Outer sleeve 1 957H0556- N
29 B-G057830-00045 1 螺栓 M12×50 ZnD Bolt 6 957H0556-
30 Z-95M-020-00005 1 箱体 956M.2.5B-1 Case 1 957H0556-
31 Z-15B-020-00016 1 垫 Z50B.2.1-38 Washer 1 957H0556-
32 B-G057830-00015 1 螺栓M10×40ZnD Bolt 12 957H0556-
33 B-G000930-00001 1 垫圈 10 Spring washer 24 957H0556-
34 1 壳体 957H.2D-1 Case 1 957H0556-
35 1 垫 Z50B.2.1-34C Washer 1 957H0556-
36 B-G057830-00034 1 螺栓 M12×30 ZnD Bolt 6 957H0556-
37 B-G061700-00007 1 螺母 M12 ZnD Nut 6 957H0556-
38 B-J010020-00008 1 垫圈 24 Washer 2 957H0556-

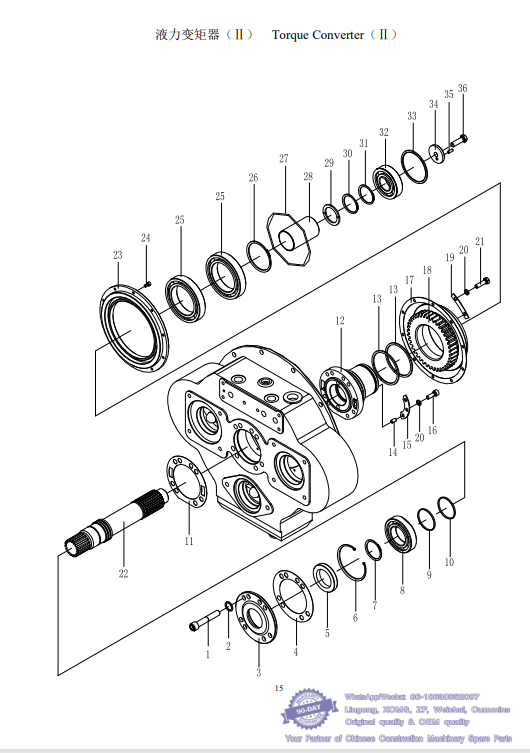

006 液力变矩器（Ⅱ） Torque Converter（Ⅱ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 B-G000700-00017 1 螺钉 M12×70 Screw 8 957H0556-
2 B-J010020-00002 1 垫圈 12 Copper 8 957H0556-
3 Z-15B-020-00036 1 轴承盖 Z50B.2.1-8 Bearing 1 957H0556-
4 Z-15B-020-00051 1 垫 Z50B.2.1-7 Washer 1 957H0556-
5 W-15-00112 1 AE3062E1(NOK) Oil seal 1 957H0556-
6 B-G00893A-00001 1 挡圈 100 Snap ring 1 957H0556-
7 B-G00894A-00019 1 挡圈 55 Snap ring 1 957H0556-
8 B-G002760-00021 1 轴承 6211 Bearing 1 957H0556-
9 Z-130-020-00011 1 密封环 Z30.2.3-12A Seal ring 1 957H0556-
10 Z-130-020-00087 1 密封环 Z30.2.3-12B Seal ring 1 957H0556-
11 Z-15B-020-00046 1 垫 Z50B.2.1-10 Washer 1 957H0556-
12 Z-15B-020-00037 1 导轮座 Z50B.2.1-11 Stator 1 957H0556-
13 Z-15B-020-00004 1 密封环 Z50B.2.1-13 Seal ring 2 957H0556-
14 B-G001190-00019 1 销 A8×16 Pin 4 957H0556-
15 Z-15B-020-00017 1 垫片 Z50B.2.1-6 Gasket 2 957H0556-
16 B-G000700-00037 1 螺钉 M8×25ZnD Screw 6 957H0556-
17 Z-15B-020-00005 1 垫 Z50B.2.1-14 Washer 1 957H0556-
18 Z-15B-020-00069 1 齿轮 Z50B.2.1-5L Gear 1 957H0556-
19 Z-15B-020-00002 1 垫片 Z50B.2.1-37 Washer 8 957H0556-
20 B-G000930-00017 1 垫圈 8 Spring 22 957H0556-
21 B-G057830-00146 1 螺栓 M8×30ZnD Bolt 16 957H0556-
22 Z-15E-02H-00005 1 涡轮轴 Z50E.2H.1-5 Turbine 1 957H0556-
23 Z-15B-020-00025 1 油盘盖 Z50B.2.1-15 Cover 1 957H0556-
24 B-G000700-00030 1 螺钉 M6×12 Screw 10 957H0556-
25 B-G002760-00011 1 轴承 6017 Bearing 2 957H0556-
26 B-G00894A-00024 1 挡圈 85 Snap ring 1 957H0556-
27 Z-15B-020-00053 1 O 形密封圈 Z50B.2.1-39 O-ring 1 957H0556-
28 Z-15B-020-00033 1 隔套 Z50B.2.1-12 Spacer 1 957H0556-
29 Z-15E-02H-00007 1 垫片 Z50E.2H.1-7 Gasket 2 957H0556-
30 Z-15E-02H-00008 1 挡圈 Z50E.2H.1-8 Snap ring 1 957H0556-
31 B-G00894A-00018 1 挡圈 52 Snap ring 1 957H0556-
32 B-G002760-00027 1 轴承 6308N Bearing 1 957H0556-
33 B-G003050-00002 1 止动环 90 Stop ring 1 957H0556-
34 Z-130-020-00022 1 压板 Z30.2.3-34 Clamping 1 957H0556-
35 B-G001190-00016 1 销 A6×16 Pin 1 957H0556-
36 B-G057830-00041 1 螺栓 M12×40ZnD Bolt 1 957H0556-

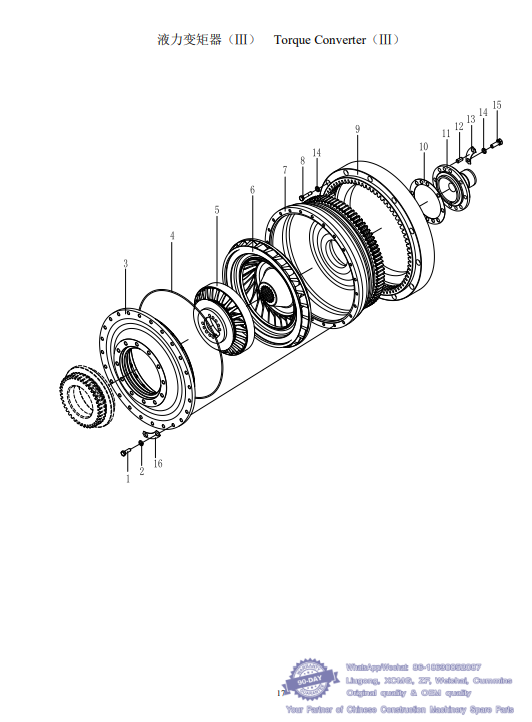

007 液力变矩器（Ⅲ）Torque Converter（Ⅲ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 B-G057830-00140 1 螺栓 M8×25 Bolt 24 957H0556-
2 B-G000930-00017 1 垫圈 8 Washer 24 957H0556-
3 Z-15E-02H-00001 1 泵轮 Z50E.2H.1-1 Pump 1 957H0556- N
4 Z-15B-020-00014 1 O 形密封圈 Z50B.2.1-35 Washer 1 957H0556-
5 Z-15E-02H-00003 1 导轮 Z50E.2H.1-3 Stator 1 957H0556- N
6 Z-15E-02H-00002 1 涡轮 Z50E.2H.1-2 Turbine 1 957H0556-
7 Z-15E-02H-00004 1 泵壳 Z50E.2H.1-4 Pump 1 957H0556-
8 B-G000700-00009 1 螺钉 M10×55 Screw 12 957H0556-
9 1 齿圈 957H.2D-2 Gear ring 1 957H0556-
10 Z-15B-020-00011 1 垫 Z50B.2.1-24 Washer 1 957H0556-
11 1 泵壳轴 957H.2D-3 Shaft 1 957H0556-
12 B-G001190-00002 1 销 A10×20 Pin 2 957H0556-
13 Z-15B-020-00013 1 垫片 Z50B.2.1-32 Washer 2 957H0556-
14 B-G000930-00001 1 垫圈 10 Spring washer 20 957H0556-
15 B-G057830-00010 1 螺栓 M10×30ZnD Bolt 8 957H0556-
16 Z-15B-020-00015 1 垫片 Z50B.2.1-36 Washer 12 957H0556-

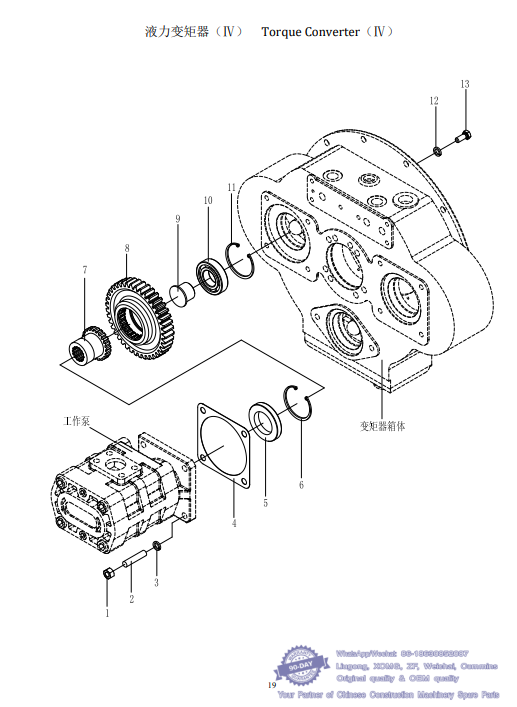

008 液力变矩器（Ⅳ） Torque Converter（Ⅳ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 B-G061700-00007 1 螺母 M12 ZnD Nut 4 957H0556-
2 B-G009010-00008 1 双头螺柱 M12×55 Stud bolt 4 957H0556-
3 B-G000930-00003 1 垫圈 12 Spring washer 4 957H0556-
4 Z-936-020-00008 1 垫 936.2.2-5 Pad 1 957H0556-
5 B-G09877A-00023 1 油封 FB50×80×12 Oil seal 1 957H0556-
6 B-G00893A-00012 1 挡圈 70 Snap ring 1 957H0556-
7 Z-956-020-00020 1 联接套 956.2.5-3B Connect sleeve 1 957H0556-
8 Z-130-020-00094 1 齿轮 Z30.2.3-43 Gear 1 957H0556-
9 Z-15B-020-00032 1 芯轴 Z50B.2.1-4 Shaft 1 957H0556-
10 B-G002760-00015 1 轴承 6207 Bearing 1 957H0556-
11 B-G00893A-00013 1 挡圈 72 Snap ring 1 957H0556-
12 B-G000930-00001 1 垫圈 10 Spring washer 1 957H0556-
13 B-G057860-00004 1 螺钉 M10×1×32 Screw 1 957H0556-

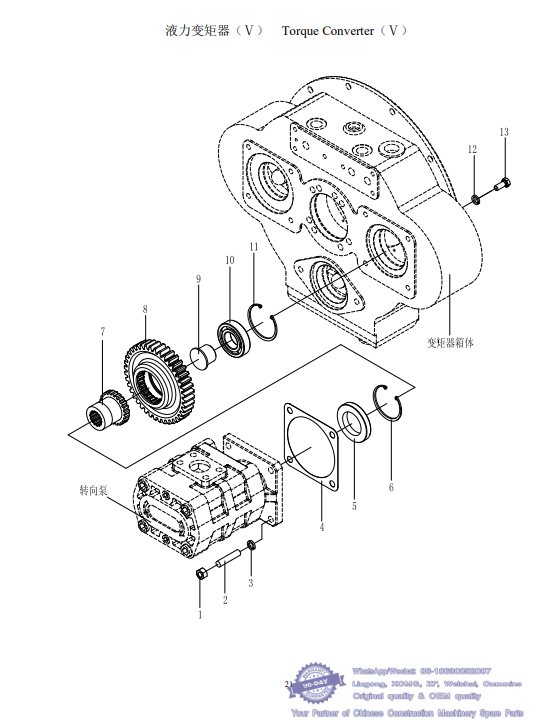

009 液力变矩器（Ⅴ） Torque Converter（Ⅴ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 B-G061700-00007 1 螺母 M12 ZnD Nut 4 957H0556-
2 B-G009010-00008 1 双头螺柱 M12×55 Stud bolt 4 957H0556-
3 B-G000930-00003 1 垫圈 12 Spring washer 4 957H0556-
4 Z-936-020-00008 1 垫 936.2.2-5 Pad 1 957H0556-
5 B-G09877A-00027 1 油封 FB55×85×12 Oil seal 1 957H0556-
6 B-G00893A-00015 1 挡圈 78 Snap ring 1 957H0556-
7 Z-956-020-00021 1 联接套 956.2.5-4B Connect sleeve 1 957H0556-
8 Z-15B-020-00052 1 齿轮 Z50B.2.1-27 Gear 1 957H0556-
9 Z-15B-020-00028 1 芯轴 Z50B.2.1-28 Shaft 1 957H0556-
10 B-G002760-00016 1 轴承 6208 Bearing 1 957H0556-
11 B-G00893A-00016 1 挡圈 80 Snap ring 1 957H0556-
12 B-G000930-00001 1 垫圈 10 Spring washer 1 957H0556-
13 B-G057860-00004 1 螺钉 M10×1×32 Screw 1 957H0556-

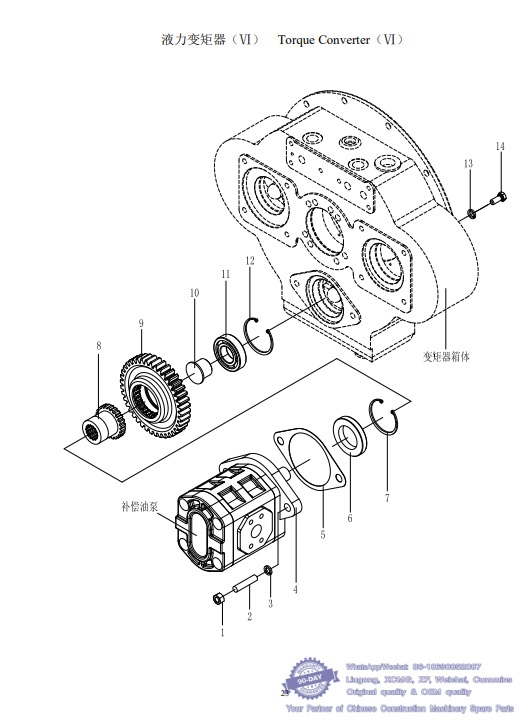

010 液力变矩器（Ⅵ） Torque Converter（Ⅵ） - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
1 Z-130-02D-00028 1 螺母 Z30.2D.1-21 Nut 2 957H0556-
2 B-G009010-00005 1 双头螺栓 M14×55 Stud bolt 2 957H0556-
3 B-G000930-00005 1 垫圈 14 Spring washer 2 957H0556-
4 W-01-00141 1 油 泵 ( 左 旋 )CBGj1045（SAE） Pump 1 957H0556-
5 Z-936-020-00007 1 垫 936.2.2-4 Pad 1 957H0556-
6 B-G09877A-00023 1 油封 FB50×80×12 Oil seal 1 957H0556-
7 B-G00893A-00012 1 挡圈 70 Snap ring 1 957H0556-
8 Z-956-020-00019 1 联接套 956.2.5-2A Connecting sleeve 1 957H0556-
9 Z-130-020-00094 1 齿轮 Z30.2.3-43 Gear 1 957H0556-
10 Z-15B-020-00032 1 芯轴 Z50B.2.1-4 Shaft 1 957H0556-
11 B-G002760-00015 1 轴承 6207 Bearing 1 957H0556-
12 B-G00893A-00013 1 挡圈 72 Snap ring 1 957H0556-
13 B-G000930-00001 1 垫圈 10 Spring washer 1 957H0556-
14 B-G057860-00004 1 螺钉 M10×1×32 Screw 1 957H0556-
