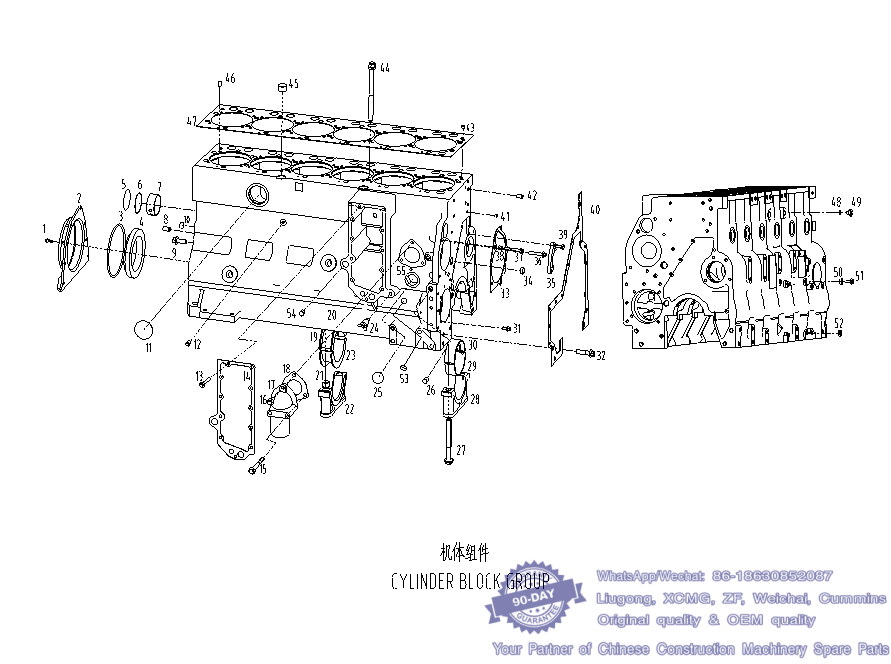

001 机体组件 CYLINDER BLOCK GROUP D02A-000-900+F-- Shangchai Engine SC9D340D2 DBL2382 B SERIES Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 Q/SC622-M6*16:六角法兰面螺栓 HEXAGON BOLTS B00002114
2 后盖板 PLATE D02A-115-01B+B whatsapp 86-18630852087
3 后盖板O型密封圈 O-RING D02A-116-01+B
4 曲轴后端油封 O-RING D02A-118-02B+B
5 凸轮轴承座孔闷头 EXPANSION PLUG, CAMSHAFT BEARING D02A-162-40+B
6 O型圈 O-RING D02A-324-40+A
7 凸轮轴轴承 BUSHING, CAMSHAFT D02A-113-01B+A
8 GB/T119-A12*24:圆柱销 PIN B00000102
9 Q/SC622-M12*40-10.9:六角法兰面螺栓 HEXAGON BOLTS B00002058
10 闷头 PLUG D02A-310-01+A
11 闷头 PLUG D04-133-01+B whatsapp 86-18630852087
12 螺塞Z1/8 PIPE PLUG D02A-166-01+C
13 Q/SC622-M8*65-10.9:六角法兰面螺栓 HEXAGON BOLTS B00002159
14 机油冷却器垫片 GASKET, OIL COOLER D02A-133-900+B
15 Q/SC622-M10*110-10.9:六角法兰面螺栓 HEXAGON BOLTS B00001992
16 Q/SC622-M10*25:六角法兰面螺栓 HEXAGON BOLTS B00001999
17 水泵进水管 WATER PUMP INLET PIPE D02A-502-900+B
18 水泵进水口垫片 WATER PUMP INLET GASKET D02A-500-900+A
19 曲轴推力轴瓦上 THRUST BEARING, CRANKSHAFT（UP） D02A-111-900+A
20 机体 CYLINDER BLOCK D02A-101-900+C
21 套筒销 DOWEL SLEEVE D02A-322-900+B
22 主轴承盖 CAP, MAIN BEARING D02A-105-901+A
23 曲轴推力轴瓦下 THRUST BEARING, CRANKSHAFT（DOWN） D02A-323-900+A
24 放水开关 WATER DRAIN COCK D02A-178-900+A
25 闷头 PLUG D04-167-01A+A
26 定位销 DOWEL PIN D02A-305-900+A
27 主轴承盖螺栓 BOLT, MAIN BEARING CAP D02A-106-900+B
28 主轴承盖 CAP, MAIN BEARING D02A-105-900+B
29 主轴承下瓦 MAIN BEARING（DOWN） D02A-112-900+A whatsapp 86-18630852087
30 主轴承上瓦 MAIN BEARING（UP） D02A-110-900+A
31 Q/SC622-M8*35:六角法兰面螺栓 HEXAGON BOLTS B00002142
32 Q/SC622-M12*50:六角法兰面螺栓 HEXAGON BOLTS B00002042
33 垫片 GASKET D02A-307-01+D
34 闷头 PLUG D02A-161-01+A
35 凸轮轴推力板 THRUST PLATE, CAMSHAFT D02A-114-01C+A
36 Q/SC622-M8*50:六角法兰面螺栓 HEXAGON BOLTS B00002150
37 Q/SC622-M8*55:六角法兰面螺栓 HEXAGON BOLTS B00002153
38 GB/T879-12*12:弹性圆柱销 ELASTIC PIN B00001020
39 GB/T5783-M8*20:六角头螺栓 HEXAGON HEAD BOLT B00000631
42 GB/T119-A10*20:圆柱销 PIN B00000098
43 节流塞 THROTTLE PLUG D02A-813-900+A
44 气缸盖螺栓 BOLT, CYLINDER HEAD D02A-107-900+B
45 闷头 PLUG D04-166-01A+A
46 圆柱销 PIN D02A-312-01+A
47 气缸盖垫片 GASKET, CYLINDER HEAD D02A-109-901+B
48 Q/SC648-15.8*2.4:O型橡胶密封圈 O-RING B00002472
49 Q/SC584.2-M18*1.5:内六角螺塞 HEX SOCKET PIPE PLUG B00001705
50 垫块 SPACER D02A-321-901+B
51 Q/SC622-M8*30:六角法兰面螺栓 HEXAGON BOLTS B00002139
52 垫块 SPACER D02A-321-900+B
53 闷头φ20 PLUG D02A-161-31+B whatsapp 86-18630852087
54 隔套 SPACER D02A-304-900+A
55 内六角螺塞Z1/2 HEX SOCKET PIPE PLUG D02A-164-01+B
机体机械加工部件 CYLINDER BLOCK MACHINED ASSEMBLY D02A-002-900+D

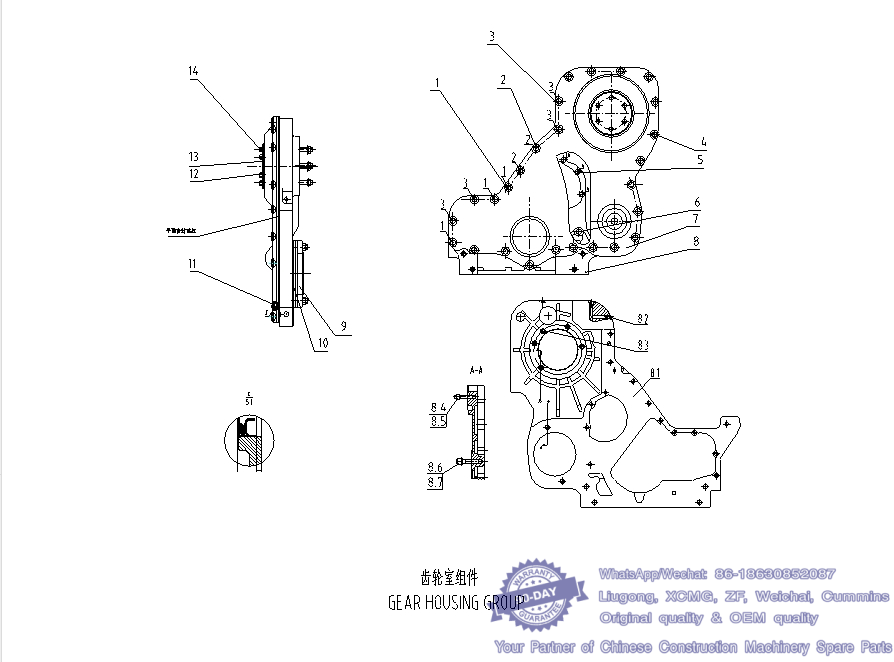

002 齿轮室组件 GEAR HOUSING GROUP-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 Q/SC622-M8*60: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002156
2 Q/SC622-M8*55: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002153
3 GB/T5782-M8*60: 六角头螺栓 HEXAGON HEAD BOLT B00000488
4 Q/SC622-M8*25: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002137
5 Q/SC622-M8*20-10.9:六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002135 Q/SC622-M8*35-10.9:六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002143
7 齿轮室罩盖 COVER, GEAR HOUSING S00007801+02 whatsapp 86-18630852087
8 齿轮室装配部件 GEAR HOUSING ASSY S00007925+01
8.1 齿轮室 GEAR HOUSING S00007793+01
8.2 内六角螺塞 PLUG D04-132-01+A
8.3 GB3452.1-9*2.65: O形橡胶密封圈 O-RING B00001391
8.4 GB/T899-GM10-M10*35-8.8-Y: 双头螺柱 STUD B00001104
8.5 GB/T6177-M10-Y: 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP B00000833 whatsapp 86-18630852087
8.6 GB/T899-GM12-M12*30-8.8-Y: 双头螺柱 STUD B00001123
8.7 GB/T6177-M12-Y: 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP B00000836
9 PTO接口盖板 PTO PLATE D02B-105-40+C
10 PTO接口垫片 PTO GASKET D02B-106-40+B
11 曲轴前端油封 CRANKSHAFT FRONT SEAL D02B-104-02A+B
12 齿轮室盖板垫片 GASKET, GEAR HOUSING COVER PLATE S00008051+01
13 齿轮室罩盖盖板 PLATE, GEAR HOUSING COVER S00007831+01
14 Q/SC622-M6*10: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002110

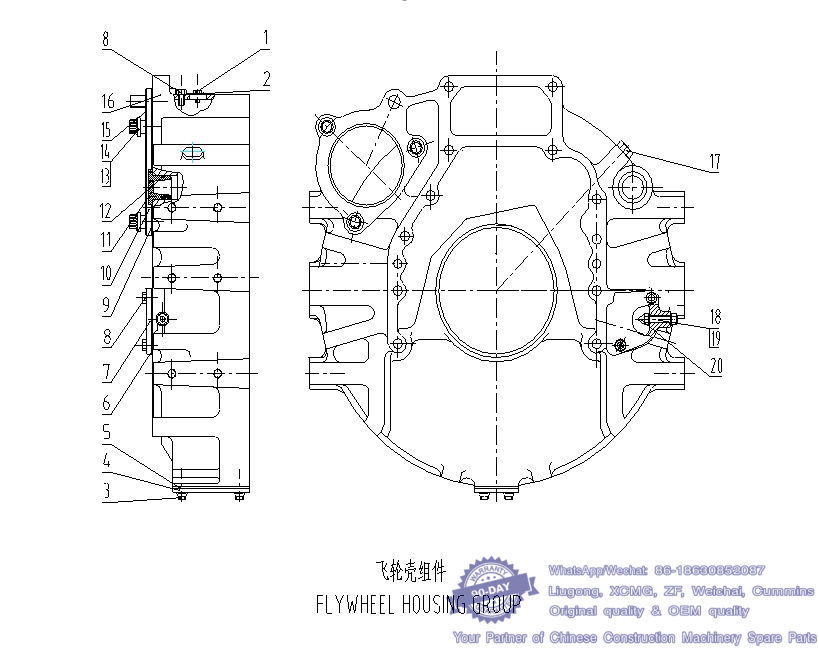

003 飞轮壳组件 FLYWHEEL HOUSING GROUP-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 Q/SC622-M6*12: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002111 whatsapp 86-18630852087
2 盖板 COVER-PLATE D02C-104-05+A
3 Q/SC622-M8*12: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002130
4 飞轮壳开口盖板 PLATE WITH OPENING, FLYWHEEL HOUSING D02C-149-02+A
5 飞轮壳开口盖板垫片 GASKET, PLATE WITH OPENING-FLYWHEEL HOUSING D02C-151-02+A
6 盖板垫片 GASKET D02C-105-03+C
7 盖板 COVER-PLATE D02C-104-31+A
8 Q/SC622-M8*16: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002132
9 垫片 GASKET D02C-109-02+B
10 启动电机连接法兰 STARTING MOTOR FLANGE D02C-102-07+B
11 盘车孔塞 BARRING BORE PLUG D02C-106-01+A
12 GB/T3452.1-23.6*3.55: O形橡胶密封圈 O-RING B00000300
13 GB/T97.1-16-200HV-Y: 平垫圈 PLAIN WASHER B00001284
14 十二角头螺栓 12-POINT HEAD BOLT WITH FLANGE D02C-110-01+B whatsapp 86-18630852087
15 启动电机垫片 STARTING MOTOR GASKET D02C-108-02+B
16 飞轮壳 FLYWHEEL HOUSING D02C-101-01B+B
17 Q/SC587.1-M18*1.5: 六角头螺塞 HEXAGON PIPE PLUG B00001728
18 Q/SC622-M8*45: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002147
19 GB/T6177-M8-Y: 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP B00000846 whatsapp 86-18630852087
20 指针 INDICATOR D02C-103-01+C

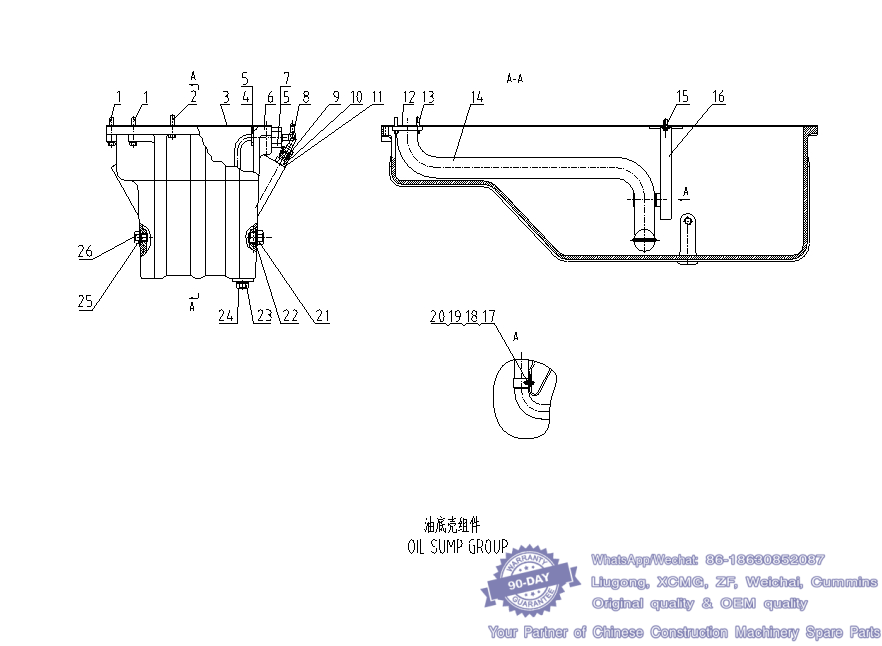

004 油底壳组件 OIL SUMP GROUP-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 Q/SC622-M8*45:六角法兰面螺栓 HEXAGON BOLTS B00002147 whatsapp 86-18630852087
2 Q/SC622-M8*35:六角法兰面螺栓 HEXAGON BOLTS B00002142
3 油底壳垫片 BRACKET, OIL PAN D03-104-901+B
4 回油管焊接部件 OIL RETURN PIPE ASSY (WELDED) D03-030-901+A
5 Q/SC1294-24:复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001552
6 油底壳部件 OIL SUMP ASSY D03-001-901+C
7 GB/T6170-M24-Y:I型六角螺母 HEXAGON NUT (TYPE 1) B00000782
8 弯管接头 CONNECTOR D03-304-02+B
9 Q/SC1294-12:复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001546
10 油尺螺纹接头 JOINT (THREADED), OIL DIPSTICK D03-108-01A+B
11 Q/SC1294-14:复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001547
12 吸油管法兰垫片 GASKET, PIPE FLANGE-OIL SUCTION PUMP D19-114-900+B
13 Q/SC622-M10*25:六角法兰面螺栓 HEXAGON BOLTS B00001999
14 吸油管焊接部件 OIL SUCTION PIPE ASSY (WELDED), OIL SUCTION PUMP D19-001-901+B
15 Q/SC622-M6*12:六角法兰面螺栓 HEXAGON BOLTS B00002111
16 吸油管支架 BRACE, OIL SUCTION PIPE-OIL SUCTION PUMP D19-105-901+A
17 Q/SC622-M6*20:六角法兰面螺栓 HEXAGON BOLTS B00002118
18 GB/T93-6:标准型弹簧垫圈 STANDARD SPRING WASHER B00001252
19 GB/T6177-M6-Y:六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD B00000843
20 GB/T97.1-6-200HV-Y:平垫圈 PLAIN WASHER B00001297
21 Q/SC587.1-M22*1.5:六角头螺塞 HEXAGON PIPE PLUG B00001730 whatsapp 86-18630852087
22 复合式密封硬垫圈 RUBBER COATED HARD WASHER D03-110-03+A
23 Q/SC587.1-M18*1.5:六角头螺塞 HEXAGON PIPE PLUG B00001728
24 复合式密封硬垫圈 RUBBER COATED HARD WASHER D03-110-02+A
25 复合式密封硬垫圈 RUBBER COATED HARD WASHER D03-110-01+A
26 Q/SC587.1-M16*1.5:六角头螺塞 HEXAGON PIPE PLUG B00001727 whatsapp 86-18630852087

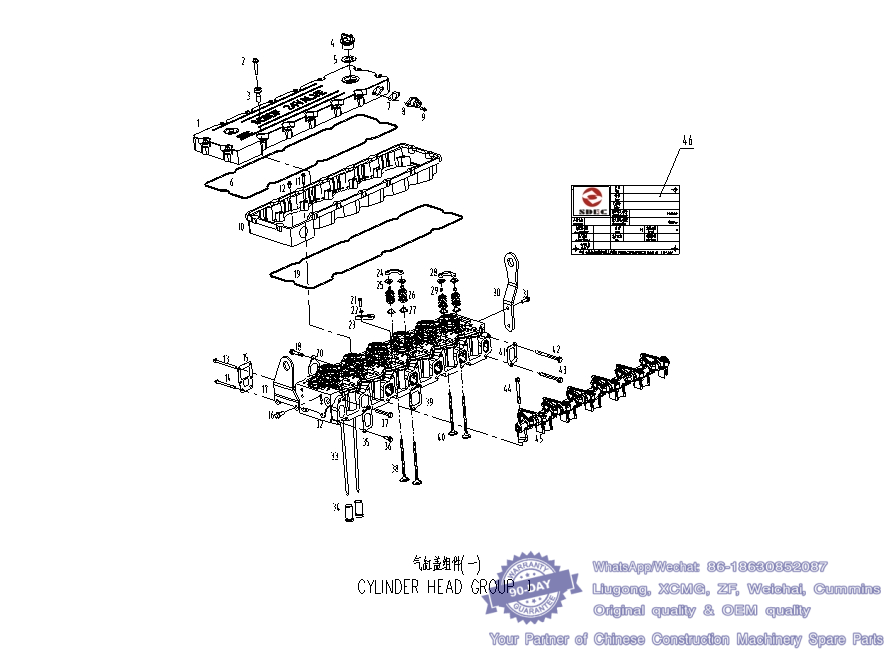

005 气缸盖组件 CYLINDER HEAD GROUP -- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 气缸盖罩壳 VALVE COVER D04-134-902+A
2 Q/SC622-M8*70:六角法兰面螺栓 HEXAGON BOLTS B00002161
3 缸盖罩壳减震垫 ISOLATOR ,VIBRATION S00000060+01 whatsapp 86-18630852087
4 加油盖 COVER, OIL FILLER D04-138-01A+A
5 加油盖垫片 GASKET D04-139-02+A
6 气缸盖罩壳密封垫 GASKET D04-135-901+A
7 垫片 GASKET D04-334-900+A
8 出气管焊接部件 AIR OUTLET PIPE ASSY (WELDED) S00008321+02
9 Q/SC622-M8*16:六角法兰面螺栓 HEXAGON BOLTS B00002132
10 气缸盖中间罩壳部件 CYLINDER HEAD INTERMEDIATE COVER ASSY S00008808+01
11 Q/SC622-M8*40:六角法兰面螺栓 HEXAGON BOLTS B00002145
12 Q/SC622-M8*20:六角法兰面螺栓 HEXAGON BOLTS B00002134
13 六角法兰面螺栓 HEXAGON BOLTS D04-152-900+A
14 六角法兰面螺栓 HEXAGON BOLTS D02A-311-02+A whatsapp 86-18630852087
15 调温器垫片 GASKET, THERMOSTAT D04-304-900+A
16 Q/SC622-M12*35:六角法兰面螺栓 HEXAGON BOLTS B00002054
17 前吊环 FRONT LIFTING EYE D04-142-900+B
18 排气管螺栓 BOLT EXHAUST MANIFOLD D04-145-30A+C
19 中间罩壳密封垫 SEAL D04-337-901+A
20 排气管垫片 GASKET, EXHAUST MANIFOLD S00000500+01
21 六角法兰面螺栓 HEXAGON BOLTS D03-112-01+A
22 GB/T849-8:球面垫圈 WASHER WITH BALL FACE B00000973
23 喷油器压板 CLAMP, INJECTOR D04-147-900+B
24 进气门桥 VALVE BRIDGE, INTAKE D04-329-900+B
25 气门弹簧上座 VALVE SPRING RETAINER D04-114-900+B
26 气门弹簧 VALVE SPRING D04-113-900+A
27 气门杆油封 VALVE STEM SEAL D04-105-900+B
28 排气门桥 VALVE BRIDGE, EXHAUST D04-330-900+B
29 气门锁夹 VALVE COLLET D04-115-900+B
30 后吊环 REARLIFTING EYE D04-143-900+B
31 Q/SC622-M12*35:六角法兰面螺栓 HEXAGON BOLTS B00002054

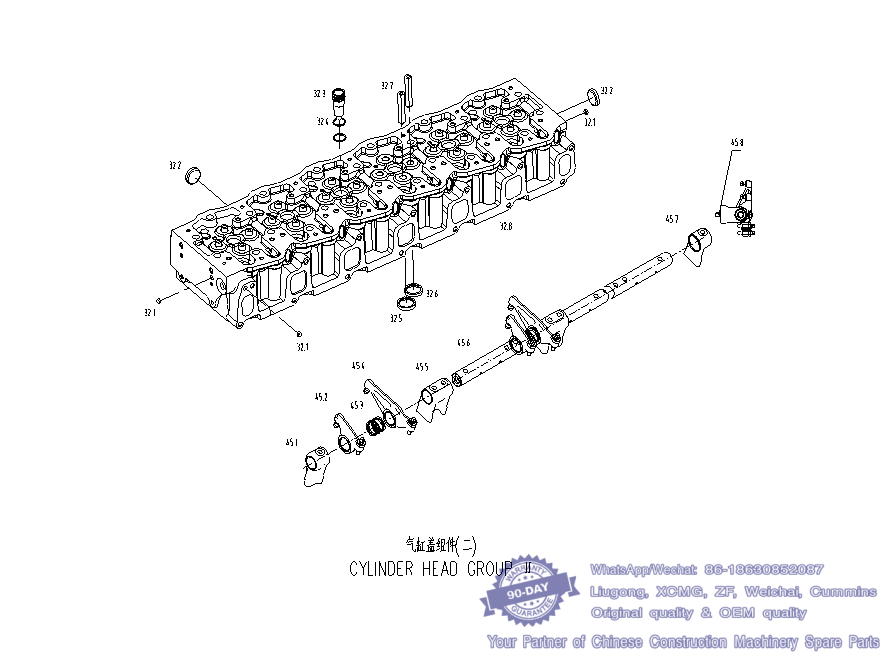

32 气缸盖部件 CYLINDER HEAD ASSY D04-001-900+B
32.1 圆柱闷头 CUP PLUG D02A-309-01+B
32.2 闷头 PLUG D04-167-01A+A
32.3 喷油器隔套 SPACING SLEEVE, INJECTOR D04-321-900+B
32.4 O型圈 O-RING D04-323-01+A
32.5 进气门座圈 VALVE SEAT INERT, INTAKE D04-102-901+A whatsapp 86-18630852087
32.6 排气门座圈 VALVE SEAT INSERT, EXHAUST D04-103-900+A
32.7 气门导管 VALVE GUIDE D04-104-900+A
32.8 气缸盖 CYLINDER HEAD D04-101-900+A
33 推杆 PUSH ROD D04-128-900+B
34 挺柱 TAPPET D04-127-30C+D
35 进气管垫片 GASKET, AIR INTAKE PIPE D04-131-900+A
36 Q/SC622-M10*30:六角法兰面螺栓 HEXAGON BOLTS B00002001
Q/SC622-M10*25:六角法兰面螺栓 B00001999
37 Q/SC622-M10*35:六角法兰面螺栓 HEXAGON BOLTS B00002004
38 进气门 VALVE, INTAKE D04-110-901+A
39 进气管垫片 GASKET, AIR INTAKE PIPE D04-131-901+A
40 排气门 VALVE, EXHAUST D04-111-900+B
41 进气管垫片 GASKET, AIR INTAKE PIPE D04-131-902+A whatsapp 86-18630852087
42 Q/SC622-M10*55:六角法兰面螺栓 HEXAGON BOLTS B00002016
43 Q/SC622-M10*100:六角法兰面螺栓 HEXAGON BOLTS B00001989
Q/SC622-M10*110:六角法兰面螺栓 B00001991
44 Q/SC622-M10*90:六角法兰面螺栓 HEXAGON BOLTS B00002032
45 摇臂及摇臂轴装配部件 ROCKER ARM AND SHAFT ASSY D04-015-900+A
45.1 摇臂座 PEDESTAL, ROCKER ARM D04-118-900+A
45.2 进气门摇臂总成 ROCKER ARM ASSY, INTAKE D04-013-900+B
45.3 摇臂轴弹簧 SPRING, ROCKER ARM D04-335-900+A
45.4 排气门摇臂总成 ROCKER ARM ASSY, EXHAUST D04-014-900+B
45.5 摇臂座 PEDESTAL, ROCKER ARM D04-118-902+A
45.6 摇臂轴部件 SHAFT ASSY, ROCKER ARM D04-005-900+A whatsapp 86-18630852087
45.7 摇臂座 PEDESTAL, ROCKER ARM D04-118-901+A
45.8 Q/SC622-M10*90:六角法兰面螺栓 HEXAGON BOLTS B00002032
46 发动机铭牌 NAMEPLATE, ENGINE S00010659+01
