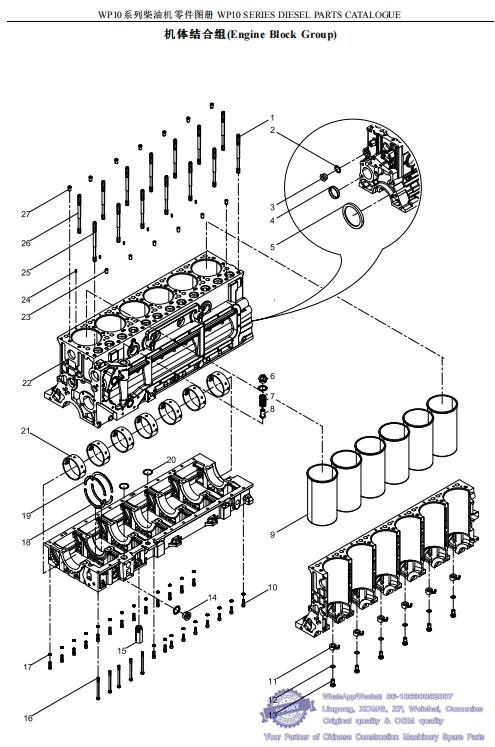

001 机体结合组(Engine Block Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 61500010185 6 气缸盖螺栓 Cylinder head bolt whatsapp 86-18630852087
2 612600010735 3 复合垫圈 Washer
3 61460070011 1 主油道后螺塞 Plug
4 90003989288 1 碗形塞 Corehole plug
5 61500010100 1 后油封 Rear oil seal
6 612600070160 1 六角螺塞 Hexagon plug
7 614070068 1 安全阀弹簧 Safety valve spring
8 614070069 1 安全阀 Safety valve
9 612630010015 6 气缸套 Cylinder liner
10 90003862428 22 内六角圆柱头螺钉 Inner hexagon screw whatsapp 86-18630852087
11 612600010659 6 喷嘴总成 Nozzle assembly
12 90003098015 6 密封垫圈 Seal washer
13 90003962621 6 空心螺栓 Hollow bolt
14 90003962050 1 内六角螺塞 Inner hexagon plug
15 AZ1500070097 1 主油道限压阀总成Pressure limiting valve assembly of main oil passage
16 90003802493 5 六角头螺栓 Hexagon bolt
17 188250083 22 自锁垫圈 Washer
18 612600013918 2 下止推片 Thrust washer (lower)
19 612600013917 2 上止推片 Thrust washer (upper)
20 81400010032 2 密封圈 Seal washer whatsapp 86-18630852087
21 81500010046 7 主轴瓦组件 Main Bearing Set
22 612600013935 1 气缸体预装配 Pre-assembled cylinder block
23 90003901604 6 圆柱销 Straight pin
24 90003909626 6 弹性圆柱销 Spring dowel pin
25 612600010893 1 气缸盖螺栓 Cylinder head bolt
26 61500010185S 7 气缸盖螺栓 Cylinder head bolt
27 612600012189S 7 预涂胶紧定螺钉 whatsapp 86-18630852087

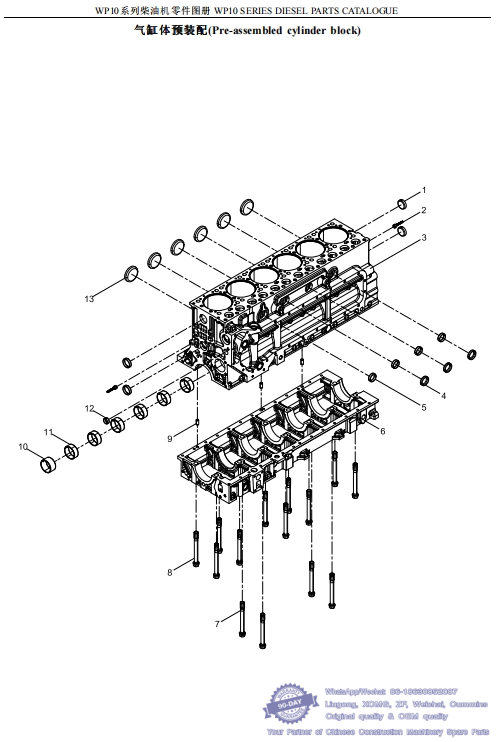

002 气缸体预装配(Pre-assembled cylinder block)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 90003982121 4 碗形塞 Corehole plug whatsapp 86-18630852087
2 612600013437 2 拉铆钉 Tensioned rivet
3 612600013747 1 气缸体 Cylinder block
4 90003989215 3 碗形塞 Corehole plug
5 90003989289 4 碗形塞 Corehole plug
6 612600013790 1 曲轴箱 Crankshaft case
7 614010217 4 主轴承螺栓 Main bearing bolt whatsapp 86-18630852087
8 614010114 10 主轴承螺栓 Main bearing bolt
9 612600010051 3 内螺纹圆柱销 Inner hexagon pin
10 612600010990 1 凸轮轴衬套 Camshaft bushing
11 61560010029 6 凸轮轴衬套 Camshaft bushing
12 90003989204 1 碗形塞 Corehole plug
13 90003989210 6 碗形塞 Corehole plug whatsapp 86-18630852087

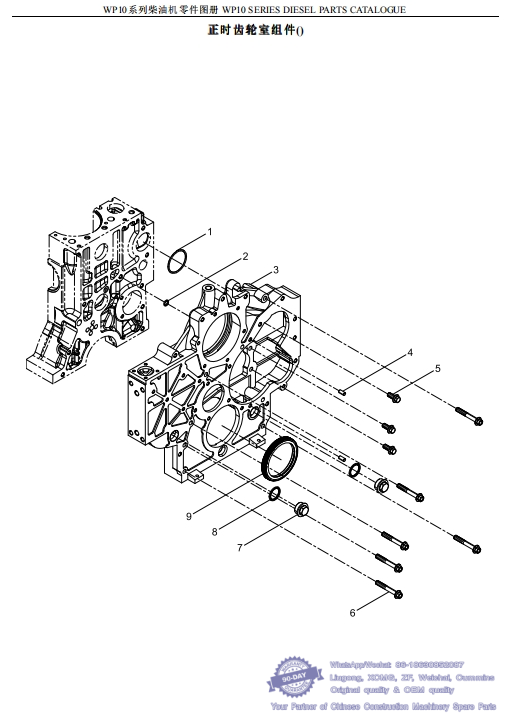

003 正时齿轮室组件()-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 61000010134 1 密封圈 Seal washer whatsapp 86-18630852087
2 288730061 1 O型密封圈 O shaped seal washer
3 612600012122 1 正时齿轮室 Timing gear case
4 90003901418 2 圆柱销 Straight pin whatsapp 86-18630852087
5 90011430008 3 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
6 612600013483 6 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
7 90003962051 2 六角螺塞 Hexagon plug
8 612600010735 2 复合垫圈 Washer
9 61500010037 1 前油封 Oil seal(front) whatsapp 86-18630852087

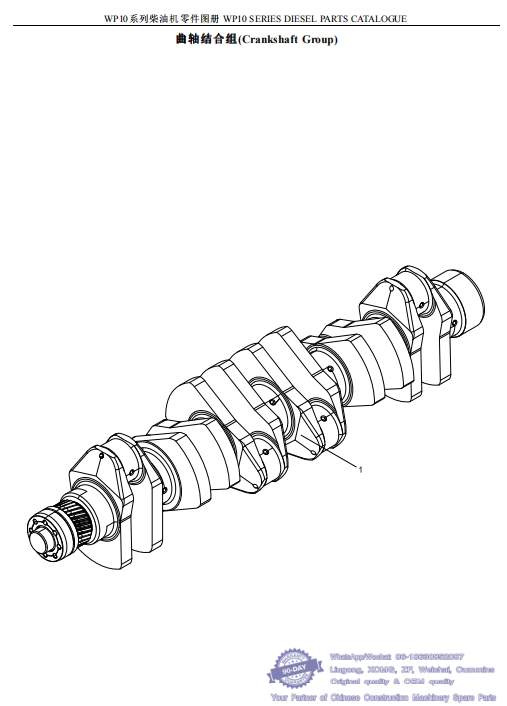

004 曲轴结合组(Crankshaft Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600020373 1 曲轴总成 Crankshaft assembly whatsapp 86-18630852087

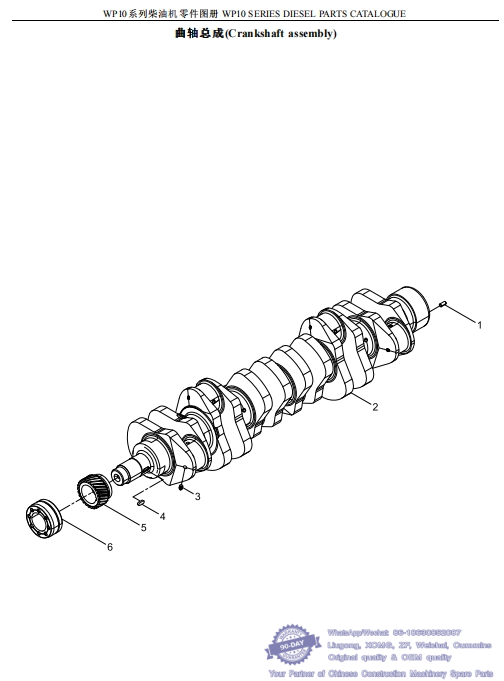

005 曲轴总成(Crankshaft assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 90003901418 1 圆柱销 Straight pin whatsapp 86-18630852087
2 612600020865 1 曲轴 Crankshaft
3 612600020311 6 堵塞 Plug
4 612600020040 1 平键 Flat key whatsapp 86-18630852087
5 612600020036 1 曲轴正时齿轮 Timing gear of crankshaft
6 612600020335 1 法兰 Flange whatsapp 86-18630852087
