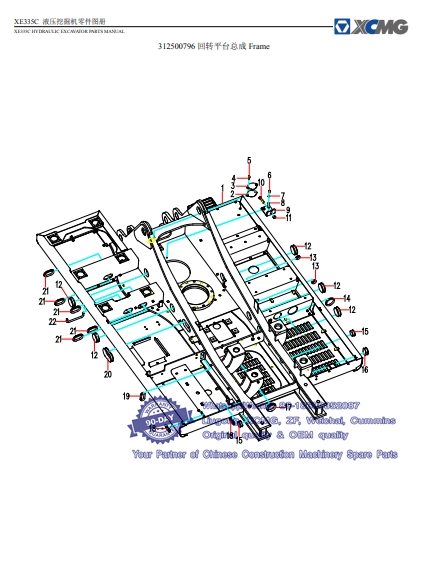

001 312500796 回转平台总成 Frame -- XCMG Excavator XE335C Parts Catalog
序号 零件代号 零件名 数量
ITEM Part No PART NAME Q’TY
1 312500797 转台焊合 Main Frame 1
2 312500014 密封垫 Gasket 1
3 312500013 盖板 Cover 1
4 805338260 垫圈 10 Spring Washer 2
5 805046525 螺栓 M10×20 Bolt 2
6 805006287 螺栓 M12×40 Bolt 2
7 805338261 垫圈 12 Washer 2
8 805338281 垫圈 12 Washer 2
9 312500016 拨叉 Stopper 1
10 805005957 螺栓 M20×100 Bolt 1
11 805238375 螺母 M20 Nut 1
12 312500017 护套(一) Jacket 5
13 822102724 胶条 Latex 2
14 312500023 护套(三) Jacket 1
15 312500022 护套(二) Jacket 2
16 312500611 护套(九) Jacket 1
17 312500024 护套(四) Jacket 1
18 312500029 护套(六) Jacket 2
19 312500025 护套(五) Jacket 1
20 312500030 护套(七) Jacket 1
21 312500031 护套(八) Jacket 5
22 801905432 胶条 Latex 1

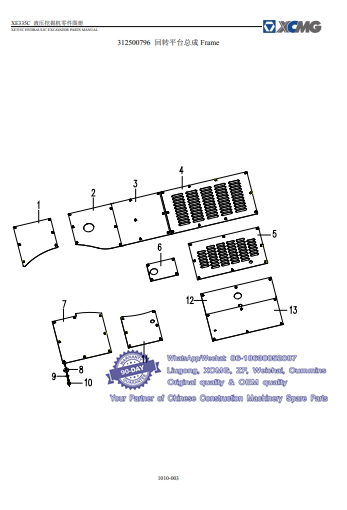

002 312500796 回转平台总成 Frame -- XCMG Excavator XE335C Parts Catalog
序号 零件代号 零件名 数量
ITEM Part No PART NAME Q’TY
1 312500015 前封板 Cover 1
2 312500018 右前封板 Cover 1
3 312500794 右中封板 Cover 1
4 312500795 右后封板 Cover 1
5 312500026 后中封板 Cover 1
6 312500019 前中封板 Cover 1
7 312500033 左前封板 Cover 1
8 805338268 垫圈 10 Washer 63
9 805338260 垫圈 10 Washer 63
10 805046416 螺栓 M10×30 Bolt 63
11 312500032 左中封板 Cover 1
12 312500027 左后封板(一) Cover 1
13 312500028 左后封板(二) Cover 1

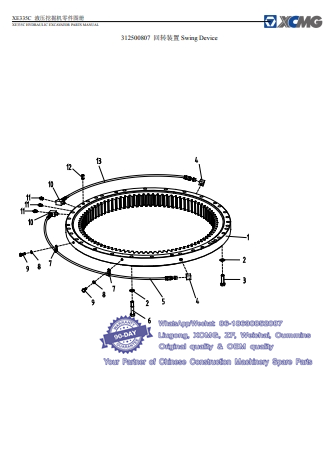

003 312500807 回转装置 Swing Device -- XCMG Excavator XE335C Parts Catalog
序号 零件代号 零件名 数量
ITEM Part No PART NAME Q’TY
1 800513366 回转支承 Slewing Bearing 1
2 805338299 垫圈 24 Washer 76
3 805004837 螺栓 M24×90 Bolt 40
4 803171993 直角接头 Joint 2
5 803176578 润滑管 Pipe 1
6 805006423 螺栓 M24×130 Bolt 36
7 801905480 卡箍 Hose Clip 4
8 805338259 垫圈 8 Washer 4
9 805046504 螺栓 M8×16 Bolt 4
10 803173364 加油接头 Joint 2
11 801102863 油杯 Oil Cup 3
12 805639114 销 20×60 Pin 2
13 803176577 润滑管 Pipe 1

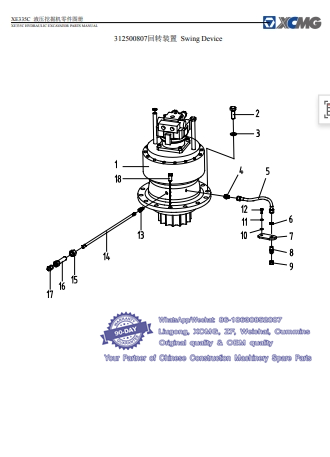

004 312500807回转装置Swing Device -- XCMG Excavator XE335C Parts Catalog
序号 零件代号 零件名 数量
ITEM Part No PART NAME Q’TY
1 819908930 回转马达及减速机 Slewing Motor Device 1
2 805004839 螺栓 M24×70 Bolt 14
3 805338299 垫圈 24 Washer 14
4 803173361 管接头 Joint 1
5 803164648 软管 Hose 1
6 312000424 螺母 Nut 1
7 312600021 板 Plate 1
8 312601232 过壁接头 Joint 1
9 803109827 堵头 Plug 1
10 805338279 垫圈 10 Washer 1
11 805338260 垫圈 10 Washer 1
12 805011330 螺栓 M10×25 Bolt 1
13 803172177 管接头 Joint 1
14 803183916 软管 Hose Assy 1
15 805238411 螺母 Nut 1
16 803177315 接头体 Joint 1
17 801102863 油杯 Oil Cup 1
18 312601773 销 Pin 1

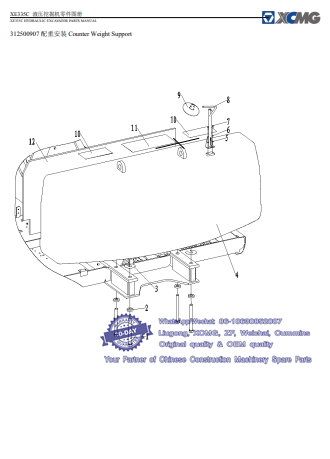

005 312500907配重安装 Counter Weight Support -- XCMG Excavator XE335C Parts Catalog
序号 零件代号 零件名 数量
ITEM Part No PART NAME Q’TY
1 805046426 螺栓 M36×360 Bolt 4
2 312500215 垫片 Washer 4
3 312600145 调整垫片 Adjust washer 4
4 312500214 配重体 Counter 1
5 805338279 垫圈 10 Washer 2
6 805338260 垫圈 10 Washer 2
7 805011330 螺栓 M10×25 Bolt 2
8 310602571 后视镜支架 Bracket 1
9 801968416 配重反光镜 Mirror 1
10 329900392 防滑纸 Anti-Skid Plate 2
11 329900391 防滑纸 I Anti-Skid 4
12 312500218 海绵 Sponge 1

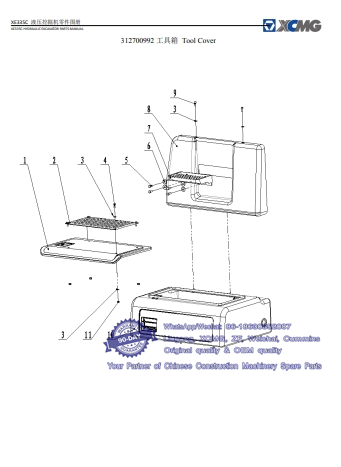

006 312700992工具箱 Tool Cover -- XCMG Excavator XE335C Parts Catalog
序号 零件代号 零件名 数量
ITEM Part No PART NAME Q’TY
1 312700999 上盖板 Cover Plate 1
2 312701001 防滑板 Anti-skid plate 1
3 805338279 垫圈 10 Washer 12
4 805011330 螺栓 M10×25 Bolt 8
5 805006412 螺栓 M12×30 Bolt 4
6 805338270 垫圈 12 Washer 4
7 312602114 中踏板 Pedal 1
8 312700996 上箱体 Tank Body 1
9 805139858 螺钉 M10×25 Screw 2
10 312602221 下箱体 Tank Body 1
11 805238371 螺母 M10 Nut 7

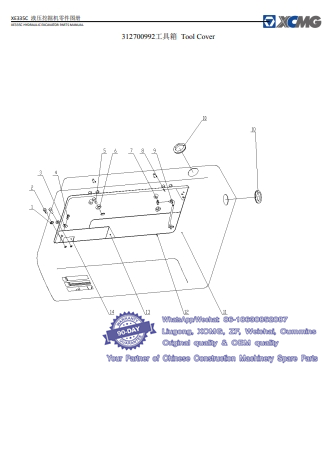

007 312700992工具箱 Tool Cover -- XCMG Excavator XE335C Parts Catalog
序号 零件代号 零件名 数量
ITEM Part No PART NAME Q’TY
1 805338279 垫圈 10 Washer 5
2 805011330 螺栓 M10×25 Bolt 4
3 805338266 垫圈 8 Washer 6
4 805046508 螺栓 M8×20 Bolt 4
5 805046416 螺栓 M10×30 Bolt 6
6 805338268 垫圈 10 Washer 6
7 805338266 垫圈 8 Washer 2
8 805603553 销 2.5×14 Pin 2
9 310901295 拉杆组件 Pull-Rod 1
10 310901268 护套 Jacket 2
11 312602221 下箱体 Box body 1
12 800142630 密封条 Sealing Strips 1
13 310901270 围板 Boarding 1
14 310901269 锁舌 Catch 1

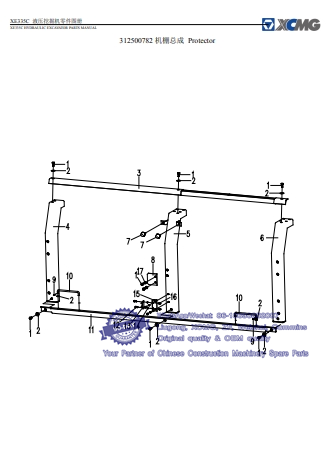

008 312500782机棚总成 Protector -- XCMG Excavator XE335C Parts Catalog
序号 零件代号 零件名 数量
ITEM Part No PART NAME Q’TY
1 805011330 螺栓 M10×25 Bolt 7
2 805338268 垫圈 10 Washer 8
3 312500073 左纵梁Ⅲ Beam 1
4 312500056 左前框架 Frame 1
5 312500058 左中框架 Frame 2
6 312500059 左后框架 Frame 1
7 801905669 防碰球 Collision Protection 2
8 312500092 锁挡 Stopper 4
9 805603523 开口销 1.6×14 Retainer Pin 2
10 312500090 风钩 Stay 2
11 312500057 加强板 Protector 1
12 805046481 螺栓 M6×16 Bolt 2
13 819908620 导向块 Bound 1
14 805338275 垫片 6 Washer 2
15 819908621 导向座 Supporting 1
16 805238370 螺母 M6 Nut 2
17 805338279 垫圈 10 Stopper 2
Firstly, thank you for selecting Hydraulic Excavator designed and manufactured by XCMG.
The aim of supplying the catalogue is to facilitate maintenance and service to the XE335C Hydraulic Excavator. It should be used together with the operation manual and maintenance manual. Please strictly follow the instructions in operation manual and maintenance manual for operation and maintenance.
There are details for assembly of parts in it, which large structural parts and integrated parts are disassembled into minor maintenance units. There is a list following each detail for user looking up spare parts. Please refer to carrier spare parts catalogue for contents involved with carrier spare parts.
The manual is an integral part of the excavator. Please keep them handy in the driver’s or operator’s cab with the supplied technical documents and operate the machine according to instruction in them.
For the engine parts, please refer to the parts catalog of disel engine issued separately.
1. How to Order Parts
When ordering parts, please specify the following items:
(1) Model/type
(2) Product identification Number
(3) Part No.
(4) Part Name
(5) Q' ty
(6) Purchaser' s Name and Address
2. How to Use This Parts Catalog
Part Name: When the part is used as an inner part of an assembly part, the mark "." is shown in front of thr part name.
Q' TY: Indicate the number of the part used per machine. The quanlity of an inner part is the number of the inner part necessary to orgnize one assembly part.
Symbols Used in The Book:
The symbols shown in the service code and interchangeability columns are used to indicate the following information.
W: Requires additional processing at the job site. Ask your nearest XE dealer. H: Indicate a precise part. Ask your nearest XE dealer for its repair.
D: Impossible to replace as a single part. Replace the part in an assembly unit. K: Contained in the service part kit.
R:Indicate that the quantity of the part like shims differs depending on the machine serial No. S: To be supplied as repair or service parts.
Z: Engine related parts.
OP: Optional parts not equipped on the standard specification model. To be supplied upon receiving a special order.
OS: Over-sized parts. US: Under-sized parts.
(Parts with mark "OS" or "US" is described in the next column under the standard size part column.)
#: Indicates newly added parts to the equipment or component. Y: Interchangeable part without any constraint.
I: Used to indicate the part No. and quantity of the part concerned in the replacement part column.However,the part concerned is not used for the part shown with mark.
T: Becomes interchangeable when combined.
P: Indicate the part prohibited to use. Use the part shown in the replacement part column.
Serial No: The serial number of this Catalog is ten-digit figure of Product Intification Number of the name-plate.
D: Represents the date of modification.
(Example: D09/10: New modification part has been applied to the products manufactured in and after Oct2009.)
H: Indicates the component manufacturing No.
F: Indicates the front attachment manufacturing No. Replacement Part:
Indicates the part No.and quantity per machine of the replacemenet part. NOTE:
When the part with mark Y, I or P shown in the interchangeablity column is ordered, the part show in the placement part column may be automatically supplied instead of the ordered part.
