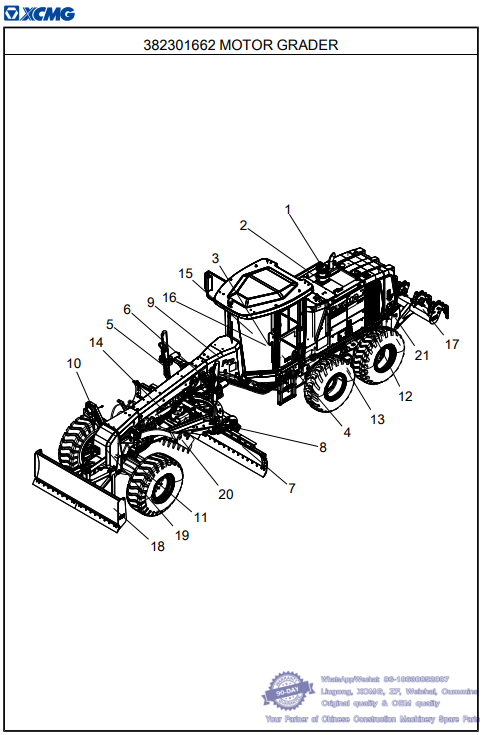

001 382301662 MOTOR GRADER A382301662 MOTOR GRADER-- XCMG Motor Grader GR2205T Spare Parts Catalog
No. PART NUMBER QTY NAME NOTE PAGE
1 382301589 1 ENGINE SYSTEM 10 whatsapp 86-18630852087
2 382301598 1 ASSEMBLY OF ENGINE HOOD 28
3 380605051 1 SEAT ASSEMBLY 34
4 382301585 1 CAB ASSEMBLY 36
5 382301591 1 HYDRAULIC SYSTEM 74
6 381101289 1 PULL PIN HYDRAULIC SYSTEM 146
7 380605101 1 BLADE ASSY 150
8 382301605 1 WORKING DEVICE 158
9 382301631 1 RACK 168 whatsapp 86-18630852087
10 382301573 1 ELECTRIC SYSTEM 180
11 380906170 1 FRONT AXLE ASSEMBLY 198
12 381204599 1 FUEL TANK 208
13 382301590 1 TRANSMISSION SYSTEM 210
14 382301665 1 PAINTING AND MARKING
15 382300282 1 CONTROL BOX 288
16 382301204 1 AC SYSTEM 292
17 382103909 1 ASSEMBLY OF REAR SCARIFIER 298
18 381100904 1 FRONT BULLDOZER 308
19 382301612 1 FRONT COUNTERWEIGHT 316
20 382301026 1 MIDDLE SCARIFIER
21 382301613 1 REAR COUNTERWEIGHT 318 whatsapp 86-18630852087

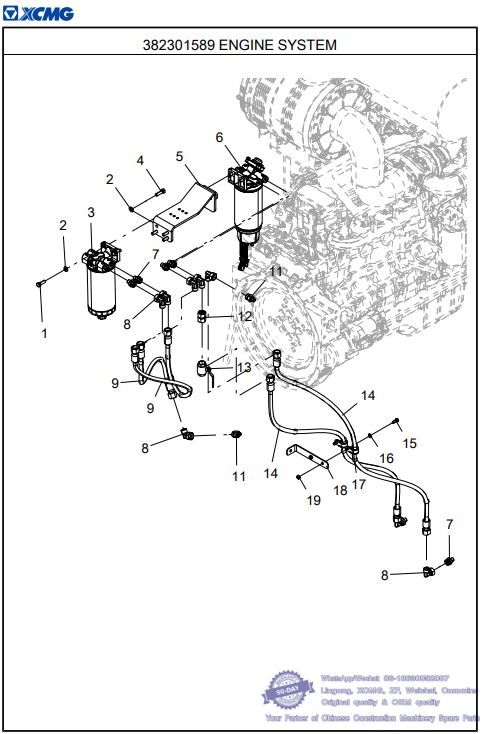

002 382301589 ENGINE SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 805046416 12 BOLT M10×30 (DACROMET) GB/T5783-2000 whatsapp 86-18630852087
2 329900302 26 THICKENED FLAT WASHER
3 803400571 1 FUEL FILTER 18
4 805046528 4 BOLT M10×35 (DACROMET) GB/T5783-2000
5 382301587 1 FILTER BRACKET ASSEMBLY
6 803400570 1 FUEL FILTER 20
7 803105561 6 JOINT whatsapp 86-18630852087
8 803103775 9 JOINT
9 800160490 2 DIESEL PIPE
11 803190860 2 JOINT
12 803105383 1 JOINT
13 800799738 1 BALL VALVE
14 800160492 2 DIESEL PIPE
15 805046508 3 BOLT M8×20 (DACROMET) GB/T5783-2000
16 329900301 11 THICKENED FLAT WASHER
17 803199329 4 CUTTING SLEEVE Φ26 TJBC
18 381101297 1 DIESEL PIPE SUPPORT PLATE
19 805238378 3 NUT M8 (DACROMET) GB/T617 whatsapp 86-18630852087

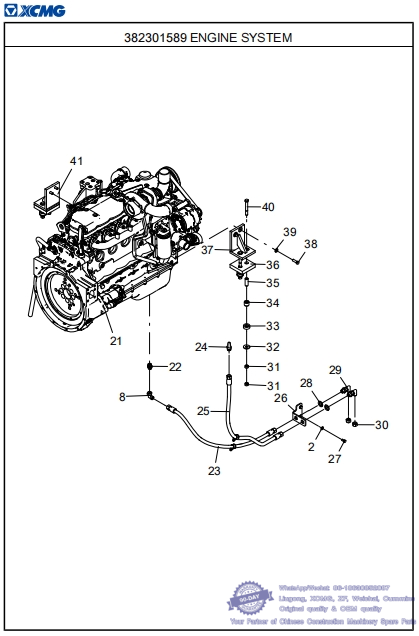

003 382301589 ENGINE SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
2 329900302 26 THICKENED FLAT WASHER whatsapp 86-18630852087
8 803103775 9 JOINT
21 800166864 1 ENGINE
22 803105653 1 JOINT
23 803377201 1 HOSE ASSEMBLY
24 382300280 1 JOINT BODY
25 803404219 1 HOSE ASSEMBLY whatsapp 86-18630852087
26 381100727 1 BRACKET
27 805046525 6 BOLT M10×20 (DACROMET) GB/T5783-2000
28 805300084 2 WASHER 22 GB/T97.1-2002
29 803174823 2 JOINT
30 803132119 2 PLUG
31 805238504 8 NUT M14 (DACROMET) GB/T6170-2000
32 380600520 4 WASHER
33 380600521 4 LOWER RUBBER MAT
34 380600522 4 SPACER BUSH
35 380600511 4 PIPE
36 380906363 2 RUBBER MAT
37 380906361 1 REAL SUPPORTⅠ
38 805006287 4 BOLT M12×40 (DACROMET) GB/T5783-2000
39 329900303 9 THICKENED FLAT WASHER
40 805048468 4 BOLT M14×110 (DACROMET) GB/T5782-2000
41 380906362 1 ENGINE REAR SURPPORTⅡ whatsapp 86-18630852087

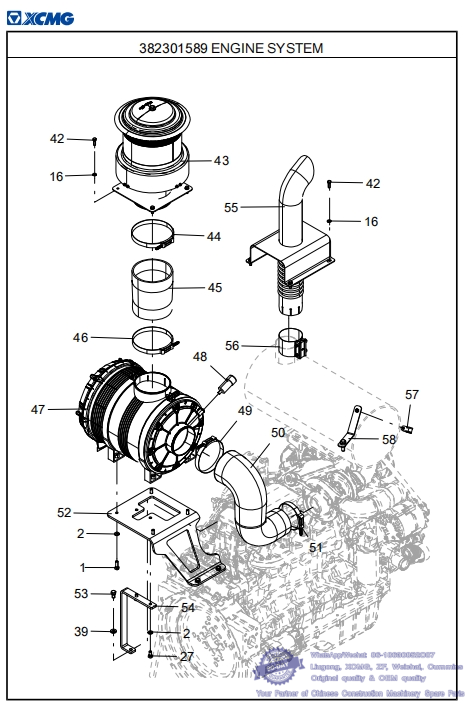

004 382301589 ENGINE SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 805046416 12 BOLT M10×30 (DACROMET) GB/T5783-2000 whatsapp 86-18630852087
2 329900302 26 THICKENED FLAT WASHER
16 329900301 11 THICKENED FLAT WASHER
27 805046525 6 BOLT M10×20 (DACROMET) GB/T5783-2000
39 329900303 9 THICKENED FLAT WASHER
42 805046484 8 BOLT M8×25 (DACROMET) GB/T5783-2000
43 800160420 1 AIR FILTER ASSEMBLY
44 800167612 1 T-SHAPE CLAMP
45 382300272 1 HOSE
46 800167611 1 T-SHAPE CLAMP
47 803374095 1 AIR FILTER
48 800105950 1 ANNUNCIATOR whatsapp 86-18630852087
49 800167613 1 T-SHAPE CLAMP
50 382300271 1 BENT PIPE
51 800167615 1 T-SHAPE CLAMP
52 382300262 1 BRACKET
53 805000074 1 BOLT M12×20 GB/T5783-2000
54 382300274 1 BRACKET
55 860532537 1 EXHAUST PIPE ASSY 24
56 800166938 1 CLAMP
57 803199327 1 CUTTING SLEEVE Φ20 TJBC
58 381101300 1 WATER PIPE SUPPORTING STRUCTURE whatsapp 86-18630852087

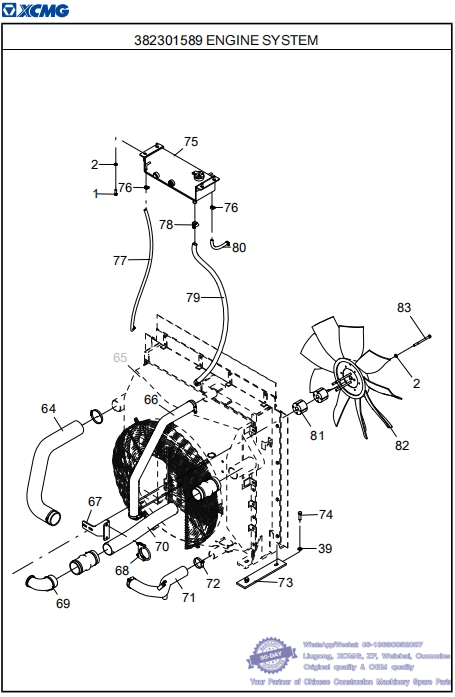

005 382301589 ENGINE SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301662 MOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 805046416 12 BOLT M10×30 (DACROMET) GB/T5783-2000 whatsapp 86-18630852087
2 329900302 26 THICKENED FLAT WASHER
39 329900303 9 THICKENED FLAT WASHER
64 382301210 1 AIR INLET CONNECTING PIPE
65 800368709 1 RADIATOR ASSEMBLY 26
66 382301207 1 WATER OUTLET PIPE
67 382301329 1 BRACKET
68 801974679 1 U-SHAPE CLAMP
69 800140978 1 BENT PIPE
70 382301206 1 GAS OUTLET PIPE
71 382301208 1 WATER INLET CONNECTING PIPE
72 800159891 4 SCREW CLAMP whatsapp 86-18630852087
73 380401222 2 RUBBER MAT
74 805006414 4 BOLT M12×45 (DACROMET) GB/T5783-2000
75 800166843 1 EXPANSION TANK
76 805801472 4 HOSE CLAMP D16 JB/T8870-1999
77 381300431 1 GAS OUTLET PIPE Φ10-1000
78 800160713 2 SCREW CLAMP
79 380500433 1 WATER PIPE
80 380601129 1 GAS OUTLET PIPE Φ10×510
81 800165945 2 EVERY PIECE OF
82 800162139 1 FAN
83 805001934 4 BOLT M10×130 GB/T5782-2000 whatsapp 86-18630852087
