XUZHOU XUGONG ROAD CONSTRUCTION MACHINERY CO .,LTD
目 次
Contents
前 言....................................................................IV
PREFACE...................................................................VI
384203531 MILLING MACHINE 路面铣刨机.......................................1
384201532 DISCHARGE CONVEYOR 送料总成.....................................3
384200100 FOLDING CONVEYOR BELT 折叠输料装置............................9
384202963 PRIMARY CONVEYOR 集料装置......................................25
384202977 FRAME ASS'Y 车架总成...........................................33
384201469 FUEL TANK ASS'Y 燃油箱总成.....................................45
384203526 ENGINE SYSTEM 动力系统.........................................49
384203484 FUEL SYSTEM 燃油系统.........................................53
384203645 GAS-ROUTE SYSTEM 气路系统....................................55
384203520 INTAKE AND EXHAUST SYSTEM 进排气系统.........................61
384203494 COOLING SYSTEM 散热系统......................................65
384203480 V BELT DRIVE V 带传动.........................................71
384203145 STRAP COVER 皮带罩.............................................75
384202576 MILLING DRUM SLOW RUNNING 铣刨鼓慢转.........................79
384203425 SPRINKLER SYSTEM 洒水系统......................................81
384203005 MILLING ROOM SPRINKLER SYSTEM 铣刨室洒水管装配...............83
384203328 WATER SYSTEM FOR FIRST CLASS CONVEYOR BELT AND EXPORT 一级输料
带管路装配.............................................................85
384203006 WATER TANK ACCESSORIES 水箱附件..............................89
384105364 HIGH PRESSURE WASHING PIPELINE SYSTEM 高压水管路装配.........93
384105369 WATER PUMP PIPELINE SYSTEM 水泵管路装配......................95
384203434 ELECTRIC SYSTEM 电气系统......................................101
384203458 CONSOLE 操纵台..............................................105
384203466 LEVELLING SYSTEM 找平系统...................................113
384203503 HEIGHT ADJUSTMENT/CRAWL 行走及升降装置........................115
384203508 LEFT FRONT CRAWLER UNIT 左前行走履带........................117
384203342 LEFT FRONT OUTRIGGER 左前支腿...............................123
384203507 RIGHT FRONT CRAWLER UNIT 右前行走履带.......................125
384203345 RIGHT FRONT OUTRIGGER 右前支腿..............................131
384203506 RIGHT REAR CRAWLER UNIT 右后行走履带........................133
384203344 RIGHT REAR OUTRIGGER 右后支腿...............................137
384203504 LEFT REAR CRAWLER UNIT 左后行走履带.........................139
384203349 LEFT REAR OUTRIGGER 左后支腿................................143
384201718 REAR LEG LINKAGE 后腿连动总成...............................145
384201717 FRONT LEG LINKAGE 前腿连动总成..............................147
384201719 SURVEYOR'S POLE 后腿高度标尺................................149
384203199 DIESEL COVER 柴油机罩.........................................151
384201692 HINGE 铰链..................................................157
384202678 CEILING 顶棚..................................................159
384201561 BACK WINDOW 后窗............................................161
384201559 FRONT WINDOW 前窗...........................................165
384201560 CEILING 顶棚................................................169
384203158 WORKING EQUIPMENT 工作装置安装................................171
384203152 WORKING SET 工作装置........................................173
001 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384201532 送料总成 DISCHARGE
CONVEYOR 1
2 384202963 集料装置 PRIMARY CONVEYOR 1
3 384202977 车架总成 FRAME ASS'Y 1
4 384201469 燃油箱总成 FUEL TANK ASS'Y 1
5 384203526 动力系统 ENGINE SYSTEM 1
6 384203145 皮带罩 STRAP COVER 1
7 384203425 洒水系统 SPRINKLER SYSTEM 1 Whatsapp: 86-18630852087
8 384203434 电气系统 ELECTRIC SYSTEM 1
9 384203503 行走及升降装置 HEIGHT ADJUSTMENT/CRAWL 1
10 384203199 柴油机罩 DIESEL COVER 1
11 384202678 顶棚 CEILING 1
12 384203158 工作装置安装 WORKING EQUIPMENT 1 Whatsapp: 86-18630852087
13 384203578 液压系统 HYDRAULIC SYSTEM 1
002 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog

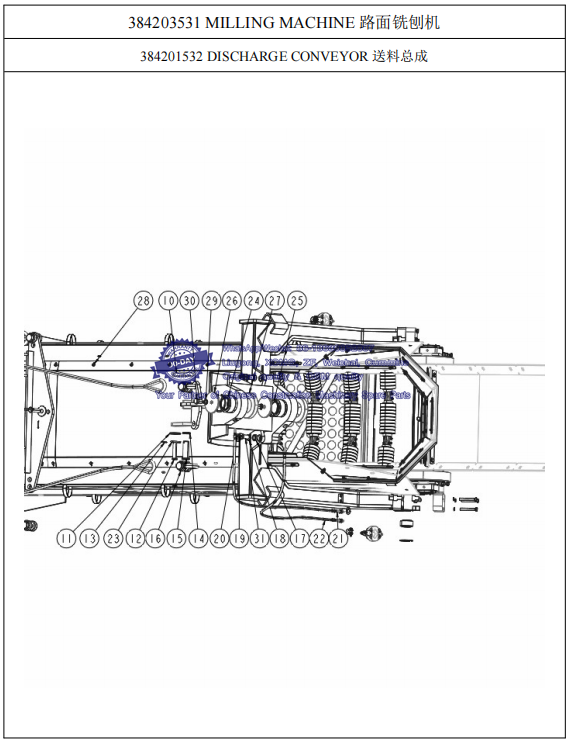

384201532 DISCHARGE CONVEYOR 送料总成
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384201529 摇摆架 SWINGING BRACKET 1
2 384200385 支撑半轴 SUPPORT SEMIAXIS 2 Whatsapp: 86-18630852087
3 805401273 挡圈 90 HOLD WASHER 90 4 GB/T893.2-1986
4 800500279 关节轴承 GE60ES-2RS OSCILLATING BEARING GE60ES-2RS 2 GB/T9163-2001
5 384200386 方螺母 SQUARE NUT 6
6 805300011 垫圈 16 WASHER 16 6 GB/T93-1987
7 805047561 螺栓 M16×110(达克罗) BOLT M16×110 6 GB/T5783-2000
8 801301939 卸扣 M-DX0.63 BUCKLE M-DX0.63 2 JB/T8112-1999
9 384201531 管夹 PIPE CLIP 2
10 384200101 板 PLATE 2
11 805334192 垫圈 26 WASHER 26 1 GB/T96.1-2002
12 805600152 销 25×120 PIN 25×120 1 GB/T882-2008
13 805600063 销 5×40 PIN 2 GB/T91-2000
14 805338734 垫圈 40(达克罗) WASHER 40 1 GB/T97.3-2000
15 805604619 销 40×120 PIN 40×120 1 GB/T882-2008
16 800154099 卸扣 T-BX6.3 BUCKLE T-BX6.3 4 JB/T8112-1999
17 800511363 关节轴承 GE25C OSCILLATING BEARING GE25C 2 GB/T9163-2001
18 805400038 挡圈 42 HOLD WASHER 42 2 GB/T893.1-1986
19 805338260 垫圈 10(达克罗) WASHER 10 2 GB/T93-1987
20 805046472 螺栓 M10×20(达克罗) BOLT 2 GB/T5783-2000
21 384201530 支腿润滑管 LEG LUBRICATION PIPE 1
22 384201530 支腿润滑管 LEG LUBRICATION PIPE 1 Whatsapp: 86-18630852087
002-1 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384201532 DISCHARGE CONVEYOR 送料总成
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
23 805600229 销 8×70 PIN 8×70 1 GB/T91-2000
24 800553764 关节轴承 GE80ES-2RS OSCILLATING BEARING GE80ES-2RS 2 GB/T9163-2001
25 805403510 挡圈 120 HOLD WASHER 120 2 GB/T893.2-1986
26 384200102 盖 COVER 2
27 384200384 铜垫 COPPER PACKING 2 Whatsapp: 86-18630852087
28 384200100 折叠输料装置 FOLDING CONVEYOR BELT 1
29 805338365 垫圈 24(达克罗) WASHER 24 2 GB/T93-1987
30 805048157 螺栓 M24×40(达克罗) BOLT M24×40 2 GB/T5783-2000
31 384203429 销轴 SHAFT 2
32 384201973 钢丝绳(二) WIRE ROPE 2
33 384201345 过渡支架 TRANSITION BRACKET 1 Whatsapp: 86-18630852087
34 805338738 垫圈 30(达克罗) WASHER 30 4 GB/T96.1-2002
35 805600320 销 30×100 PIN 30×100 4 GB/T882-2008
36 805600011 销 6.3×50 PIN 6.3×50 4 GB/T91-2000
37 384201972 钢丝绳(一) WIRE ROPE 2
38 805338393 垫圈 24(达克罗) WASHER 24 1 GB/T96.1-2002
39 805604567 销轴 SHAFT 1

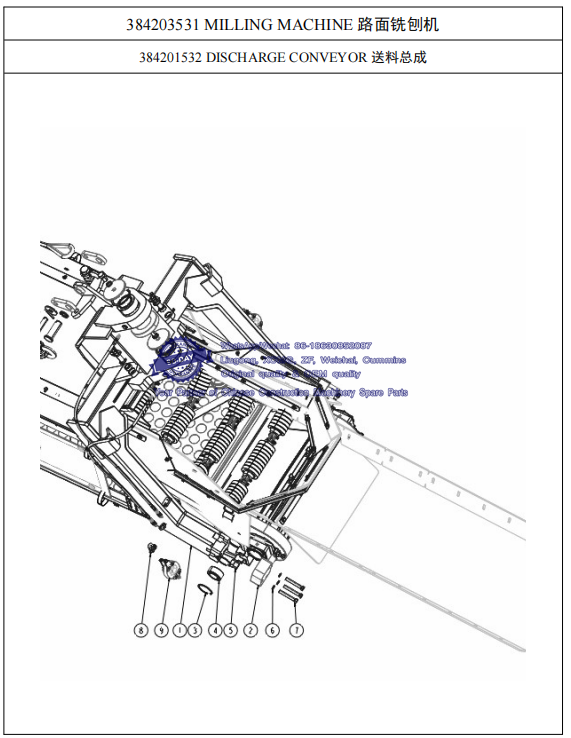

003 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384201532 DISCHARGE CONVEYOR 送料总成
004 384201532 DISCHARGE CONVEYOR 送料总成-- XCMG Road Milling Machine XM200 Spare Parts Catalog

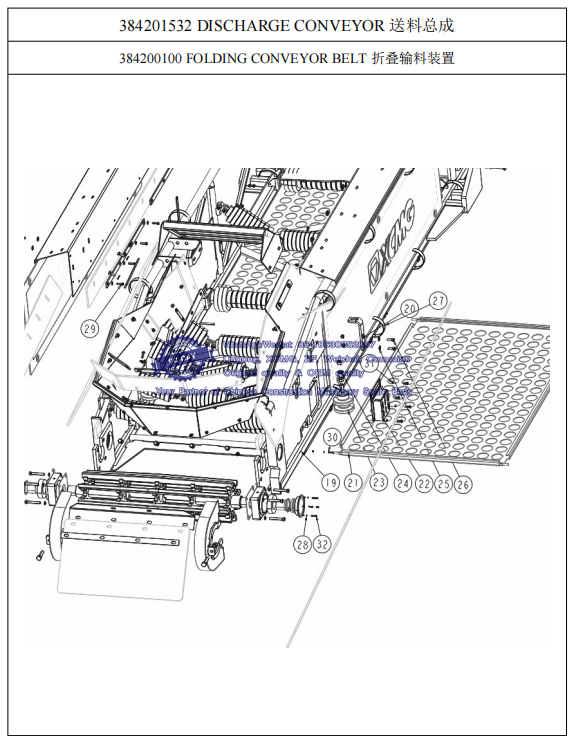

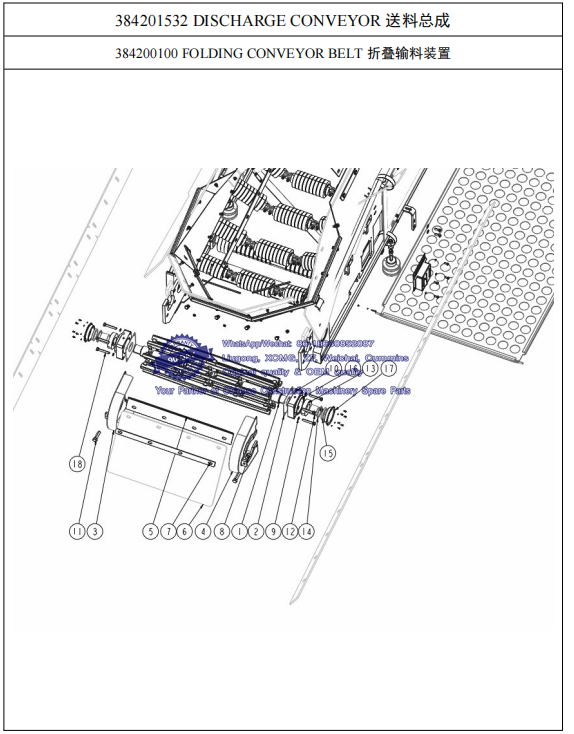

384200100 FOLDING CONVEYOR BELT 折叠输料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384202000 从动转轮 DRIVEN WHEEL 1
2 384201616 调整垫 ADJUST MAT 2
3 384201585 护罩 MANTLE 1
4 384203060 护罩 MANTLE 1 Whatsapp: 86-18630852087
5 384201605 弯板 PLATE 1
6 384201606 橡胶挡板 RUBBER BAFFLE 1
7 384600146 固定板条 FIX PLATE 1
8 805200051 螺母 M16 NUT M16 10 GB/T6170-2000
9 805300018 垫圈 WASHER 20 GB/T97.1-2002
10 801100336 油杯 M10×1 GREASE CUP 4 JB/T7940.1-1995
11 805000040 螺栓 M16×60 BOLT M16×60 2 GB/T5783-2000
12 800554766 紧定套 TAPERED ADAPTERSLEEVE 2
13 800554765 轴承 BEARING 2
14 800554767 直线舌垫圈 STRAIGHT TONGUED WASHER 2
15 800554768 螺母 NUT 2
16 384202964 轴承座 BEARING HOUSE 2
17 384202966 端盖 COVER 2
18 805049024 螺栓 M12×75(达克罗) BOLT 8 GB/T5783-2000
19 384201581 输料梁后段 FRAME REAR PART 1
20 384201601 弯板 PLATE 2 Whatsapp: 86-18630852087
21 384203059 封底罩板 PROTECTIVE GRID 2
22 384103477 护罩 MANTLE 2
005 384201532 DISCHARGE CONVEYOR 送料总成-- XCMG Road Milling Machine XM200 Spare Parts Catalog

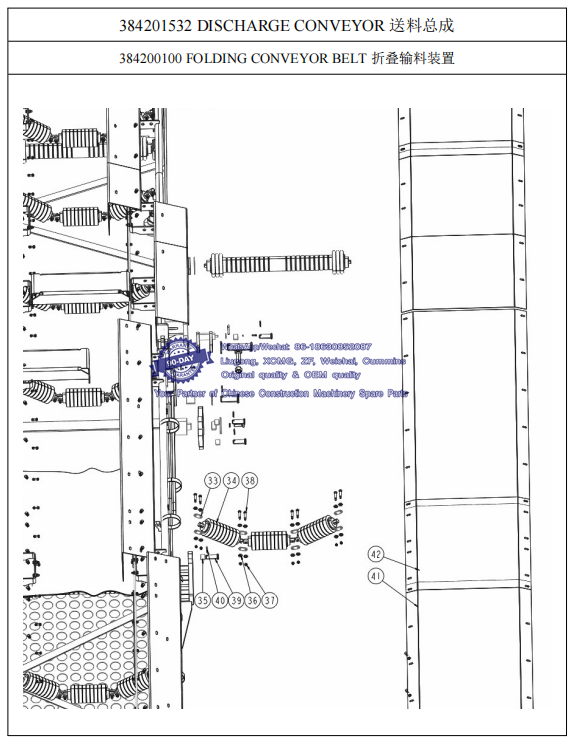

384200100 FOLDING CONVEYOR BELT 折叠输料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
23 800308423 导向轮 GUIDE WHEEL 4
24 805300013 垫圈 16 WASHER 16 8 GB/T97.1-2002
25 801736939 垫圈 10(Ep.Zn) WASHER 10 54 DIN6796 Whatsapp: 86-18630852087
26 805000043 螺栓 M10×30 BOLT M10×30 42 GB/T5783-2000
27 801972081 扎带（塑料方扣）BANDAGE(PLASTIC SQUARE BUTTON) 20
28 805300109 垫圈 5 WASHER 5 20 GB/T93-1987
29 805046510 螺栓 M8×30(达克罗) BOLT M8×30 98 GB/T5783-2000
30 805000069 螺栓 M5×25 BOLT M5×25 8 GB/T5783-2000
31 805300010 垫圈 8 WASHER 8 8 GB/T93-1987
32 805047700 螺栓 M5×10(达克罗) BOLT M5×10 12 GB/T5783-2000
33 384201376 夹板 PLYWOOD 80
34 800308429 托滚总成 RUBBER WHEEL 30
35 800515196 自润轴套 AXES SHEATH 8
36 805301373 垫圈 10(达克罗) WASHER 10 160 DIN6796
37 805201502 螺母 M8 NUT M8 232 GB/T889.1-2000
38 805141304 螺钉 10×40 SCREW 10×40 80 GB/T5281-1985
39 805601685 销 25×70 PIN 25×70 8 GB/T882-2008
40 805600063 销 5×40 PIN 8 GB/T91-2000
41 384201591 上盖板 UP COVER BOARD 1 Whatsapp: 86-18630852087
42 384201608 盖板 COVER PLATE 1
43 384203077 输料梁前段 FRAME FRONT PART 1
44 384201399 固定板 PLATE 5
006 384201532 DISCHARGE CONVEYOR 送料总成-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384200100 FOLDING CONVEYOR BELT 折叠输料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
45 800308430 拖带轮CARRIER BELT ROLLER 5
46 384201597 旋转臂 ROLLING ARM 2
47 800516149 自润轴套 AXES SHEATH 2
48 384201594 垫片 MAT 2
49 384201582 挂钩 POTHOOK 2
50 384201595 垫片 MAT 4
51 384201607 上盖板 UP COVER BOARD 1
52 384201609 盖板 COVER PLATE 1
53 800516148 自润轴套 AXES SHEATH 2 Whatsapp: 86-18630852087
54 384203128 垫圈 WASHER 2
55 384201615 调整垫 ADJUST MAT 5
56 805238377 螺母 M24(达克罗) NUT M24 8 GB/T6170-2000
57 805600034 销 5×45 PIN 5×45 8 GB/T91-2000
58 805000033 螺栓 M8×16 BOLT M8×16 10 GB/T5783-2000
59 805604856 销 40×100 PIN 40×100 2 GB/T882-2008
60 805300011 垫圈 16 WASHER 16 2 GB/T93-1987 Whatsapp: 86-18630852087
61 805000028 螺栓 M16×50 BOLT M16×50 2 GB/T5783-2000
62 805000525 螺栓 M6×20 BOLT M6×20 4 GB/T5783-2000
63 805004851 螺栓 M24×80 BOLT M24×80 2 GB/T5783-2000
64 805302786 垫圈 40 WASHER 40 4 GB/T97.1-2002
65 805600350 销 40×140 PIN 40×140 2 GB/T882-2008
66 805600229 销 8×70 PIN 8×70 2 GB/T91-2000
007 384201532 DISCHARGE CONVEYOR 送料总成-- XCMG Road Milling Machine XM200 Spare Parts Catalog

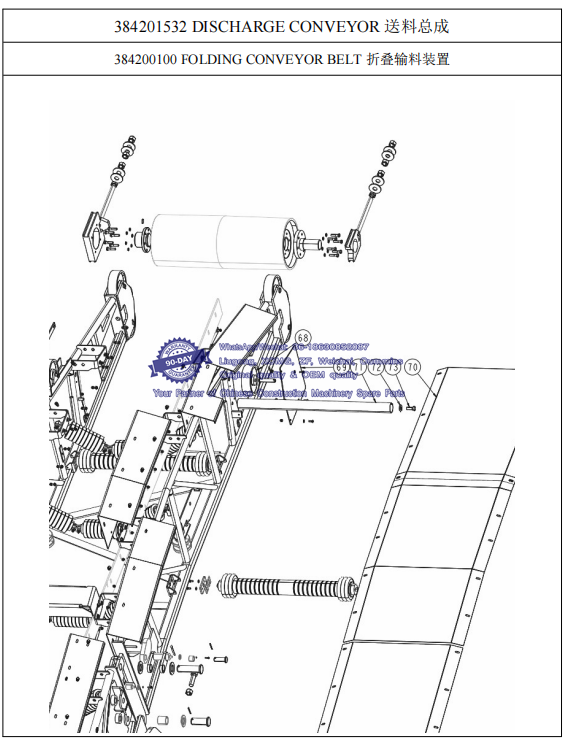

384200100 FOLDING CONVEYOR BELT 折叠输料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
67 805300030 垫圈 WASHER 4
68 384201628 滑轮 PULLEY 6
69 384201592 板 PLATE 2
70 384201610 盖板 COVER PLATE 1
71 384201590 横梁 BEAM 2
72 805338385 垫圈 16 WASHER 16 4 DIN6796
73 805000051 螺栓 M16×40 BOLT M16×40 4 GB/T5783-2000
74 384201611 联接套 CONNECT BLOCK 1
75 384201587 滚筒 ROLL 1 Whatsapp: 86-18630852087
76 384201586 马达连接架 MOTOR LINK SPAN 1
77 380601264 轴承 BEARING 1
78 805105108 螺钉 M8×25 SCREW M8×25 1 GB/T77-2007
79 805046248 螺杆 SCREW STEM 2
80 805300052 垫圈 24 WASHER 24 8 GB/T96.1-2002
81 805238877 螺母 M24(达克罗) NUT M24 2 GB/T6172.1-2000
82 805000404 螺栓 M12×45 BOLT M12×45 12 GB/T5782-2000
83 384201588 驱动轴 DRIVE AXLE 1 Whatsapp: 86-18630852087
84 384201576 盖板 COVER PLATE 1
85 384103988 橡胶挡板 RUBBER BAFFLE 2
86 384201577 盖板 COVER PLATE 1
87 384201578 盖板 COVER PLATE 2
88 384201579 盖板 COVER PLATE 2
008 384201532 DISCHARGE CONVEYOR 送料总成-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384200100 FOLDING CONVEYOR BELT 折叠输料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
89 384201596 侧盖板 SIDE COVER BOARD 4
90 384202888 料斗 HOPPER 1
91 384201583 支架盖板 IMPACT PLATE 1
92 384203046 橡胶挡板 RUBBER BAFFLE 2
93 384201600 固定板条 FIX PLATE 4 Whatsapp: 86-18630852087
94 384201613 加强架 HOG FRAME 2
95 384201614 胶垫 MAT 2
96 384201612 胶垫 MAT 2
97 384201602 胶垫 MAT 2
98 384201593 固定板条 FIX PLATE 6
99 384201598 固定板条 FIX PLATE 12
100 384201603 固定板条 FIX PLATE 2
101 384201604 固定板条 FIX PLATE 6
102 801505225 输送带 CONVEYOR BELT 1 Whatsapp: 86-18630852087
103 384103430 遮盖布 COVER 2
104 805600138 销 20×95 PIN 20×95 6 GB/T882-2008
105 805046527 螺栓 M10×35(达克罗) BOLT M10×35 8 GB/T5783-2000
106 805000018 螺栓 M8×20 BOLT M8×20 62 GB/T5783-2000
107 805200080 螺母 M10 NUT M10 50 GB/T889.1-2000
108 805200046 螺母 M5 NUT M5 8 GB/T6170-2000
109 822102931 尼龙紧固带 NYLON TENSIONER BELT 1
110 384103987 橡胶挡板 RUBBER BAFFLE 1
