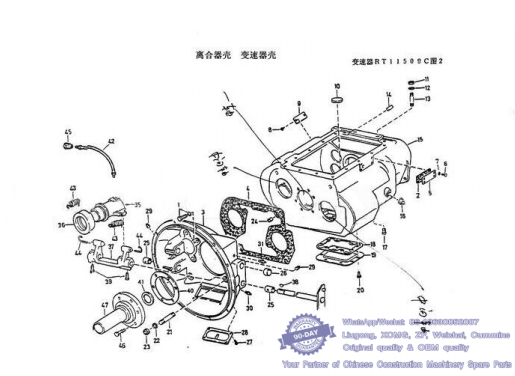

001 Clutch & transmission housing-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
2 Liner 19481
3 Clutch housing jsl00-1015-1
3 Clutch housing assembly tsl80a-1601015―5
3 Clutch housing 154lo
3 Clutch housing jsl80a 一 1601015
3 Clutch housing assembly a-3674
4 Liner 14310
5 Cover 18420
10 Round Magnet 14373
11 Screw nut m16×1．5
12 Washer q40316
13 Stud q1231630
14 Locating Pins 14334
15 Transmission housing jsl00―1701015
15 Transmission housing 18686
16 Plug q61412
17 Oil drain plug q61304
18 Gasket 16920
19 PTO bottom cover 16595
19 PTO bottom cover jsl30t-1701020
20 Screws m12×22
21 Stud q1231642
22 Washer q40316
23 Screw nut m16×1．5
24 Screw plug x―14558
25 Bushings 8677
26 Bowl plug piece 16374
27 Screws m8×12
28 Manhole Cover 1565
29 Square head taper plug q16401
30 Butter mouth q70170
31 Grease nipple q7oool
35 Separation bearing 11203
36 Release Bearing 996914
37 Clutch release fork 12817
38 Woodruff key x-6-1l
39 Retaining screws x-7-603
40 Bearing cover gasket 14311
41 First shaft bearing cap seals f500a 一 1802191
41 First shaft bearing cap seals f91410
42 Hose 51016
43 Spring 4425
44 Separation fork return spring 9293
45 Lubricants Cup 1/8″ 46 Bolt m10×32
47 First shaft bearing cap t116e―1701040
47 First shaft bearing cap jsl80a 一 1701040
47 First shaft bearing cap f91409

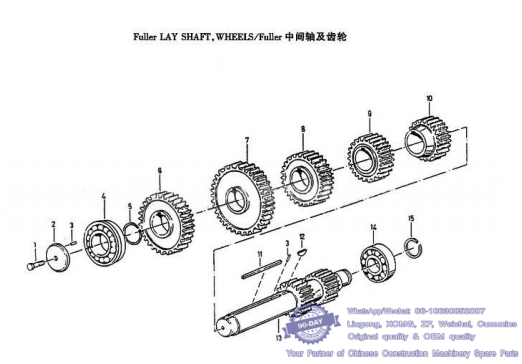

002 Counter shaft & gear-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
sequence name part number
1 Bolt m16×1．5x45
2 Plate 19668
3 Elastic cylindrical pin 62511
4 Bearing 370309y
4 Bearing 192309
4 Bearing 192309e
5 Collar 19198
6 Countershaft gear driving gear jsl00ra-1701056
6 Countershaft driving gear jsl80t-1701056
6 Countershaft driving gear t116e-1701056
6 Countershaft driving gear jsl00―170156
6 Countershaft driving gear jsl50―1701054
6 Countershaft driving gear 19631
6 Countershaft transmission gear js100-170l56
6 Countershaft transmission gear 19552
6 Countershaft transmission gear 19615
6 In asking shaft drive gear jsl30r-1701056
6 Countershaft driving gear jsl00t-1701056
7 Left PTO gear 15953
7 Right PTO gear 20840
8 Countershaft gear overdrive gear 19639
8 Countershaft gear overdrive gear t116e-1701053
8 Countershaft gear overdrive gear tll5f-1701052
8 Countershaft gear third gear jsl80t-1701051
8 Countershaft third gear jsl30t-1701051
8 Countershaft third gear jsl00―1701051
8 Countershaft fourth gear jsl00ta-1701051
8 Countershaft third gear 19243
8 Countershaft third gear jsl00a-1701051
8 Countershaft fourth gear jsl30ta-1701051
8 Countershaft third gear 16749
8 Countershaft gear overdrive jsl50-1701053
8 Countershaft third gear jsl30ta-1701056
8 Countershaft gear overdrive t115f-1701052
9 Countershaft second gear venomous snake round jsl30t 一 1701050
9 Countershaft second gear 19623
9 Countershaft second gear 19615
9 Countershaft second gear jsl50-1701052
9 Countershaft second gear jsl00t-1701050
9 Countershaft second gear 16751
9 Countershaft gear second gear jsl80t-1701050
10 Countershaft gear first gear jsl50―1701051
10 Countershaft first gear 19247
10 Countershaft first gear 19629
10 Countershaft first gear jsl00-1701049
10 The Q axis of the first gear 19753
11 Quartet key countershaft jsl30t-1701055
11 Quartet key intermediate shaft 19673
12 Woodruff key x-6-e
13 Countershaft jsl330t-1701048
13 Intermediate shaft jsl00―1701048
13 Intermediate shaft 19549
14 Bearing 102308e
15 Collar 14317
15 (Bearing) snap ring c0102l

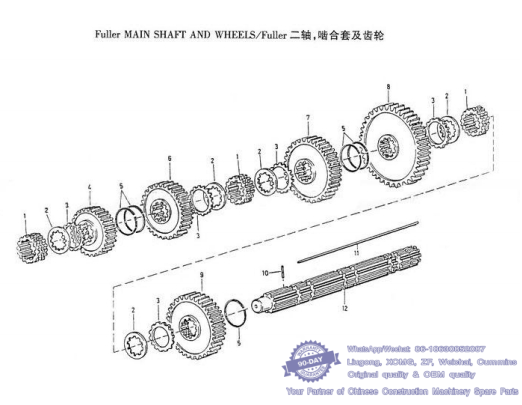

003 Second shaft gearing bushing & gear-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 Second shaft sleeve 16118
1 Second shaft sleeve jsl30t-1701108
2 Adjusting pad 1870l
3 Second gears splined washer jsl00-1701113
3 Second shaft gear splined washer 14749
4 Second shaft third gear 19242
4 Second shaft overdrive gear tll6e-1701132
4 Second shaft fourth gear jsl30ta-1701131
4 Second shaft fourth gear jsl00a-1701131
4 Second shaft third gear jsl00t-1701131
4 Second shaft third gear jsl00―1701131
4 Second shaft fourth gear _1s10gra-1701131
4 Second shaft third gear jsl80t-1701131
4 Second shaft overdrive gear 19638
4 Second shaft third gear 16748
4 Second shaft override gear jsl50-1701113
5 Snap ring 14750
6 First shaft second gear jsl50-1701112
6 Second shaft second gear jsl80t-1701130
6 Second shaft two gear 19614
6 Second shaft two gear 19622
6 Second shaft two gear jsl30t-1701130
6 Second shaft two gear 16750
6 Second shaft second gear jsl00t-1701130
7 Second shaft first gear jsl50-1701111
7 Second shaft first gear jsl30t-1701112
7 Second shaft first gear jsl00t-1701112
7 Second shaft first gear 19246
7 Second shaft first gear jsl00-1701112
7 Second shaft first gear 19628
7 Second shaft first gear jsl80t-1701112
7 Second shaft first gear 16752
8 Second shaft low gear 16754
9 Second shaft reverse gear jsl00-1701111
9 Second shaft reverse gear jsl80t-1701111
9 Second shaft reverse gear 16756
10 Elastic cylindrical pin 62504
11 Second shaft hex key 17109
12 Second shaft jsl30t-1701105
12 Second shaft jsl80t-1701105
12 Second shaft 18729
12 Second shaft jsl80-1701105

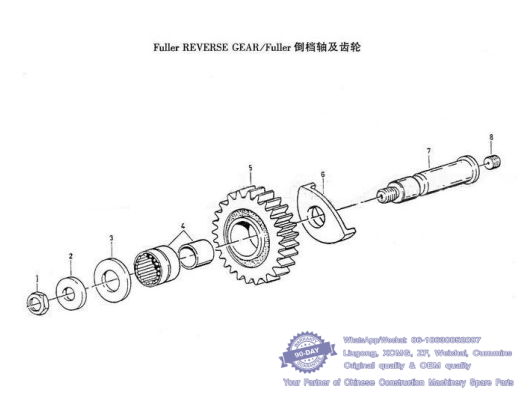

004 Reverse gear shaft & gear-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 Screw nut x―12440
2 Flat pad 14283
3 Reverse shaft thrust pad 14282
4 Needle roller bearings 14287
5 Reverse gear idler gear 16757
5 Reverse gear idler gear jsl80t-1701082
5 Reverse gear idler gear jsl00-701082
6 Reverse cupped washer 16403
6 Reverse gear cupped washer jsl00-1701083
7 Reverse countershaft 16405
8 Level set screws 5202

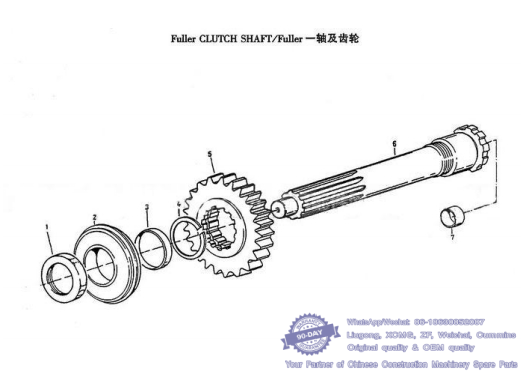

005 First shaft & gear-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 First shaft nut 8858
1 First shaft nut jsl80a-1701036
2 Bearing 150212k(81504)
3 Gear septum 16463
4 Snap ring 14750
5 First shaft gear 19630
5 First shaft gear jsl50-1701030
5 First shaft gear jsl00ta-1701031
5 First shaft gear jsl30ta-1701031
5 First shaft gear 17568
5 First shaft gear jsl00a-1701031
5 First shaft gear jsl00t-1701031
5 First shaft gear jsl80t-1701031
5 First shaft gear jsl00-1701031
5 First shaft gear 19239
5 First shaft gear tll6e-1701032
5 First shaft gear jsl30t-1701031
6 First shaft 19694
6 First shaft jsl80a 一 1701030
6 First shaft tll6e 一 1701031
7 (Bearing) snap ring c01021
7 Second shaft bushing 16566
