001 Engine Block Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800010037 1 Front Oil Seal
2 1000531295 1 crankcase assembly Whatsapp: 86-18630852087
3 610800010027 1 Rear Oil Seal
4 90014400021 1 Sealing Washer
5 1000966774 1 Water Pipe Connector
6 612600150106 1 Washer
7 9000000483 1 Hexagon Taper Screw Plug Whatsapp: 86-18630852087
8 13039332 1 Water Draining Valve

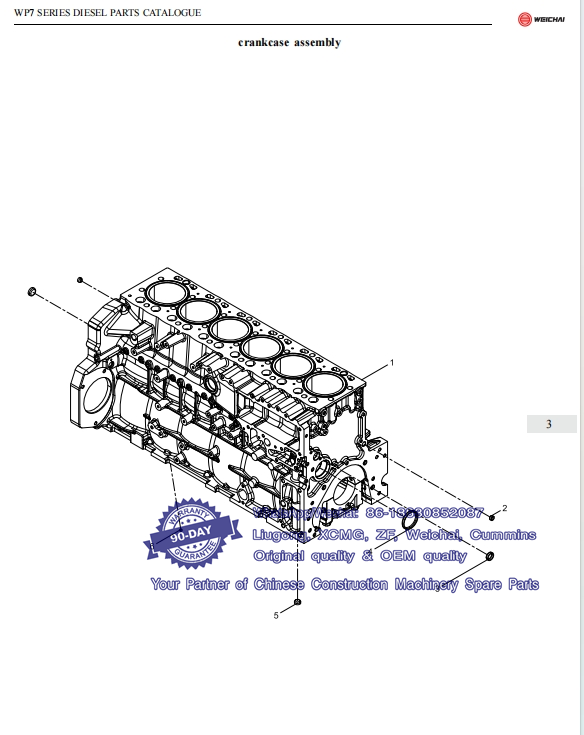

002 crankcase assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800010452 1 Cylinder Block Preassembly
2 612639000032 2 Corehole plug 14/10 Whatsapp: 86-18630852087
3 612600040269 2 Bowl Plug
4 610800010022 1 Bowl Plug
5 610800010025 1 Bowl Plug Whatsapp: 86-18630852087
6 612600040228 1 Pulling Rivet

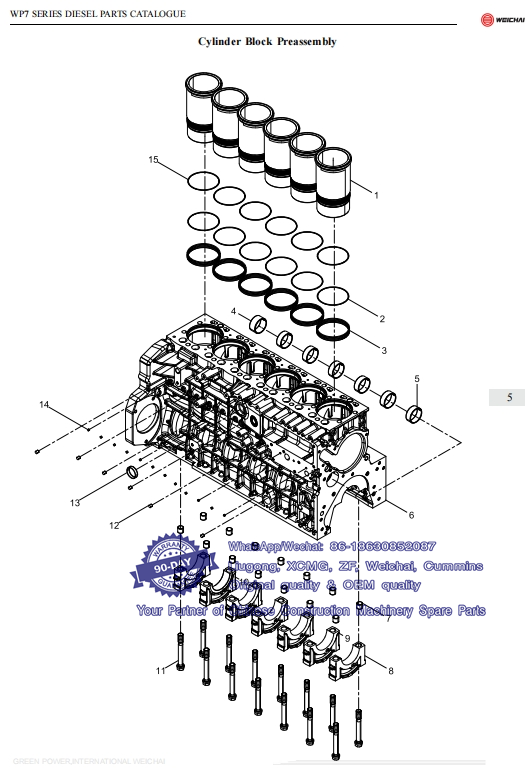

003 Cylinder Block Preassembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800010325 6 Cylinder Liner Whatsapp: 86-18630852087
2 610800010206 6 O-ring
3 610800010014 12 Cylinder Liner Ring
4 610800010009 1 Camshaft Bush
5 610800010010 6 Camshaft Bush
6 610800010450 1 Cylinder Block
7 610800010007 14 Dowel Pin
8 610800010491 2 Main Bearing Cap
9 610800010490 4 Main Bearing Cap Whatsapp: 86-18630852087
10 610800010489 1 Thrust Bearing Cover
11 610800010220 14 Main Bearing Bolt
12 610800010023 6 Pulling Rivet
13 90003989215 1 Bowl Plug
14 612600040228 12 Pulling Rivet Whatsapp: 86-18630852087
15 1000345339 6 Cylinder Liner Ring

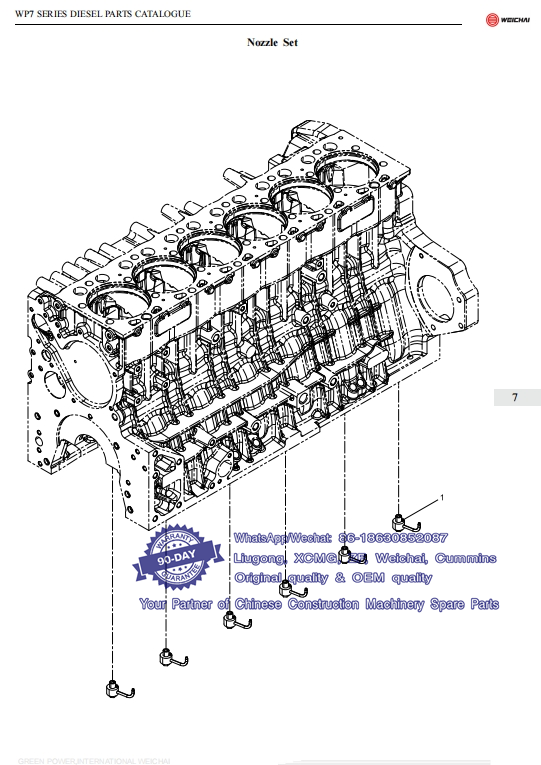

004 Nozzle Set——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800010040 6 Piston Nozzle Set Whatsapp: 86-18630852087

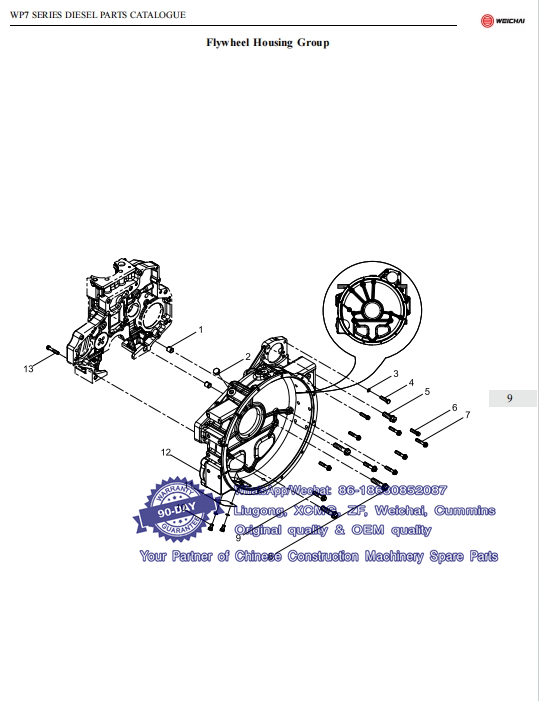

005 Flywheel Housing Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800010008 2 Dowel Pin
2 90003962030 1 Hexagon plug
3 90003932024 3 Wave Spring Washer
4 90003802536 1 Hexagon Head Bolt
5 610800010214 1 Hexagon Head Bolt Whatsapp: 86-18630852087
6 610800010215 2 Hexagon Head Bolt
7 610800010138 6 Hexagon Head Bolt
8 610800010135 3 Hexagon Head Bolt
9 610800010137 2 Hexagon Head Bolt Whatsapp: 86-18630852087
10 90003802511 2 Hexagon Head Bolt
11 1800210011 1 Handhole Cover
12 610800010047 1 Flywheel Housing
13 610800010171 1 Hexagon Head Bolt
006
Pos. Teile.Number Amount Designation
1 610800060252 1 Gasket
2 610800010125 1 Cover Whatsapp: 86-18630852087
3 90003932023 8 Wave Spring Washer
4 90003802411 8 Hexagon Head Bolt Whatsapp: 86-18630852087

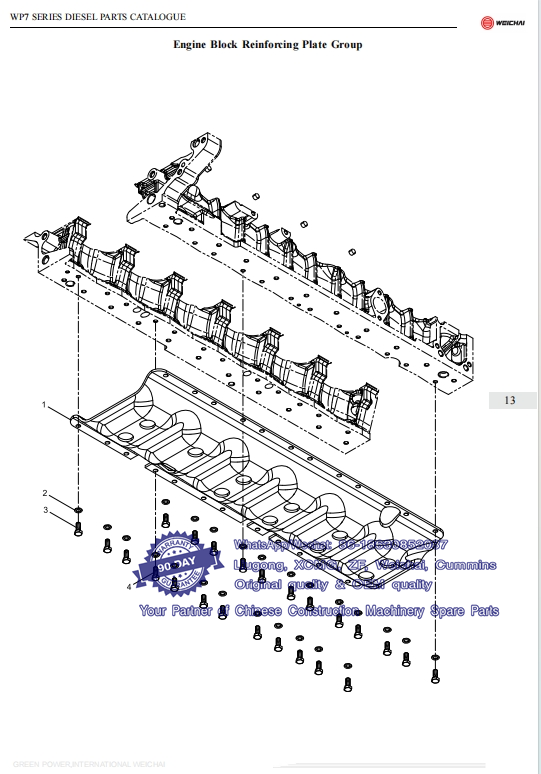

007 Engine Block Reinforcing Plate Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation Whatsapp: 86-18630852087
1 610800010421 1 Reinforcing Plate of Engine Block
2 90003932023 24 Wave Spring Washer Whatsapp: 86-18630852087
3 90003802419 22 Hexagon Head Bolt
4 90003802438 2 Hexagon Head Bolt

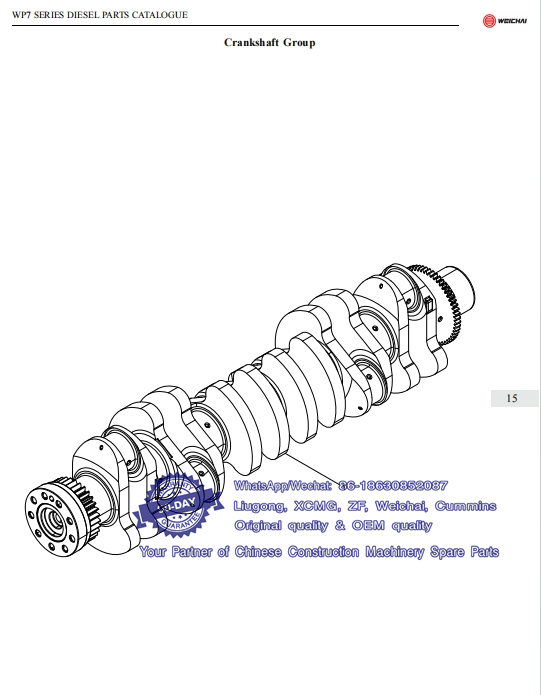

008 Crankshaft Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 1000175063 1 Crankshaft Assembly Whatsapp: 86-18630852087

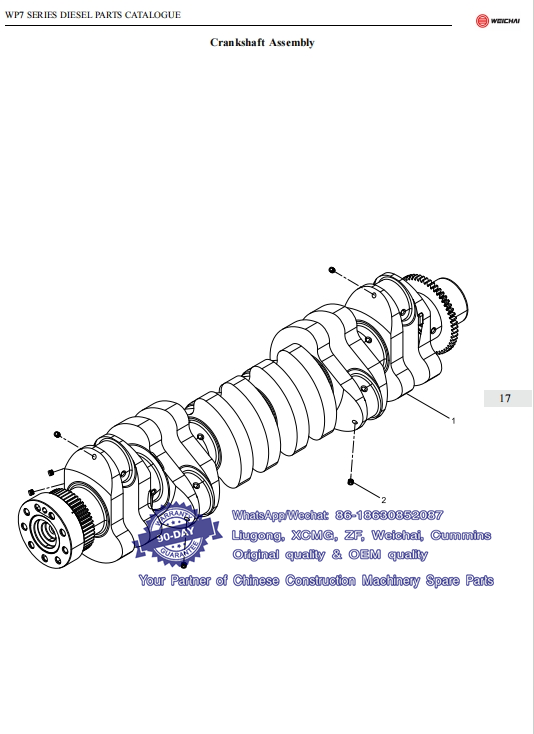

009 Crankshaft Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800020218 1 Crankshaft Subassembly Whatsapp: 86-18630852087
2 612639000020 6 Pulling Rivet

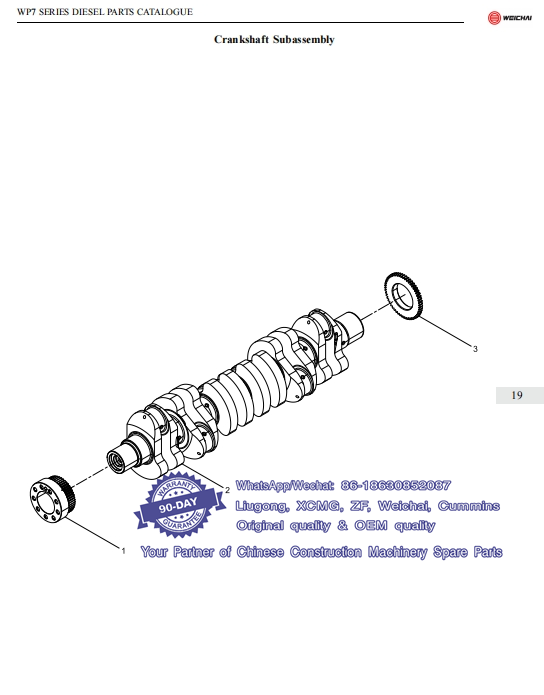

010 Crankshaft Subassembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800020003 1 Crankshaft Timing Gear
2 610800020216 1 Crankshaft Whatsapp: 86-18630852087
3 610800070393 1 Oil Pump Gear
