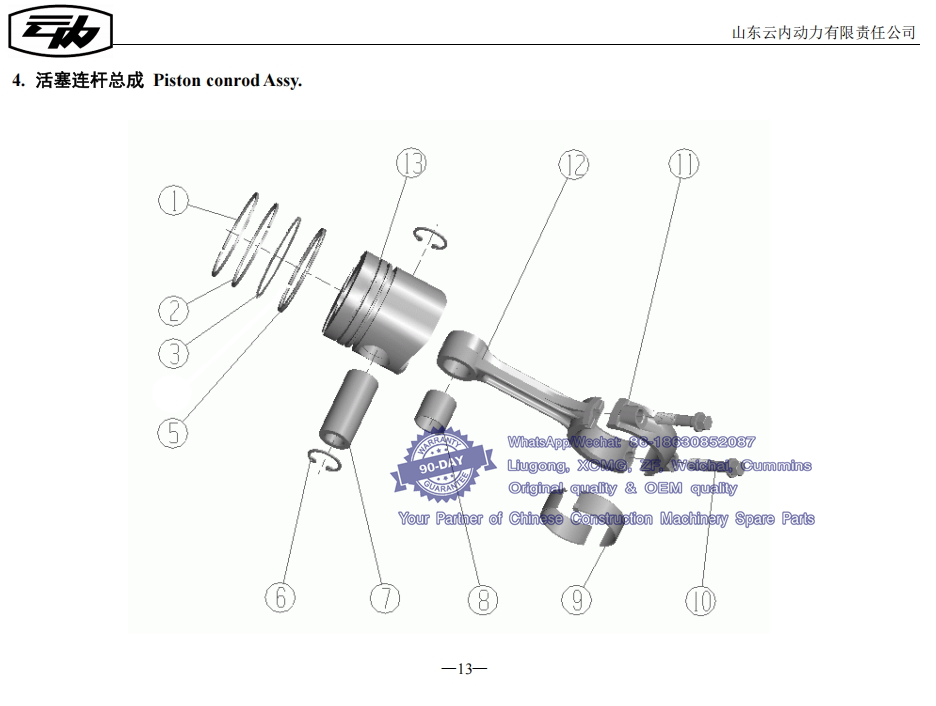

006 活塞连杆总成 Piston conrod Assy.-- Yunnei Diesel Engine 490DB Parts Catalog
标号 物料编码 零件代号 零件名称 规格/型号 数量 备注
Item Part No Part Name Specs or Model Q’ty Remarks
1 SHA0451 490QB-04002C 第一道气环 Top compression ring 4
2 490QB-04003C 第二道气环 Second compression ring 4 whatsapp: 86-18630852087
3 490QB-04100C 撑簧 Expander 4
5 环体 Side rail 4
6 SHA0420 90-04011 活塞销卡簧 Retaining ring 8
7 SHA0407 90-04004 活塞销 Piston pin 4 whatsapp: 86-18630852087
8 SHA0457 495T-04201A 连杆衬套 Connecting rod bushing 4
9 SHA0417 85-04007 连杆轴瓦 Connecting rod bearing shell 8
10 SHA0416 90-04204 连杆螺栓 Connecting rod bolt 8
11 90-04203 连杆盖 Connecting rod cap 4
12 SHA0455 90-04200A 连杆 Connecting rod 4
13 SHA0408 490QB-04001 活塞 Piston 4 whatsapp: 86-18630852087

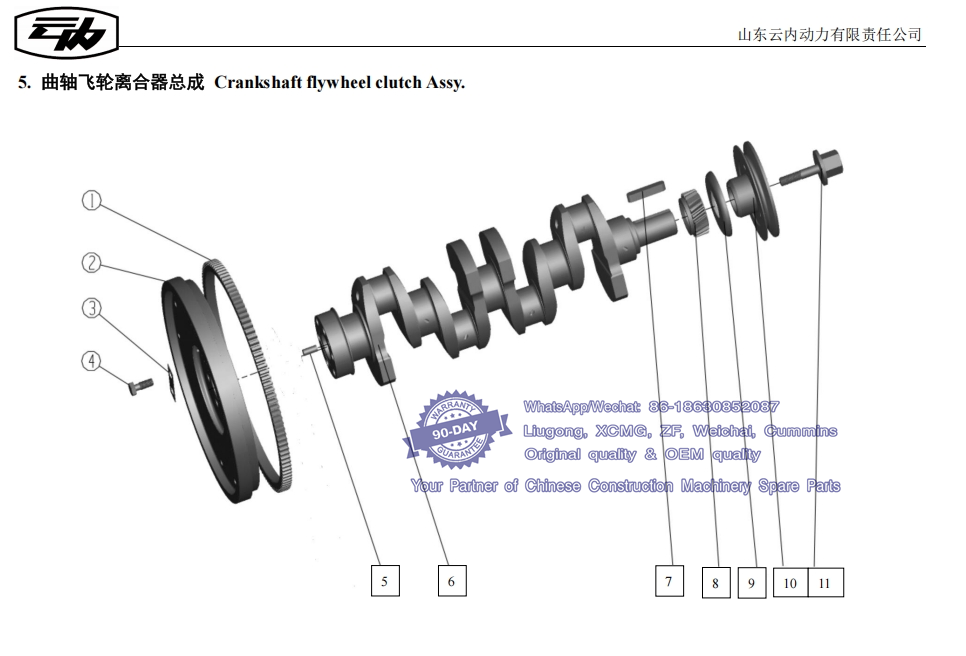

007 曲轴飞轮离合器总成 Crankshaft flywheel clutch Assy.-- Yunnei Diesel Engine 490DB Parts Catalog
标号 物料编码 零件代号 零件名称 规格/型号 数量 备注
Item Part No Part Name Specs or Model Q’ty Remarks
1、2 SHA050029 490DB-05101-1 飞轮齿圈合件 Flywheel 1
3 HA0585 4100QB-05-009 防松垫片 Locking washers 3 whatsapp: 86-18630852087
4 SHA0553 85-05002 飞轮螺栓 Bolt, flywheel 6
5 SHA0552 85-05003 飞轮定位销 Dowel pin 1
6 SHA0556 490QB-0500○5 4A 曲轴 Crankshaft 1
7 HB1116 GB 1096-79 键 Flat key A12×60 1 whatsapp: 86-18630852087
8 SHA0237 90-02007 曲轴正时齿轮 Timing gear, crankshaft 1
9 SHA0574 85-05005 曲轴甩油盘 Crankshaft oil baffle disc 1
10 SHA05084 YN27GB-05006 曲轴皮带轮 Crankshaft V-belt pulley whatsapp: 86-18630852087
11 SHA0573 490QZL-05008 曲轴皮带轮螺栓 Crankshaft V-belt pulley bolt 1

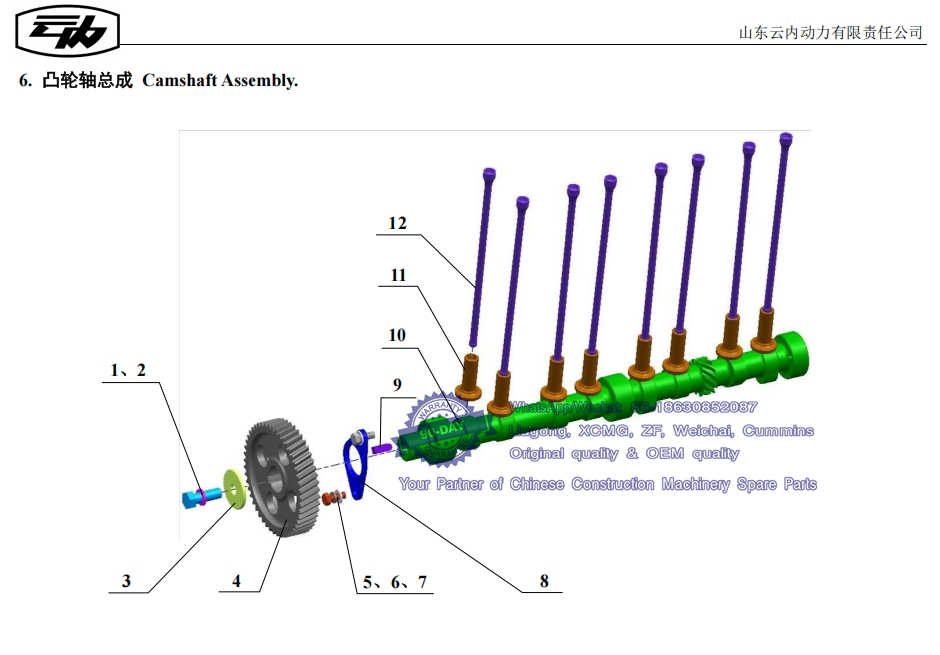

008 凸轮轴总成 Camshaft Assembly-- Yunnei Diesel Engine 490DB Parts Catalog
标号 物料编码 零件代号 零件名称 规格/型号 数量 备注
Item Part No Part Name Specs or Model Q’ty Remarks
1 HB0975 GB/T 5783 螺栓 Bolt M12×35-10.9 1 whatsapp: 86-18630852087
2 HB065T GB 93-87 垫圈 Spring washer 12 1
3 SHA0229 85-02011 凸轮轴垫圈 CAM shaft washer 1
4 SHA0231 90-02009 凸轮轴正时齿轮 Gear, camshaft 1
5 HB0971 GB/T 5783 螺栓 Bolt M8×20 1
6 HB063T GB 93-87 垫圈 Spring washer 8 1 whatsapp: 86-18630852087
7 HB067P GB 848-85 垫圈 Washer 8 1
8 SHA0232 85-02008 凸轮轴止推板 Trust plate, camshaft 1
9 HB111 GB 1096-79 键 Flat key C8×22 1
10 SHA0604 490Q(DI)-06001A 凸轮轴 Camshaft 1 whatsapp: 86-18630852087
11 SHA0606 85-06002 气门挺柱 Tappet 8
12 SHA0605 490QB-06003 气门推杆 Push rod 8

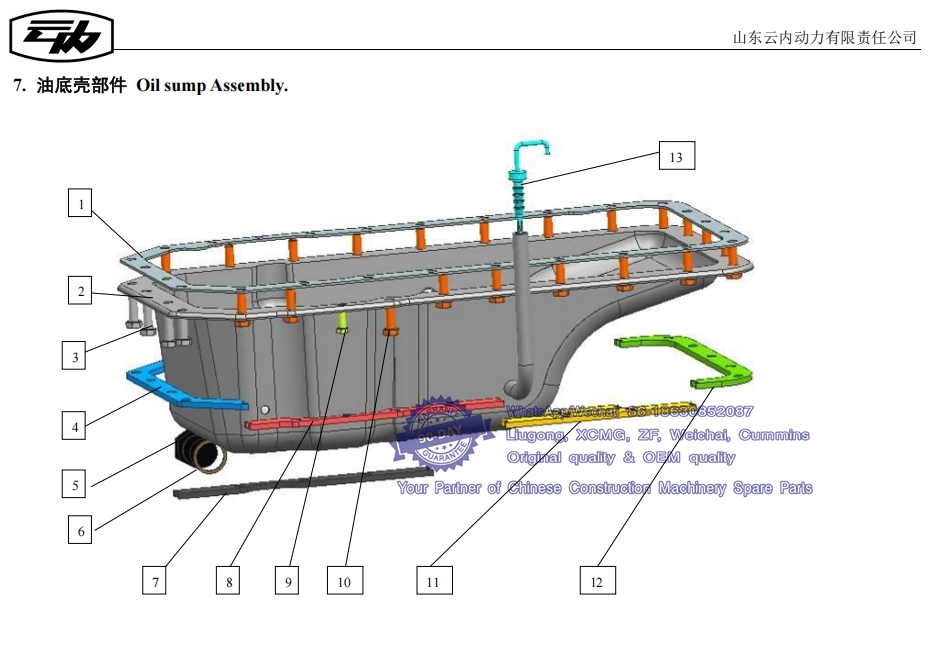

009 油底壳部件 Oil sump Assembly.-- Yunnei Diesel Engine 490DB Parts Catalog
标号 物料编码 零件代号 零件名称 规格/型号 数量 备注
Item Part No Part Name Specs or Model Q’ty Remarks
1 SHA07022 490Q(DI)-07002A 油底壳垫片 Gasket, oil sump 1 whatsapp: 86-18630852087
2 SHA0740 90-07400D 油底壳焊合件 Oil sump weld assembly 1
3 HB03128 GB/T 16674.1 螺栓 Bolt M8×25 4
4 SHA10006394 YN4A-050014 油底壳后压板 Rear baffle, oil sump 1
5 SHA0721 490Q(DI)-07101 放油螺塞 Drain plug 1
6 SHA0702 490Q（DI）-07003A 放油螺塞垫圈 Washer, Drain plug 1 whatsapp: 86-18630852087
7 SHA10006397 YN4A-050015 油底壳左压板 Left baffle, oil sump 1
8 SHA10006406 YN4A-050017 油底壳右压板(2) Right baffle (2), Oil sump 1
9 HB03098 GB/T 16674.1 螺栓 Bolt M6×16 1
10 HB03511 GB/T 16674.1 螺栓 Bolt M8×20 21
11 SHA10006405 YN4A-050016 油底壳右压板(1) Right baffle (1), Oil sump 2
12 SHA10006393 YN4A-050013 油底壳前压板 Front baffle, oil sump 1 whatsapp: 86-18630852087
13 SHA0779 490Q(DI)-07200-LY 机油标尺部件 Dipstick assembly 1

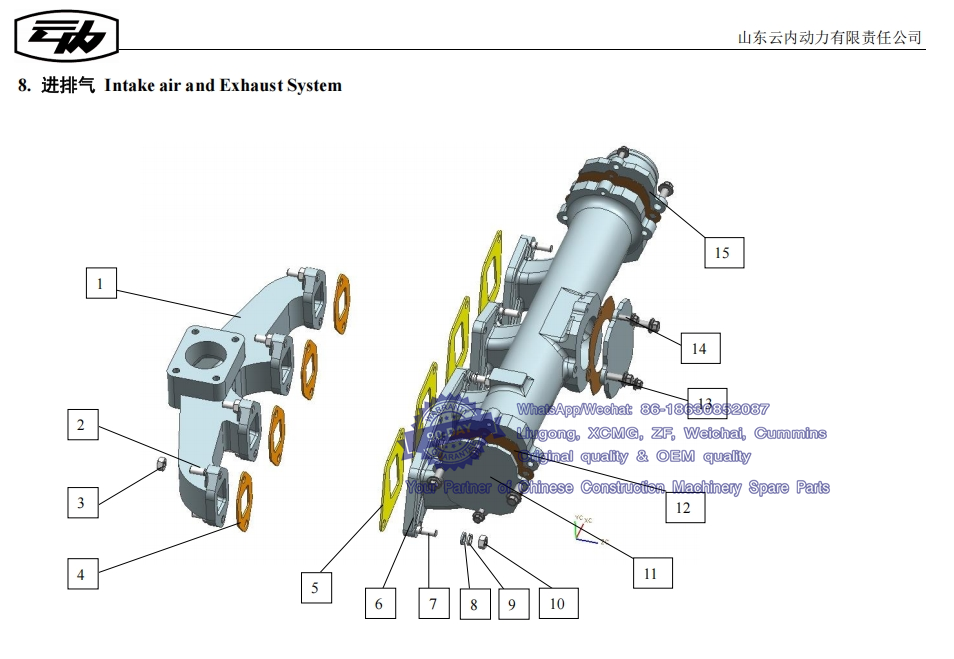

010 进、排气 Intake air and Exhaust -- Yunnei Diesel Engine 490DB Parts Catalog
标号 物料编码 零件代号 零件名称 规格/型号 数量 备注
Item Part No Part Name Specs or Model Q’ty Remarks
1 SHA08038 YN27GB-08001 排气管 Exhausting tail pipe 1 whatsapp: 86-18630852087
2 HB04036 GB 898-88 螺柱 Stud AM8×28 8
3 HA0930 4100QBZ-09-005 螺母 Nut M8 8
4 SHA0359 90-03003 排气管衬垫 Gasket, Exhausting tail pipe 4
5 SHA0954 490Q（DI）-09001 进气管衬垫 Gasket, intake manifold 4
6 SHA09212 YN27CR-09002-1 进气管 Inlet pipe 1
7 HB04036 GB 898-88 螺柱 Stud AM8×28 8 whatsapp: 86-18630852087
8 HB067P GB 848-85 垫圈 Washer 8 8
9 HB063T GB 93-87 垫圈 Spring washer 8 8
10 HB03147 GB-T6170_M8 螺母 Nut M8 8
11 SHA09213 YN27CR-09003-1 进气管盖板 Inlet cover plate 2 whatsapp: 86-18630852087
12 SHA10002250 YN27CR-09006-1 进气管入口管衬垫 The intake pipe gasket 3
13 HB03511 GB-T16674.1_M8X20 螺栓 Bolt M8X20 6
14 HB03099 GB-T16674.1_M6X20 螺栓 Bolt M6X20 6
15 SHA10009176 YN4A-100029 进气接管 Inlet nozzle 1
