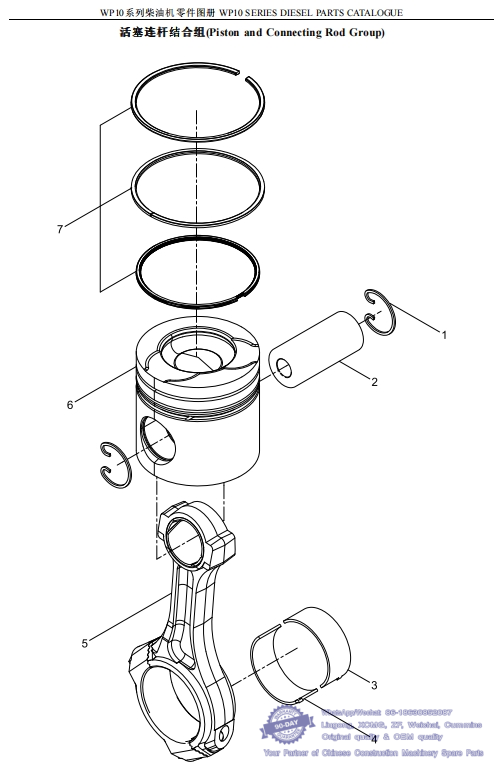

006 活塞连杆结合组(Piston and Connecting Rod Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 81560030012 12 活塞销挡圈 Piston pin retainer whatsapp 86-18630852087
2 61560030013 6 活塞销 Piston pin
3 612600030020 6 连杆上瓦 Connecting Rod Upper Shell
4 61560030033 6 连杆下瓦 Connecting Rod Lower Shell
5 61500030009 6 连杆总成 Connecting rod assembly whatsapp 86-18630852087
6 612600030068 6 活塞 Piston
7 612600030053 6 活塞环组件 Piston ring assembly whatsapp 86-18630852087

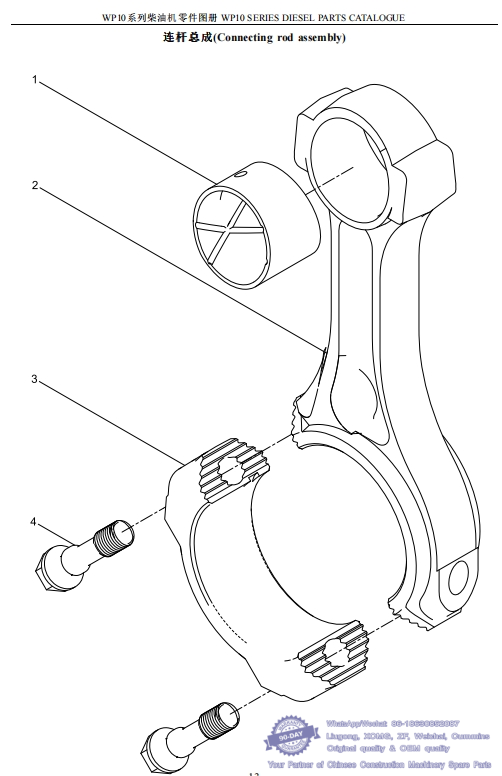

007 连杆总成(Connecting rod assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 61500030077 1 连杆衬套 Connecting rod bushing whatsapp 86-18630852087
2 61500030008 1 连杆体 Connecting rod body
3 61500030022 1 连杆盖 Connecting rod cover whatsapp 86-18630852087
4 81500030023 2 连杆螺栓 Connecting rod bolt

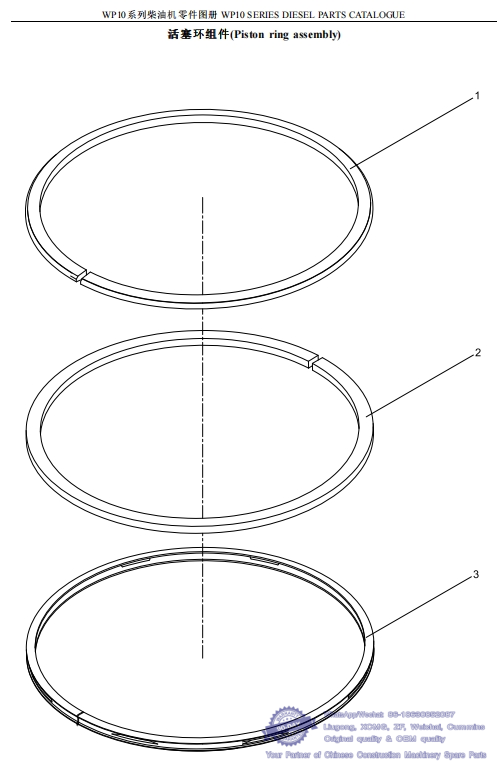

008 活塞环组件(Piston ring assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600030035 1 梯形桶面环 Taper-sided ring whatsapp 86-18630852087
2 612600030036 1 扭曲锥面环 Conical ring
3 612600030037 1 螺旋撑簧油环 Spiral spring oil ring whatsapp 86-18630852087

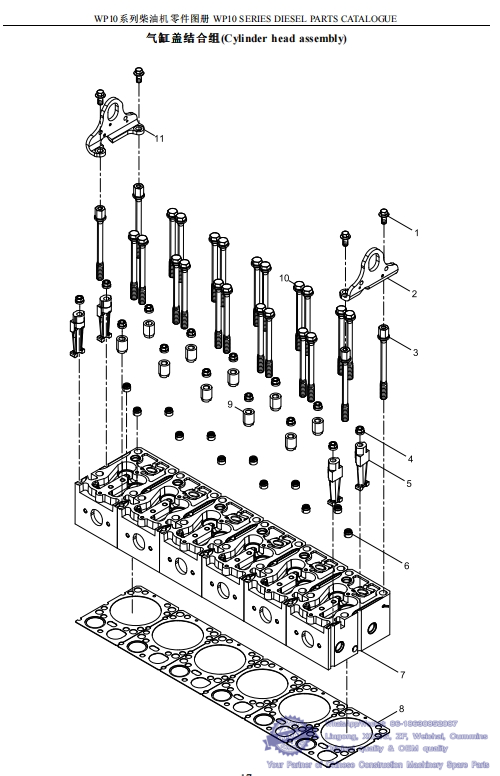

009 气缸盖结合组(Cylinder head assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 90011430028 4 六角法兰面承面带齿螺栓 Hexagon Flange Bolt whatsapp 86-18630852087
2 612600040384 1 后吊板 Rear hanger plate
3 612600040453 4 气缸盖主螺栓 Cylinder head main bolt
4 61200040034 14 带肩螺母 Nut whatsapp 86-18630852087
5 61200040027 4 夹紧块 Clamping block
6 612600040114 12 气门阀杆密封套 Seal washer of valve stem
7 612600040362 6 气缸盖分总成 Cylinder head subassembly
8 612600040355 6 气缸盖衬垫 Cylinder head gasket whatsapp 86-18630852087
9 61200040023 10 夹紧块 Clamping block
10 612600040452 20 气缸盖主螺栓 Cylinder head main bolt
11 612600040381 1 前吊板 Front hanger plate whatsapp 86-18630852087

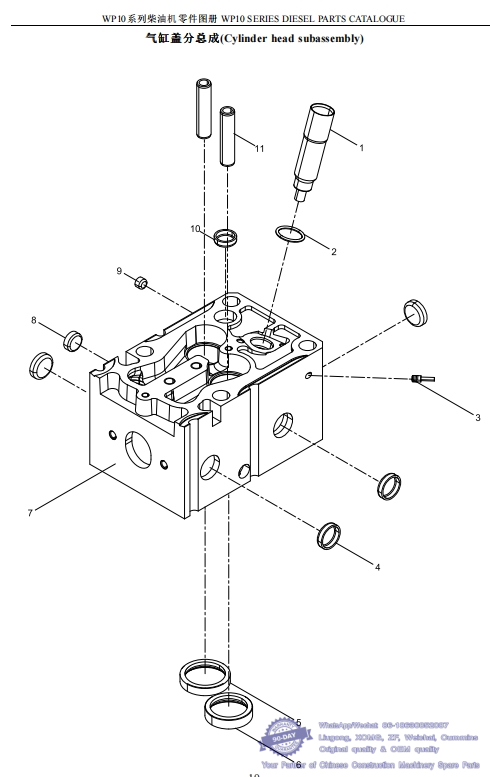

010 气缸盖分总成(Cylinder head subassembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600040235 6 喷油器衬套 Injector bushing whatsapp 86-18630852087
2 612600040240 6 密封圈 Seal washer
3 612600040228 6 拉铆钉 Tensioned rivet
4 90003989294 24 碗形塞 Corehole plug
5 61560040057 6 进气门座 Intake valve seat
6 81560040037 6 排气门座 Exhaust valve seat whatsapp 86-18630852087
7 612600040361 6 气缸盖 Cylinder head
8 90003989721 6 碗形塞片 Corehole plug
9 90003989277 6 碗形塞片 Corehole plug whatsapp 86-18630852087
10 90003989725 6 碗形塞片 Corehole plug
11 612600040113 12 气门导管 Valve guide
