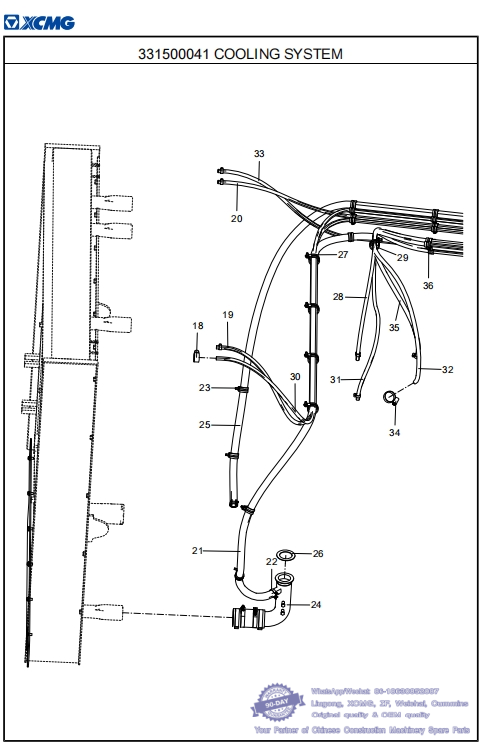

006 331500041 COOLING SYSTEM -- XCMG Mining Dump Truck XDR100 Parts Catalog
331500135 POWER SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
18 819908944 12 HOSE CLAMP
19 331505305 1 BREATHER PIPE EXTERNAL DIAMETER Φ17×3.5-6300 whatsapp 86-18630852087
20 331500760 1 VENTING PIPEΦ17×3.5-3870
21 331505308 1 EXTERNAL DIAMETER OF WATER SUPPLY PIPE Φ36×5-5600
22 800141586 4 T TYPE CLAMP
23 800141502 12 RUBBER SLEEVE HOOP
24 331500767 1 LOW-TEMPERATURE WATER RETURN PIPE
25 331500762 1 WATER SUPPLY PIPE Φ36×5-3500
26 331500768 1 RUBBER SEAT
27 803704530 4 RUBBER SLEEVE HOOP
28 331505303 1 BREATHER PIPE EXTERNAL DIAMETER Φ17×3.5-3800 whatsapp 86-18630852087
29 801905468 1 RUBBER SLEEVE HOOP
30 331505306 1 BREATHER PIPE EXTERNAL DIAMETER Φ17×3.5-6200
31 331505304 1 BREATHER PIPE EXTERNAL DIAMETER Φ17×3.5-5400
32 331500754 1 VENTING PIPEΦ20×3.5-3550
33 331500761 1 VENTING PIPEΦ17×3.5-3920
34 800104574 4 HOSE CLAMP
35 331505307 1 BREATHER PIPE EXTERNAL DIAMETER Φ20×3.5-3500
36 819908605 6 RUBBER SLEEVE HOOP whatsapp 86-18630852087

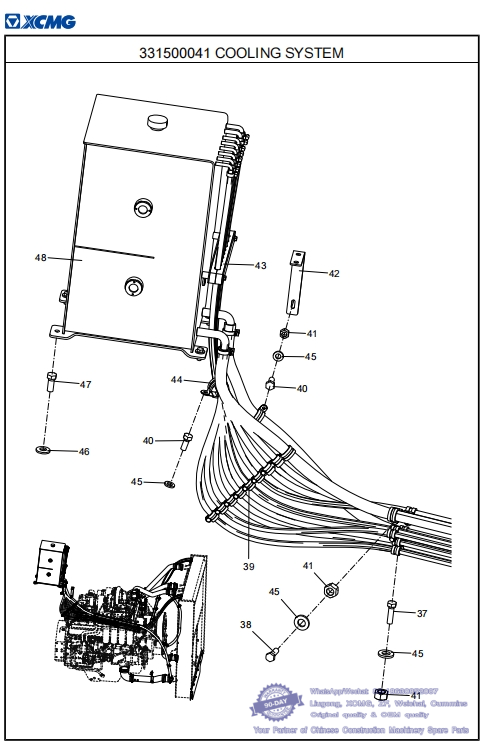

007 331500041 COOLING SYSTEM -- XCMG Mining Dump Truck XDR100 Parts Catalog
331500135 POWER SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
37 805046511 3 BOLT M8×30 GB/T5783-2000 whatsapp 86-18630852087
38 805046509 8 BOLT M8×25 GB/T5783-2000
39 801906284 23 RUBBER SLEEVE HOOP
40 805046508 20 BOLT M8×20 GB/T5783-2000
41 805238378 12 NUT M8 GB/T6170-2000
42 331504498 1 HOISTING PLATE
43 331504499 1 RUBBER CLAMP whatsapp 86-18630852087
44 801905672 1 RUBBER SLEEVE HOOP
45 329900301 31 THICKENED FLAT WASHER
46 805301374 4 WASHER 12 DIN6796
47 805006412 4 BOLT M12×30 GB/T5783-2000
48 331500773 1 EXPANSION TAN whatsapp 86-18630852087

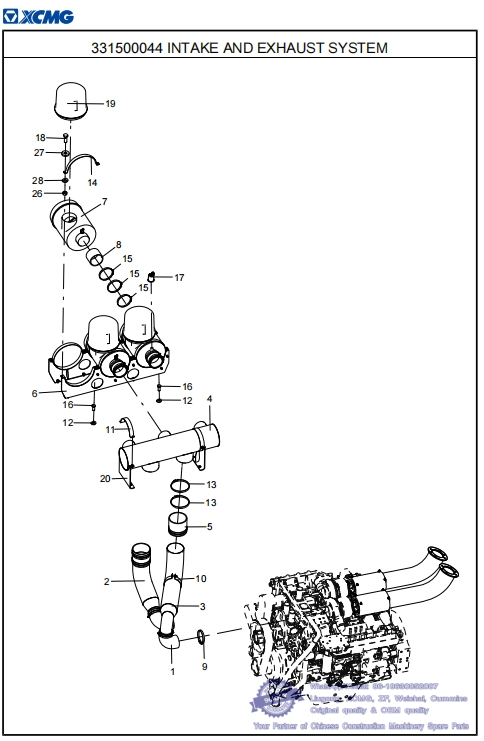

008 331500044 INTAKE AND EXHAUST SYSTEM - XCMG Mining Dump Truck XDR100 Parts Catalog
331500135 POWER SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331500067 2 AIR INTAKE PIPE JOINT whatsapp 86-18630852087
2 331500065 1 AIR-IN PIPE
3 331500066 1 AIR-IN PIPE
4 331500063 1 AIR-IN PIPE
5 331500064 2 AIR INTAKE PIPE JOINT
6 331500057 2 AIR FILTER BRACKET ASSEMBLY
7 800154749 3 FILTER OF AIR 26 whatsapp 86-18630852087
8 331500062 3 AIR INTAKE PIPE JOINT
9 800104568 6 HOOP
10 331501883 1 FASTENING CLAMP 28
11 331500084 2 HOOP
12 805301374 20 WASHER 12 DIN6796
13 800141604 8 HOOP
14 331500056 6 HOOP whatsapp 86-18630852087
15 800141620 9 HOOP
16 805006412 20 BOLT M12×30 GB/T5783-2000
17 800152497 3 ELECTRONIC DIFFERENTIAL PRESSURE ALARM
18 805046416 16 BOLT M10×30 GB/T5783-2000
19 800104233 3 PRE-FILTER
20 331500055 2 BRACKET whatsapp 86-18630852087

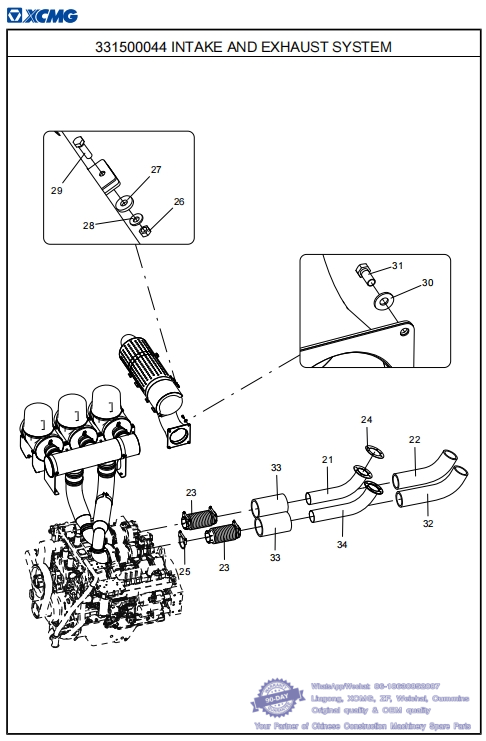

009 331500044 INTAKE AND EXHAUST SYSTEM -- XCMG Mining Dump Truck XDR100 Parts Catalog
331500135 POWER SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
21 331500060 1 EXHAUST PIPE
22 331500046 1 HEAT-INSULATING COTTON II whatsapp 86-18630852087
23 331500061 2 CORRUGATED PIPE
24 331500053 2 MAT
25 331500058 4 U-SHAPED BOLT ASSEMBLY 30
26 805238371 20 NUT M10 GB/T6170-2000
27 331500743 20 SPACER RING
28 805301373 20 WASHER 10 DIN6796
29 805046528 4 BOLT M10×35 GB/T5783-2000 whatsapp 86-18630852087
30 805301377 4 WASHER 16 DIN6796
31 805006289 4 BOLT M16×35 GB/T5783-2000
32 331500047 1 HEAT-INSULATING COTTON I
33 331500045 2 HEAT-INSULATING COTTON III
34 331500059 1 EXHAUST PIPE whatsapp 86-18630852087

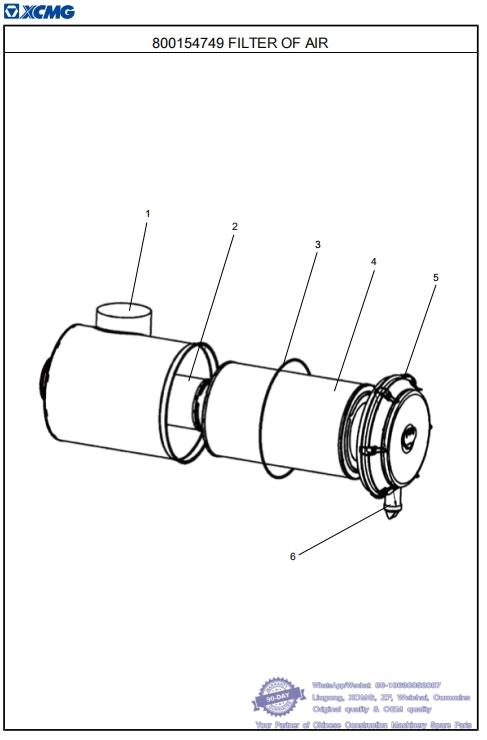

010 800154749 FILTER OF AIR -- XCMG Mining Dump Truck XDR100 Parts Catalog
331500044 INTAKE AND EXHAUST SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 800171169 1 HOUSING whatsapp 86-18630852087
2 800154706 1 SAFETY FILTER ELEMENT
3 800171168 1 ORING
4 803172683 1 EXTERNAL FILTER ELEMENT
5 800171170 1 SERVER-SIDE COVER
6 800162209 1 DUST VALVE whatsapp 86-18630852087
