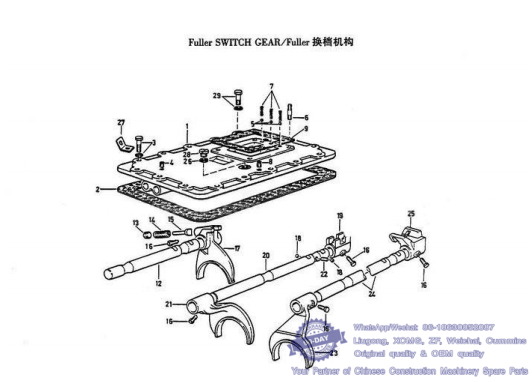

006 Gear shifting mechanism-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 Upper cap jsl00a-1702015
1 Upper cap jsl30t-1702015
1 Upper cap b19980
Upper cap jsl30t-1702010
Upper cap jsl30ta-1702010
Upper cap a-c0200l
2 Liner 14918
3 Bolt m10×35
3 Spring washer q40310
4 Square groove taper plug q61303
5 Steel ball 1／2″ 6 Stud 11056
7 Spring f96084
7 Spring f96085
8 Square groove taper plug q61032
9 Liner 1642
12 Low reverse gear fork shaft 16132
12 Low reverse gear shiftingfork shaft jsl00a-1702064
13 Reverse gear lock plug 8968
14 Reverse gear lock spring 8774
15 Reverse gear lock plunger f99671
16 Locking screw 3220
17 Low reverse gear fork 99664
18 Interlock Ball 3／4″ 19 1/2 gear guiding block f99588
19 1/2 gear guide block jsl00a-1702054
20 1/2 gear shifting fork shaft jsl30ta-1702065
20 1/2 gear shifting fork shaft jsl00a-1702065
20 1/2 gear fork stalls jsl30t-1702065
20 l / 2 gear shifting fork shaft 16133
21 l / 2 gear shifting fork shaft 16135
21 1/2 gear shifting fork jsl30t-1702055
21 l / 2 files fork jsl30ta-1702055
22 Interlock pin 1634
23 3/4 gear shifting fork jsl30ta-1702056
23 3/4 gear fork 16136
23 3/4 gear shifting fork jsl00a-1702056
23 3/4 gear shifting fork jsl30t-1702056
24 3/4 gear shifting fork shaft jsl30t-17021366
24 3/4 gear shifting fork shaft 18643
24 3/4 gear shifting fork shaft jsl30ta-1702066
25 3/4 gear guide block f99589
25 3/4 gear guiding block jsl00a-1702053
26 Liner 17179
27 Rings 17105
28 Plugs 17178
29 Flat nut x-6-01
29 Nuts (thickness 24) x-6-03
29 Bolt m10×32
2l l / 2 gear shifting fork jsl00a-1702055

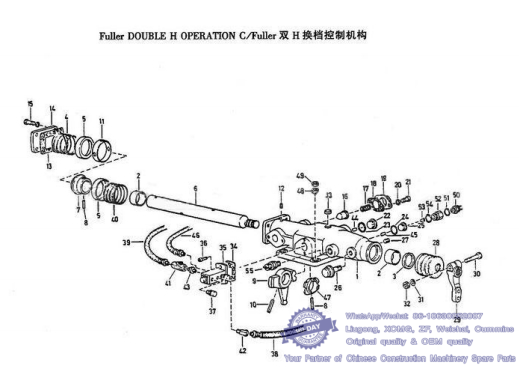

007 Double H valve shifting mechanism-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 Housing f96194
1 Housing jsl00-1702051
2 Bush f91345
3 Seal f91444
4 Spring f99983
5 Spring seat f99673
6 Lateral shift lever f99679
6 Lateral shift lever jsl00-1702017
7 Positioning ring f99675
8 Elastic cylindrical pin q5000635
9 Dial head jsl00a-1702072
9 Dial head f99585
10 Cylindrical pin c03030
10 Pin jal00a-1702073
11 Spring spacer f99674
12 Screw c03004
13 Gasket f99672
14 Plates f99666
15 Screws m8x12
16 Positioning of the plunger f99670
17 Compression spring f96037
18 Liner f96140
19 Spring gland f96141
20 Bolt m8×12
21 Washer q40108
22 Neutral switch 99012710041
22 Plugs q61518
23 Liner 17179
24 Liner 15900
25 Reverse switch plug 15917
26 Vent plug 15276
27 Square groove taper plug q61302
28 Dust cover f99669
29 Shifting arm f96035
30 Bolt m10×lx50
31 Spring washer q40310
32 Screw nut m10×l
33 Bowl plug piece q72224
34 Liner f91353
35 Double H double valve f99660
Double H valve control device a-c0300l
Double H valve control device a-c0300l-1
36 Socket head cap screws m6×18
37 Vent plug 7935
38 Trachea 55518
39 Trachea 55522
40 Spring f96036
41 Joint 12881
42 Pipe fittings 12880
43 Connector 12769
44 Neutral switch Pin f99702
45 Switch start pin 15899
46 Trachea (pick-grade) 55523
47 Reverse switch control block jsl00-1702052
47 Reverse switch control block f99681
48 Nuts (thick) m10×l
49 Nut (flat) m10×1
50 Reverse gear switch 79100710068
51 Seal c03015
52 Reverse gear switch plug 15917
54 Seal c03015
47a Retaining pin jsl00-1703012

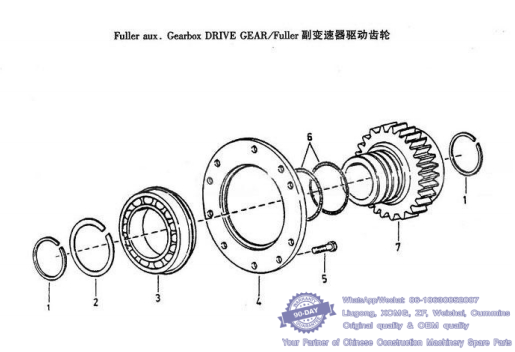

008 Vice box driving gear-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 Snap ring 16763
2 Snap ring 16628
3 (Bearing) snap ring c01019
3 Bearing 50118
4 Vice box bearing the puck 16138
5 Screws m10x22
7 Vice-box drive gear jsl80t-1707030
7 Vice-box drive gear 18869
7 Vice-box drive gear 19254
7 Vice-box drive gear jsl80-1707030
7 Vice-box drive gear 19275
Vice-drive gear box assembly a―c09005
Vice-drive gear box assembly jsl80t-1707025

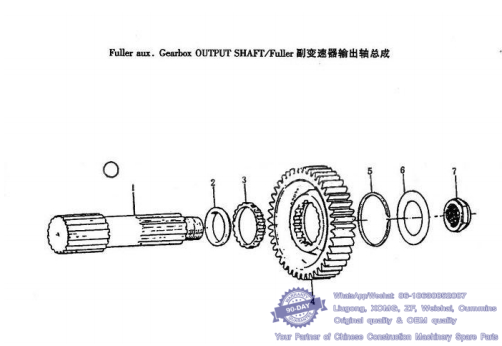

009 Vice box output shaft-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 Vice box spindle f99882
1 Vice box spindle jsl80-1707105
2 Vice box spindle washers jsl80-1707107
2 Vice box spindle washers 14332
3 Vice box spindle washer 14331
4 Vice gearbox reduction gear spindle jsl30t-1707121
4 Vice gearbox reduction gear spindle 19165
4 Vice gearbox reduction gear spindle jsl00t-1707121
4 Vice gearbox reduction gear spindle jsl80t-1707121
4 Vice gearbox reduction gear spindle 19726
4 Vice gearbox reduction gear spindle 19665
4 Vice gearbox reduction gear spindle jsl80-1707106
5 Snap ring f14327
6 Vice gearbox reduction gear gaskets jsl80-1707108
6 Vice gearbox reduction gear gaskets 19466
7 Flange nut f96006

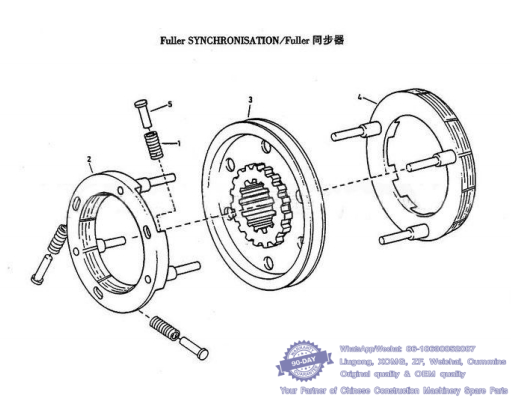

010 Synchronizer-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
l Spring 14897
Synchronizer a-5056
2 High gear synchronizer assembly jsl30t-1701150
2 High gear synchronizer assembly a-4938
3 Slide synchronizer assembly 20323
4 Low gear synchronizer assembly jsl30t-1701140
4 Low gear synchronizer assembly a-4937
5 Spring guide seat 19154
Full range of spare parts for Sinotruk Howo Transmission FAST RT11509C, whatsapp 86-18630852087
