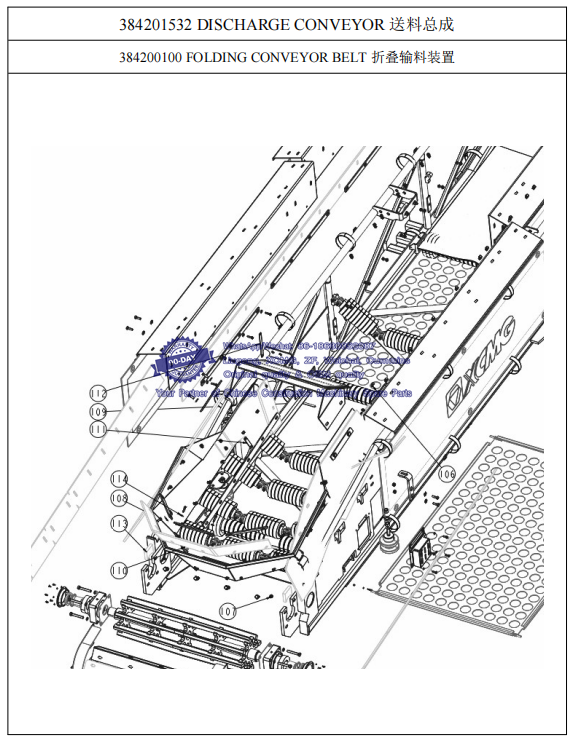

009 384201532 DISCHARGE CONVEYOR 送料总成-- XCMG Road Milling Machine XM200 Spare Parts Catalog

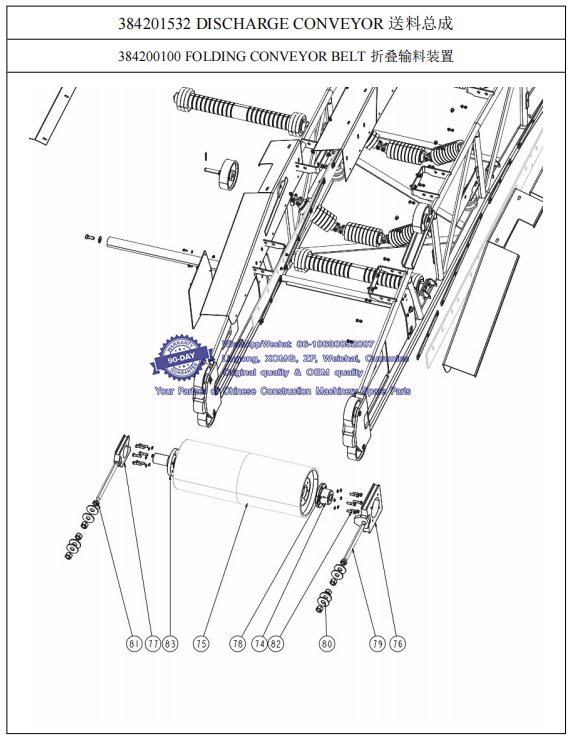

384200100 FOLDING CONVEYOR BELT 折叠输料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
111 384203134 压条 PLATE 2
112 384203069 压条 PLATE 2 Whatsapp: 86-18630852087
113 384203754 橡胶垫 BALATA MAT 2
114 805301384 垫圈 8(达克罗) WASHER 8 162 DIN6796

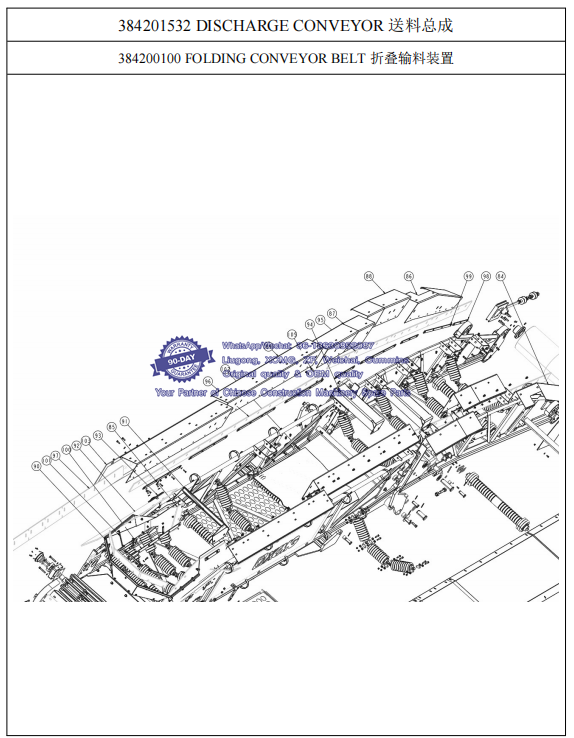

010 384201532 DISCHARGE CONVEYOR 送料总成-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384200100 FOLDING CONVEYOR BELT 折叠输料装置
011 384201532 DISCHARGE CONVEYOR 送料总成-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384200100 FOLDING CONVEYOR BELT 折叠输料装置

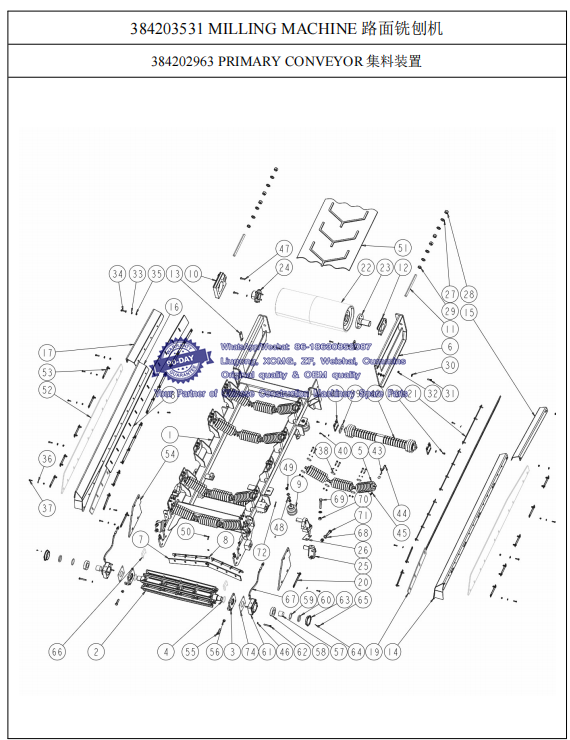

012 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog

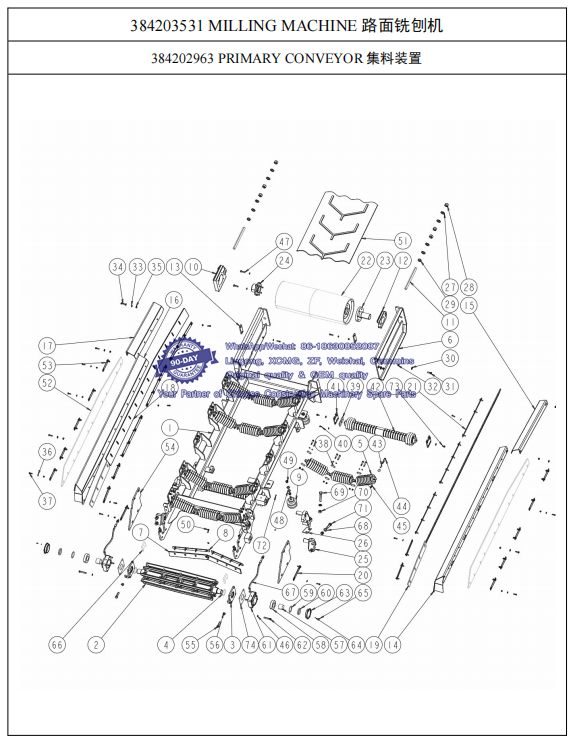

384202963 PRIMARY CONVEYOR 集料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384203226 集料架 COLLECT CONVEYOR 1
2 384202000 从动转轮 DRIVEN WHEEL 1
3 384203222 轴承连接盘 BEARING COLLET BOARD 2
4 384102313 密封垫 WASHER 2
5 800308429 托滚总成 RUBBER WHEEL 15 Whatsapp: 86-18630852087
6 384201647 轮支架 ROLLER SUPPORT 1
7 384201644 胶垫 MAT 1
8 384201645 固定板 PLATE 2
9 800308423 导向轮 GUIDE WHEEL 4
10 384201586 马达连接架 MOTOR LINK SPAN 1
11 805046248 螺杆 SCREW STEM 2 Whatsapp: 86-18630852087
12 380601264 轴承 BEARING 1
13 384201636 支板 BRACKET 2
14 384203217 右封头挡板 RIGHT END RETAINING PLATE 1
15 384203218 右挡板连接架 RIGHT RETAINING PLATE JOINTING TRUSS 1
16 384203207 左封头挡板 LEFT END RETAINING PLATE 1
17 384203221 左挡板连接架 LEFT RETAINING PLATE JOINTING TRUSS 1
18 384202940 橡胶挡板 RUBBER BAFFLE 2
19 384202941 橡胶挡板 RUBBER BAFFLE 2
20 384202311 固定板 PLATE 6 Whatsapp: 86-18630852087
21 384202310 固定板 PLATE 6
22 384201587 滚筒 ROLL 1

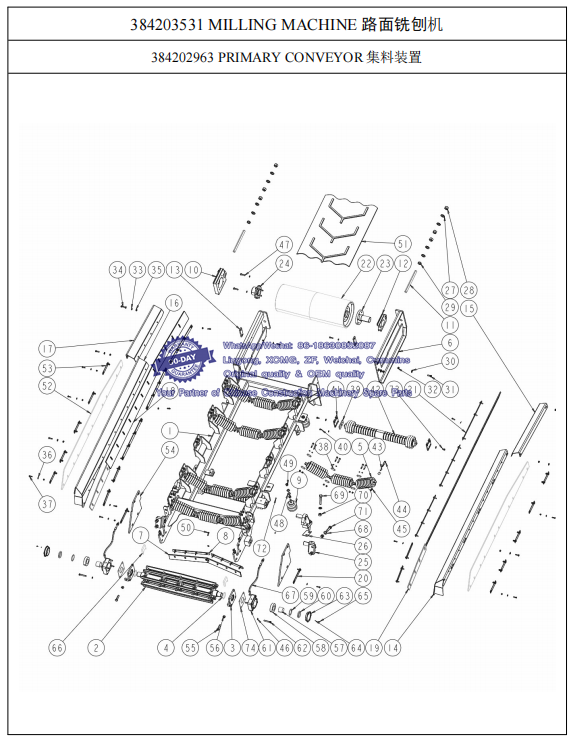

013 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384202963 PRIMARY CONVEYOR 集料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
23 384201588 驱动轴 DRIVE AXLE 1
24 384201611 联接套 CONNECT BLOCK 1
25 384203205 焊接销 WELDING PIN ROLL 4 Whatsapp: 86-18630852087
26 384203210 调整垫 ADJUST MAT 4
27 805303543 垫圈 24 WASHER 24 8 GB/T97.2-2002
28 805238377 螺母 M24(达克罗) NUT M24 6 GB/T6170-2000
29 805238877 螺母 M24(达克罗) NUT M24 2 GB/T6172.1-2000
30 805301374 垫圈 12(达克罗) WASHER 12 3 DIN6796
31 805046547 螺栓 M12×35(达克罗) BOLT M12×35 3 GB/T5783-2000
32 805238367 螺母 M12(达克罗) NUT M12 3 GB/T6170-2000
33 805301373 垫圈 10(达克罗) WASHER 10 52 DIN6796
34 805046527 螺栓 M10×35(达克罗) BOLT M10×35 22 GB/T5783-2000
35 805238366 螺母 M10(达克罗) NUT M10 22 GB/T6170-2000
36 805301384 垫圈 8(达克罗) WASHER 8 70 DIN6796
37 805046510 螺栓 M8×30(达克罗) BOLT M8×30 52 GB/T5783-2000
38 384201376 夹板 PLYWOOD 40 Whatsapp: 86-18630852087
39 384201399 固定板 PLATE 2
40 805046507 螺栓 M8×20(达克罗) BOLT M8×20 4 GB/T5783-2000
41 384203696 连接板 PLANK 4
42 800308430 拖带轮CARRIER BELT ROLLER 2 Whatsapp: 86-18630852087
43 805338259 垫圈 8(达克罗) WASHER 8 40 GB/T93-1987
44 805141304 螺钉 10×40 SCREW 10×40 40 GB/T5281-1985

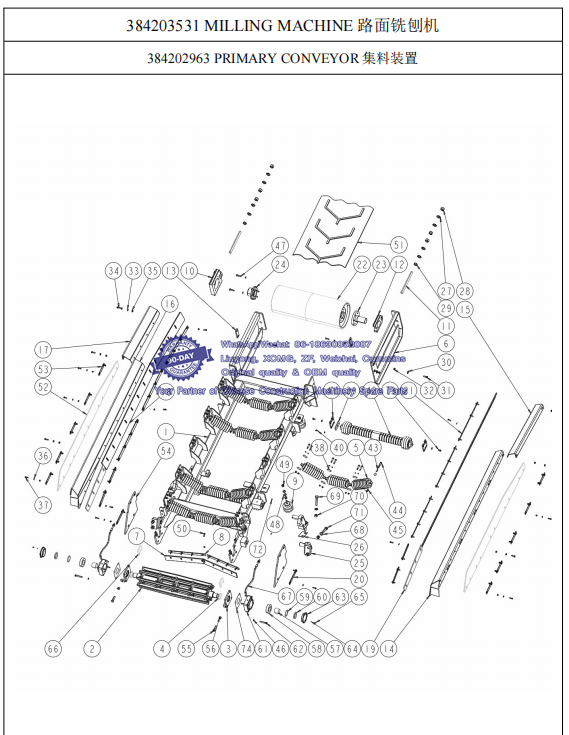

014 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384202963 PRIMARY CONVEYOR 集料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
45 805201502 螺母 M8 NUT M8 66 GB/T889.1-2000
46 805338261 垫圈 12(达克罗) WASHER 12 14 GB/T93-1987
47 805048379 螺栓 M12×45(达克罗) BOLT 6 GB/T5782-2000
48 805338284 垫圈 16(达克罗) WASHER 16 8 GB/T97.1-2002
49 805046476 螺母 M16(达克罗) NUT M16 8 GB/T6170-2000
50 805046512 螺栓 M8×35(达克罗) SCREW M8×35 14 GB/T5783-2000
51 800353563 短输送带 SHORT CONVEYOR BELT 1
52 384202942 橡胶挡板 RUBBER BAFFLE 2 Whatsapp: 86-18630852087
53 384203211 压条 PLATE 10
54 384202943 橡胶挡板 RUBBER BAFFLE 2
55 805000040 螺栓 M16×60 BOLT M16×60 2 GB/T5783-2000
56 805200051 螺母 M16 NUT M16 2 GB/T6170-2000
57 800554766 紧定套 TAPERED ADAPTER SLEEVE 2
58 800554765 轴承 BEARING 2 Whatsapp: 86-18630852087
59 800554767 直线舌垫圈 STRAIGHT TONGUED WASHER 2
60 800554768 螺母 NUT 2
61 384202964 轴承座 BEARING HOUSE 2
62 805049024 螺栓 M12×75(达克罗) BOLT 8 GB/T5783-2000
63 384202966 端盖 COVER 2
64 805338380 垫圈 5(达克罗) WASHER 5 12 GB/T93-1987
65 805047700 螺栓 M5×10(达克罗) BOLT M5×10 12 GB/T5783-2000
66 384202965 橡胶垫 BALATA MAT 2
015 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384202963 PRIMARY CONVEYOR 集料装置
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
67 384202967 黄油软管 GREASE HOSE 2
68 805338288 垫圈 20(达克罗) WASHER 20 8 GB/T97.1-2002
69 805046593 螺栓 M20×100(达克罗) BOLT M20×100 4 GB/T5783-2000
70 805046475 螺母 M20(达克罗) NUT M20 8 GB/T6170-2000 Whatsapp: 86-18630852087
71 805047579 螺栓 M20×80(达克罗) BOLT 4 GB/T5783-2000
72 801103215 油杯 M10×1 不锈钢 OIL CUP M10×1 STAINLESS STEEL 4 JB/T7940.1-1995
73 805046472 螺栓 M10×20(达克罗) BOLT 8 GB/T5783-2000 Whatsapp: 86-18630852087
74 384203756 集料装置用调整垫 ADJUST PLATE FOR PRIMARY CONVEYOR 2

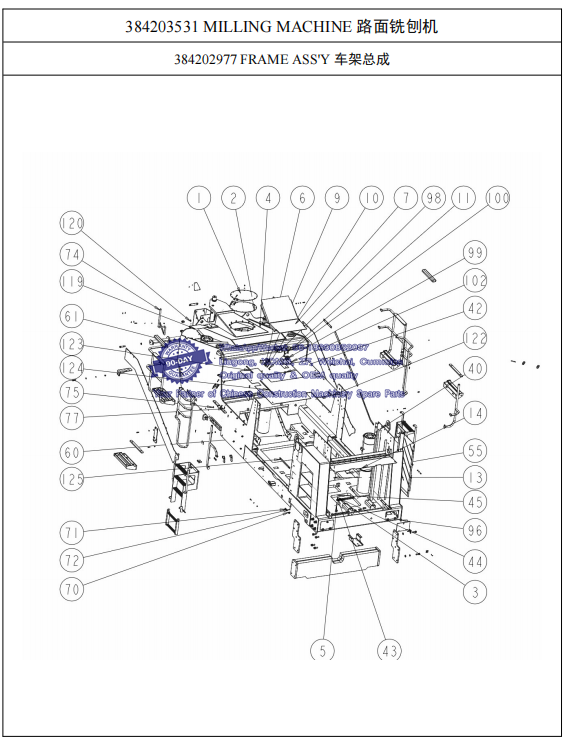

016 384203531 MILLING MACHINE 路面铣刨机-- XCMG Road Milling Machine XM200 Spare Parts Catalog
384202977 FRAME ASS'Y 车架总成
序号 零部件代号 名称 数量 备注
No. Part No. Part name Q'ty Remark
1 384202994 水箱盖 WATER COVER 1
2 384202995 橡胶垫 BALATA MAT 1
3 384200416 角钢 ANGLE STEEL 2
4 384202952 车架总成 FRAME ASS'Y 1
5 384200429 挂钩 POTHOOK 4 Whatsapp: 86-18630852087
6 384201564 橡胶垫 BALATA MAT 2
7 384201566 挡板 RETAINER 1
8 805338258 垫圈 6(达克罗) WASHER 3 GB/T93-1987
9 805338269 垫圈 12(达克罗) WASHER 12 6 GB/T96.1-2002
10 805338261 垫圈 12(达克罗) WASHER 12 32 GB/T93-1987
11 805046482 螺栓 M12×30(达克罗) BOLT 13 GB/T5783-2000
12 384200442 油缸支板 PLATE 4
13 384200445 分流阀支座DISTRIBUTING VALVE BRACKET 1
14 384202882 备用大灯支座 BATTERY BLOCK 1
15 384200417 警示灯支座WARNING LIGHTS BLOCK 1
16 384200418 后盖板 REAR COVER PLATE 2
17 384200563 消声器罩子 SILENCING CAP 1
18 384200444 后刮板悬挂 LATCH 1
19 384202886 橡胶板 BOARD 2 Whatsapp: 86-18630852087
20 384201570 压条三 LAYERING NO.3 2
21 384201569 压条二 LAYERING NO.2 2
22 384201567 压条一 LAYERING NO.1 2
