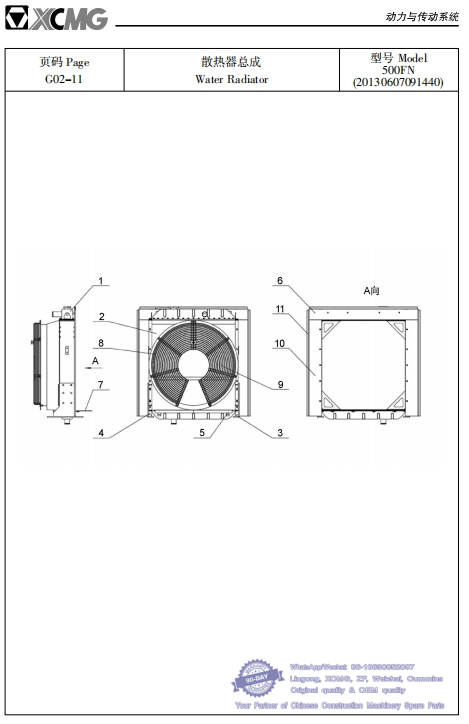

009 散热器总成 型号 500FN (20130607091440)
Water Radiator Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 水散热器总成 Water Radiator 1 XGSX01-77C-1301000
2 导风罩 Shroud 1 XGSX01-77A-1301601
3 右支架分总成 Right Bracket 1 XGSX01-77H-1301700
4 左支架分总成 Left Bracket 1 XGSX01-77H-1301700
5 液压油散热器总成 Hydraulic Oil Radiator 1 XGSX01-77AY-1300000
6 挡风板(上) Plate(Top) 1 XGSX01-77H-1301903
7 下胶板 Plate 1 XGSX01-77H-1301702
8 左护网 Left Guard Net 1 XGSX01-77A-1301603
9 右护网 Right Guard Net 1 XGSX01-77A-1301602
10 挡风板(侧) Plate(Side) 2 XGSX01-77H-1301902
11 密封条 Airproof Strip 1 XGSX01-78D-1301800

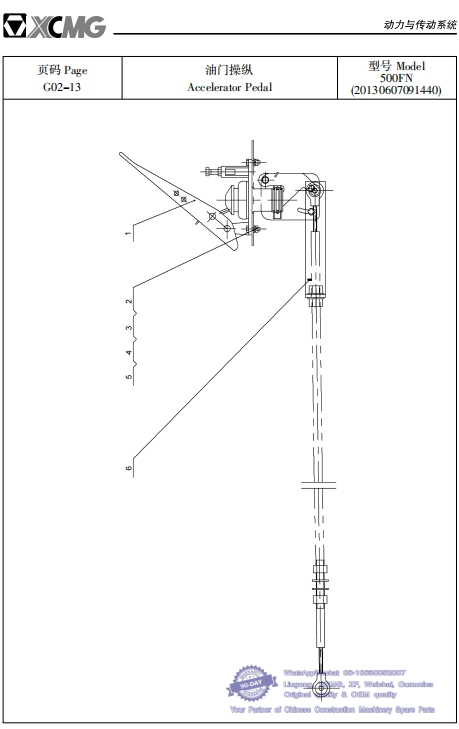

010 油门操纵 型号 500FN (20130607091440)
Accelerator Pedal Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 803004130 油门操纵阀 Accelerator 1 SL(XZ)-1129002
2 805000031 螺栓 M6伊25 Bolt 5 GB/T5783-2000
3 805300029 垫圈 6 Washer 7 GB/T97.1-2002
4 805300030 垫圈 6 Lock Washer 5 GB/T93 一 1987
5 805200053 螺母 M6 Nut 2 GB/T6170-2000
6 252100843 支架 Bracket 1

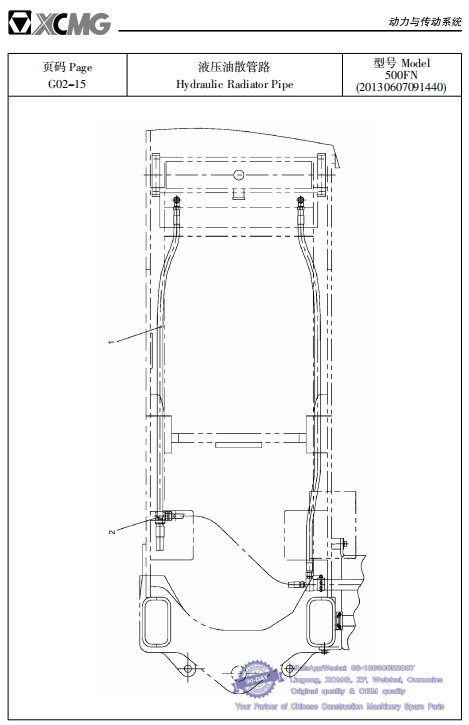

011 液压油散管路 型号500FN (20130607091440)
Hydraulic Radiator Pipe Model500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 252101225 软管总成 Hose 2
2 803163638 直角组合接头 Connector 1

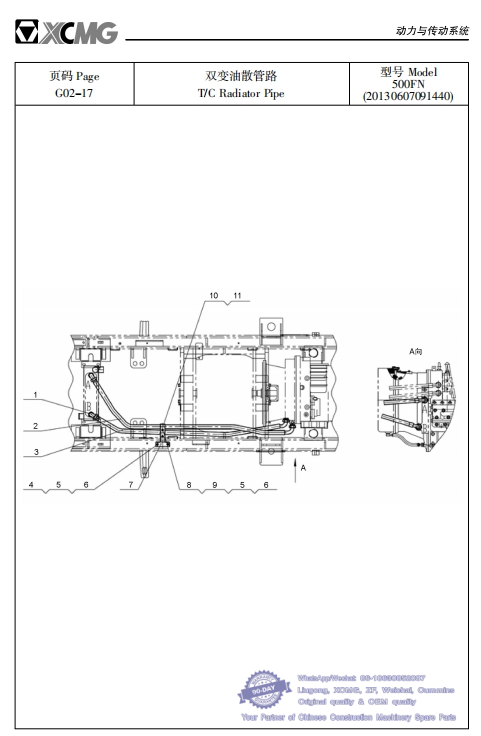

012 双变油散管路型号 500FN 500FN (20130607091440)
T/C Radiator Pipe Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 803163650 直角弯头 Connector 2
2 252900989 软管总成 Hose 1
3 252900988 软管总成 Hose 1
4 805000137 螺栓 M8伊40 Bolt 2 GB/T5783-2000
5 805300010 垫圈 8 Washer 4 GB/T 93-1987
6 805300069 垫圈 8 Washer 4 GB/T 97.1-2002
7 251805634 安装板 Plate 1
8 805002255 螺柱 M8伊90 Stud 2 GB/T 901-1988
9 805200045 螺母 M8 Nut 2 GB/T6170-2002
10 252904955 管夹 I Pipe Clamp 2
11 252904825 板 Plate 1

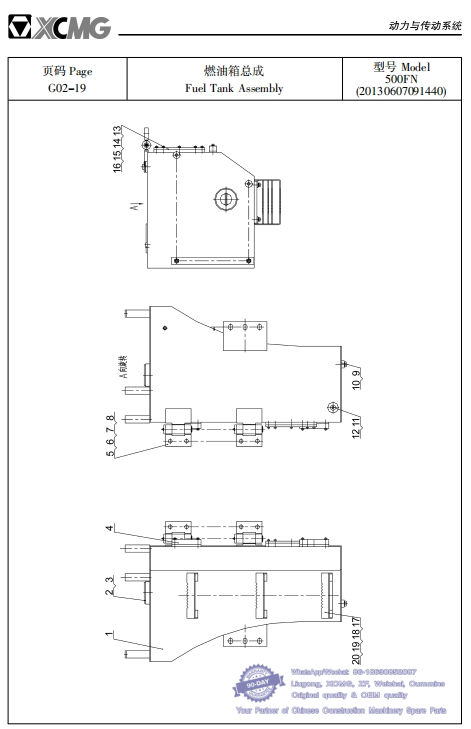

013 燃油箱总成 型号 500FN (20130607091440)
Fuel Tank Assembly Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 251805486 油箱体 Fuel Tank 1
2 803176572 燃油加油滤清器 Filter 1 每 1000 小时或半年更换，以先到为准every 1000 hours
change or half a first) year(whichever comes
3 803164217 液压油加油滤清器 Filter 1 每 1000 小时或半年更换，以先到为准
every1000 hours change or half a first) year (whichever comes
4 803164214 液位计 Liquidometer Gauhe 2 YWZ-127
5 251801069 销轴 Pin 2
6 801100336 油杯 M10伊1 Oil Cup 2 JB/T7940.1-1995
7 251801072 铰链 Gemel 2
8 805407594 挡圈 28 Circlip 2 GB/T894.1-86
9 805000022 螺栓 M16伊25 Bolt 1 GB/T5783-2000
10 805301411 垫圈 16 Washer 1 Q/SC 1294-2000
11 250200471 滤油器总成 Filter 1 XGXL5-10X100
12 803164100 组合垫圈 45 Seal Washer 1 Q/SC 1294-2000
13 252900311 盖板 Cover 1
14 252100465 橡胶垫 Shim 1
15 805000017 螺栓 M8伊25 Bolt 8 GB/T5783-2000
16 805300010 垫圈 8 Washer 8 GB/T 93-1987
17 251801075 脚蹬 Pedal 1
18 805000715 螺栓 M12伊25 Bolt 2 GB/T5783-2000
19 805300018 垫圈 12 Washer 2 GB/T93-1987
20 805300020 垫圈 12 Washer 2 GB/T97.1-2002
Full range of spare parts for XCMG Wheel Loader ZL50G, ZL50GN, LW500F, LW500FN, LW500K,LW500KN
XCMG Wheel Loader Spare parts, whatsapp 86-18630852087
LW500FN WHEEL LOADER PARTS MANUAL
LW500FN 轮式装载机零件手册
XUGONG SCIENCE & TECHNOLOGY CO.,LTD.
徐州工程机械科技股份有限公司
