三、主传动轴 Main Drive Shaft- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

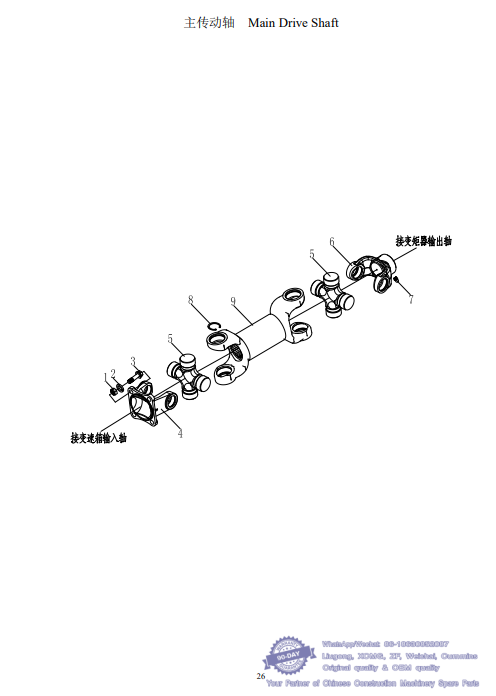

011 主传动轴 Main Drive Shaft - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-93H-030-00001 1 主传动轴 937H.3.Z Main Drive Shaft 1 957H0556-
包含以下 4~9） 957H0556-
1 B-G008890-00005 1 螺母 M14×1.5 ZnD Nut 4 957H0556-
2 B-G000930-00005 1 垫圈 14 Washer 4 957H0556-
3 B-G057850-00013 1 螺栓 M14×1.5×50 ZnD Bolt 4 957H0556-
4 EQ140-2201023 1 凸缘叉 Yoke 1 957H0556-
5 EQ140-2201C 1 十字轴总成 Cross axle ass’ 2 957H0556-
6 Z30.3B-1D 1 套管叉 Spline yoke 1 957H0556-
7 B-J07940A-00001 1 油杯 M10×1 Grease fitting 1 957H0556-
8 GB/T893.1-1986 1 挡圈 Washer 8 957H0556-
9 EQ140-2201D-022-2 1 万向节叉 Joint fork 2 957H0556-
937H.3.Z-01 1 轴管 Shaft pipe 1 957H0556-
四、变速箱系统 Transmission System- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

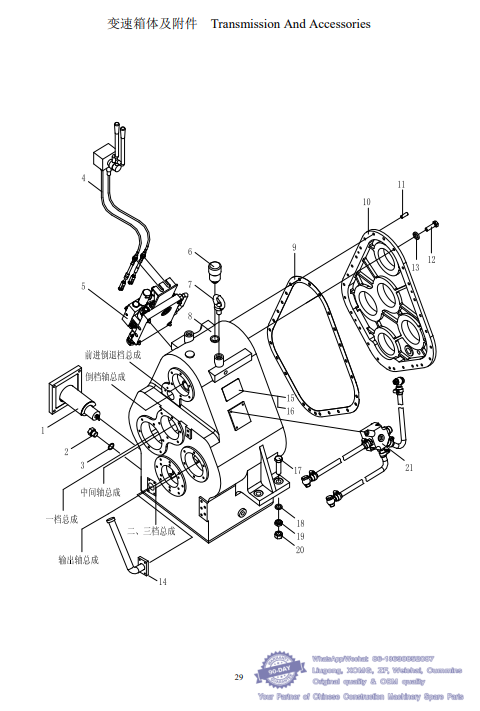

012 变速箱体及附件 Transmission And Accessories - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-95H-04C-00000 1 变速箱总成 957H.4C Transmission Ass’y 1 957H0556-
1 Z-956-040-00002 1 滤清器总成 956.4.7 Filter ass’y 1 957H0556-
2 B-J010000-00010 1 螺塞 M24×1.5 Plug 1 957H0556-
3 B-J010020-00008 1 垫圈 24 Washer 1 957H0556-
4 W-03-00480 1 变速操纵WJ11-50-151-956M Flexible shaft manipulation 1 957H0556-
5 Z-956-040-00012 1 档位阀 956.4.8 Clutch valve 1 957H0556-
6 YZ16.14D.6 1 通气塞 Aerate plug 1 957H0556-
7 B-G008250-00003 1 吊环螺钉 M20ZnD Screw 2 957H0556-
8 Z-95M-040-00005 1 箱体 956M.4-1 Case 1 957H0556-
9 Z-15E-040-00014 1 纸垫 Z50E.4-4 Paper pad 1 957H0556-
10 Z-15E-040-00013 1 箱盖 Z50E.4-3 Cover 1 957H0556-
11 B-G001180-00002 1 销 A12×35 Pin 2 957H0556-
12 B-G057830-00012 1 螺栓 M10×35ZnD Bolt 25 957H0556-
13 B-G000930-00001 1 垫圈 10 Washer 25 957H0556-
14 Z-95M-040-00001 1 加油管总成 956M.4.2 Oil filler hose ass’y 1 957H0556-
15 Z-95M-040-00006 1 标牌 956M.4-2 Signs 1 957H0556-
16 B-G008270-00005 1 铆钉 2×6 Rivet 4 957H0556-
17 B-G057830-00104 1 螺栓 M20×80ZnD Bolt 4 957H0556-
18 B-G000930-00008 1 垫圈 20 Washer 4 957H0556-
19 B-G061720-00008 1 螺母 M20ZnD Nut 4 957H0556-
20 B-G061700-00018 1 螺母 M20ZnD Nut 4 957H0556-
21 Z-956-040-00011 1 冷却油分路器 956.4.6 Oil diverter 1 957H0556-

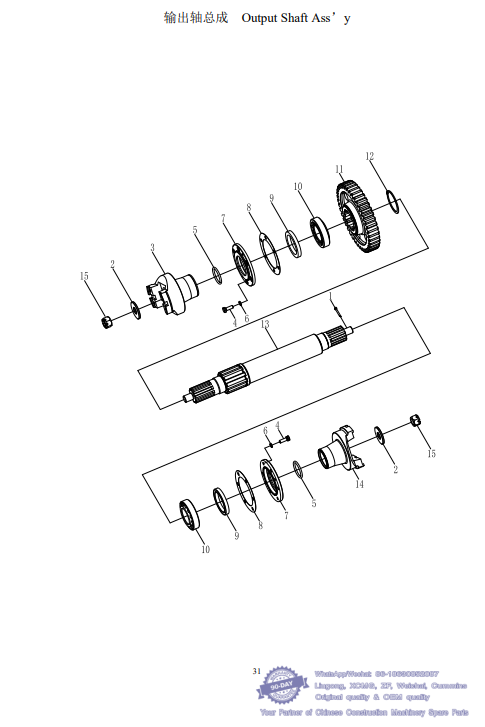

013 输出轴总成 Output Shaft Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-95H-04C-00002 1 输出轴总成 957H.4C.1 Output Shaft Ass’y 1 957H0556-
1 B-G000910-00049 1 销 5×45ZnD Pin 2 957H0556-
2 Z-15B-040-00003 1 垫圈 Z50B.4.1-6 Washer 2 957H0556-
3 Z-15B-040-00058 1 前法兰 Z50B.4.1A-1 Front flange 1 957H0556-
4 B-G057830-00010 1 螺栓 M10×30ZnD Bolt 12 957H0556-
5 B-Q020710-00088 1 O 形密封圈 65×5.7 O-ring 2 957H0556-
6 B-G000930-00001 1 垫圈 10 Spring washer 12 957H0556-
7 Z-15B-040-00001 1 轴承盖 Z50B.4.1-2 Bearing cover 2 957H0556-
8 Z-15B-040-00002 1 纸垫 Z50B.4.1-3A Paper pad 4 957H0556-
Z-15B-040-00067 1 纸垫 Z50B.4.1-3B Paper pad 4 957H0556-
Z-15B-040-00042 1 纸垫 Z50B.4.1-3C Paper pad 4 957H0556-
9 W-15-00115 1 油封 AE3618A0(NOK) Oil seal 2 957H0556-
10 B-G002970-00019 1 滚动轴承 32212 Bearing 2 957H0556-
11 Z-15E-040-00020 1 齿轮 Z50E.4.1-1A Gear 1 957H0556-
12 B-G00894A-00023 1 挡圈 82 Retainer 1 957H0556-
13 Z-15B-040-00074 1 输出轴 Z50B.4.1A-2 Output shaft 1 957H0556-
14 Z-15E-04E-00001 1 后法兰 Z50E.4E.1-5 Rear flange 1 957H0556-
15 B-G094590-00003 1 螺母 M24×1.5ZnD Nut 2 957H0556-

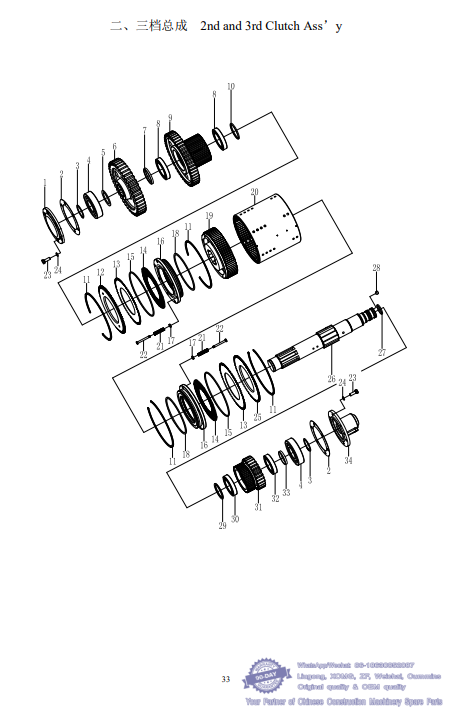

014 二、三档总成 2nd and 3rd Clutch Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-95H-040-00002 1 二、三档总成 957H.4.2 2nd and 3rd Clutch Ass’y 1 957H0556-
1 Z-15B-040-00086 1 轴承盖 Z50B.4.4A-5 Bearing cover 1 957H0556-
2 Z-15B-040-00073 1 纸垫 Z50B.4.2-19A Paper pad 4 957H0556-
Z-15B-040-00011 1 纸垫 Z50B.4.2-19B Paper pad 4 957H0556-
Z-15B-040-00012 1 纸垫 Z50B.4.2-19C Paper pad 4 957H0556-
3 B-G00894A-00019 1 挡圈 55 Snap ring 2 957H0556-
4 B-G002760-00032 1 轴承 6311 Bearing 2 957H0556-
5 Z-15B-040-00071 1 垫环 Z50B.4.2-2 Spacer ring 1 957H0556-
6 Z-15E-040-00028 1 输出齿轮 Z50E.4.2-1A Output gear 1 957H0556-
7 Z-15B-040-00010 1 轴套 Z50B.4.2-25 Bushing 1 957H0556-
8 B-G002760-00010 1 轴承 6013 Bearing 2 957H0556-
9 Z-956-04A-00009 1 二档离合器齿轮 956.4A.1-1 Gear 1 957H0556-
10 Z-15B-040-00019 1 垫环 Z50B.4.2-14 Spacer ring 1 957H0556-
11 Z-15B-040-00020 1 卡环 Z50B.4.2-11 Snap ring 4 957H0556-
12 Z-15B-040-00083 1 一挡压盖 Z50B.4.3-4 1st cover 1 957H0556-
13 Z-15B-040-00014 1 主动摩擦片 Z50B.4.2-7 Drive disc 20 957H0556-
14 Z-15B-040-00033 1 从动摩擦片 Z50B.4.2-8 Driven disc 18 957H0556-
15 Z-15B-040-00029 1 波形弹簧 Z50B.4.2-15 Wave spring 36 957H0556-
16 Z-15B-040-00035 1 活塞 Z50B.4.2-12 Piston 2 957H0556-
17 Z-15B-040-00016 1 挡圈 Z50B.4.2-23 Snap ring 8 957H0556-
18 Z-15B-040-00018 1 矩形密封圈 Z50B.4.2-24 Searing 2 957H0556-
19 Z-15B-040-00006 1 缸体 Z50B.4.2-13 Cylinder body 1 957H0556-
20 Z-15B-040-00004 1 齿圈 Z50B.4.2-5 Gear ring 1 957H0556-
21 Z-15B-040-00017 1 活塞回位弹簧 Z50B.4.2-10 Retraction spring 8 957H0556-
22 Z-15B-040-00021 1 活塞回位拉杆 Z50B.4.2-9 Retraction drag rod 8 957H0556-
23 B-G057830-00010 1 螺栓 M10×30ZnD Bolt 12 957H0556-
24 B-G000930-00001 1 垫圈 10 Spring washer 12 957H0556-
25 Z-15B-040-00032 1 压盖 Z50B.4.2-22 Cover 1 957H0556-
26 Z-15B-040-00009 1 轴 Z50B.4.2-21 Shaft 1 957H0556-
27 Z-130-040-00024 1 油封环 Z30.4.1-19 Oil seal ring 4 957H0556-
28 B-G000780-00006 1 螺钉 M12×12 Screw 2 957H0556-
29 Z-15B-040-00088 1 轴承垫 Z50B.4.2-16 Bearing washer 1 957H0556-
30 B-G002760-00009 1 轴承 6012 Bearing 1 957H0556-
31 Z-15E-040-00022 1 三挡离合器齿轮 Z50E.4.2-3 Gear 1 957H0556-
32 B-G002760-00008 1 轴承 6011 Bearing 1 957H0556-
33 Z-15B-040-00072 1 轴套 Z50B.4.2-18 Bushing 1 957H0556-
34 Z-15B-040-00008 1 轴承盖 Z50B.4.2-20 Bearing cover 1 957H0556-

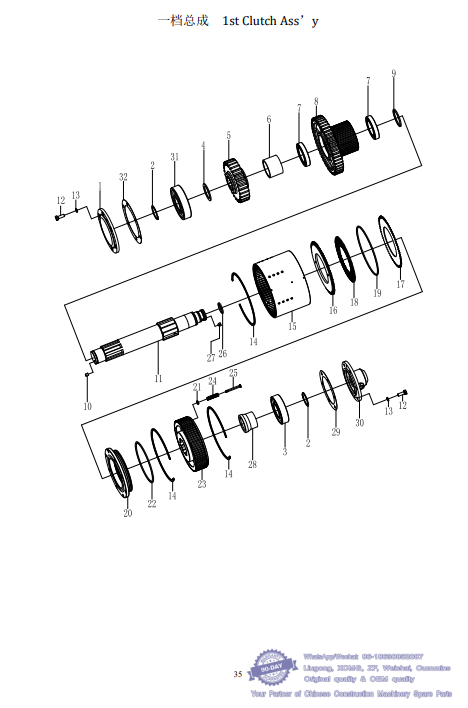

015 一档总成 1st Clutch Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-95H-040-00003 1 一档总成 957H.4.3 1st Clutch Ass’y 1 957H0556-
1 Z-15B-040-00070 1 轴承盖 Z50B.4.3A-1 Bearing cover 1 957H0556-
2 B-G00894A-00019 1 挡圈 55 Snap ring 2 957H0556-
3 B-G002760-00032 1 滚动轴承 6311 Bearing 1 957H0556-
4 Z-15B-040-00071 1 垫环 Z50B.4.2-2 Spacer ring 1 957H0556-
5 Z-15B-040-00113 1 输出齿轮 Z50B.4.3A-2 Output gear 1 957H0556-
6 Z-15B-040-00013 1 轴套 Z50B.4.3-2 Bushing 1 957H0556-
7 B-G002760-00010 1 滚动轴承 6013 Bearing 2 957H0556-
8 Z-15E-040-00026 1 齿轮 Z50E.4.3-2 Gear 1 957H0556-
9 Z-15B-040-00019 1 垫环 Z50B.4.2-14 Spacer ring 1 957H0556-
10 Z-130-040-00059 1 螺堵 Z30.4.4A-11 Plug 1 957H0556-
11 Z-15E-040-00027 1 轴 Z50E.4.3-5A Shaft 1 957H0556-
12 B-G057830-00010 1 螺栓 M10×30ZnD Bolt 12 957H0556-
13 B-G000930-00001 1 垫圈 10 Washer 12 957H0556-
14 Z-15B-040-00020 1 卡环 Z50B.4.2-11 Snap ring 3 957H0556-
15 Z-15B-040-00015 1 齿圈 Z50B.4.3-5 Gear ring 1 957H0556-
16 Z-15B-040-00083 1 一挡压盖 Z50B.4.3-4 1st cover 1 957H0556-
17 Z-15B-040-00014 1 主动摩擦片 Z50B.4.2-7 Drive disc 14 957H0556-
18 Z-15B-040-00033 1 从动摩擦片 Z50B.4.2-8 Driven disc 13 957H0556-
19 Z-15B-040-00029 1 波形弹簧 Z50B.4.2-15 Wave spring 26 957H0556-
20 Z-15B-040-00035 1 活塞 Z50B.4.2-12 Piston 1 957H0556-
21 Z-15B-040-00016 1 挡圈 Z50B.4.2-23 Retainer 4 957H0556-
22 Z-15B-040-00018 1 矩形密封圈 Z50B.4.2-24 Seal ring 1 957H0556-
23 Z-15E-040-00004 1 缸体 Z50E.4.3-3 Cylinder body 1 957H0556-
24 Z-15B-040-00017 1 活塞回位弹簧 Z50B.4.2-10 Retraction spring 4 957H0556-
25 Z-15B-040-00021 1 活塞回位拉杆 Z50B.4.2-9 Retraction drag rod 4 957H0556-
26 Z-130-040-00024 1 油封环 Z30.4.1-19 Oil seal ring 2 957H0556-
27 B-G000780-00006 1 螺钉 M12×12 Screw 1 957H0556-
28 Z-15E-040-00005 1 隔套 Z50E.4.3-4 Collar 1 957H0556-
29 Z-15B-040-00073 1 纸垫 Z50B.4.2-19A Paper pad 2 957H0556-
Z-15B-040-00011 1 纸垫 Z50B.4.2-19B Paper pad 2 957H0556-
Z-15B-040-00012 1 纸垫 Z50B.4.2-19C Paper pad 2 957H0556-
30 Z-15B-040-00022 1 轴承盖 Z50B.4.3-7 Bearing cover 1 957H0556-
31 W-03-00102 1 滚动轴承 6411(TWB) Bearing 1 957H0556-
32 Z-15B-040-00023 1 纸垫 Z50B.4.3A-4A Paper pad 2 957H0556-
Z-15B-040-00024 1 纸垫 Z50B.4.3A-4B Paper pad 2 957H0556-
Z-15B-040-00084 1 纸垫 Z50B.4.3A-4C Paper pad 2 957H0556-

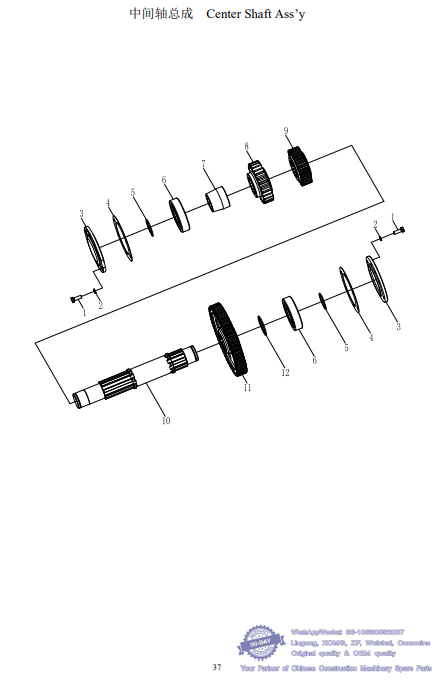

016 中间轴总成 Center Shaft Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-95H-040-00004 1 中间轴总成 957H.4.4 Center Shaft Ass’y 1 957H0556-
1 B-G057830-00010 1 螺栓 M10×30ZnD Bolt 12 957H0556-
2 B-G000930-00001 1 挡圈 10 Spring washer 12 957H0556-
3 Z-15B-040-00086 1 轴承盖 Z50B.4.4A-5 Bearing cover 2 957H0556-
4 Z-15B-040-00027 1 纸垫 Z50B.4.4A-4A Paper pad 4 957H0556-
Z-15B-040-00028 1 纸垫 Z50B.4.4A-4B Paper pad 4 957H0556-
Z-15B-040-00031 1 纸垫 Z50B.4.4A-4C Paper pad 4 957H0556-
5 B-G00894A-00019 1 挡圈 55 Snap ring 2 957H0556-
6 B-G002760-00032 1 滚动轴承 6311 Bearing 2 957H0556-
7 Z-15B-040-00085 1 轴套 Z50B.4.4A-3 Bushing 1 957H0556-
8 Z-956-04A-00010 1 齿轮 956.4A.2-1 Gear 1 957H0556-
9 Z-15B-040-00104 1 齿轮 Z50B.4.4-4 Gear 1 957H0556-
10 Z-15B-040-00025 1 中间轴 Z50B.4.4A-2 Center shaft 1 957H0556-
11 Z-15E-040-00021 1 齿轮 Z50E.4.4-1 Gear 1 957H0556-
12 Z-15B-040-00030 1 垫套 Z50B.4.4-7 Bushing 1 957H0556-

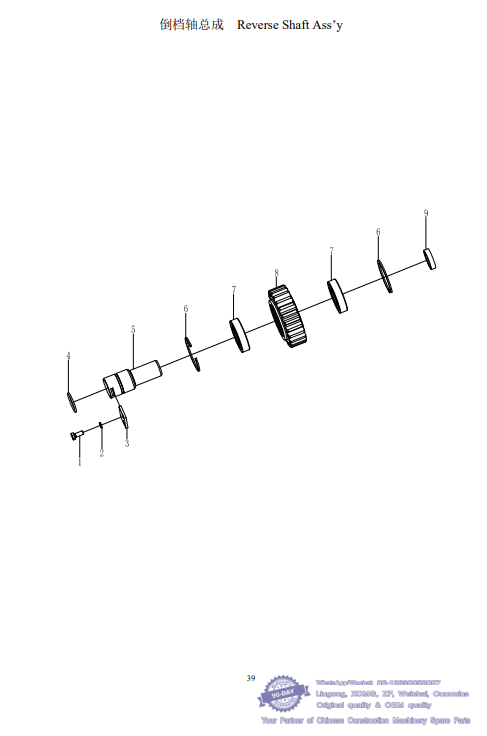

017 倒档轴总成 Reverse Shaft Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-95H-040-00005 1 倒档轴总成 957H.4.5 Reverse Shaft Ass’y 1 957H0556-
1 B-G057830-00139 1 螺栓 M8×20ZnD Bolt 2 957H0556-
2 B-G000930-00017 1 垫圈 8 Spring washer 2 957H0556-
3 Z-15B-040-00038 1 卡铁 Z50B.4.5A-1 Snap iron（plate） 1 957H0556-
4 B-Q020710-00068 1 O 形圈 45×3.1 O-ring 1 957H0556-
5 Z-15B-040-00039 1 倒档轴 Z50B.4.5B-1 Reverse shaft 1 957H0556-
6 B-G00893A-00013 1 挡圈 72 Snap ring 2 957H0556-
7 B-G002760-00015 1 轴承 6207 Bearing 2 957H0556-
8 Z-956-04A-00011 1 倒挡齿轮 956.4A.3-1 Rear gear 1 957H0556-
9 Z-15B-040-00041 1 轴套 Z50B.4.5A-4 Bushing 1 957H0556-

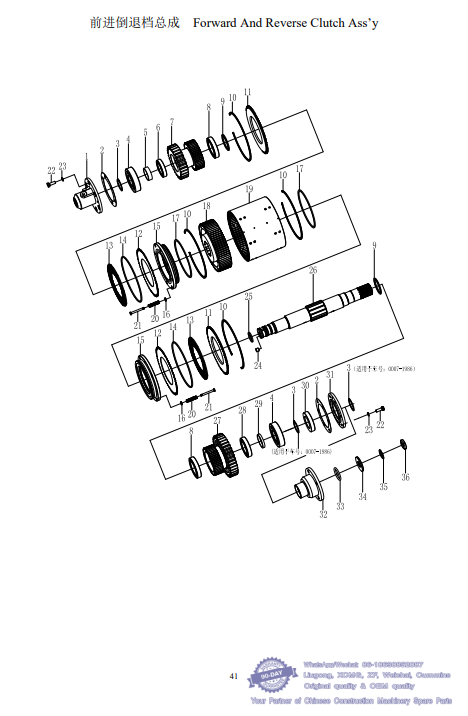

018 前进倒退档总成 Forward And Reverse Clutch Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-95H-040-00006 1 前进倒退档总成 957H.4.6 Forward And Reverse Clutch Ass’y 1 957H0556-
1 Z-15B-040-00007 1 轴承盖 Z50B.4.6-1 Bearing cover 1 957H0556-
2 Z-15B-040-00002 1 纸垫 Z50B.4.1-3A Paper pad 4 957H0556-
Z-15B-040-00067 1 纸垫 Z50B.4.1-3B Paper pad 4 957H0556-
Z-15B-040-00042 1 纸垫 Z50B.4.1-3C Paper pad 4 957H0556-
3 B-G00894A-00017 1 挡圈 50 Snap ring 3 957H0556-
4 B-G002760-00030 1 滚动轴承 6310 Bearing 2 957H0556-
5 Z-15B-040-00087 1 轴套 Z50B.4.6-3 Bushing 1 957H0556-
6 B-G002760-00007 1 滚动轴承 6010 Bearing 1 957H0556-
7 Z-956-04A-00012 1 倒档齿轮 956.4A.4-1 Rear gear 1 957H0556-
8 B-G002760-00009 1 滚动轴承 6012 Bearing 2 957H0556-
9 Z-15B-040-00088 1 轴承垫 Z50B.4.2-16 Bearing washer 2 957H0556-
10 Z-15B-040-00020 1 卡环 Z50B.4.2-11 Snap ring 4 957H0556-
11 Z-15B-040-00032 1 压盖 Z50B.4.2-22 Cover 2 957H0556-
12 Z-15B-040-00014 1 主动摩擦片 Z50B.4.2-7 Drive disc 14 957H0556-
13 Z-15B-040-00033 1 从动摩擦片 Z50B.4.2-8 Drive disc 12 957H0556-
14 Z-15B-040-00029 1 波形弹簧 Z50B.4.2-15 Wave spring 24 957H0556-
15 Z-15B-040-00035 1 活塞 Z50B.4.2-12 Piston 2 957H0556-
16 Z-15B-040-00016 1 挡圈 Z50B.4.2-23 Retainer 8 957H0556-
17 Z-15B-040-00018 1 矩形密封圈 Z50B.4.2-24 Seal ring 2 957H0556-
18 Z-15B-040-00034 1 缸体 Z50B.4.6-5 Cylinder body 1 957H0556-
19 Z-15B-040-00090 1 齿圈 Z50B.4.6-9 Gear ring 1 957H0556-
20 Z-15B-040-00017 1 活塞回位弹簧 Z50B.4.2-10` Retraction spring 8 957H0556-
21 Z-15B-040-00021 1 活塞回位拉杆 Z50B.4.2-9 Retraction drag linker 8 957H0556-
22 B-G057830-00010 1 螺栓 M10×30ZnD Bolt 12 957H0556-
23 B-G000930-00001 1 垫圈 10 Washer 12 957H0556-
24 B-G000780-00006 1 螺钉 M12×12 Screw 2 957H0556-
25 Z-130-040-00024 1 油封环 Z30.4.1-19 Searing 4 957H0556-
26 Z-15B-040-00037 1 前进倒退挡轴 Z50B.4.6-8 Forward and reverse haft 1 957H0556-
Z-15B-040-00112 1 前进倒退挡轴 Z50B.4.6-8A Forward and reverse haft 1 957H0556-
27 Z-15E-040-00023 1 前进挡齿轮 Z50E.4.5-1 Forward gear 1 957H0556-
28 B-G002760-00008 1 滚动轴承 6011 Bearing 1 957H0556-
29 Z-15B-040-00089 1 轴套 Z50B.4.6-7 Bushing 1 957H0556-
30 W-15-00114 1 油封 AE2857E0(NOK) Oil seal 1 957H0556-
W-15-00502 1 油封 AE3213E5(NOK) Oil seal 1 957H0556-
31 Z-15B-040-00036 1 轴承盖 Z50B.4.6-10 Bearing cover 1 957H0556-
Z-15B-040-00108 1 轴承盖 Z50B.4.6-10A Bearing cover 1 957H0556-
32 Z-15B-040-00109 1 输入法兰 Z50B.4.6-11A Input flange 1 957H0556-
33 B-Q020710-00163 1 O 形圈 52×5.7 O-ring 1 957H0556-
34 Z-15B-040-00003 1 垫圈 Z50B.4.1-6 Washer 1 957H0556-
35 B-G008580-00009 1 垫圈 24 Washer 1 957H0556-
36 B-G008120-00008 1 螺母 M24×1.5 Nut 1 957H0556-

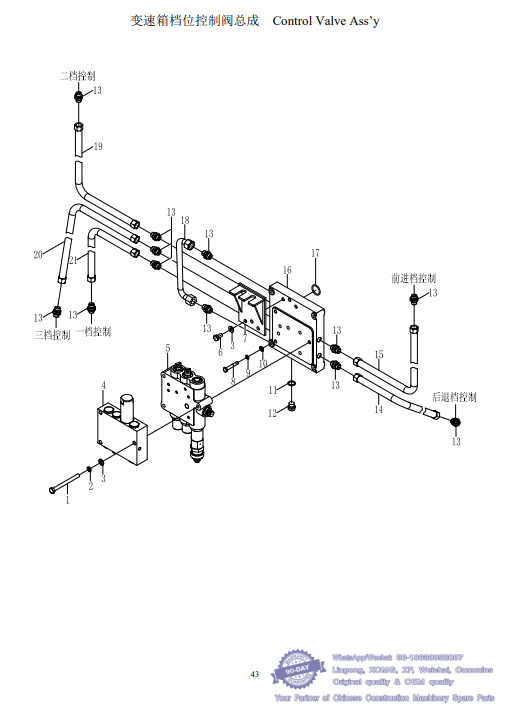

019 变速箱档位控制阀总成 Control Valve Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-956-040-00012 1 变速箱档位控制阀总成 956.4.8 Control Valve Ass’y 1 957H0556-
1 B-G057820-00003 1 螺栓 M10×110ZnD Screw 3 957H0556-
2 B-G000930-00001 1 垫圈 10 Washer 3 957H0556-
3 B-G00097B-00002 1 垫圈 10ZnD Washer 6 957H0556-
4 Z-15B-040-00092 1 分配阀总成 Z50B.4.7.1 Distributing valve ass’y 1 957H0556-
5 Z-130-040-00102 1 档位阀总成 Z30.4.13 Clutch valve ass’y 1 957H0556-
6 B-G057830-00003 1 螺栓 M10×20ZnD Screw 3 957H0556-
7 Z-15E-04F-00010 1 软轴支架 Z50E.4F.1A.1 Bracket 1 957H0556-
8 B-G057820-00162 1 螺栓 M8×50ZnD Screw 4 957H0556-
9 B-G000930-00017 1 垫圈 8 Washer 4 957H0556-
10 B-G00097B-00023 1 垫圈 8ZnD Washer 4 957H0556-
11 B-J010020-00004 1 垫圈 16 Washer 2 957H0556-
12 B-J010000-00003 1 螺塞 M16×1.5 Plug 2 957H0556-
13 Z-956-040-00005 1 过渡接头 956.4.1.1 Joint 12 957H0556-
14 Z-956-040-00010 1 后退档油管总成 956.4.5 Reverse clutch oil pipe 1 957H0556-
15 Z-956-040-00009 1 前进档油管总成 956.4.4 Forward clutch oil pipe 1 957H0556-
16 Z-15E-04F-00015 1 底板 Z50E.4F.1A-1 Bottom plate 1 957H0556-
17 B-Q020710-00113 1 O 形圈 35×3.1 O-ring 1 957H0556-
18 Z-956-040-00013 1 软管总成 956.4.8.1 Oil pipe 1 957H0556-
19 Z-956-040-00007 1 二档油管总成 956.4.2 2nd clutch oil pipe 1 957H0556-
20 Z-956-040-00004 1 三档油管总成 956.4.1 3rd clutch oil pipe 1 957H0556-
21 Z-956-040-00008 1 一档油管总成 956.4.3 1st clutch oil pipe 1 957H0556-

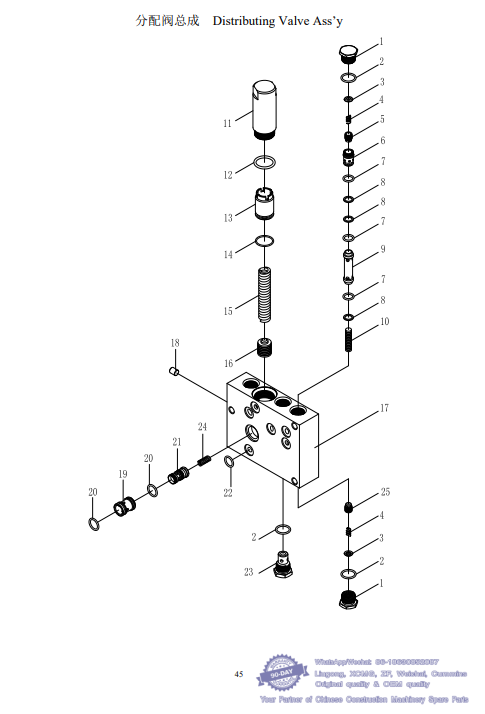

020 分配阀总成 Distributing Valve Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog
序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho
Z-15B-040-00092 1 分配阀总成 Z50B.4.7.1 Distributing ValveAss’y 1 957H0556-
1 Z-130-040-00097 1 固定螺钉 Z30.4.12-12 Screw 5 957H0556- N
2 B-Q020710-00042 1 O 形圈 25×2.4 O-ring 6 957H0556- N
3 Z-130-040-00096 1 弹簧座 Z30.4.12-11 Spring seat 5 957H0556- N
4 Z-130-040-00095 1 弹簧 Z30.4.12-10 Spring 5 957H0556- N
5 Z-15B-040-00093 1 单向阀 Z50B.4.7.1-1 One-way valve 2 957H0556- N
6 Z-130-040-00094 1 单向阀套 Z30.4.12-9 One-way valve bush 5 957H0556- N
7 B-Q020710-00024 1 O 形圈 16×2.4 O-ring 11 957H0556- N
8 B-Q020780-00001 1 挡圈 A16×12 Seal ring 11 957H0556- N
9 Z-130-040-00092 1 液动阀套 Z30.4.12-7 Valve bush 3 957H0556- N
10 Z-130-040-00091 1 阀芯 Z30.4.12-6 Valve core 3 957H0556- N
11 Z-130-040-00098 1 液流阀阀罩 Z30.4.12-13 Valve hood 1 957H0556- N
12 B-Q020710-00056 1 O 形圈 35×3.5 O-ring 1 957H0556- N
13 Z-130-040-00088 1 液流阀阀套 Z30.4.12-3 Valve bush 1 957H0556- N
14 B-Q020710-00047 1 O 形圈 30×3.1 O-ring 2 957H0556- N
15 Z-130-040-00087 1 弹簧 Z30.4.12-2 Spring 1 957H0556- N
16 Z-130-040-00089 1 液流阀阀芯 Z30.4.12-4 Valve core 1 957H0556- N
17 Z-130-040-00086 1 阀体 Z30.4.12-1 Valve case 1 957H0556- N
18 W-10-00008 1 螺钉 Z1/8”×12 Screw 2 957H0556- N
19 Z-130-040-00099 1 阀套 Z30.4.12-14 Valve bush 1 957H0556- N
20 B-Q020710-00033 1 O 形圈 22×2.4 O-ring 2 957H0556- N
21 Z-130-040-00100 1 阀芯 Z30.4.12-15 Valve core 1 957H0556- N
22 B-Q020710-00029 1 O 形圈 20×2.4 O-ring 6 957H0556- N
23 Z-130-040-00090 1 固定螺钉 Z30.4.12-5 Screw 1 957H0556- N
24 Z-130-040-00101 1 弹簧 Z30.4.12-16 Spring 1 957H0556- N
25 Z-15B-040-00098 1 单向阀 Z50B.4.7.1-2 One-way valve 3 957H0556- N
