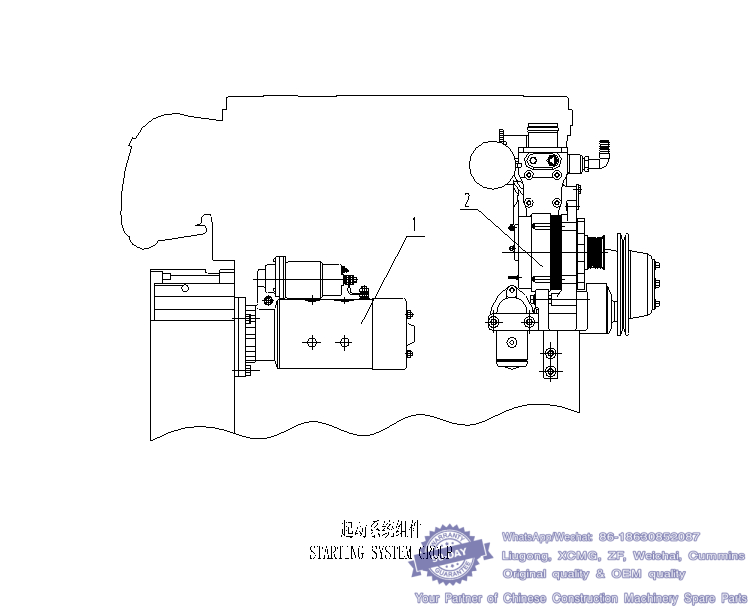

011 起动系统组件 STARTING SYSTEM GROUP D11-000-901+A
标号 / No. 零件名 Designation 零件号 / Order No.
1 起动电机 STARTING MOTOR D11-101-10+A
2 整体式交流发电机 ALTERNATOR D11-102-23+A whatsapp 86-18630852087

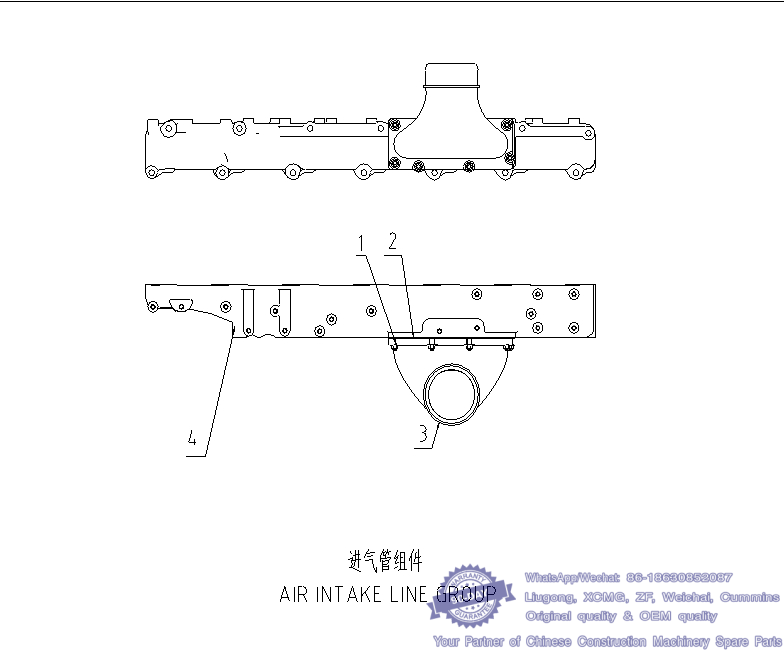

012 进气管路组件 AIR INTAKE LINE GROUP S00007927+01
标号 / No. 零件名 Designation 零件号 / Order No.
1 Q/SC622-M8*25: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002137
2 进气弯管垫片 GASKET, INTAKE PIPE ELBOW S00008168+01 whatsapp 86-18630852087
3 进气接管 ADAPTER, AIR INTAKE PIPE S00007772+02
4 进气管 AIR INTAKE PIPE S00007771+03

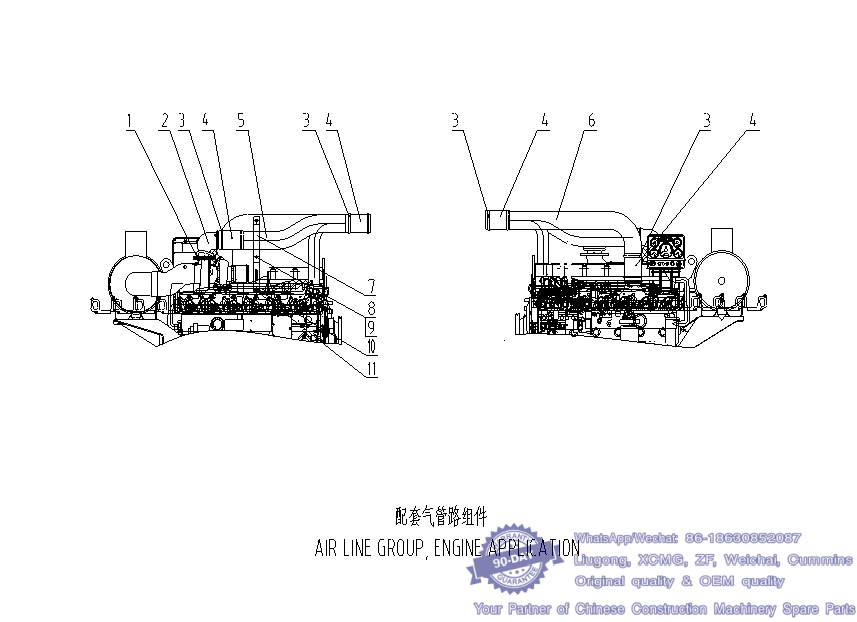

013 配套气管路组件 AIR LINE GROUP, ENGINE APPLICATION S00008905+02
标号 / No. 零件名 Designation 零件号 / Order No.
1 夹箍部件 CLAMP ASSY D12B-001-900+B
2 压气机出气接管 AIR OUTLET PIPE ADAPTER, COMPRESSOR S00008867+02
3 Q/SC1092-110: 弹簧卡箍 SPRING CLAMP B00001532
4 Q/SC1372-102*90: 橡胶软管 RUBBER HOSH B00001590 whatsapp 86-18630852087
5 压气机出气管 AIR OUTLET PIPE, COMPRESSOR S00008839+02
6 压气机进气管 AIR INLET PIPE, COMPRESSOR S00008457+03
7 夹箍 CLAMP S00006914+02
8 Q/SC622-M8*20-Zn.D: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002136
9 GB/T6177-M8-ZN.D:六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD B00000847
10 排气弯管撑条 LINK, EXHAUST PIPE ELBOW S00010631+02
11 Q/SC622-M8*25-Zn.D: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002138 whatsapp 86-18630852087

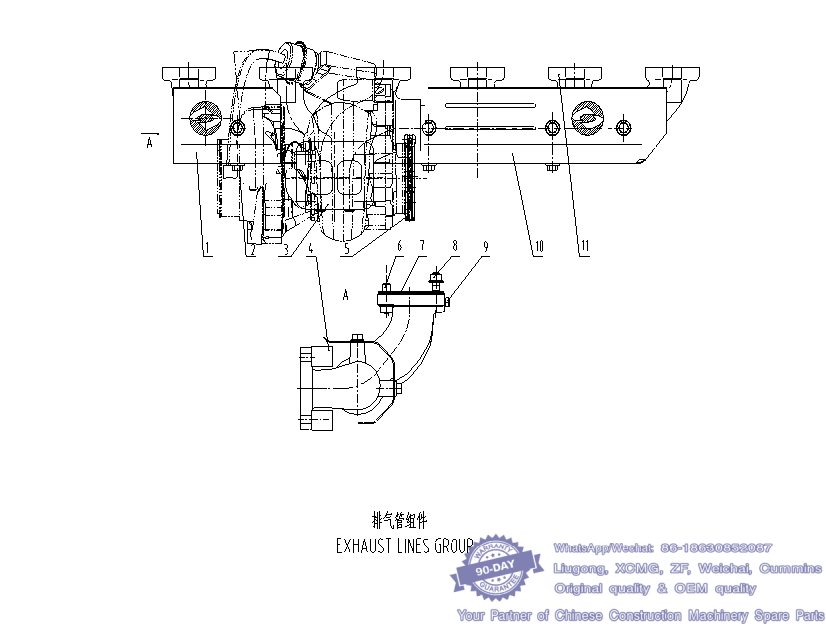

014 排气管组件 EXHAUST LINES GROUP S00007922+03
标号 / No. 零件名 Designation 零件号 / Order No.
1 隔热罩 HEAT SHIELD D13-321-903+A
2 隔热板螺栓 HEAT SHIELD BOLT D13-318-02+B whatsapp 86-18630852087
3 排气管4-6 EXHAUST MANIFOLD S00000125+03
4 垫块 SPACER D13-115-900+A
5 夹箍部件 CLAMP ASSY D13-001-01+C
6 双头螺栓 STUD C38AL-38AL001+A whatsapp 86-18630852087
7 涡轮进口垫片 GASKET, INLET-TURBINE S00001858+02
8 增压器自锁螺母 TURBOCHARGER SELF-LOCKING NUT D13-304-01+C
9 螺塞（Z1/8） PIPE PLUG D02A-166-01+C
10 隔热罩 HEAT SHIELD D13-322-903+A
11 排气管1-3 EXHAUST MANIFOLD D13-101-903+B

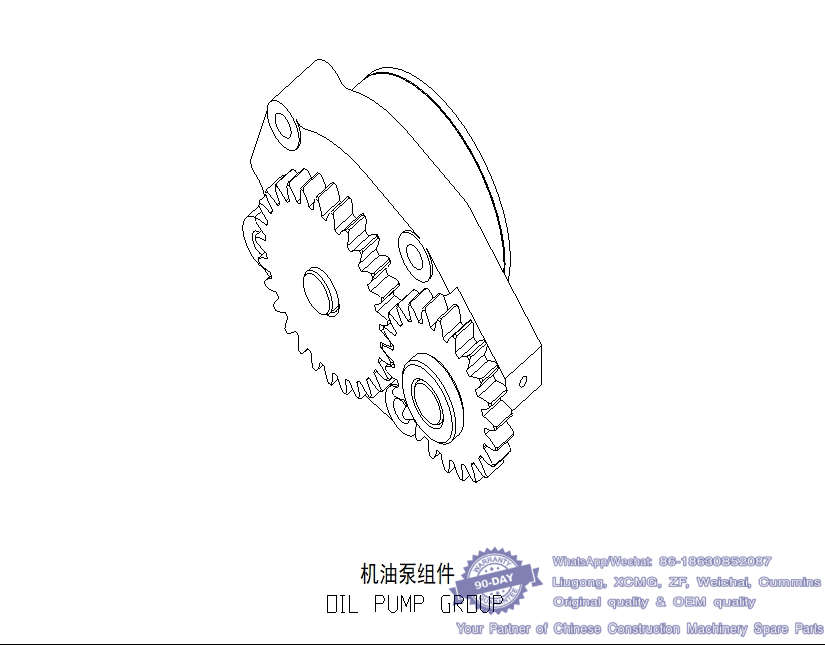

015 机油泵组件 OIL PUMP GROUP D15-000-900+B
标号 / No. 零件名 Designation 零件号 / Order No.
1 机油泵组件 OIL PUMP GROUP D15-000-900+B whatsapp 86-18630852087
