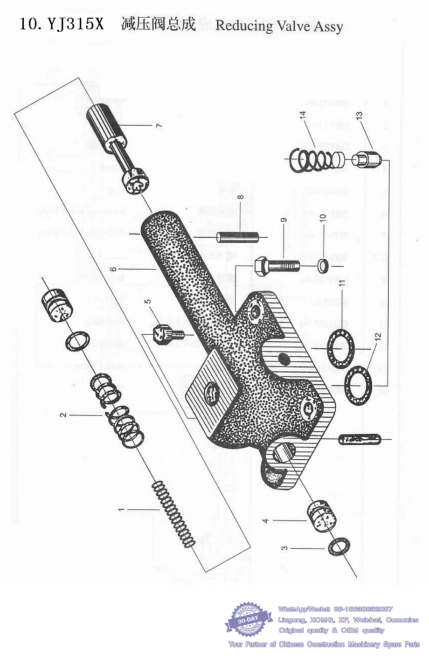

011 10. YJ315X 减压阀总成 Pressure Reducing Value-- XCMG Wheel Loader LW300F Parts Catalog
序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty
1 30D-11-44 弹簧 Spring 1
2 30D-11-43 弹簧 Spring 1
3 GB1235-76 密封圈 19×2.4 Seal Ring 2
4 30D-11-42 压盖 Pressing Cover 2
5 30D-11-47 螺塞 Screw Plug 1
6 30D-11-45 减压阀体 Reducing Valve Body 1
7 30D-11-46 减压阀杆 Reducing Valve Stem 1
8 30D-11-41 销 6.5×32 Pin 2
9 GB5783-86 螺栓 M10×30 Bolt 4
10 GB93-87 弹簧垫圈 10 Washer 4
11 GB1235-76 密封圈 30×3.1 Seal Ring 1
12 GB1235-76 密封圈 26×2.4 Seal Ring 1
13 30D-11-48 溢流阀 Relief Valve 1
14 30D-11-49 弹簧 Spring 1

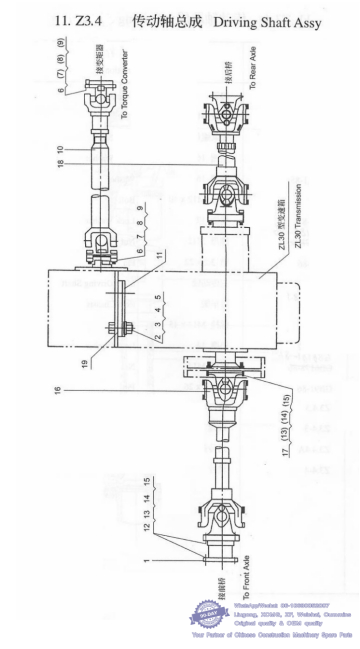

012 11. Z3.4 传动轴总成 Driving Shaft-- XCMG Wheel Loader LW300F Parts Catalog
序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty
1 Z3.4.1(徐桥) 接管 Connector 1
2 GB5782-86 螺栓 M16×80 Bolt 4
3 GB6182-86 锁紧螺母 M16 Lock Nut 4
4 GB93-87 垫圈 16 Lock Washer 4
5 GB97.1-85 垫圈 16 Washer 4
6 Z3.4-1 螺栓 M12×40 Bolt 8
7 GB93-87 垫圈 12 Lock Washer 8
8 GB6181-86 螺母 M12 Nut 8
9 GB91-86 销 3.2×22 Pin 8
10 Z3.4.2 主传动轴 Main Driving Shaft 1
11 LW330F.8.1 后车架 Rear Chassis 1
12 Z3.4-2 螺栓 M14×45 Bolt 16
13 GB93-87 垫圈 14 Lock Washer 20
14 GB6181-86 螺母 M14 Nut 20
15 GB91-86 销 3.2×26 Pin 20
16 Z3.4.3 前传动轴 Front Transmission Shaft 1
17 Z3.4-3 螺栓 M14×56 Bolt 4
18 Z3.4.4A 后传动轴 Rear Axle Transmission Shaft 1
19 Z3.4-4 垫片 Shim 2

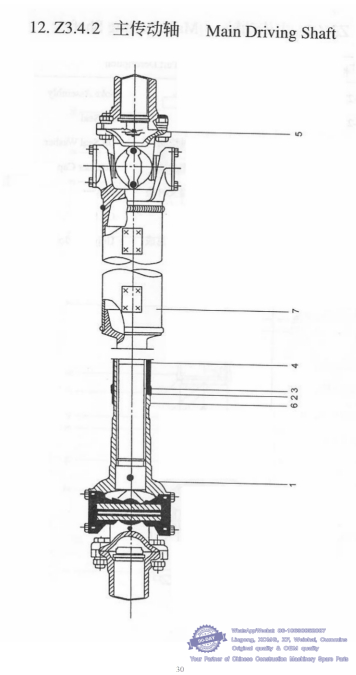

013 12. Z3.4.2 主传动轴 Main Driving Shaft-- XCMG Wheel Loader LW300F Parts Catalog
序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty
1 130-2201040B 传动轴套管叉总成 Yoke Assembly 1
2 130-2201087 传动轴套管叉油封 Oil Seal 1
3 130-2201089 传动轴套管叉油封垫圈 Oil Seal Washer 1
4 130-2201090 传动轴花键轴护套总成 Retainer Cap 1
5 130-2201024 传动轴万向节凸缘叉衬垫 Washer 2
6 130-2201088 传动轴套管叉油封 Oil Seal 1
7 130-2201020 后桥传动轴带万向节总成 Universal Joints 1

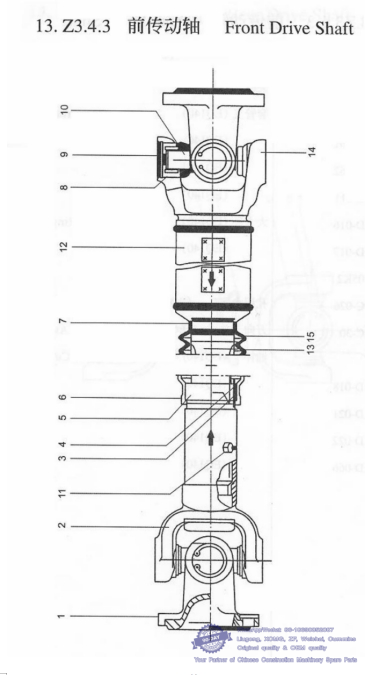

014 13. Z3.4.3 前传动轴 Front Driving Shaft-- XCMG Wheel Loader LW300F Parts Catalog
序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty
1 2201C-023 突缘叉(BQ140) Yoke 2
2 2201D-050 套管叉(BQ140) Sleeve Yoke 1
3 2201D-061 (BQ140) 1
4 2201D-062 (BQ140) 1
5 2201C-011 (BQ140) 1
6 2201D-016 大卡环(BQ140) Snap Ring 1
7 2201D-017 (BQ140) 1
8 804705K2 8
9 2201C-026 孔用卡簧 (BQ140) Snap Ring 8
10 2201C-30 万向节总成 (BQ140) Universal Joint 2
11 油杯 (BQ140) Grease Cup 1
12 2201D-018 (BQ140) 1
13 2201D-021 (BQ140) 1
14 2201D-022 (BQ140) 1
15 2201D-066 (BQ140) 1

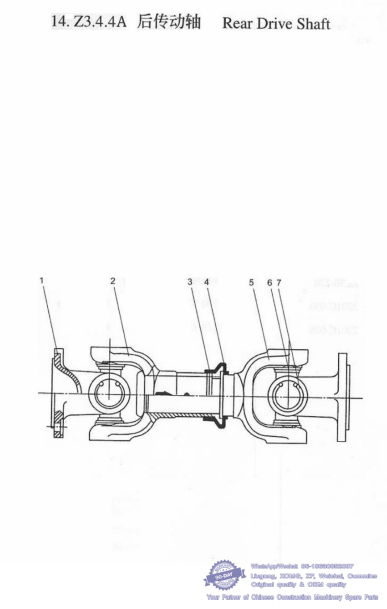

015 14. Z3.4.4A 后传动轴 Rear Driving Shaft-- XCMG Wheel Loader LW300F Parts Catalog
序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty
1 2201C-023 突缘叉 Flange Yoke 2
2 ZL30-210 滑动叉总成 Sleeve Yoke 1
3 2201D-016 大卡环 Snap Ring 2
4 404202B 防尘套 Dust proof sleeve 1
5 ZL30-220 焊接轴叉 Slip Yoke 1
6 2201C-030 万向节总成 Universal joint 2
7 ZZ01C-026 孔用卡簧 Snap Ring 8
Full range of spare parts for XCMG Wheel Loader LW128,LW300F,LW300FN,LW300KN,ZL30G,LW400F, LW500F,LW500FN,LW500KN,ZL50G, ZL50GN,
LW700KN, LW820G, LW1200KN, WZ30-25, XC740RU, XC7-TV12, XC968-EV, XC975-EV, XC958-EV, XC936, XC956, XC958,XC975
XCMG Wheel Loader Spare parts, whatsapp 86-18630852087
LW300F WHEEL LOADER PARTS MANUAL
LW300F 轮式装载机零件手册
XUGONG SCIENCE & TECHNOLOGY CO.,LTD.
徐州工程机械科技股份有限公司
This manual can provide you reference when you purchasing the XCMG LW300F Wheel Loader
This manual mainly introduces the parts, component structures and assemblies of every system of the loader, which can help users, sellers and technicians purchase and service the loader.
In this manual, those parts (including welded parts or riveted parts) which can't be dismantled furthermore have been numbered, so no separate number is given to their composite parts.
When you need to purchase some parts from us, please inform us of the following information clearly to ensure we can deliver you the right staffs you just need.
ex-work date and serial number of the Wheel Loader. Part No. and Part Description of the parts that you need. quantity of the parts that you wish to buy..
