011 Main Bearing Set——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800010015 7 Main Bearing Lower Shell
2 610800010017 7 Main Bearing Upper Shell Whatsapp: 86-18630852087
012 Thrust Plate Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800010018 2 Thrust Plate Set Whatsapp: 86-18630852087
013 Thrust Plate Set——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800010245 2 Upper Thrust Plate
2 610800010244 2 Lower Thrust Plate Whatsapp: 86-18630852087
014 Flywheel Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90016020020 2 Deep Groove Ball Bearing
2 90003901409 1 Parallel Pin Whatsapp: 86-18630852087
3 81500020009 1 Flywheel Ring Gear
4 610800020109 1 Flywheel Whatsapp: 86-18630852087
5 610800020009 9 Hexagon Head Bolt

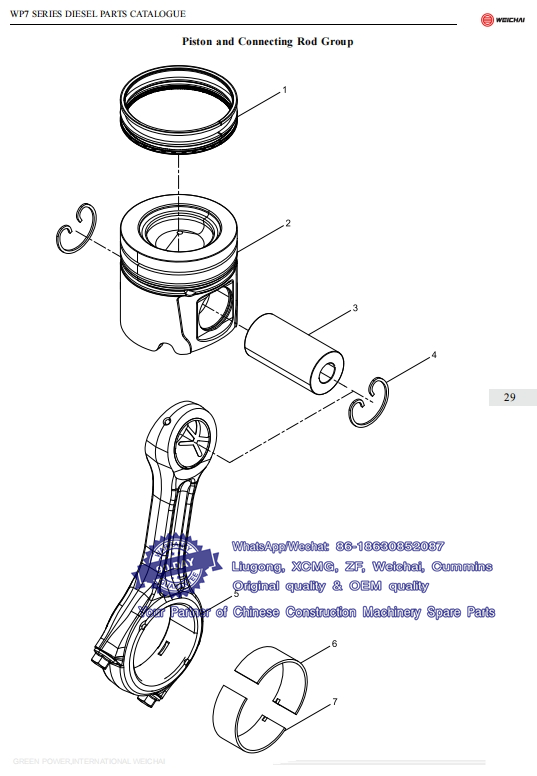

015 Piston and Connecting Rod Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800030083 6 Piston Ring Set
2 610800030080 6 Piston Whatsapp: 86-18630852087
3 610800030020 6 Piston Pin
4 610800030024 12 Piston Pin Retainer Whatsapp: 86-18630852087
5 610800030073 6 Connecting Rod Assembly
6 610800030078 6 Connecting Rod Upper Shell
7 610800030079 6 Connecting Rod Lower Shell

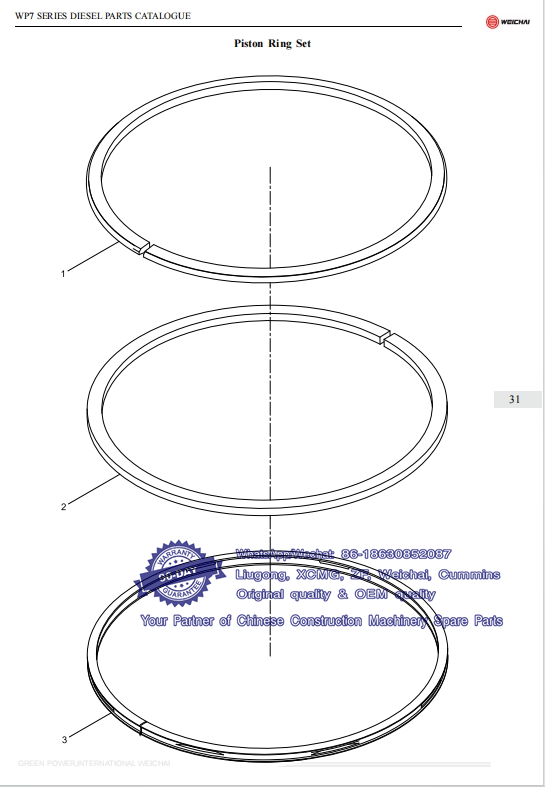

016 Piston Ring Set——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800030010 6 Keystone Ring Whatsapp: 86-18630852087
2 610800030011 6 Twist Taper Ring
3 610800030012 6 Coil Spring Loaded Oil-control Ring

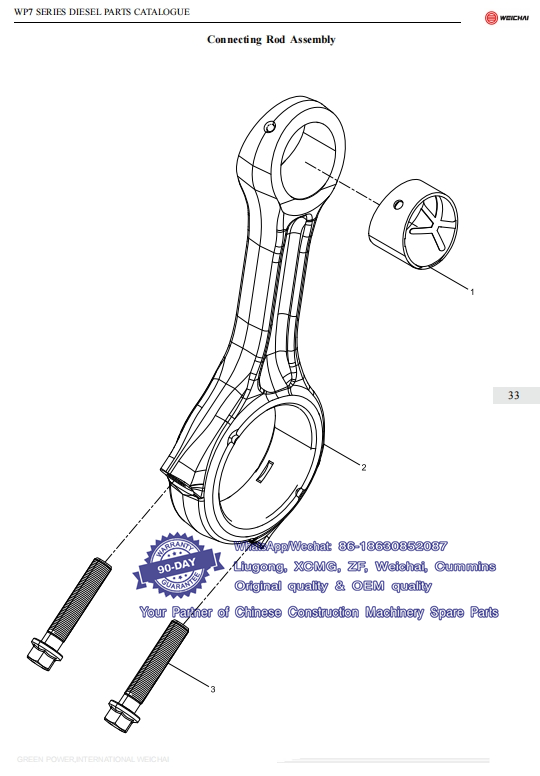

017 Connecting Rod Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800030022 6 Connecting Rod Bush Whatsapp: 86-18630852087
2 610800030074 6 Connecting Rod
3 610800030075 12 Connecting Rod Bolt

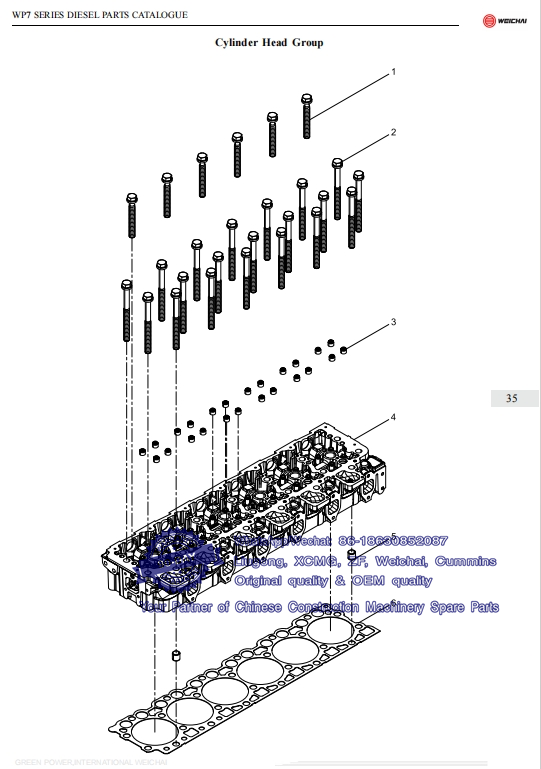

018 Cylinder Head Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800040020 6 Cylinder Head Bolt Whatsapp: 86-18630852087
2 610800040019 20 Cylinder Head Bolt
3 610800040013 24 Valve Stem Seal
4 610800040291 1 Cylinder Head Assembly
5 610800010008 2 Dowel Pin Whatsapp: 86-18630852087
6 610800040023 1 Cylinder Head Gasket

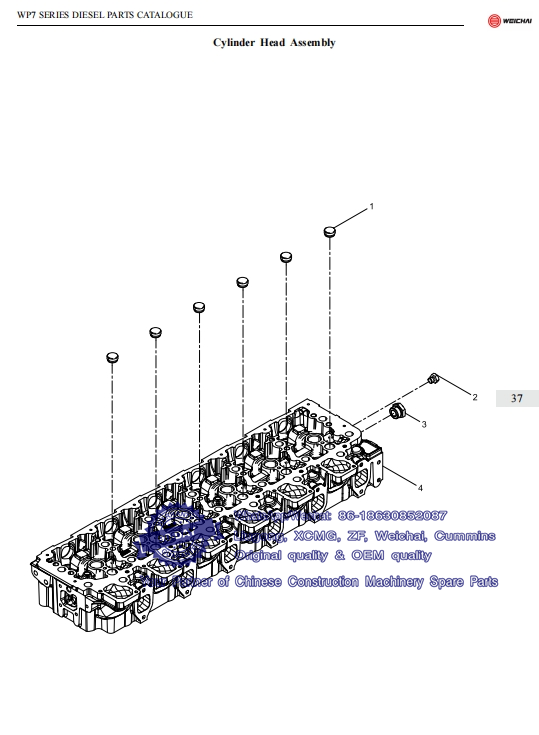

019 Cylinder Head Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800040069 6 Back-up Block
2 90003962019 1 Hexagon plug Whatsapp: 86-18630852087
3 610800040021 1 Screw Plug
4 610800040211 1 Cylinder Head Subassembly
020 Cylinder Head Subassembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800040005 24 Valve Guide
2 610800040068 6 Bowl Plug
3 610800040028 6 Injector Bush Whatsapp: 86-18630852087
4 610800040324 6 O-ring
5 610800040006 12 Exhaust Valve Seat
6 610800040009 12 Intake Valve Seat Whatsapp: 86-18630852087
7 90003989277 1 Bowl Type Expansion Plug
8 610800040212 1 Cylinder Head
9 90003989725 5 Bowl Type Expansion Plug
