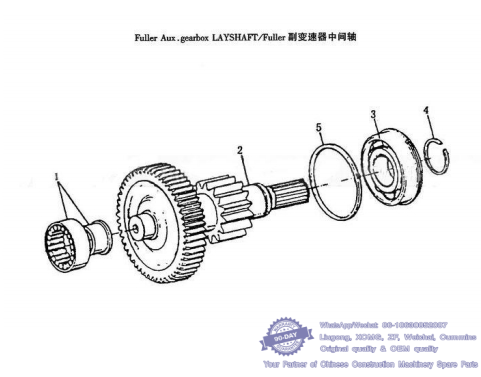

011 Vice box countershaft-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
sequence name part number
1 Bearing 42307e
2 Vice box countershaft transmission gear jsl80t-1707049
2 Vice box countershaft welding assembly jsl80-1707053
2 Vice box lengthen countershaft 18222
2 Extended countershaft assembly jsl30t-1707047
2 Vice box lengthen countershaft 19998
2 Vice box countershaft jsl80t-1707048
2 Vice box lengthen countershaft 20002
2 Vice box countershaft transmission gear 19255
2 Vice box countershaft transmission gear 19276
2 Vice box countershaft drive gear 18870
3 Bearing 192311e
3 Bearing 192310e
4 Snap ring 16723
5 (Bearing) snap ring c01020
5 Bearing Washers 17384

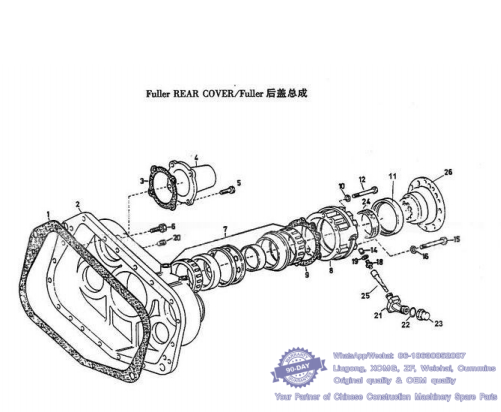

012 Rear cover-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 Liner 14335
Copper Washers 17016
2 Rear cover case h19975
2 Back cover case jsl80-1701015
2 Back cover case jsl30r-1707010
3 Liner 17352
4 Extended countershaft bearing cap 17376
5 Screws a-c09008
6 Screws m10×50
6 Screws m10×45
7 Bearing jsl80-1707109
7 Bearing 71813
8 Rear output shaft bearing cap jsl80-1707155
9 Liner 15532
10 Spring washer q40310
11 Seal 19109
12 Bolt m10×70
14 Copper sets 7992
15 Bolt m10×70
16 Glands 19709
18 Odometer joint assembly f93060
19 Copper pads h16i]05
21 Odometer joint assembly 116e-3802032
24 Speedometer drive gear f91054
25 Odometer passive gear f91055
26 Output flange (optional) f99900
26 Output flange (optional) jsl80-1707159
26 Output flange (optional) f99902
26 Output flange (optional) jsl80-1707159-1
26 Output flange (optional) f99902-5
26 Output flange (optional) f99900-1

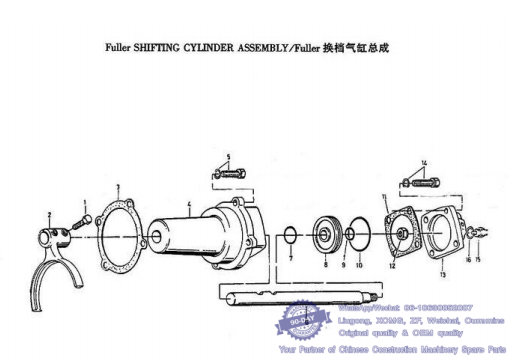

013 Shifting cylinder-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
sequence name part number
Shifting cylinder assembly a-c09016
1 Screws m12×1．25×50
2 Vice box fork 16775
3 Liner 1684
4 Range gear cylinder 16778
5 Screws m10×32
6 Fork shaft 16993
7 O-ring 14765
8 Piston 14341
9 O-ring 14345
10 O-ring 14344
11 Cylinder head gasket 14349
12 Screw nut m16×1．5
13 Cylinder head f99857
15 High-low gear switch 79100710069
16 Washer x11511

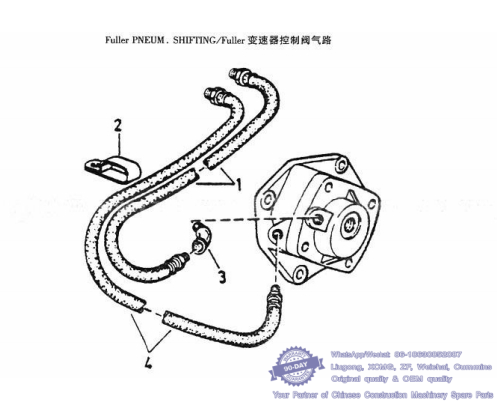

014 Gearbox control valve gas circuit-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
l Hose 55523
2 Clip 19779
3 Elbow 12880
4 Hose 55522

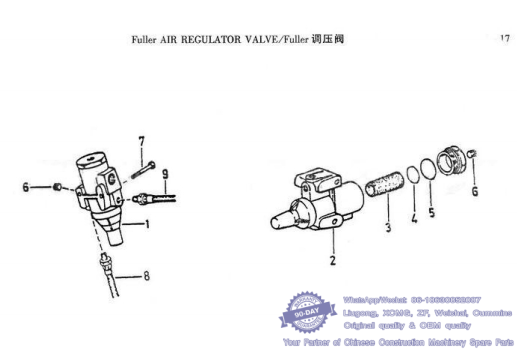

015 Pressure regulator-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 Air filter regulator assembly a-4740
2 Pressure regulator body 19600
3 Filter 19670
4 O-ring 19953
5 O-ring 1967l
6 Block x14973
7 Bolt x11217
8 Air pipe 55527
9 Air pipe 55518
10 Spare group k-1698
Full range of spare parts for Sinotruk Howo Transmission FAST RT11509C, whatsapp 86-18630852087
