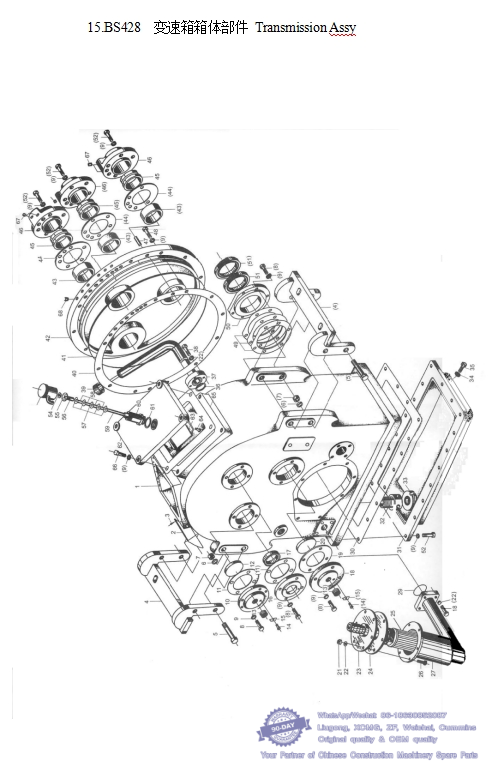

016 15.BS428 变速箱箱体部件 Gearbox body-- XCMG Wheel Loader LW300F Parts Catalog

序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty

1 ZL20-030001 箱体 Body 1
2 403091 铭牌 Decal 1
3 GB/T827-1986 标牌铆钉 2×6 Rivet 4
4 ZL20-030057 支架 Supporting Bracket 2
5 GB5783-86 六角螺栓 M16×75 Bolt 8
6 GB93-87 弹簧垫圈 16 Lock Washer 8
7 GB6170-86 六角螺母 M16 Nut 8
8 GB5783-86 六角螺栓 M10×25 Bolt 18
9 GB93-87 垫圈 10 Washer 57
10 ZL20-030003 端盖 Cover 1
11 ZL20-030002 纸垫 Paper Pad 2
12 ZL20-030005 调整环 Ring 1
13 ZL20-030006 调整螺丝 Adjusting Screw 2
14 GB5783-86 六角头螺栓 M6×6 Bolt 2
15 ZL20-030004 止动片 Retainer 2
16 ZL20-030008 输入轴端盖 End Cover of Input Shaft 1
17 JB2600-80 油封 45×62×12 Oil Seal 1
18 ZL20-030058 中间轴端盖 Cover 1
19 ZL20-030025 纸垫 Paper Pad 1
20 ZL20-030059 挡油盖调整环 Adjusting Ring 1
21 GB6170-86 螺母 M8 Nut 6
22 GB93-87 垫圈 8 Washer 14
23 ZL20-030062W1 接头法兰 Flange 1
24 ZL20-030062-4 垫片 Gasket 1
25 WL-100X100-J 滤芯 Filter Core 1
26 GB5783-86 螺栓 M8×25 Bolt 6
27 ZL20-030062-3W1 法兰接头 Flange Joint 1
28 GB5783-86 六角螺栓 M8×30 Bolt 4
29 Q26-01 O 形圈 50×4 O- Ring 1
30 ZL20-030020 密垫片б1 Gasket 1
31 ZL20-034001 油底壳 Oil Pan 1
32 ZL20-030007 吸油管 Tube 1
33 ZL20-030043 永久磁铁 Permanent Magnet 1
34 ZL20-034004 垫圈 Washer 1
35 Q20-01 螺塞 M20×1.5 Plug 1
36 GB1235-76 “O”形圈 40×3.1 O-Ring 1
37 ZL20-037000×2 油管头 Coupling 1
38 GB5783-86 六角螺栓 M8×30 Bolt 4
39 ZL20-037200 油管盖 Oil Pipe Cap 1
40 ZL20-030063 大端盖纸垫 Paper Gasket 1
41 ZL20-030033 “O”形橡胶圈 O-Ring 1
42 ZL20-031000 大端盖 End Cover 1
43 ZL20-030032 轴套 Sleeve 3
44 ZL20-030031 垫片 Gasket 3
45 ZL20-035002 外封轴盖 Cover 3
46 ZL20-035001 进油端盖 Cover 3
47 GB119-86 定位销 A10×40 Position Pin 1
48 GB70-85 圆柱内六角螺钉 M10×30 Screw 13
49 ZL20-030022 输出轴调整垫片 Adjusting Gasket 1 组
50 ZL20-030026 前输出轴封油盖 End Cover 1
51 HG4-692-67 油封 65×90×12 Oil Seal 2
52 GB5783-86 六角头螺栓 M10×30 Bolt 35
53 ZL20-030101 通风器盖 Cap of Ventilator 1
54 GB39-88 方螺母 M6 Square Nut 1
55 ZL20-030103 通风片 Ventilating Plate 1
56 ZL20-030105 铜套 Copper Sleeve 1
57 ZL20-030106 迷宫片 Gasket 5
58 ZL20-030107 铜隔套 Brass Spacing Sleeve 4
59 ZL20-030102 长螺丝 Stud 1
60 ZL20-030109 壳体 Housing 1
61 ZL20-030108 纸壳 Paper Pad 1
62 ZL20-030039 箱盖 Box Cover 1
63 ZL20-030060 挡油盖 Oil Fending Cover 1
64 GB867-86 半圆头铆钉 4×18 Rivet 4
65 ZL20-030040 纸垫 0.5 Paper pad 1
66 GB5783-86 方角头螺栓 M10×35 Bolt 4
67 Q21-34 闷塞 7 Plug 6
68 ZL20-031005 闷塞 Plug 6

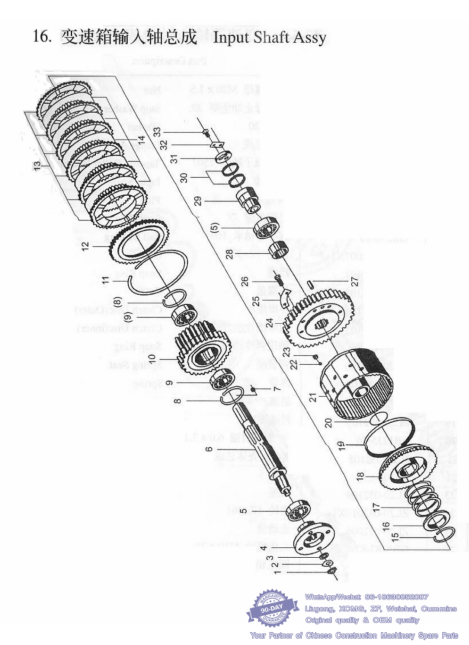

017 16. 变速箱输入轴总成 Input Shaft-- XCMG Wheel Loader LW300F Parts Catalog

序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty

1 GB810-76 小圆螺母 M20×1.5 Nut 1
2 GB858-88 圆螺母止动垫圈 20 Stop Washer 1
3 GB97.1-85 垫圈 20 Washer 1
4 ZL20-030061 × 1 凸缘总成 Flange 1
5 GB297-84 圆锥滚子轴承 7507 Cone Roller Bearing 2
6 ZL20-032008 输入轴 Input Shaft 1
7 ZL20-032009 闷塞 9 Plug 1
8 GB893.2-86 孔用挡圈 75 Snap Ring 2
9 GB276-89 向心球轴承 109 Ball Bearing 2
10 ZL20-032007×1 齿轮(Z=33) Gear 1
11 ZL20-032101 挡圈 Snap Ring 1
12 ZL20-032102 外端盖 Cover 1
13 ZL20-032104 外摩擦片 Clutch Disc(Outer) 6
14 ZL20-030103 内磨擦片 Clutch Disc(Inner) 5
15 GB894.2-86 轴用弹性挡圈 60 Snap Ring 1
16 ZL20-032110 弹簧座 Spring Seat 1
17 ZL20-032108 弹簧 Spring 1
18 ZL20-032016 活塞 Piston 1
19 ZL20-032107 封油圈 Seal Ring 1
20 GB1235-76 “O”形密封圈 6.0×3.1 O- Ring 1
21 ZL20-032105 离合器壳体总成 Clutch Housing 1
22 GB308-89 钢球 5 Steel Ball 1
23 ZL20-032109 阀座 Valve Seat 1
24 ZL20-032010×1 齿轮(Z=46) Gear 1
25 ZL20-032007 止动垫 Stop Plate 4
26 GB5783-87 六角螺栓 M10×25 Bolt 8
27 GB119-86 圆柱销 A8×22 Pin 2
28 ZL20-032004 轴套 Bushing 1
29 ZL20-032003 内封油套 Piston 1
30 CA10-350914-A 烽塞环φ52 Piston Ring 2
31 ZL20-032002 轴端挡板 Plate 1
32 ZL20-032001 止动垫 Stop Plate 1
33 GB5783-86 六角螺栓 M8×16 Bolt 2

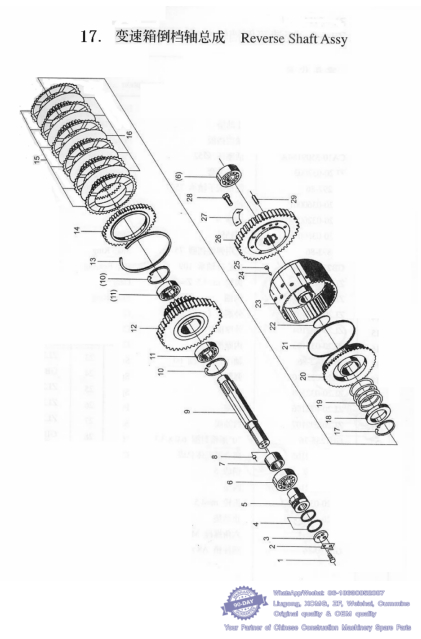

018 17. 变速箱倒挡轴总成 Reverse Shaft Ass.-- XCMG Wheel Loader LW300F Parts Catalog

序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty

1 GB5783-86 六角螺栓 M8×16 Bolt 2
2 ZL20-032001 止动垫 Stop Plate 1
3 ZL20-032002 轴端挡板 Plate 1
4 CA10-3509164A 活塞环φ52 Piston Ring 2
5 ZL20-032003 内衬油套 Piston 1
6 GB297-86 圆锥滚子轴承 7507 Roller Bearing 2
7 ZL20-036001 轴套 Shaft Sleeve 1
8 ZL20-032009 闷塞 9 Plug 1
9 ZL20-036003 倒挡轴 Reverse Shaft 1
10 GB893-86 孔用弹性挡圈 75 Snap Ring 2
11 GB276-89 向心球轴承 109 Ball Bearing 2
12 ZL20-036002×1 齿轮 m=4.5, Z=49 Gear 1
13 ZL20-032101 挡圈 Snap Ring 1
14 ZL20-032102 外端盖 Gear Ring 1
15 ZL20-032104 外磨擦片 Clutch Disc (Outer) 6
16 ZL20-032103 内磨擦片 Clutch Disc (Inner) 5
17 GB894.2-86 轴用弹性挡圈 60 Snap Ring 1
18 ZL20-032110 弹簧座 Spring Seat 1
19 ZL20-032108 弹簧 Spring 1
20 ZL20-032106 活塞 Piston 1
21 ZL20-032107 封油圈 Seal Ring 1
22 GB1235-76 O 形密封圈 6.0×3.1 O-Ring 1
23 ZL20-032105 离合器壳体总成 Clutch Housing 1
24 GB308-89 钢球 5 Ball 1
25 ZL20-032109 阀座 Seat 1
26 ZL20-036004×1 齿轮 m=4.5,Z=44 Gear 1
27 ZL20-032006 止动垫 Stop Plate 4
28 GB5783-86 六角螺栓 M10×25 Bolt 8
29 GB119-86 圆柱销 A8×22 Pin 2

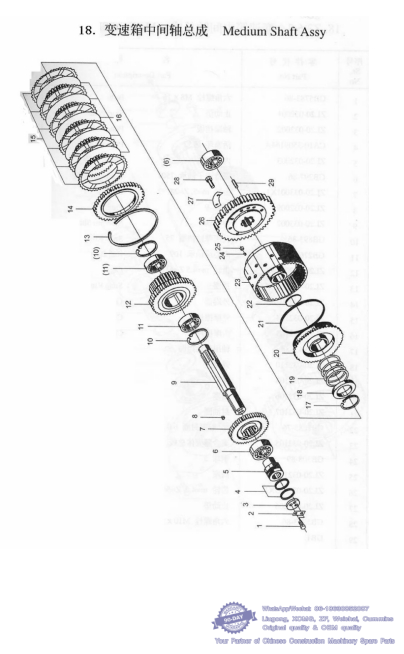

019 18. 变速箱中间轴总成 Medium Shaft Ass.-- XCMG Wheel Loader LW300F Parts Catalog

序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty

1 GB5783-86 六角螺栓 M8×16 Bolt 2
2 ZL20-032001 止动垫 Stop Plate 1
3 ZL20-032002 轴端挡板 Plate 1
4 CA10-3509164A 活塞环φ52 Piston Ring 2
5 ZL20-032003 内衬油套 Inner Lining Sleeve 1
6 GB297-86 圆锥滚子轴承 7507 Roller Bearing 2
7 ZL20-033001×1 齿轮 m=5, Z=24 Gear 1
8 ZL20-032009 闷塞 9 Plug 1
9 ZL20-033002 中间轴 Middle Shaft 1
10 GB893-86 孔用弹性挡圈 75 Snap Ring 2
11 ZL276-89 向心球轴承 109 Ball Bearing 2
12 ZL20-032004×1 齿轮 m=4.5, Z=41 Gear 1
13 ZL20-032101 挡圈 Snap Ring 1
14 ZL20-032102 外端盖 Gear Ring 1
15 ZL20-032104 外磨擦片 Clutch Disc (Outer) 6
16 ZL20-032103 内磨擦片 Clutch Disc (Inner) 5
17 GB894.2-86 轴用弹性挡圈 60 Snap Ring 1
18 ZL20-032110 弹簧座 Spring Seat 1
19 ZL20-032108 弹簧 Spring 1
20 ZL20-032106 活塞 Piston 1
21 ZL20-032107 封油圈 Seal Ring 1
22 GB1235-76 O 形密封圈 6.0×3.1 O- Ring 1
23 ZL20-032105 离合器壳体总成 Clutch Housing 1
24 GB308-89 钢球 5 Ball 1
25 ZL20-032109 阀座 Valve Seat 1
26 ZL20-033005×1 齿轮 m=4.5,Z=54 Gear 1
27 ZL20-032006 止动垫 Stop Plate 4
28 GB5783-86 六角螺栓 M10×25 Bolt 8
29 GB119-86 圆柱销 A8×22 Pin 2

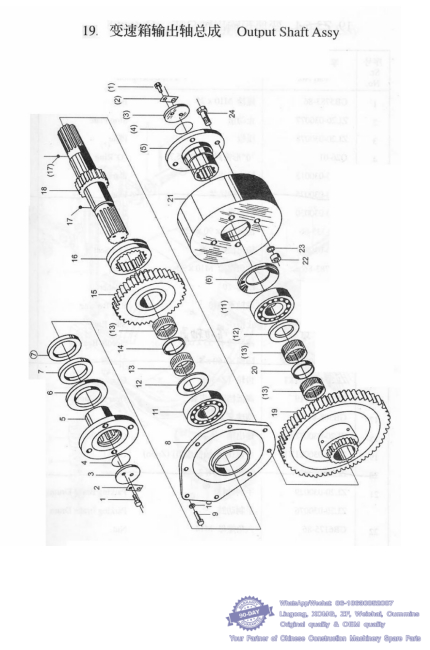

020 19.变速箱输出轴总成 Output Shaft-- XCMG Wheel Loader LW300F Parts Catalog

序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty

1 GB5783-86 六角螺栓 M10×25 Bolt 4
2 ZL20-030077 止动垫 Stop Plate 2
3 ZL20-030078 压板 Plate 2
4 Q26-01 O 形密封圈 52×5.7 O-Ring 2
5 ZL20-030013 输出轴法兰 Flange 2
6 ZL20-030030 防尘罩 Dust Proof Cover 2
7 HG4-335-1806 油封 65×90×12 Oil Seal 4
8 ZL20-030071 输出轴后端盖 End Cover 1
9 GB5783-86 六角螺栓 M10×30 Bolt 8
10 GB93-87 垫圈 10 Washer 8
11 GB276-89 球轴承 310 Ball Bearing 2
12 ZL20-030010A 止推环 Stop Ring 2
13 SF-1 5530 滑动轴承 Slide Bearing 4
14
15 ZL20-030009×1 齿轮(Z=36) Gear 1
16 ZL20-030019 高低档滑动齿套 Gear Bushing 1
17 GB308-89 钢球 4 Steel Ball 2
18 ZL20-030072A 输出轴 Output Shaft 1
19 ZL20-030021×1 齿轮(输出轴低速档)(Z=56) Gear 1
20 1
21 ZL20-030029 手制动鼓 Parking Brake Drum 1
22 GB6175-86 六角螺母 M14 Nut 4
23 GB93-87 弹簧垫圈 14 Spring Washer 4
24 GB5783-86 六角头螺栓 M14×40 Bolt 4

Full range of spare parts for XCMG Wheel Loader LW128,LW300F,LW300FN,LW300KN,ZL30G,LW400F, LW500F,LW500FN,LW500KN,ZL50G, ZL50GN,
LW700KN, LW820G, LW1200KN, WZ30-25, XC740RU, XC7-TV12, XC968-EV, XC975-EV, XC958-EV, XC936, XC956, XC958,XC975

XCMG Wheel Loader Spare parts, whatsapp 86-18630852087

LW300F WHEEL LOADER PARTS MANUAL
LW300F 轮式装载机零件手册

XUGONG SCIENCE & TECHNOLOGY CO.,LTD.
徐州工程机械科技股份有限公司

This manual can provide you reference when you purchasing the XCMG LW300F Wheel Loader
This manual mainly introduces the parts, component structures and assemblies of every system of the loader, which can help users, sellers and technicians purchase and service the loader.

In this manual, those parts (including welded parts or riveted parts) which can't be dismantled furthermore have been numbered, so no separate number is given to their composite parts.
When you need to purchase some parts from us, please inform us of the following information clearly to ensure we can deliver you the right staffs you just need.
ex-work date and serial number of the Wheel Loader. Part No. and Part Description of the parts that you need. quantity of the parts that you wish to buy..
