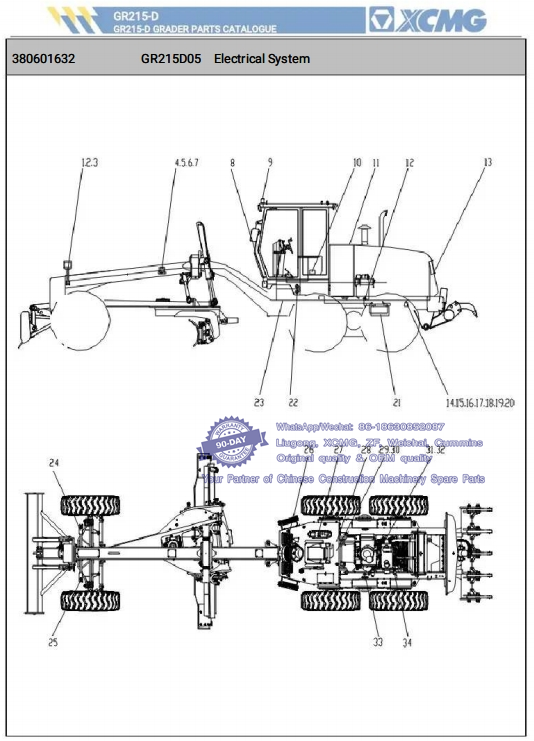

016 380601632 GR215D05 Electrical System-- XCMG Motor Grader GR215D Spare Parts Catalog
NO. Part Number Part Name Advised Q'ty Remarks
1 801969188 PAD 2 M8×30
2 805046510 ( ) BOLT 4
3 805338259 8( ) SCREW WASHER 4 whatsapp:86-18630852087
4 803546714 WORK LIGHT 2
5 803741940 WORK LIGHT BRACKET 2
6 805046507 M8×20 BOLT 8
( )
7 805338259 8( ) SCREW WASHER 8
8 803546714 WORK LIGHT 2
9 803545739 ROTATING BEACON 1
10 380601659 PLATE,RELAY 1
11 803545986 FUEL SENSOR 1
12 803685283 POWER SWITCH 1
13 803548022 REAR COMBINED LAMP 2
14 380602101 BRACKET 1
15 805048356 M6×15 BOLT 2
( )
16 805338258 6( ) SCREW WASHER 2
17 805046507 M8×20 BOLT 4
( )
18 805338259 8( ) SCREW WASHER 4 whatsapp:86-18630852087
19 805046477 M8( ) N UT 4
20 803504584 REVERSE ALARM 1
21 803542747 BATTERY 2 whatsapp:86-18630852087
22 803506732 H OR N 1
23 380602885 MAIN CABLE 1
24 803543267 ILLUMINATING LAMP(RIGHT) 1
25 803543266 ILLUMINATING LAMP(LEFT) 1
26 380601657 INSTRUMENTATION CONSOLE ASS'Y 1 whatsapp:86-18630852087
27 380602884 OPERATING PLATE 1
28 803646231 T.C.OIL TEMPERATURE 1
TRANSDUCER
29 803506973 T.C. OIL PRESSURE 1
TRANSDUCER
30 803683558 ROTARY JOINT 1
31 803507248 ENGINE OIL PRESSURE 1
TRANSDUCER
32 803683557 ROTARY JOINT 1 whatsapp:86-18630852087
33 803611480 RELAY 2
ENGINE WATER
34 803506974 TEMPERATURE 1
TRANSDUCER

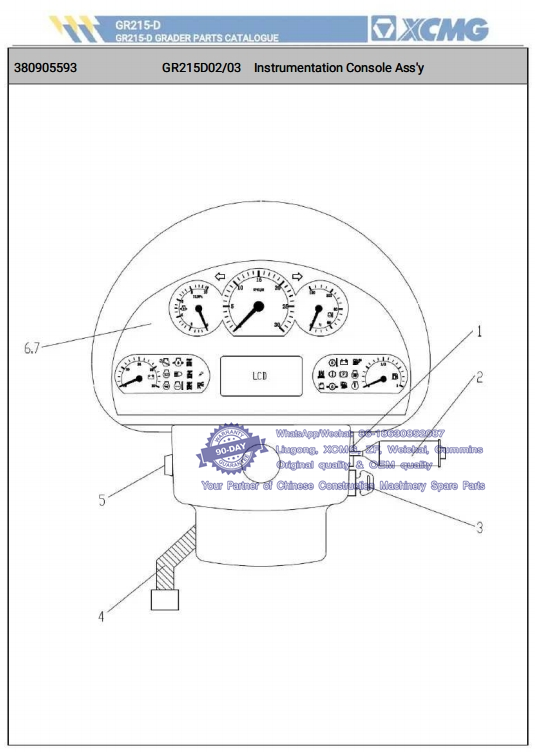

017 380905593 GR215D02/03 Instrumentation Console Ass'y-- XCMG Motor Grader GR215D Spare Parts Catalog
NO. Part Number Part Name Advised Q'ty Remarks
1 803742957 SAFETY CABINET 1
2 803600736 SWITCH 1
3 803666709 IGNITION SWITCH 1
4 380905592 INSTRUMENTATION 1
CONSOLE CABLE
5 803645976 STARTING BUTTON 1
6 803545918 COMBINATION METER 1
7 380602087 TRANSITION HARNESS 1

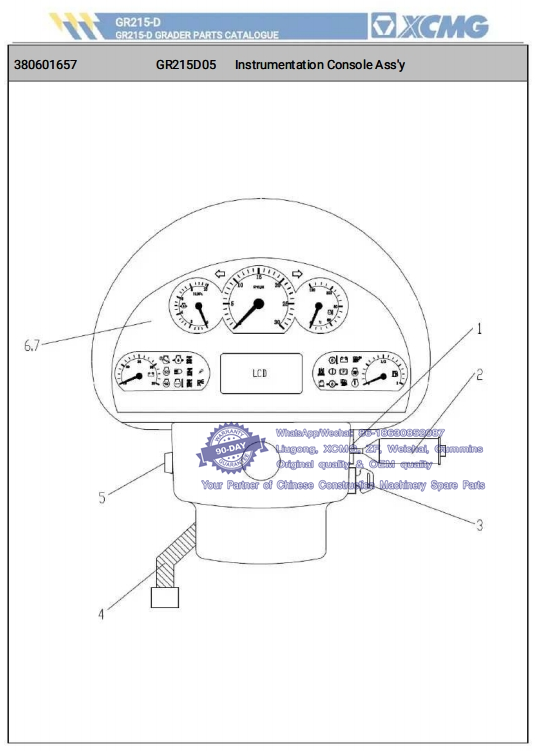

018 380601657 GR215D05 Instrumentation Console Ass'y-- XCMG Motor Grader GR215D Spare Parts Catalog
NO. Part Number Part Name Advised Q'ty Remarks
1 803742957 SAFETY CABINET 1
2 803600736 SWITCH 1
3 803666709 IGNITION SWITCH 1
4 380601660 INSTRUMENTATION 1
CONSOLE CABLE
5 803645976 STARTING BUTTON 1
6 803545918 COMBINATION METER 1
7 380602087 TRANSITION HARNESS 1

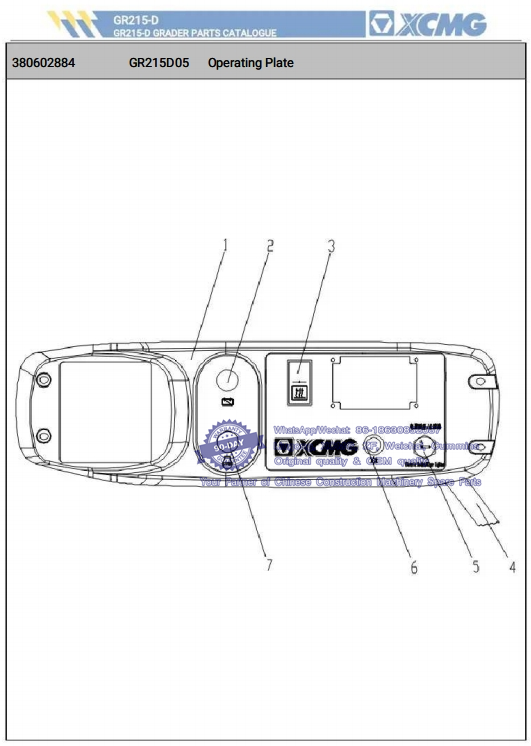

019 380602884 GR215D05 Operating Plate-- XCMG Motor Grader GR215D Spare Parts Catalog
NO. Part Number Part Name Advised Q'ty Remarks
1 380602883 OPERATED PANEL 1
2 803633339 INDICATING LAMP 1
3 803676157 HEATING SWITCH 1
4 380602882 OPERATING PLATE CABLE 1
5 803701694 CIGAR LIGHTER 1
6 803682328 AIR CONDITIONER INDICATING LAMP 1
7 803612803 FLAMEOUT SWITCH 1

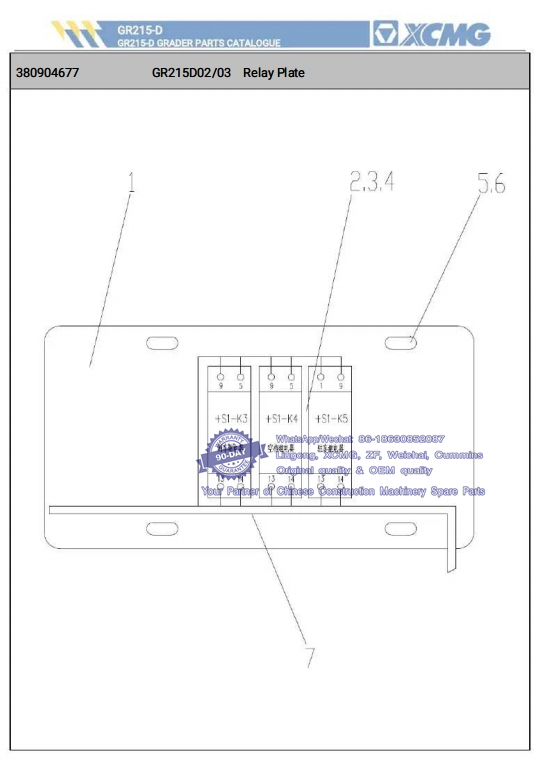

020 380904677 GR215D02/03 Relay Plate-- XCMG Motor Grader GR215D Spare Parts Catalog
NO. Part Number Part Name Advised Q'ty Remarks
1 380904681 RELAY PLATE 1
2 803678559 RELAY 3
3 803741090 RELAYSOCKET 3
4 803741091 RELAYLATCH 3
5 805338258 6( ) SCREW WASHER 2
6 805238370 M6( ) NUT 2
7 380904682 RELAY PLATE CABLE 1
