016 380605191 CAB-- XCMG Motor Grader GR2205T Spare Parts Catalog

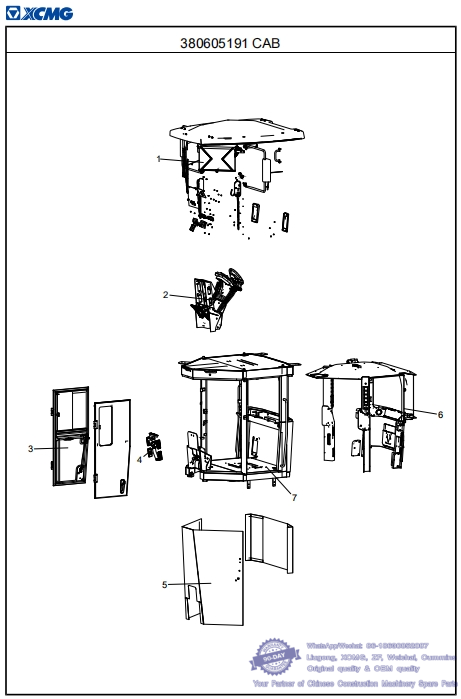

382301585 CAB ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 380605049 1 CONSOLE SYSTEM 40 whatsapp 86-18630852087
2 382301467 1 OPERATION STATION AIR OUTLET SYSTEM ASSEMBLY 58
3 380605258 1 WELDING ASSEMBLY
4 382301212 1 THE DOOR TOTAL 60
5 382301268 1 CAB GLASS ASSEMBLY 66
6 382300958 1 CAB UPHOLSTERY ASSY
7 380605277 1 ASSEMBLY OF ASSEMBLY PARTS 68 whatsapp 86-18630852087

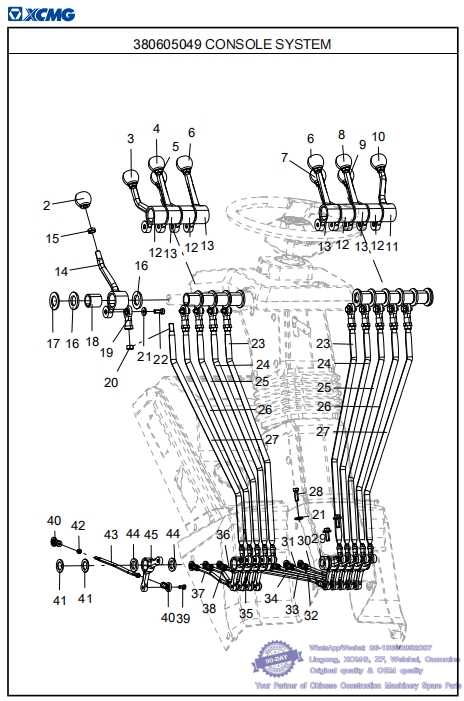

017 380605049 CONSOLE SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605191 CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 380402503 1 CONTROL PANEL ASSEMBLY 48 whatsapp 86-18630852087
2 380603372 1 BLADE HOIST HANDLE
3 380603369 1 BACK RIPPER HANDLE
4 380603374 1 BLADE OUTSTANDING HANDLE
5 380603367 1 RTICULATED STEERING HANDLE
6 380603378 2 ROTARY BLADE HANDLE
7 380603370 1 ARTICULATED STEERING HANDLE
8 380603375 1 FRONT WHEEL TILT HANDLE whatsapp 86-18630852087
9 380603377 1 FRONT DONZER HANDLE
10 380603373 1 BLADE HOIST HANDLE
11 380905163 1 OPERATING LEVER
12 380905164 4 OPERATING LEVER
13 380905068 4 OPERATING LEVER
14 380905165 1 OPERATING LEVER
15 805238493 10 NUT M12 (DACROMET) GB/T6172.1-2000
16 380401281 12 SPACER BUSH
17 380904087 2 SPACER BUSH
18 800553758 10 SLEEVE PIPE
19 800515282 10 KNUCKLE BEARING SI10E GB/T9161-2001
20 805200048 10 NUT M10 GB/T6170-2000
21 329900296 14 THICKENED LARGE WASHER
22 805047626 10 BOLT M8×20 (DACROMET) GB/T5782-2000
23 381100740 2 CONNECTING ROD
24 381100744 2 CONNECTING ROD whatsapp 86-18630852087
25 381100749 2 CONNECTING ROD
26 381100743 2 CONNECTING ROD
27 381100739 2 CONNECTING ROD
28 805046484 4 BOLT M8×25 (DACROMET) GB/T5783-2000 whatsapp 86-18630852087
29 381100734 2 RETAINER RING
30 380604032 1 CONNECTING ROD
31 380604030 1 CONNECTING ROD
32 380604037 1 CONNECTING ROD
33 381200510 1 CONNECTING ROD whatsapp 86-18630852087
018 380605049 CONSOLE SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605191 CAB
No. PART NUMBER QTY NAME NOTE PAGE
34 380604031 1 CONNECTING ROD whatsapp 86-18630852087
35 380604033 1 CONNECTING ROD
36 380604039 1 CONNECTING ROD
37 380604034 1 CONNECTING ROD
38 380604036 1 CONNECTING ROD
39 805048925 20 BOLT M6×12 (DACROMET) GB/T5783-2000 whatsapp 86-18630852087
40 800553777 30 KNUCKLE BEARING SI6 GB/T9161-2001
41 380605050 4 RETAINER RING
42 805238370 30 NUT M6 (DACROMET) GB/T6170-2000
43 380604038 1 CONNECTING ROD
44 380401280 12 GASKET
45 380401293 10 TRANSITION INSTITUTION whatsapp 86-18630852087

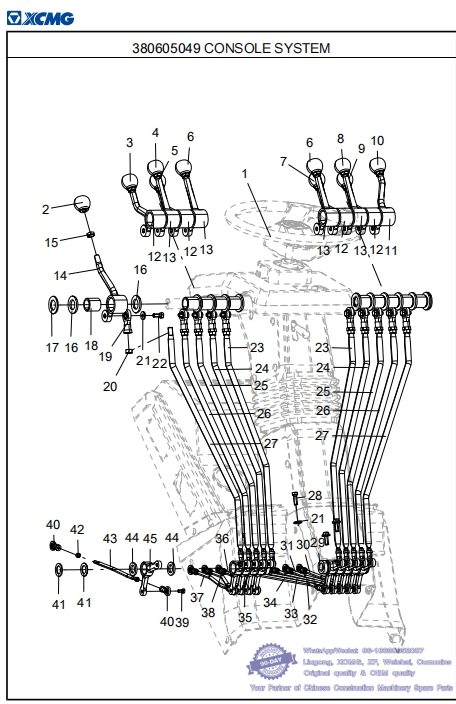

019 380605049 CONSOLE SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605191 CAB
No. PART NUMBER QTY NAME NOTE PAGE
2 380603372 1 BLADE HOIST HANDLE whatsapp 86-18630852087
3 380603369 1 BACK RIPPER HANDLE
4 380603374 1 BLADE OUTSTANDING HANDLE
5 380603367 1 RTICULATED STEERING HANDLE
6 380603378 2 ROTARY BLADE HANDLE
7 380603370 1 ARTICULATED STEERING HANDLE
8 380603375 1 FRONT WHEEL TILT HANDLE
9 380603377 1 FRONT DONZER HANDLE
10 380603373 1 BLADE HOIST HANDLE
11 380905163 1 OPERATING LEVER
12 380905164 4 OPERATING LEVER whatsapp 86-18630852087
13 380905068 4 OPERATING LEVER
14 380905165 1 OPERATING LEVER
15 805238493 10 NUT M12 (DACROMET) GB/T6172.1-2000
16 380401281 12 SPACER BUSH
17 380904087 2 SPACER BUSH
18 800553758 10 SLEEVE PIPE
19 800515282 10 KNUCKLE BEARING SI10E GB/T9161-2001
20 805200048 10 NUT M10 GB/T6170-2000
21 329900296 14 THICKENED LARGE WASHER
22 805047626 10 BOLT M8×20 (DACROMET) GB/T5782-2000
23 381100740 2 CONNECTING ROD
24 381100744 2 CONNECTING ROD
25 381100749 2 CONNECTING ROD
26 381100743 2 CONNECTING ROD whatsapp 86-18630852087
27 381100739 2 CONNECTING ROD
28 805046484 4 BOLT M8×25 (DACROMET) GB/T5783-2000
29 381100734 2 RETAINER RING
30 380604032 1 CONNECTING ROD
31 380604030 1 CONNECTING ROD
32 380604037 1 CONNECTING ROD
33 381200510 1 CONNECTING ROD whatsapp 86-18630852087
34 380604031 1 CONNECTING ROD
020 380605049 CONSOLE SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605191 CAB
No. PART NUMBER QTY NAME NOTE PAGE
35 380604033 1 CONNECTING ROD whatsapp 86-18630852087
36 380604039 1 CONNECTING ROD
37 380604034 1 CONNECTING ROD
38 380604036 1 CONNECTING ROD
39 805048925 20 BOLT M6×12 (DACROMET) GB/T5783-2000
40 800553777 30 KNUCKLE BEARING SI6 GB/T9161-2001
41 380605050 4 RETAINER RING
42 805238370 30 NUT M6 (DACROMET) GB/T6170-2000 whatsapp 86-18630852087
43 380604038 1 CONNECTING ROD
44 380401280 12 GASKET
45 380401293 10 TRANSITION INSTITUTION whatsapp 86-18630852087
