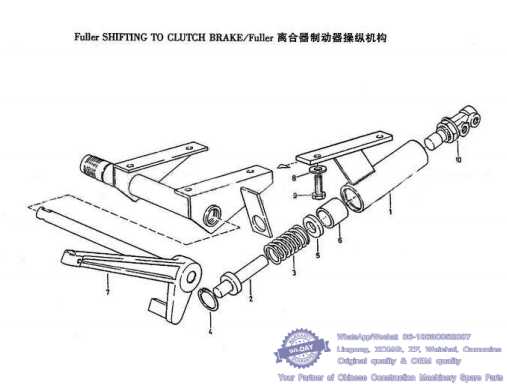

016 Clutch brake control mechanism-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
0 Chock wg9112240109
1 Case 199112240114
2 Push rod l-21-422-230
4 Collar 19000934190
5 Gasket 1-99-907-048
6 Spacer 19911240110
7 Clutch pedal 199112230035
8 Washer 13809230034
9 Bolt 190003802527
10 Valve 199100860031

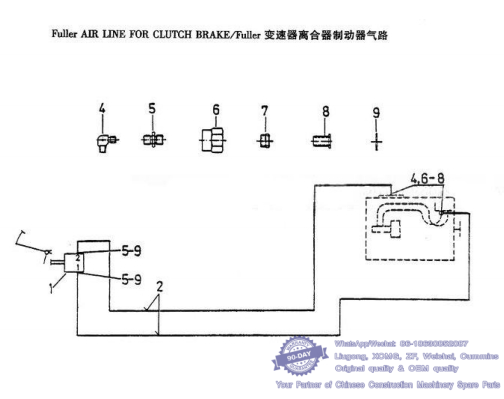

017 Clutch brake gas circuit-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
1 Button valve wg9000360150
2 Tubes 190003179782
3 Fittings 19112280111
4 Joint body wg99112280014
5 Joints 190003559766
6 Fittings with nuts 190003559516
7 Bushing 19000355956l
8 Bushing 199014280016
9 Gasket 190003098012

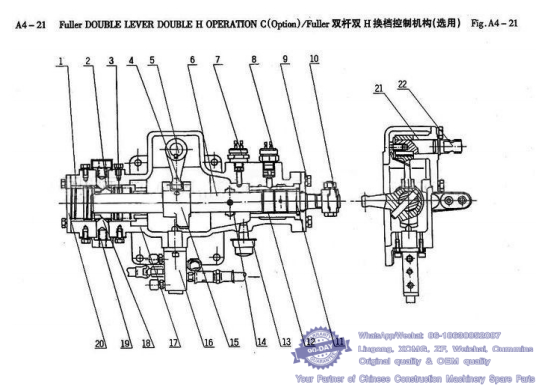

018 Double rod double H valve control device-- Sinotruk Transmission FAST RT11509C Spare Parts Catalog
FAST Transmission RT11509C
sequence name part number
0 Double rod double H valve shifting device a-c03001-3
1 Spring f99983
2 Positioning ring f99675
4 Gear selector head c03035-l
5 Flat key c03038-1-l
6 Lateral shift lever 99679-3
7 Reverse switch 79100710068
8 AC switch 99012710041
9 Cover c03033-1
10 Shift arm fh5035-5
11 Shift adapter c03032-l
12 Splined sleeve c0303l-l
13 Vent plug 15276
14 Reverse switch control block f99681
15 Dial head f99585-l
16 Double H valve f99660
17 Double H control device housing jsl00-1702051-1
17 Double H control device housing f96194-3
18 Positioning of the plunger f99670
19 Spring f96037
20 Cover f99666
21 Window Cover c03036-1
22 Connector c03035-l
