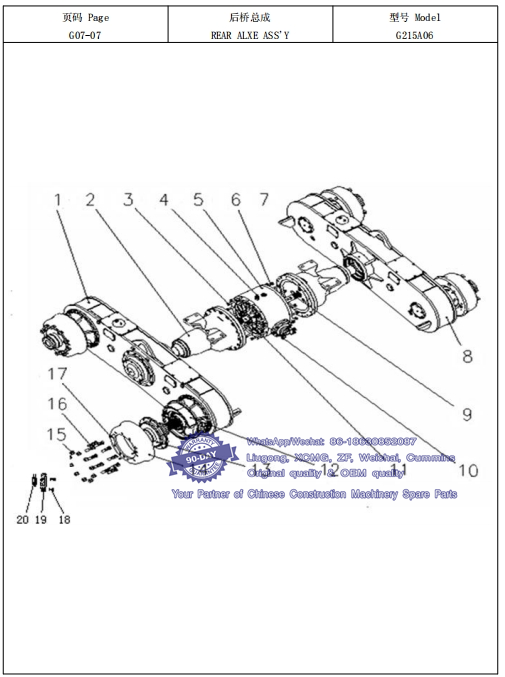

021 后桥总成REAR ALXE ASS'Y-- XCMG Motor Grader GR215A Spare Parts Catalogue
件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS
1 800142090 右平衡箱总成 RIGHT BALANCE-BOX ASSEMBLY 1
2 800346768 行星减速器 PLANETARY REDUCTION GEAR 2
3 805046352 螺栓 M16X1.5X85 BOLT M16X1.5X85 16 Whatsapp: 86-18630852087
4 800107354 通气塞 BREATHER PLUG 1
5 800106654 主减速器 FINAL DRIVE 1
6 805046353 螺栓 M16X1.5X110 BOLT M16X1.5X110 16
7 800308446 垫圈 16 WASHER 32
8 800142091 左平衡箱总成LEFT BALANCE-BOX ASSEMBLY 1
9 800106636 半轴 SHAFT 1
10 805604822 销 16X70 PIN16X70 4 Whatsapp: 86-18630852087
11 800106635 半轴 SHAFT 1
12 800107292 制动器 ARRESTER 4
13 800308437 花键毂 SPLINED HUB 4
14 800106653 制动鼓 BRAKE DRUM 4
15 805203840 轮辋螺母 NUT 40
16 805011247 轮辋螺栓 BOLT 40
17 800308439 螺钉 M10X30 SCREW M10X30 12
18 800308425 紧定螺钉 M14X32 TIGHTENING SCREW 8 Whatsapp: 86-18630852087
19 800308436 圆螺母 M75X2 NUT M75X2 4
20 800107339 支承套 SUPPORTING SLEEVE 4

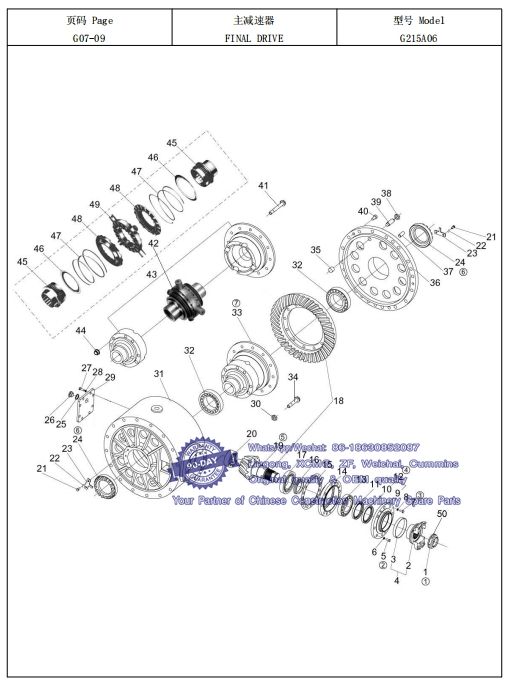

022 主减速器FINAL DRIVE-- XCMG Motor Grader GR215A Spare Parts Catalogue
件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS
1 805238395 锁紧螺母 LOCK NUT 1
2 819911370 连接法兰 ADAPTING FLANGE 1 Whatsapp: 86-18630852087
3 819911371 防尘罩 COVER,DUST 1
4 800346773 连接法兰组件 ADAPTING FLANGE SUBASSEMBLY 1
5 805046357 螺栓 M14X1.5X55 BOLT 7
6 800308448 垫圈 14 WASHER 7
7 805046356 螺栓 M12X1.5X55 BOLT 1
8 800308441 垫圈 12 WASHER 1
9 821932579 盖 COVER 1
10 801138397 油封 OIL SEAL 1
12 800346769 盖总成 COVER ASS＇Y 1 Whatsapp: 86-18630852087
13 800107308 轴承 31313E BEARING 1
14 800141401 轴承座 BEARING SUPPORT 1
15 800346774 调整垫片组 ADJUST WASHER 1
16 800346775 轴承隔套组 BEARING SLEEVE 1
17 800107311 轴承 BEARING 1
18 800107312 主传动齿轮副 MAIN DRIVE GEAR MOTION PAIR 1
19 805407568 挡圈 90 RETAINER 1
20 800515916 轴承 142807Y BEARING 1
21 805046354 螺栓 M8X16 BOLT 4
22 819948047 钢丝 2X100 WIRES 2
23 800107346 锁紧片 LOCK PLATE 2
24 800308431 差速器螺母 DIFFERENTIAL NUT 2
25 800107355 组合密封垫 24 COMBINED SEAL WASHER 3
26 800107366 螺塞 M24X1.5 PLUG 3 Whatsapp: 86-18630852087
27 805046355 螺栓 M8X25 BOLT 8
28 800308440 垫圈 8 WASHER 8
29 821932578 盖 COVER 1
30 805238330 螺母 M14X1.5 NUT 12
31 800107348 主减壳体 FINAL DRIVE CASE 1
32 800107314 轴承 47686/47620A BEARING 2
33 800107315 差速器总成 DIFFERENTIAL ASS'Y 1
34 805046714 螺栓 M14X1.5X50 BOLT 12
35 821932577 铜套 COPPER SHEATHING 1
36 801540434 连接座 SEAT 1
37 805639008 销 16X40 PIN 1
38 805238329 螺母 M20X2 NUT 1
39 805046358 止推螺栓 THRUST BEARING BOLT 1
40 805139910 螺钉 M12X35 SCREW 3 Whatsapp: 86-18630852087
41 805046359 螺栓 M16X1.5 BOLT 8
42 800345909 牙嵌式差速器 JAW DIFFERENTIAL 1
43 800106651 差速器壳体组件DIFFERENTIAL CASE ASSEMBLY 1
44 805238331 螺母 M16X1.5 NUT 8 Whatsapp: 86-18630852087
50 800308426 垫圈 WASHER 1

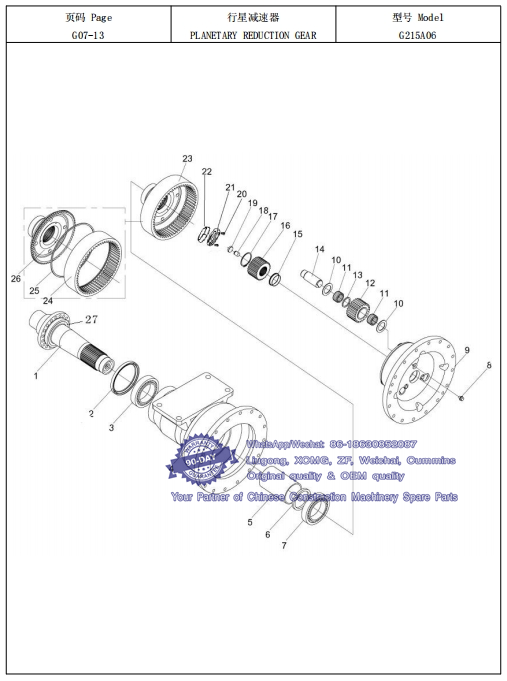

023 行星减速器PLANETARY REDUCTION GEAR-- XCMG Motor Grader GR215A Spare Parts Catalogue
件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS
1 800107316 双排链轮轴 SPROCKET SHAFT 1
2 800107317 油封 FB160X190X15 OIL SEAL 1 Whatsapp: 86-18630852087
3 800107318 轴承 33022 BEARING 1
4 800106652 行星减速壳体 PLANETARY REDUCTION GEAR HUB 1
5 800142094 隔套 SPACER 1
6 800107320 调整环 ADJUSTING RING 1
7 800107321 轴承 32026 BEARING 1 Whatsapp: 86-18630852087
8 805011248 螺钉 M10X14 SCREW 3
9 800107345 行星轮架 PLANETARY GEAR CARRIER 1
10 800346776 行星轮垫 PLANETARY GEAR WASHER 6
11 800107323 滚针 ROLL 162
12 800107324 行星轮 PLANETARY GEAR 3
13 800107325 隔套 SPACER 3
14 800107326 行星轮轴 PLANETARY GEAR SHAFT 3
15 800107327 隔套 SPACER 1
16 800107328 太阳轮 SUN GEAR 1
17 800308432 挡圈 50 RETAINER 1
18 800142092 调整支柱 ADJUSTMENT PIN 1 Whatsapp: 86-18630852087
19 800107330 挡块 BLOCK 1
20 800345970 紧固螺栓 M10X1 TIGHTENING BOLT 2
21 800345969 螺母 M85X2 NUT 1
22 800345968 锥套 CONE SLEEVE 1
23 800346770 齿圈支承总成GEAR RING SUPPORT ASSEMBLY 1
24 800107349 齿圈 GEAR RING 1
25 800107304 卡环 RING 1 Whatsapp: 86-18630852087
26 800107350 齿圈支承 SUPPORT,GEAR RING 1
27 805338230 垫圈 WASHER 1

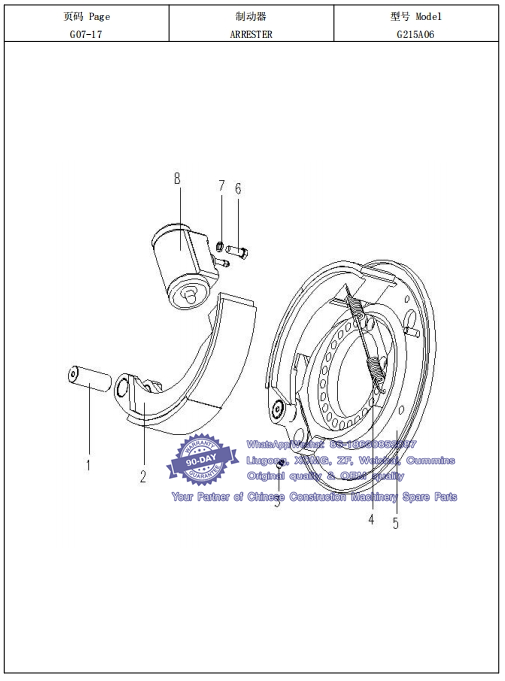

024 制动器ARRESTER-- XCMG Motor Grader GR215A Spare Parts Catalogue
件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS
1 805604825 销轴 PIN SHAFT 2
2 800107361 制动蹄总成 BRAKE SHOE ASS'Y 2 Whatsapp: 86-18630852087
3 805139909 紧定螺订 M12X25 FITTING SCREW 2
4 800107363 回位弹簧 BACK SPRING 1
5 819911287 制动底板 BRAKE BASE PLATE 1
6 805000721 螺栓 M12X30 BOLT BOLT 2
7 805302897 垫圈 12 WASHER 2 Whatsapp: 86-18630852087
8 800107362 制动分泵 BRAKE PUMP 1

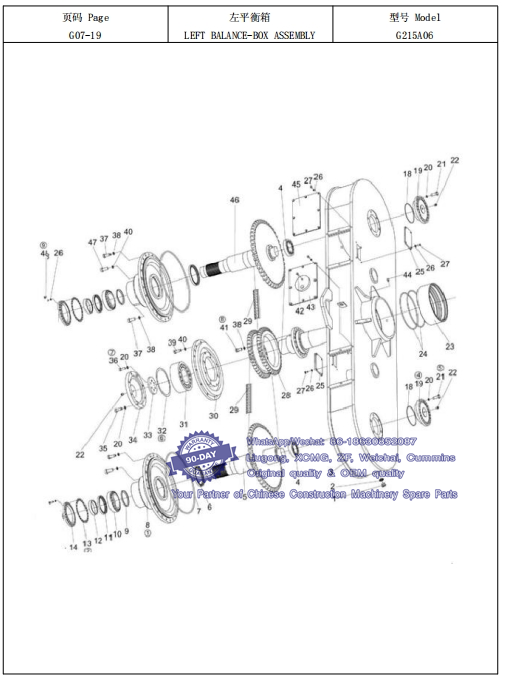

025 左平衡箱LEFT BALANCE-BOX ASSEMBLY-- XCMG Motor Grader GR215A Spare Parts Catalogue
件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS
1 800107366 螺塞 M24X1.5 PLUG 3
2 800107355 组合密封垫 24 COMBINED SEAL WASHER 3
3 380903227 左平衡箱组件LEFT BALANCE-BOX ASSY.1
4 800107332 轴承 33113 BEARING33113 2
5 800107296 链轮与轴组件 SPROCKET ASSY. 1
6 800107333 油封 FB115*140*12 OIL SEAL 2 Whatsapp: 86-18630852087
7 801138290 O 型密封圈 O-RING 2
8 800308341 连接盘 DISH 2
9 800308435 垫圈 WASHER 2
10 800107334 轴承 32018 BEARING32018 2
11 800107335 油封 FB100*125*12 OIL SEAL 2
12 800107336 隔套 SPACER 2 Whatsapp: 86-18630852087
13 800107337 调整垫 SHIM 2
14 800107338 油封座 SEAT 2
18 800107340 O 型密封圈 135*3.1 O SEAL RING 2
19 800141402 轴承座 BEARING SUPPORT 2
20 800308441 垫圈 12 WASHER 38
21 800308442 螺栓 M12X40 BOLT M12X40 24
22 800107359 油杯 M10X1 OIL CUP 6
23 800142093 支承套 SUPPORTING SLEEVE 1
24 800107341 O 型密封圈 260*5.7 O SEAL RING 2
25 800107365 盖 COVER 2
26 800308440 垫圈 8 WASHER 72
27 805046712 螺栓 M8X20 BOLT M8X20 24
28 800107297 双排链轮 SPROCKET WHEEL 1
29 800141432 滚子链 32BX1-54 ROLLER CHAIN 2
30 800107351 轴承座 BEARING SUPPORT 1
31 800107343 轴承 22319C BEARING 1
32 800107344 调整垫 SHIM 1
33 800107352 压板 PLATE 1 Whatsapp: 86-18630852087
34 800107353 盖 COVER 1
35 800308443 螺栓 M12X35 BOLT M12X35 8
36 805046713 螺栓 M12X30 BOLT M12X30 6 Whatsapp: 86-18630852087
37 800308445 螺钉 M16X40 SCREW M16X40 8
38 800308446 垫圈 16 WASHER 60
39 800308447 螺栓 M14X1.5X40 BOLT M14X1.5X40 48
40 800308448 垫圈 14 WASHER 48
41 800308451 螺栓 M16X32 BOLT M16X32 18
42 800345911 通气塞 Z1/8″ BREATHER PLUG 3
43 800107347 盖组件 COVER 1
44 805139908 紧定螺钉 M6X16 FITTING SCREW 3 Whatsapp: 86-18630852087
45 800107360 盖 COVER 1
46 800107298 链轮与轴组件 SPROCKET ASSY. 1
47 800308449 螺钉 M16X50 SCREW M16X50 34
48 800308450 螺栓 M8X25 BOLT M8X25 48
