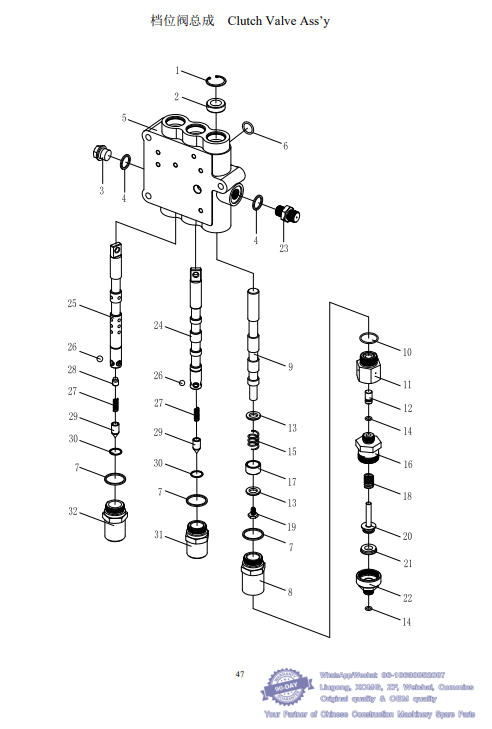

021 档位阀总成 Clutch Valve Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

Z-130-040-00102 1 档位阀总成 Z30.4.13 Clutch Valve Ass’y 1 957H0556-
1 B-G00893A-00004 1 挡圈 30 Snap ring 3 957H0556- N
2 B-G09877A-00019 1 油封 FB18×30×10 Oil seal 3 957H0556- N
3 B-J010000-00005 1 螺塞 18×1.5 Plug 1 957H0556- N
4 B-J010020-00005 1 垫圈 18 Washer 2 957H0556- N
5 Z-130-040-00103 1 档位阀体 Z30.4.13-1 Valve case 1 957H0556- N
6 B-Q020710-00033 1 O 形密封圈 22×2.4 O-ring 6 957H0556- N
7 Z-130-040-00108 1 垫圈 Z30.4.13-6 Washer 3 957H0556- N
8 Z-130-040-00109 1 制动杆联接套 Z30.4.13-7 Sleeve 1 957H0556- N
9 Z-130-040-00106 1 制动卸载阀杆 Z30.4.13-4 Valve stem 1 957H0556- N
10 B-Q020710-00047 1 O 形密封圈 30×3.1 O-ring 1 957H0556- N
11 Z-130-040-00114 1 柱塞套 Z30.4.13-12 Plunger sleeve 1 957H0556- N
12 Z-130-040-00115 1 柱塞 Z30.4.13-13 Plunger 1 957H0556- N
13 Z-130-040-00112 1 垫圈 Z30.4.13-10 Washer 2 957H0556- N
14 B-Q020710-00008 1 O 形密封圈 11×1.9 O-ring 3 957H0556- N
15 Z-130-040-00111 1 制动杆始复弹簧 Z30.4.13-9 Spring 1 957H0556- N
16 Z-130-040-00117 1 活塞杆导套 Z30.4.13-15 Guide bushing 1 957H0556- N
17 Z-130-040-00110 1 限位套 Z30.4.13-8 Limit sleeve 1 957H0556- N
18 Z-130-040-00118 1 活塞杆回位弹簧 Z30.4.13-16 Retraction spring 1 957H0556- N
19 Z-130-040-00113 1 螺钉 Z30.4.13-11 Screw 1 957H0556- N
20 Z-130-040-00116 1 活塞杆 Z30.4.13-14 Piston rod 1 957H0556- N
21 Z-130-040-00119 1 橡皮碗 Z30.4.13-17 Rubber cup 1 957H0556- N
22 Z-130-040-00120 1 进气联接盖 Z30.4.13-18 Cover 1 957H0556- N
23 Z-130-040-00107 1 操作压力接头 Z30.4.13-5 Joint body 1 957H0556- N
24 Z-130-040-00105 1 方向阀杆 Z30.4.13-3 Valve stem 1 957H0556- N
25 Z-130-040-00104 1 档位阀杆 Z30.4.13-2 Valve stem 1 957H0556- N
26 B-G003080-00002 1 钢球 8.0000-G100-b Ball 8 957H0556- N
27 Z-130-040-00122 1 档位弹簧 Z30.4.13-20 Spring 2 957H0556- N
28 B-G000790-00001 1 螺钉 M10×12 Screw 1 957H0556- N
29 Z-130-040-00123 1 钢球限位锥体 Z30.4.13-21 Limit cone 2 957H0556- N
30 Z-130-040-00124 1 挡圈 Z30.4.13-22 Check ring 2 957H0556- N
31 Z-130-040-00121 1 方向杆档位体 Z30.4.13-19 Sleeve 1 957H0556- N
32 Z-130-040-00125 1 档位杆体 Z30.4.13-23 Sleeve 1 957H0556- N

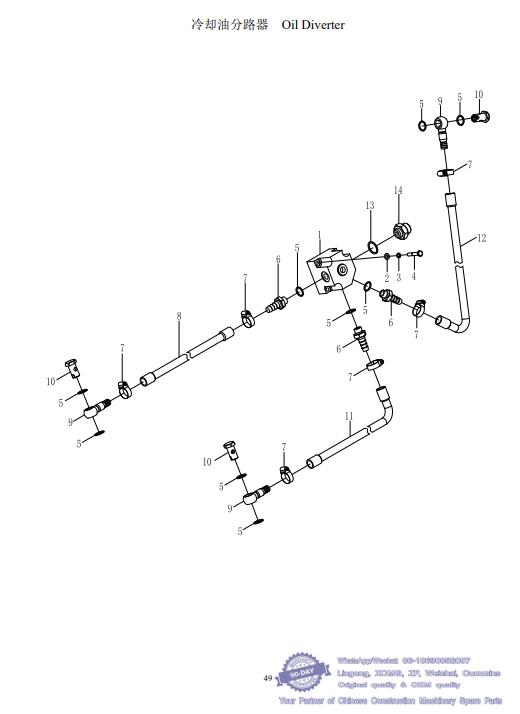

022 冷却油分路器 Oil Diverter - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

Z-956-040-00011 1 冷却油分路器 956.4.6 Oil Diverter 1 957H0556-
1 Z-15B-040-00045 1 冷却油分流体 Z50B.4.15-1 Oil diverter 1 957H0556-
2 B-G00097B-00023 1 垫圈 8ZnD Washer 3 957H0556-
3 B-G000930-00017 1 垫圈 8 Washer 3 957H0556-
4 B-G057820-00162 1 螺栓 M8×50ZnD Screw 3 957H0556-
5 B-J010020-00006 1 垫圈 20 Washer 9 957H0556-
6 Z-130-040-00172 1 管接头 Z30.4.17-3 Joint 3 957H0556-
7 B-J088700-00014 1 喉箍 d32 Clip 6 957H0556-
8 Z-15B-040-00046 1 输油胶管 Z50B.4.15-2 Hose 1 957H0556-
9 Z-130-04M-00004 1 管接头 Z30.4M.1.1 Joint 3 957H0556-
10 B-J009990-00016 1 螺栓 M20×1.5×38ZnD Screw 3 957H0556-
11 Z-15B-040-00047 1 输油胶管 Z50B.4.15-3 Hose 1 957H0556-
12 Z-15B-040-00048 1 输油胶管 Z50B.4.15-4 Hose 1 957H0556-
13 B-J010020-00009 1 垫圈 27 Washer 1 957H0556-
14 Z-956-02A-00007 1 过渡接头 956.2A.7 Joint 1 957H0556-

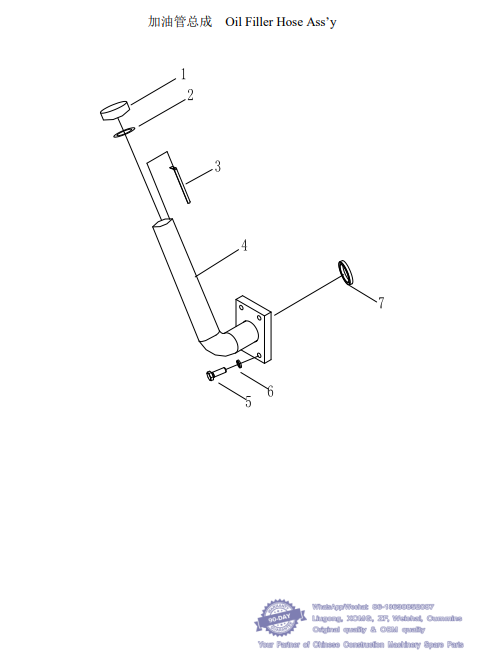

023 加油管总成 Oil Filler Hose Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

Z-95M-040-00001 1 加油管总成 956M.4.2 Oil Filler Hose Ass’y 1 957H0556-
1 Z-959-040-00063 1 加油口盖 959.4.20-2 Oil filler mouth cover 1 957H0556-
2 B-Q020710-00075 1 O 形圈 51X3.5 O-ring 1 957H0556-
3 Z-95M-040-00004 1 油位尺 956M.4.2-1 Oil level ruler 1 957H0556-
4 Z-95M-040-00002 1 加油管 956M.4.2.1 oil filling pipe 1 957H0556-
5 B-G057830-00012 1 螺栓 M10×35ZnD Screw 4 957H0556-
6 B-G000930-00001 1 垫圈 10 Washer 4 957H0556-
7 B-Q020710-00091 1 O 形圈 70X3.1 O-ring 1 957H0556-

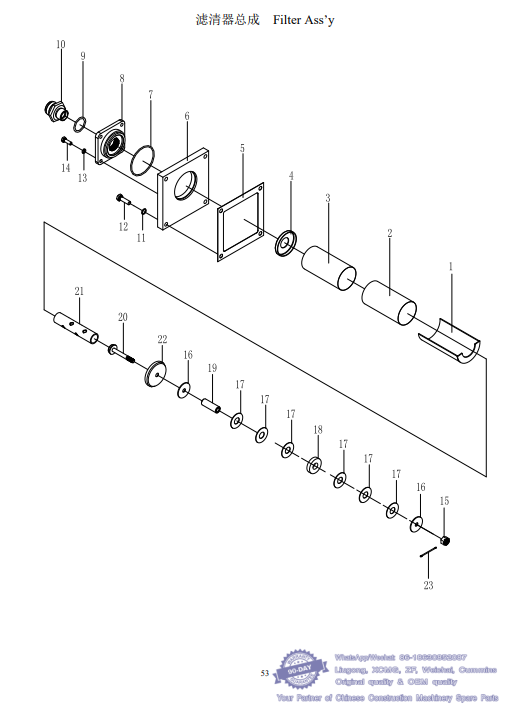

024 滤清器总成 Filter Ass’y - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

Z-956-040-00002 1 滤清器总成 956.4.7 Filter Ass’y 1 957H0556-
1 Z-130-040-00153 1 滤清器罩 Z30.4.21.1 Filter cap 1 957H0556- N
2 Z-130-040-00157 1 滤网 Z30.4.21-11 Strainer 1 957H0556- N
3 Z-130-040-00156 1 滤清器骨架 Z30.4.21-10 Filter frame 1 957H0556- N
4 Z-130-040-00148 1 滤清器上端盖 Z30.4.21-5 Filter upper cover 1 957H0556- N
5 Z-130-040-00149 1 垫 Z30.4.21-6 Washer 1 957H0556-
6 Z-130-040-00150 1 盖板 Z30.4.21-7 Cover 1 957H0556- N
7 B-Q020710-00104 1 O 形圈 90×3.1 O-ring 1 957H0556- N
8 Z-130-040-00151 1 法兰盘 Z30.4.21-8 Flange disk 1 957H0556- N
9 B-Q020710-00007 1 O 形圈 45×3.5 O-ring 1 957H0556- N
10 Z-956-040-00003 1 接头 956.4.7-1 Joint 1 957H0556-
11 B-J010020-00001 1 垫圈 10 Washer 4 957H0556-
12 B-G057830-00001 1 螺栓 M10×35ZnD Bolt 4 957H0556-
13 B-G000930-00017 1 垫圈 8 Washer 4 957H0556- N
14 B-G057830-00014 1 螺栓 M8×25ZnD Bolt 4 957H0556- N
15 B-G061780-00002 1 螺母 M10ZnD Nut 1 957H0556- N
16 Z-130-040-00158 1 铝垫 Z30.4.21-12 Al-washer 2 957H0556- N
17 Z-130-140-00002 1 隔垫 Z30.14.8.3-3 Spacer washer 15 957H0556- N
18 Z-130-140-00001 1 永磁铁 Z30.14.8.3-2 Magnet iron 4 957H0556- N
19 Z-130-040-00144 1 铝管 Z30.4.21-1 Al-pipe 1 957H0556- N
20 Z-130-040-00145 1 联接螺杆 Z30.4.21-2 Joint rod 1 957H0556- N
21 Z-130-040-00147 1 管 Z30.4.21-4 Pipe 1 957H0556- N
22 Z-130-040-00146 1 滤清器下端盖 Z30.4.21-3 Filter lower cover 1 957H0556- N
23 B-G000910-00023 1 销 2×36ZnD Pin 1 957H0556- N

五 前传动轴 Front Drive Shaft- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

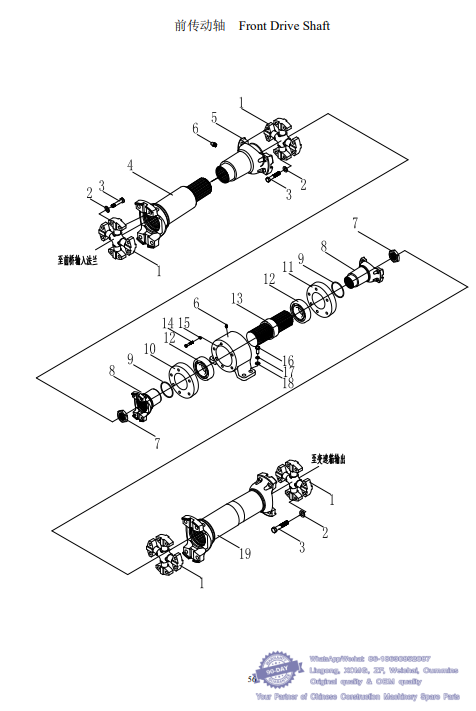

025 前传动轴 Front Drive Shaft - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

Z-95M-050-00003 1 前传动轴 956M.5.2 (包含以下 1~7 号件) Front Drive Shaft 1 957H0556-
1 T160A 2 万向节总成 Universal joint 2 957H0556-
2 B-G057850-00003 1 螺栓 M12×1.25×55-10.9ZnD Bolt 16 957H0556-
3 B-G000930-00003 1 弹簧垫圈 - 12 Washer 16 957H0556-
4 ZL50E.3.3-4B 1 花键轴叉 slip shaft yoke 1 957H0556-
Z50E.7C-2A 1 防尘套 dust cap 1 957H0556-
5 Z50B.5B-1-1 1 联接叉 yoke 1 957H0556-
YL27.7-3A 1 花键套 spline housing 1 957H0556-
6 JB/T7940.1-1995 1 油杯 Grease fitting 3 957H0556-
Z-95M-050-00001 1 中间支撑 956M.5.3 intermediate support 1 957H0556-
(包含以下 7~19 号件) 957H0556-
7 2202042N 1 锁紧螺母 Nut 2 957H0556-
8 ZL50G.5.6-01 1 7C 节叉 7C-yoke 2 957H0556-
9 2202D-085 1 油封 oil sealing 2 957H0556-
10 304311-315D-01A 1 左端盖 end cover 1 957H0556-
11 304311-315D-01B 1 右端盖 end cover 1 957H0556-
12 6210-RS 1 深沟球轴承 bearing 2 957H0556-
13 ZL50G.5.6-02 1 花键轴 Spline shaft 1 957H0556-
14 M10x30 1 螺栓 Bolt 12 957H0556-
15 10 1 垫圈 Washer 12 957H0556-
16 B-G057830-00060 1 螺栓 M14×40ZnD Bolt 4 957H0556-
17 B-G000930-00005 1 垫圈 14 Washer 4 957H0556-
18 B-Q020490-00005 1 垫圈 14 Washer 4 957H0556-
19 Z-95M-050-00002 1 伸缩轴 956M.5.1 telescopic shaft 1 957H0556-

六 前桥 Front Axle- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

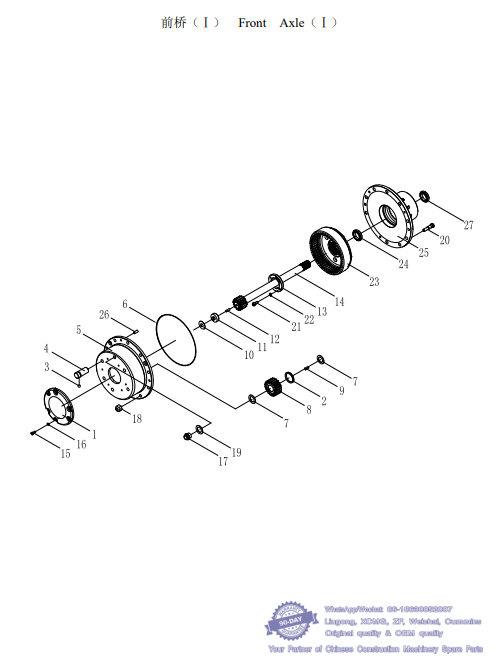

026 前桥（Ⅰ） Front Axle（Ⅰ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

1. Z-15B-060-00033 1 盖板 Z50B.6-7 Cover 2 957H0556-
2 Z-15E-06E-00005 1 滚针隔套 Z50E.6E-3 Isolation washer 6 957H0556-
3 B-G003080-00001 1 钢球 10.000-G100-b Ball 6 957H0556-
4 Z-15B-060-00041 1 行星齿轮轴 Z50B.6-14 Planet gear shaft 6 957H0556-
5 Z-956-06A-00019 1 行星轮架 956.6A-1A Planet carrier 2 957H0556-
6 B-Q020710-00186 1 O 型圈 440×3.1 O-ring 2 957H0556-
7 Z-15B-060-00087 1 行星齿轮垫 Z50B.6-13B Spacer 12 957H0556-
8 Z-15B-06C-00001 1 行星齿轮 Z50B.6C-12 Planet gear 6 957H0556-
9 B-G003090-00004 1 滚针 5×23.8 G3 -3、-6 Needle roller 372 957H0556-
10 Z-15B-060-00066 1 调整垫 Z50B.6-11A
Z-15B-060-00075 调整垫 Z50B.6-11B Adjust washer 3 组 957H0556-
Z-15B-060-00076 调整垫 Z50B.6-11C
11 Z-15B-060-00083 1 半轴定位堵 Z50B.6-10A Locator 2 957H0556-
12 B-G001190-00015 1 销 A5×25 Pin 2 957H0556-
13 Z-956-06A-00030 1 圆螺母 956.6A-6 Nut 2 957H0556-
14 Z-15B-06C-00004 1 太阳轮半轴 Z50B.6C-8 Half-shaft 2 957H0556-
15 B-G057830-00034 1 螺栓 M12×30 ZnD Bolt 18 957H0556-
16 B-G000930-00003 1 垫圈 12 Spring washer 12 957H0556-
17 B-J010000-00011 1 螺塞 M27×2 Plug 3 957H0556-
18 W-10-00026 1 车轮组合螺母 Rim nut 20 957H0556-
19 B-J009820-00008 1 垫圈 27 Washer 4 957H0556-
20 Z-15B-060-00091 1 轮辋螺栓 Z50B.6-15C Rim bolt 20 957H0556-
21 B-G000700-00003 1 螺钉 M10×22 Screw 4 957H0556-
22 B-G000930-00001 1 垫圈 10 Spring washer 4 957H0556-
23 Z-15B-06C-00005 1 内齿圈 Z50B.6C-2 Internal gear 2 957H0556-
24 B-G002970-00024 1 轴承 32221 Bearing 2 957H0556-
25 Z-956-06A-00020 1 轮毂 956.6A-4 Wheel hub 2 957H0556-
26 B-G001190-00053 1 销 A16×35 Pin 4 957H0556-
27 B-G002970-00017 1 轴承 32024 Bearing 2 957H0556-

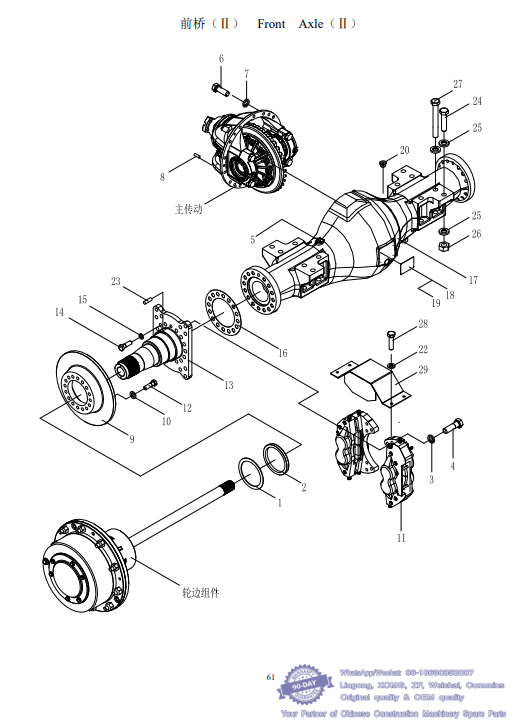

027 前桥（Ⅱ）Front Axle（Ⅱ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

1 B-G00893B-00005 1 挡圈 180 Snap ring 2 957H0556-
2 B-G09877A-00016 1 油封 FB150×180×15 Oil seal 4 957H0556-
3 B-G000930-00008 1 垫圈 20 Spring washer 24 957H0556-
4 B-G057820-00227 1 螺栓 M20×65-10.9ZnD Bolt 24 957H0556-
5 W-03-00023 1 通气塞 Breather 1 957H0556-
6 B-G057860-00021 1 螺栓 M16×1.5×40-10.9 Bolt 14
7 B-Q020490-00007 1 垫圈 16 Spring washer 14
8 B-G001190-00005 1 销 A12×35 Pin 2 957H0556-
9 Z-956-06A-00021 2 制动盘 956.6A-5 Brake disc 2 957H0556-
10 B-Q020490-00009 1 垫圈 18 Washer 32 957H0556-
11 W-18-00177 4 制动器总成 Brake 4 957H0556-
12 Z-956-06A-00024 1 螺栓 956.6A-3 Bolt 32 957H0556-
13 Z-956-06A-00025 1 轮边支承轴 956.6A-2A Support shaft 2 957H0556-
14 Z-15B-060-00037 1 螺栓 Z50B.6-22 Bolt 30 957H0556-
15 B-Q020490-00011 1 垫圈 20 Washer 30 957H0556-
16 Z-15B-060-00047 1 密封垫 Z50B.6-28 Gasket 2 957H0556- N
17 前桥壳 956M.6-2A Front axle case 1
18 B-G008270-00004 1 钉 2×5 Pin 4 957H0556- N
19 Z-95H-06C-00002 1 标牌（前）957H.6C-1 Name plate 1 957H0556- N
20 B-J010010-00006 1 螺塞 M27x2 Plug 1 957H0556-
22 B-Q020490-00001 1 垫圈 10 Washer 8 957H0556-
23 B-G001190-00008 1 销 A16×50 Pin 2 957H0556-
24 B-G057820-00129 1 螺栓 M24×120-10.9ZnD Bolt 4 957H0556-
25 B-Q020490-00015 1 垫圈 24 Washer 24 957H0556-
26 W-10-00027 1 螺母 ZG6177.1-(M24-10F3) Nut 12 957H0556-
27 B-G057820-00273 1 螺栓 M24×255-10.9ZnD Bolt 8 957H0556-
28 B-G057830-00003 1 螺栓 M10×20ZnD Bolt 8 957H0556-
29 Z-95N-060-00002 1 制动钳保护罩 桥纸垫包（包含全部纸垫，前后桥一样） 955N.6.1 Protective cover 2 957H0556-
P-04-06-131

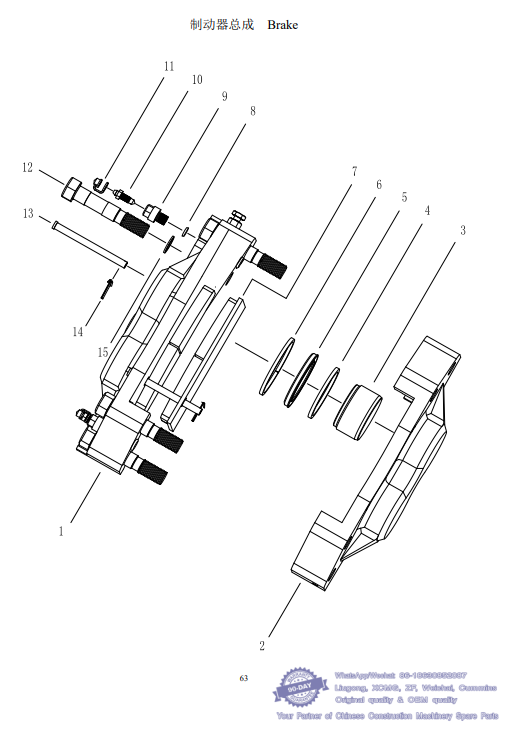

028 制动器总成 Brake - Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

W-18-00177 1 制动器总成 JF·A·ZL40S-I（金丰） Brake 957H0556-
1 JC-A-40S-02 1 内钳体（金丰） Inner brake 1 957H0556- N
2 JC-A-40S-01 1 外钳体（金丰） Outer brake 1 957H0556- N
3 P-Z05-060-0001 1 活塞(金丰) Piston 4 957H0556-
4 P-Z05-060-0007 1 矩形圈 (金丰) Rectangular seal 4 957H0556-
5 P-Z05-060-0004 1 防尘罩(金丰) Dust cover 4 957H0556-
6 JC-A-4050-11 1 卡簧（金丰） Jump ring 4 957H0556- N
7 P-Z05-060-0002 1 摩擦片（金丰） Friction disk 2 957H0556-
8 P-Z05-060-0006 1 φ16“O”型圈（金丰） O-ring 2 957H0556- N

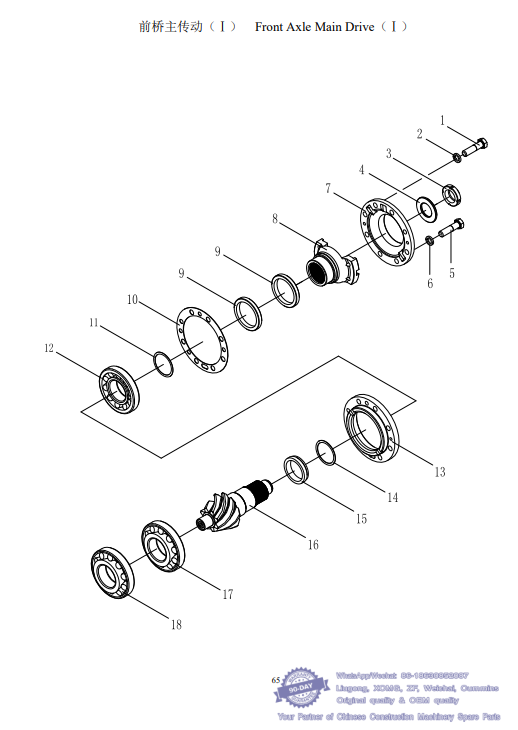

029 前桥主传动（Ⅰ） Front Axle Main Drive（Ⅰ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

T-956.6A.1 前桥主传动（包含前桥主传动Ⅰ、Ⅱ、Ⅲ所有零件） 957H0556-
1 B-G057850-00015 1 螺栓 M14×1. 5×55-10.9 ZnD Bolt 7 957H0556-
2 B-G000930-00005 1 垫圈 14 Spring washer 7 957H0556-
3 Z-15B-060-00020 1 锁紧螺母 Z50B.6.1-1 Retaining nut 1 957H0556-
4 Z-15B-060-00005 1 垫圈 Z50B.6.1-2 Washer 1 957H0556-
5 B-G057850-00007 1 螺栓 M12×1. 5×55-10.9 ZnD Bolt 1 957H0556-
6 B-G000930-00003 1 垫圈 12 Spring washer 1 957H0556-
7 Z-15B-060-00051 1 端盖 Z50B.6.1-24 Cover 1 957H0556-
8 Z-15B-060-00044 1 输入法兰组件 Z50B.6.1.1A Flange ass’y 1 957H0556-
9 W-15-00392 1 密封圈|AE3734E0(NOK) Oil seal 2 957H0556-
10 Z-15B-060-00097 1 密封垫 Z50B.6.1-23A Gasket 1 957H0556- N
11 Z-15B-060-00072 1 调整垫片 Z50B.6.1-21A Adjust washer
Z-15B-060-00077 调整垫片 Z50B.6.1-21B
Z-15B-060-00069 调整垫片 Z50B.6.1-21C 4 组 957H0556-
Z-15B-060-00073 调整垫片 Z50B.6.1-21D
12 B-G002970-00010 1 轴承 31313 Bearing 1 957H0556-
13 Z-15B-060-00002 1 轴承座 Z50B.6.1-22 Bearing seat 1 957H0556-
14 Z-15B-060-00065 1 调整垫片 Z50B.6.1-25A Adjust washer
Z-15B-060-00074 调整垫片 Z50B.6.1-25B
Z-15B-060-00067 调整垫片 Z50B.6.1-25C 5 组 957H0556-
Z-15B-060-00068 调整垫片 Z50B.6.1-25D
Z-15B-060-00070 调整垫片 Z50B.6.1-25E
15 Z-15B-060-00001 1 轴承隔套 Z50B.6.1-20 Bearing sleeve 1 957H0556-
Z-956-06A-Z0001 1 螺旋齿轮组件（包含本页 16号与下页 10 号件） Gear pair 957H0556-
16 Z-15B-060-00052 1 主动螺旋齿轮 Z50B.6.1-18A Pinion gear（R） 1 957H0556- N
17 B-G002970-00011 1 轴承 31314 Bearing 1 957H0556-
18 W-03-00065 1 滚动轴承|NUP2307EC(SKF) Bearing 1 957H0556-

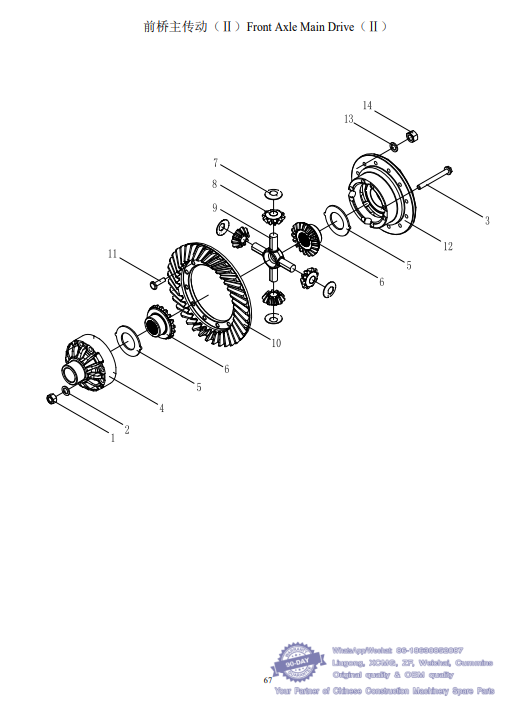

030 前桥主传动（Ⅱ）Front Axle Main Drive（Ⅱ）- Changlin Wheel Loader 957H Cummins engine Spare Parts Catalog

序号 零件代号 版本 名称 数量 适用车号 是否配件 选装
No. Part No. Ver. Part Name Q’ty Suit Num. Spare Parts Cho

1 B-G008890-00006 1 螺母 M16×1.5-4H Nut 8 957H0556-
2 B-G008480-00005 1 垫圈 16 Washer 8 957H0556-
3 Z-15B-060-00010 1 螺栓 Z50B.6.1-13 Bolt 8 957H0556-
T-956.6A.1CSQKT-1 差速器壳体（配件）（包含下列 4 号与 12 号件） Differential object assembly 957H0556-
T-956.6A.1CSQ 差速器总成（包含下列 4、5、6、7、8、9、12、13、14 号件） Differential mechanism assembly 957H0556-
4 Z-956-06A-00027 1 差速器半壳 956.6A.1-12B Differential 1 957H0556- N
5 Z-956-06A-00028 1 半轴齿轮垫片 956.6A.1-17B Axle shaft gear 2 957H0556-
6 Z-15B-060-00016 1 半轴齿轮 Z50B.6.1-15A Side gear 2 957H0556-
7 Z-15B-060-00018 1 锥齿轮垫片 Z50B.6.1-11 Bevel gear pad 4 957H0556-
8 Z-15B-060-00023 1 锥齿轮 Z50B.6.1-10A Bevel gear 4 957H0556-
9 Z-15B-060-00071 1 十字轴 Z50B.6.1-16A Shaft 1 957H0556-
10 Z-15B-060-00045 1 从动螺旋伞齿轮 Z50B.6.1-9A Gear（L） 1 957H0556- N
11 Z-15B-060-00013 1 螺栓 Z50B.6.1-26 Bolt 12 957H0556-
12 Z-956-06A-00029 1 差速器壳体 956.6A.1-8B Differential case body 1 957H0556- N
13 B-G008480-00003 1 垫圈 14 Washer 12 957H0556-
14 B-G008890-00004 1 螺母 M14×1.5-4H Nut 12 957H0556-
