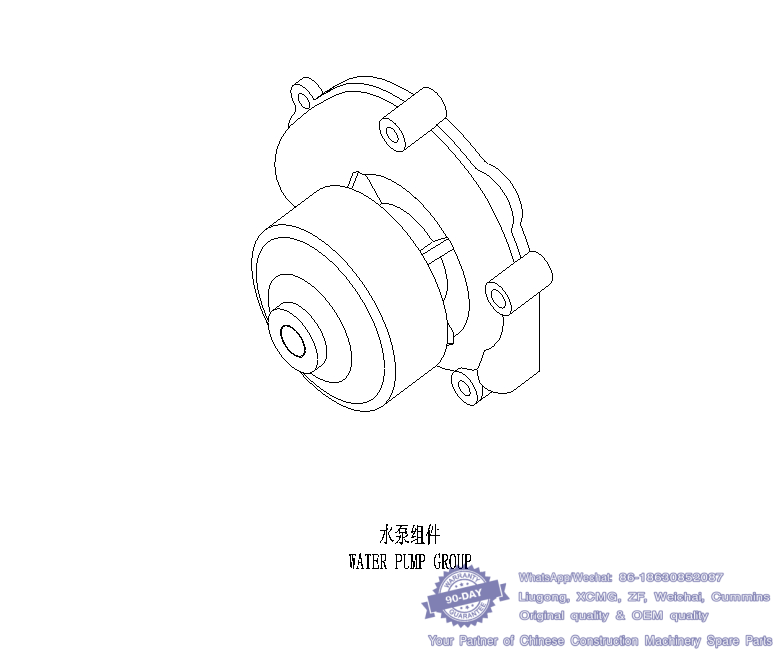

021 水泵组件 WATER PUMP GROUP D20-000-900+C-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 水泵组件 WATER PUMP GROUP D20-000-900+C whatsapp 86-18630852087

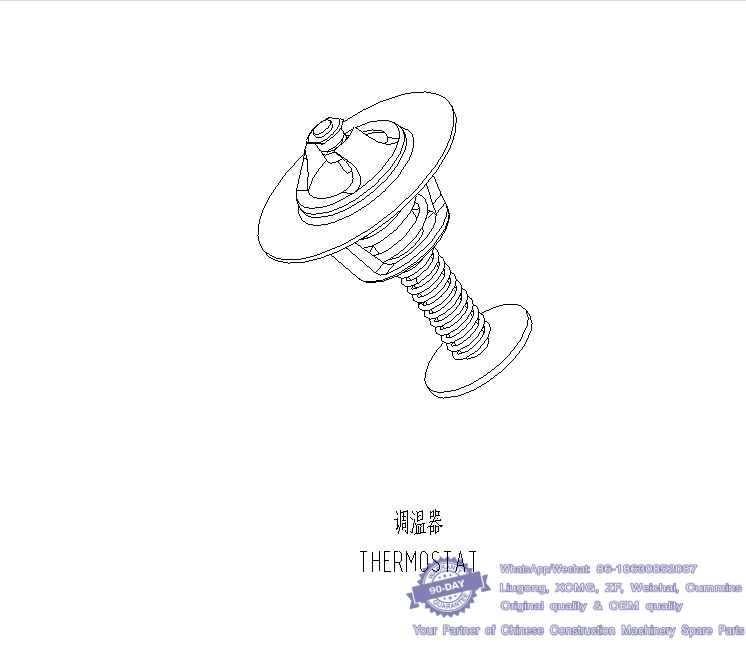

022 调温器 THERMOSTAT D22-102-900+B
-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 调温器 THERMOSTAT D22-102-900+B whatsapp 86-18630852087

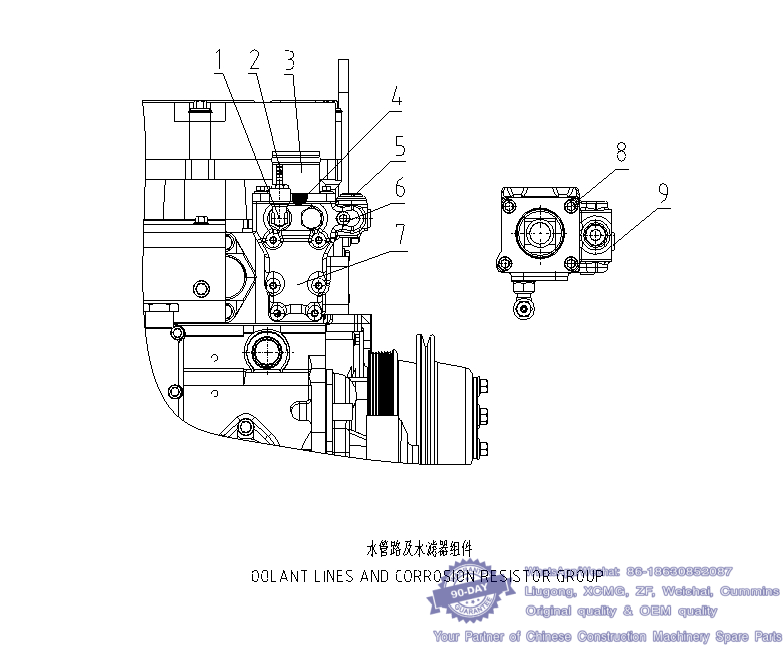

023 水管路及水滤器组件 COOLANT LINES AND CORROSION RESISTOR GROUP S00008897+03
-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 弯管接头 CONNECTOR D24A-130-901+A
2 放气接头 BLEEDING JOINT D04-151-30+D
3 出水管焊接部件 WATER OUTLET TUBE ASSY (WELDED) D24A-003-900+B
4 出水口垫片 OUTLET GASKET D24A-134-900+B
5 内六角螺塞Z3/4 HEX SOCKET PIPE PLUG D02A-163-01+C
6 内六角螺塞Z3/8 HEX SOCKET PIPE PLUG D04-309-01+A
7 水滤器座 BASE, WATER FILTER S00008978+01 whatsapp 86-18630852087
8 Q/SC622-M8*20:六角法兰面螺栓 HEXAGON BOLTS B00002134
9 内六角螺塞Z1/2 HEX SOCKET PIPE PLUG D02A-164-01+B whatsapp 86-18630852087

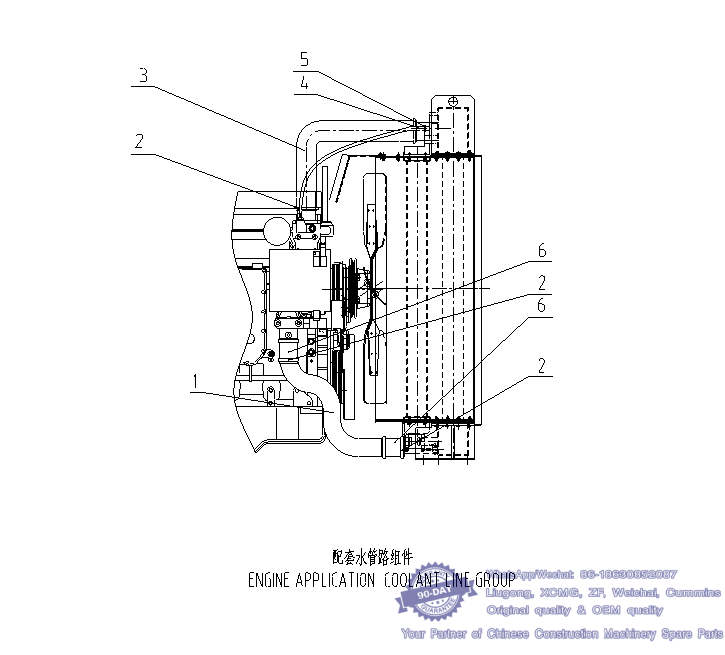

024 配套水管路组件 ENGINE APPLICATION COOLANT LINE GROUP S00008902+02
-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 水泵进水管 WATER PUMP INLET PIPE S00008842+01
2 Q/SC1302-52~76:喉箍 CLAMP B00001575 whatsapp 86-18630852087
3 水箱进水管 INLET PIPE, RADIATOR S00007104+01
4 Q/SC646-10*850:橡胶水管 WATER HOSE B00002278
5 Q/SC1302-12~19:喉箍 CLAMP B00001558 whatsapp 86-18630852087
6 Q/SC646-60*100:橡胶水管 WATER HOSE B00002432

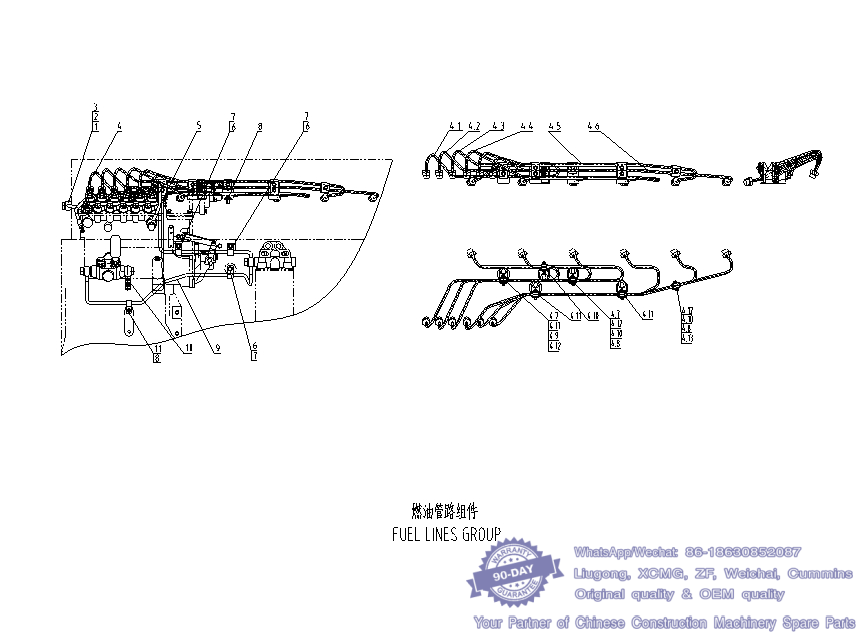

025 燃油管路组件 FUEL LINES GROUP S00007928+01
-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 Q/SC642.1-M14*1.5:铰接螺栓 BANJO BOLT B00002179
2 Q/SC1294-14:复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001547 whatsapp 86-18630852087
3 喷油泵回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED), FUEL INJECTION PUMP S00008845+02
4 高压油管装配部件 HIGH PRESSURE FUEL PIPE ASSY S00008141+01
4.1 高压油管部件(第一缸) HIGH PRESSURE FUEL TUBE ASSY (NO.1 CYLINDER) S00008119+01
4.2 高压油管部件(第二缸) HIGH PRESSURE FUEL TUBE ASSY (NO.2 CYLINDER) S00008120+01
4.3 高压油管部件(第三缸) HIGH PRESSURE FUEL TUBE ASSY (NO.3 CYLINDER) S00008121+01
4.4 高压油管部件(第四缸) HIGH PRESSURE FUEL TUBE ASSY (NO.4 CYLINDER) S00008122+01
4.5 高压油管部件(第五缸) HIGH PRESSURE FUEL TUBE ASSY (NO.5 CYLINDER) S00008123+01
4.6 高压油管部件(第六缸) HIGH PRESSURE FUEL TUBE ASSY (NO.6 CYLINDER) S00008124+01
4.7 高压油管支架焊接部件 BRACKET ASSY (WELDED), HIGH PRESSURE FUEL PIPE S00008137+01
4.8 上夹片 BRACE,FUEL TUBE D26-105-02+A
4.9 上夹片 BRACE,FUEL TUBE D26-105-01+B
4.10 夹片衬垫 CUSHION D26-104-02+A whatsapp 86-18630852087
4.11 夹片衬垫 CUSHION D26-104-01+A
4.12 Q/SC622-M5*25: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B0002108
4.13 GB/T6177-M5-Y: 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP B00000840
5 喷油泵进油管 FUEL INLET LINE, INJECTION PUMP S00008400+03 whatsapp 86-18630852087
6 夹箍 CLAMP D26-117-39+D
7 Q/SC622-M12*20: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B0002045
8 Q/SC622-M8*16: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002132
9 输油泵出油管 FUEL SUPPLY PUMP OUTLET TUBE S00008399+04
10 管接头焊接部件 JOINT ASSY (WELDED) D26-007-01+A
11 夹箍 CLAMP D26-117-34+C
