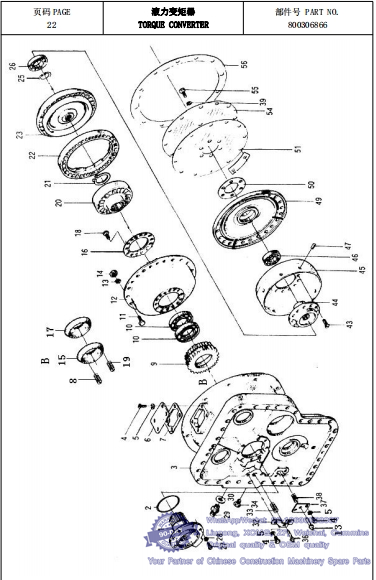

021 液力变矩器TORQUE CONVERTER-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 导轮座 STATOR GUIDE SLEEVE 1
2 801100284 O 形圈 105×3.1 O-RING 1
3 壳体 CONVERTER HOUSING 1
4 805000033 螺栓 M8×16 BOLT 8 GB/T5783-2000
5 805300010 垫圈 8 LOCK WASHER 44 GB/T93-1987
6 垫板 PLATE 1
7 垫 PAD 1
8 弹簧 SPRING 18
9 齿轮 GEAR 1
10 800511269 轴承 6017 BEARING 2 GB/T276-1994
11 螺栓 M8×35 BOLT 24 GB/T5783-2000
12 泵轮 PUMP IMPELLER 1
13 阀杆 VALVE STEM 1
14 805200045 螺母 M8 NUT 24 GB/T6170-2000
15 静环 STATIC RING 1
16 压紧垫片 IMPACTION WASHER 1
17 动环 DYNAMIC RING 1
18 805000020 螺栓 M8×30 BOLT 12 GB/T5783-2000
19 止动销 PIN 1
20 导轮 STATOR 1
21 805400092 挡圈 85 SNAP RING 1 GB/T894.1-1986
22 一级涡轮 I TURBINE 1
23 二级涡轮 II TURBINE 1
25 805400035 挡圈 50 SNAP RING 1 GB/T893.1-1986
26 860113674 轴承 6013 BEARING 1 GB/T276-1994
27 805000727 螺栓 M10×25 BOLT 9 GB/T5783-2000
28 805300014 垫圈 10 LOCK WASHER 9 GB/T93-1987
29 803165983 接头 JOINT 2 I22LM30×1.5ED
32 阀盖 VALVE COVER
33 弹簧 SPRING 1
34 803163971 螺塞 AR3/4 PLUG 1 JB/ZQ3874-86
36 锥阀杆 VALVE STEM 1
37 垫板 PLATE 1
38 弹簧 SPRING 1
39 805300018 垫圈 12 LOCK WASHER 6 GB/T93-1987
43 805501126 铆钉 5×14 CLINCH BOLT 12 GB/T869-1986
44 一级涡轮壳I TURBINE COVERTER HOUSING 1
45 一级涡轮罩 I TURBINE GUIDE SLEEVE 1
46 800511595 轴承 6210/P0 BEARING 1 GB/T276-1994
47 弹性销 SPRING PIN 9
49 罩轮 COVER WHEEL 1
50 圆垫板 PLATE 1
51 联接弹性板 LINKING PLATE 1
54 弹性板 S=1.0 PLATE 2
55 805000715 螺栓 M12×25 BOLT 6 GB/T5783-2000
56 垫 PAD 1

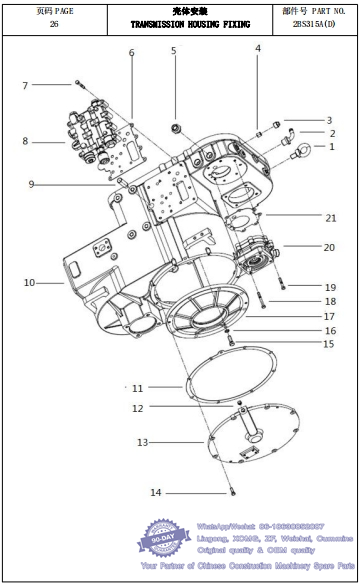

022 壳体安装TRANSMISSION HOUSING FIXING-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 805200058 螺钉 M20 NUT BOLT 2 GB/T825-1988
2 272200546 透气管接头 BREATHER TUBE 1
3 250200540 螺塞 Z3／4 SCREW PLUG 1
4 250200357 圆柱塞 CYLINDER PLUG 1
5 803165983 接头 JOINT 2 I22LM30×1.5ED
6 272200669 密封垫 SEAL GASKET 1
7 805048012 螺栓 M10×70 10.9 BOLT 13 GB/T16674.1-2004
8 250200147 变速操纵阀 TRANSMISSION CONTROL VALVE ASSY 1
9 250200359 圆柱销 STRAIGHT PIN 1
10 272200153 箱体 TRANSMISSION HOUSING 1
11 250200442 密封垫 SEAL GASKET 1
12 250200611 螺堵 Z3/8 SCREW PLUG 1
13 250200441 端盖 END COVER 1
14 805048006 螺栓 M10×30 10.9 BOLT 8GB/T16674.1-2004
15 805000170 螺栓 M14×40 BOLT 8 GB/T5783-2000
16 805300033 垫圈 14 LOCK WASHER 8 GB/T93-1987
17 250200348 中盖 COVER 1
18 805006193 螺栓 M10×80 10.9 BOLT 2 GB/T16674.1-2004
19 805004715 螺栓 M10×55 10.9 BOLT 6 GB/T16674.1-2004
20 803004322 变速泵总成 GEARSHIFT PUMP 1
21 272200668 密封垫 SEAL GASKET 1

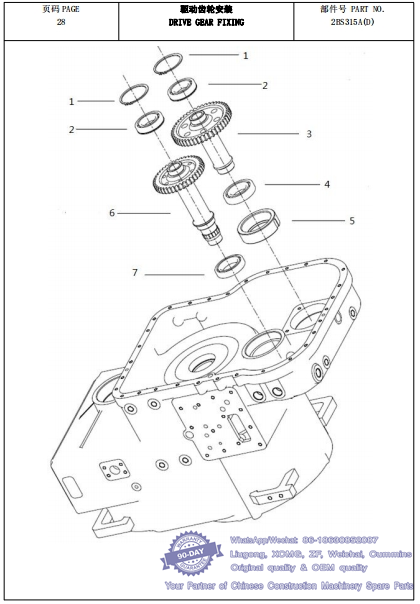

023 驱动齿轮安装DRIVE GEAR FIXING-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 805400078 挡圈 90 SNAP RING 2 GB/T894.1-1986
2 800511304 轴承 6210N BEARING 2 GB/T276-1994
3 272200263 转向泵轴齿轮 STEERING PUMP SHAFT GEAR 1
4 800511443 轴承 6211 BEARING 1 GB/T276-1994
5 272200381 轴承套 BEARING HOLDER 1
6 272200262 工作泵轴齿轮 WORKING PUMP SHAFT GEAR 1
7 800500249 轴承 6012E BEARING 1 GB/T276-1994

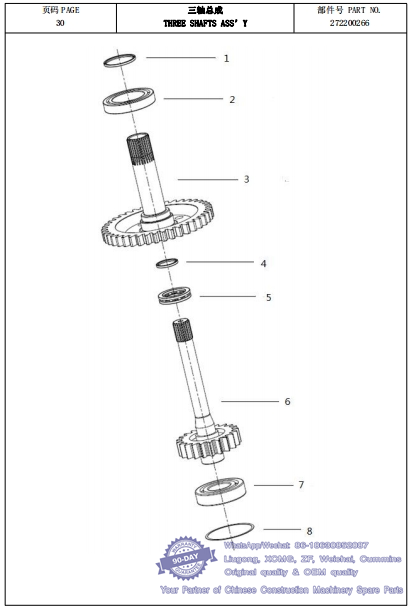

024 三轴总成THREE SHAFTS ASS’Y-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 250200525 旋转油封 SEAL RING 1
2 800511307 轴承 6016 BEARING 1 GB/T276-1994
3 272200267 输入二级齿轮SECONDARY STAGE INPUT GEAR 1
4 250200526 旋转油封 SEAL RING 1
5 800511327 推力球轴承 51111 THRUST BALL BEARING 1 GB/T301-1995
6 272200268 输入一级齿轮 PRIMARY STAGE INPUT GEAR 1
7 800511252 轴承 6311 BEARING 1 GB/T276-1994
8 250200771 调整垫片 ADJUSTING WASHER 1 组

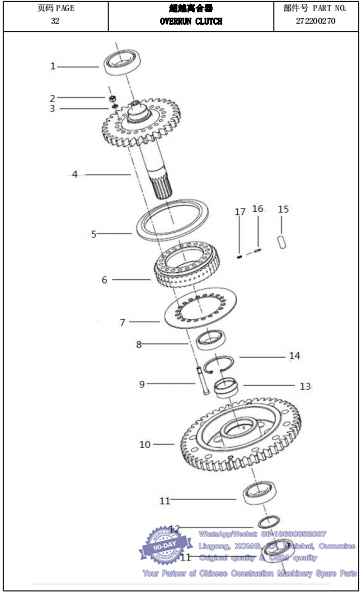

025 超越离合器OVERRUN CLUTCH-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 800552577 轴承 6211 BEARING 1 GB/T276-1994
2 805200090 螺母 M10×1 NUT 20 GB/T6171-2000
3 805300014 垫圈 10 SECONDARY STAGE INPUT GEAR 20 GB/T93-1987
4 272200271 中间输入轴 MEDIUM INPUT SHAFT 1
5 272200397 滚柱左挡圈 LEFT END COVER 1
6 272200404 内环凸轮 INNER RING CAM 1
7 272200399 滚柱右挡圈 RIGHT END COVER 1
8 800511274 轴承 6010 BEARING 1 GB/T276-1994
9 272200396 螺栓 BOLT 20
10 272200274 外环齿轮 OUTER RING GEAR 1
11 800500185 轴承 6210 BEARING 2 GB/T276-1994
12 272200667 挡圈 50 SNAP RING 1
13 272200400 隔离套 SPACE BUSHING 1
14 805400061 挡圈 80 SNAP RING 1 GB/T893.1-1986
15 272200398 滚柱Φ15×32 CYLINDER ROLLER 20
16 272200402 弹簧 SPRING 40
17 272200403 弹簧座 SPRING COVER 40

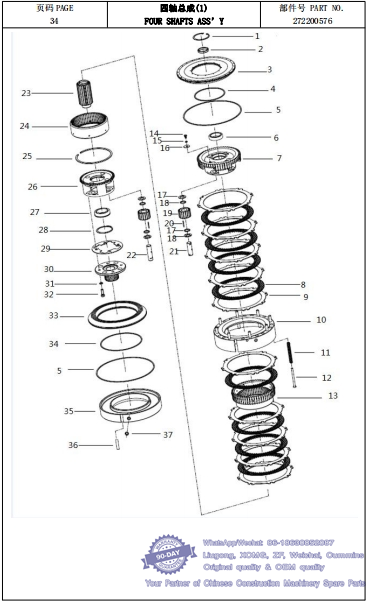

026 四轴总成(1)FOUR SHAFTS ASS’Y-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 805400009 挡圈 90 SNAP RING 1 GB/T893.1-1986
2 250200345 隔套 SPACE BUSHING 1
3 272200578 倒档活塞 REVERSE PISTON 1
4 250200481 内密封环 INNER SEAL RING 1
5 250200480 外密封环 OUTER SEAL RING 2
6 800511274 轴承 6010E BEARING 1 GB/T276-1994
7 272200125 倒档行星架REVERSE PLANETARY CARRIER 1
8 250200527 倒档一档主动片REVERSE-1ST DRIVING PLATE 8
9 250200531 倒档一档从动片REVERSE-1ST FRICTION PLATE 10
10 272200580 摩擦片隔离架总成 CLUTCH ANCHOR ASSY 1
11 250200485 弹簧 SPRING 15
12 250200356 弹簧销轴 GUIDE PIN 15
13 272200128 内齿圈 ANNULAR GEAR 1
14 805049232 螺栓 M8×12(发黑) BOLT 4 GB/T5783-2000
15 805300010 垫圈 8 LOCK WASHER 4 GB/T93-1987
16 250200355 止动垫片 LOCK WASHER 4
17 272200129 垫片 WASHER 16
18 250200360 隔离套 SPACE BUSHING 16
19 250200646 行星轮 PLANETARY GEAR 8
20 800511260 滚针Φ4×34.8 NEEDLE ROLLER 176 GB/T309-2000
21 272200137 倒档行星轴 REVERSE PLANETARY SHAFT 4
22 272200130 一档行星轴1ST FORWARD PLANETARY SHAFT 4
23 272200133 太阳轮 SUN GEAR 1
24 272200134 倒档内齿圈 REVERSE ANNULAR GEAR 1
25 250200353 挡圈 SNAP RING 1
26 272200132 一档行星架1ST FORWARD PLANETARY CARRIER 1
27 800511304 轴承 6210N BEARING 1 GB/T276-1994
28 805400078 挡圈 90 SNAP RING 1 GB/T894.1-1986
29 272200131 止动盘 LOCK PLATE 1
30 250200432 直接档连接盘DIRECT FORWARD CONNECTING FLANGE 1
31 805338900 垫圈 14(发黑) LOCK WASHER 4 GB/T93-1987
32 805049429 螺栓 M14×1.5×35 BOLT 4 GB/T5786-2000
33 272200126 一档活塞 1ST FORWARD PISTON 1
34 250200484 密封环 SEAL RING 1
35 272200127 一档油缸 1ST FORWARD CYLINDER 1
36 250200358 固定板 ANCHOR P1ATE 1
37 250200528 矩形密封圈 RECTANGLE SEAL RING 1

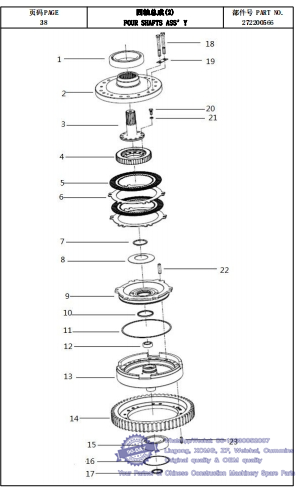

027 四轴总成(2)FOUR SHAFTS ASS’Y-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 800511306 轴承 6022 BEARING 1 GB/T276-1994
2 272200143 直接档受压盘 DIRECT FORWARD PLATEN 1
3 272200144 直接档轴 DIRECT FORWARD SHAFT 1
4 272200145 二档齿圈 2ST FORWARD GEAR RING 1
5 250200521 二档主动片 2ST FORWARD DRIVING PLATE 2
6 250200522 二档从动片2ST FORWARD FRICTION PLATE 2
7 805400076 挡圈 65 SNAP RING 1 GB/T894.1-1986
8 250200361 盘形弹簧 BEARING 1
9 272200567 直接档活塞 DIRECT FORWARD PISTON 1
10 250200525 旋转油封 SEAL RING 1
11 250200484 内密封环 INNER SEAL RING 1
12 800514015 轴承 6204 BEARING 1 GB/T276-1994
13 272200568 直接档油缸DIRECT FORWARD HYDRO-CYLINDER 1
14 272200273 直接档输出齿轮 DIRECT FORWARD GEAR 1
15 800500196 轴承 6312 BEARING 1 GB/T276-1994
16 250200813 调整垫片 ADJUSTING WASHER 1 组
17 250200526 旋转油封 SEAL RING 1
18 805002101 螺栓 M12×1.25×100 BOLT 12 GB/T5785-2000
19 250200361 止动垫片 LOCK WASHER 6
20 805000714 螺栓 M10×20 BOLT 12 GB/T5783-2000
21 805300014 垫圈 10 LOCK WASHER 12 GB/T93-1987
22 272200146 导向销 GUIDE PIN 6
23 250200613 销 PIN 2

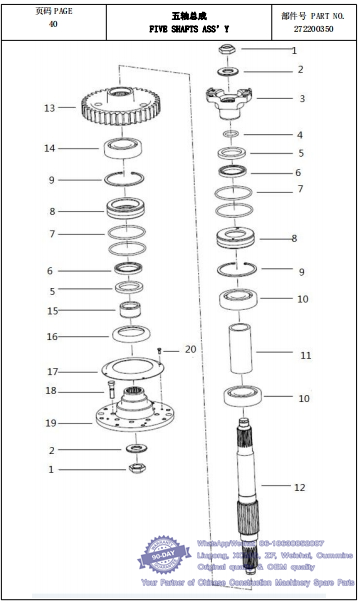

028 五轴总成FIVE SHAFTS ASS’Y-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 272200177 锁紧螺母 M33×1.5 NUT 2
2 272200176 垫圈 WASHER 2
3 272200179 法兰 FLANGE 1 I 型/II 型/V 型
4 250200687 O 形圈 O-RING 1
5 801101722 油封 B70×95×10B OIL SEAL 2 GB/T9877-2008
6 801101745 油封 OIL SEAL 2 CR HMS5 70×95×10
7 803164062 O 形圈 130×5.7 O-RING 4
8 272200138 油封座 OIL SEAL SEAT 2
9 805400024 挡圈 130 SNAP RING 2 GB/T893.1-1986
10 800500196 轴承 6312 BEARING 2 GB/T276-1994
11 272200353 隔套 SPACE BUSHING 1
12 272200354 输出轴 OUTPUT SHAFT 1
13 272200265 输出轴齿轮 OUTPUT SHAFT GEAR 1
14 800511302 轴承 6410 BEARING 1 GB/T276-1994
15 250200689 轴套 AXLE SLEEVE 1
16 272200140 防尘环 DUSTPROOF RING 1
17 272200169 挡罩 COVER 1
18 252101238 联接螺栓 ATTACHMENT BOLT 8
19 252101240 法兰 FLANGE 1 I 型/II 型/V 型
20 805000322 螺栓 M6×16 BOLT 4 GB/T5783-2000

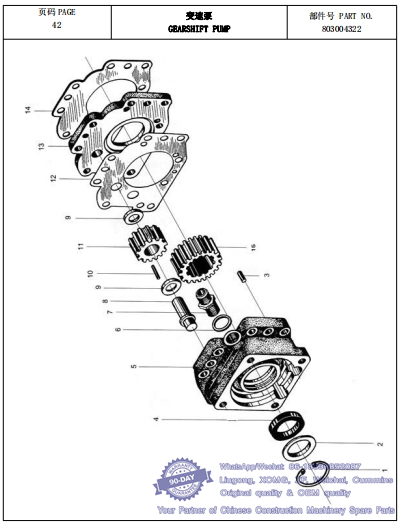

029 变速泵GEARSHIFT PUMP-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 805400044 挡圈 62 SNAP RING 1 GB/T893.1-1986
2 403604 挡环 SNAP RING 1
3 860102487 销 A10×30 PIN 2 GB/T119.1-2000
4 4818007 骨架油封 PG45×62×12 SKELETON OIL SEAL 1
5 403601 泵体（止口Φ127） PUMP BODY 1
6 402106 垫圈 WASHER 1
7 402111 管接头 JOINT 1
8 403603 轴 SHAFT 1
9 403611 隔离套 SPACE BUSHING 2
10 滚针Φ4×30 NEEDLE ROLLER 18 GB/T309-2000
11 403602 小齿轮 PINION 1
12 403606 密封垫 SEAL GASKET 1
13 403608 泵盖 PUMP COVER 1
14 403609 密封垫 SEAL GASKET 1
15 403605 大齿轮 DRIVEN GEAR 1

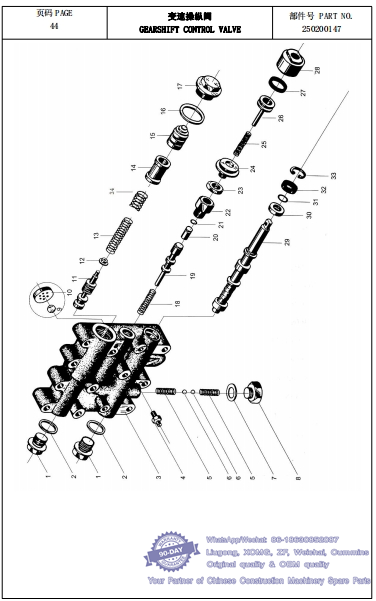

030 变速操纵阀GEARSHIFT CONTROL VALVE-- XCMG Wheel Loader ZL50GN Spare Parts Catalog
件号 ITEM 部件号 PART NO. 零件名称 PART NAME 数量 Q'TY
1 403702 螺栓 BOLT 2
2 402106 垫圈 WASHER 2
3 403701A 阀体 VALVE BODY 1
4 403727 压力表接头 PRESSURE TAPPING 1
5 403707 弹簧 SPRING 2
6 钢球 12.7 STEEL BALL 2 GB/T308-202
7 402001 垫片 WASHER 1
8 403710 螺栓 BOLT 1
9 塑料球 3/16” PLASTIC BALL 1
10 403726 圆板 ORIFICE PLATE 1
11 403704 减压阀杆 REGULATOR VALVE STEM 1
12 403725 弹簧座 SPRING SEAT 1
13 403724 弹簧 SPRING 1
14 403723 固定套 FIXED SLEEVE 1
15 403722 滑块 SLIDING BLOCK 1
16 403721 垫圈 WASHER 1
17 403720 螺栓 BOLT 1
18 403706 弹簧 SPRING 1
19 403705 刹车阀杆 BRAKE VALVE STEM 1
20 403718 圆柱塞 CYLINDRICAL PLUG 1
21 O 形圈 13×1.9 O-RING 1
22 403719 螺栓 BO1T 1
23 403717 螺母 NUT 1
24 403712 气阀座 AIR VALVE STEM 1
25 403714 弹簧 SPRING 1
26 403713 气阀杆 AIR VALVE STEM 1
27 403715 Y 形密封圈 32×40 “Y”SEAL RING 1
28 403716 气阀体 AIR VALVE BOBY 1
29 403708 分配阀杆 DISTRIBUTION VALVE STEM 1
30 403711 挡套 COLLAR 1
31 801100072 O 形圈 22×2.4 O-RING 1
32 骨架油 PD18×30×10 SKELETON OIL SEAL 1
33 805400052 挡圈 30 SNAP RING 1
34 弹簧 SPRING 1
