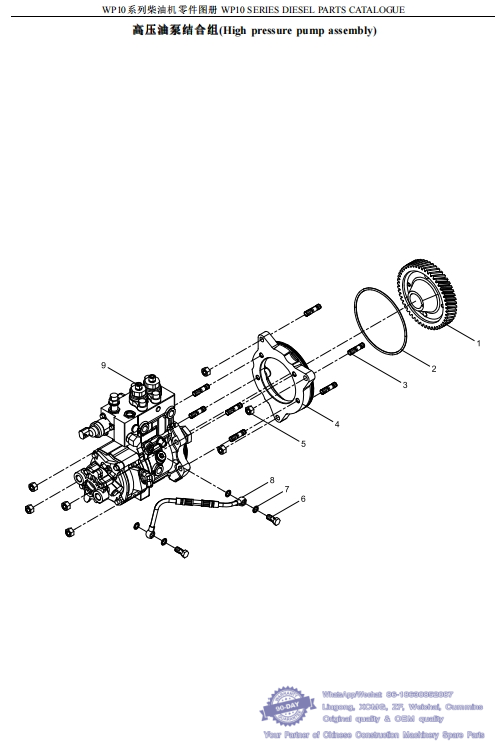

021 高压油泵结合组(High pressure pump assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600080452 1 喷油泵齿轮 Injection pump gear whatsapp 86-18630852087
2 612600080400 1 密封圈 Seal washer
3 90003813532S 7 双头螺柱 Stud
4 612600080486 1 喷油泵法兰 Injection pump flange
5 90003888452 7 2型全金属六角锁紧螺母
Prevailing Torque Type All-metal whatsapp 86-18630852087
Hexagon Nut,
6 612639000047 2 空心螺栓 Hollow bolt
7 612600080246 4 密封垫圈 Seal washer
8 612600070309 1 润滑油进油管组件 Oil inlet pipe assembly whatsapp 86-18630852087
9 612600080674 1 共轨喷油泵 Injection pump

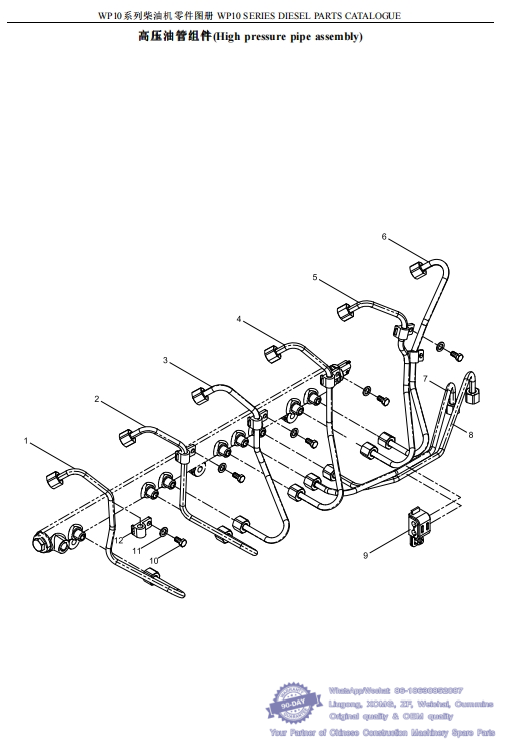

022 高压油管组件(High pressure pipe assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600080638 1 第六缸高压油管 High pressure pipe(cylinder 6)
2 612600080637 1 第五缸高压油管 High pressure pipe(cylinder 5)
3 612600080636 1 第四缸高压油管 High pressure pipe(cylinder 4) whatsapp 86-18630852087
4 612600080635 1 第三缸高压油管 High pressure pipe(cylinder 3)
5 612600080634 1 第二缸高压油管 High pressure pipe(cylinder 2)
6 612600080633 1 第一缸高压油管 High pressure pipe(cylinder 1)
7 612600080639 1 高压油管(泵到轨) High pressure pipe (from pump to rail)
8 612600080640 1 高压油管(泵到轨) High pressure pipe (from pump to rail) whatsapp 86-18630852087
9 612630080058 1 管卡 Pipe Clip
10 90003802411 5 六角头螺栓 Hexagon bolt whatsapp 86-18630852087
11 90003932023 5 波形弹性垫圈 Wave spiral washer
12 612600080672 6 高压油管管卡 Clip of high pressure pipe

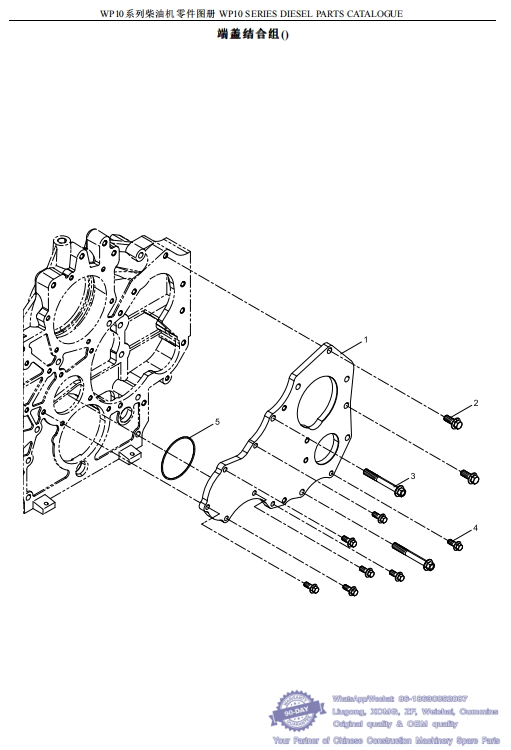

023 端盖结合组()-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600011821 1 端盖 End cover
2 90011430008 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt whatsapp 86-18630852087
3 612600061711 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
4 90011430016S 7 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
5 90003120602 1 密封圈 Seal washer whatsapp 86-18630852087

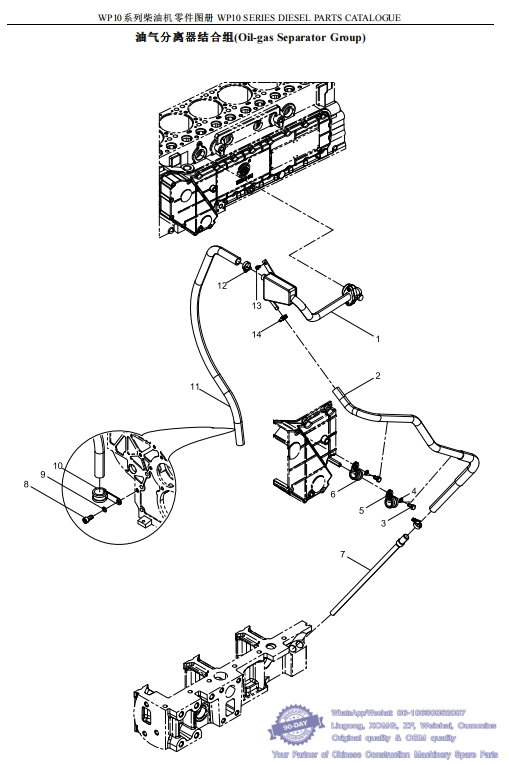

024 油气分离器结合组(Oil-gas Separator Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600013161 1 油气分离器总成 Oil-gas separator assembly whatsapp 86-18630852087
2 612600012729 1 油路连接胶管 Oil Connecting Rubber Pipe
3 90003802411 2 六角头螺栓 Hexagon bolt
4 90003932023 2 波形弹性垫圈 Wave spiral washer
5 612600012280 1 管夹总成 Pipe Clamp Assembly
6 612600111639 2 管夹总成 Pipe Clamp Assembly whatsapp 86-18630852087
7 612600012595 1 回油管接头 Fuel return pipe nipple
8 90011350039 1 六角头螺栓 Hexagon bolt
9 90014010002 1 标准型弹簧垫圈Single Coil Spring Lock Washer, Normal Type
10 612600013280 1 管夹总成 Pipe Clamp Assembly whatsapp 86-18630852087
11 612600012525 1 油路连接胶管 Oil Connecting Rubber Pipe
12 90003989340 1 卡箍 Clamp
13 90011430021 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt whatsapp 86-18630852087
14 90003989300 2 卡箍 Clamp

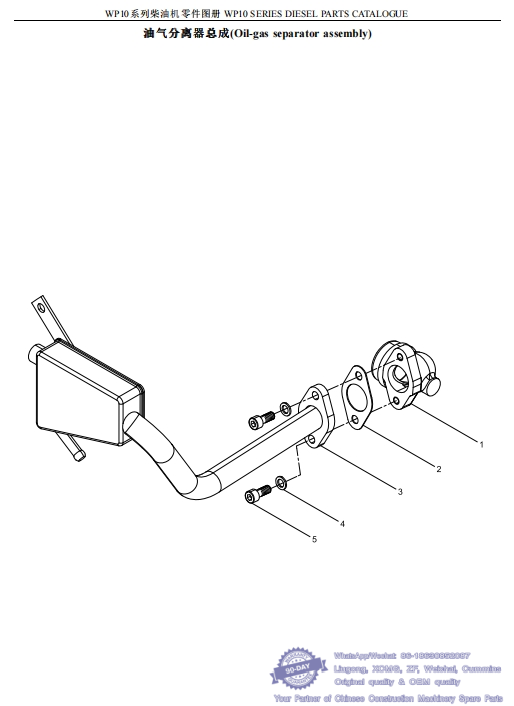

025 油气分离器总成(Oil-gas separator assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 614010279 1 通风弯管 Ventilating elbow whatsapp 86-18630852087
2 90003069303 1 垫片 Gasket
3 612600011422 1 油气分离器组件 Oil-gas separator assembly whatsapp 86-18630852087
4 90003932023 2 波形弹性垫圈 Wave spiral washer
5 90003862427 2 内六角圆柱头螺钉 Inner hexagon screw whatsapp 86-18630852087
