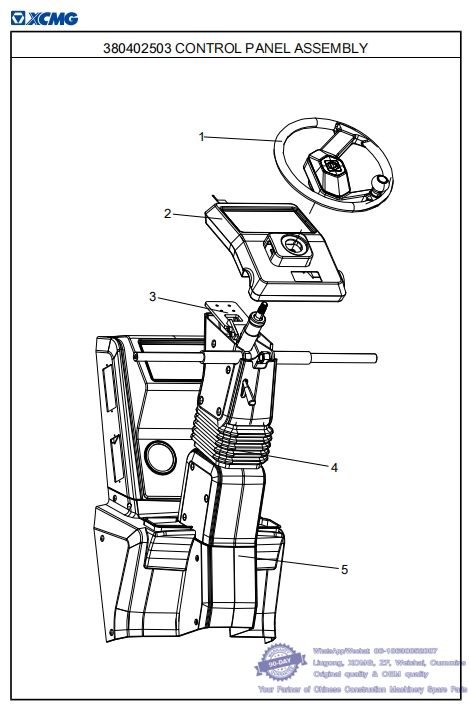

021 380402503 CONTROL PANEL ASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605049 CONSOLE SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 802152940 1 STEERING WHEEL300 whatsapp 86-18630852087
2 803594971 1 DISPLAYER
3 380402531 1 MOVABLE CONSOLE FRAMEWORK 50
4 381100898 1 CONSOLE RUBBER PARTII
5 380402502 1 CONSOLE SHELL ASSEMBLY 56 whatsapp 86-18630852087

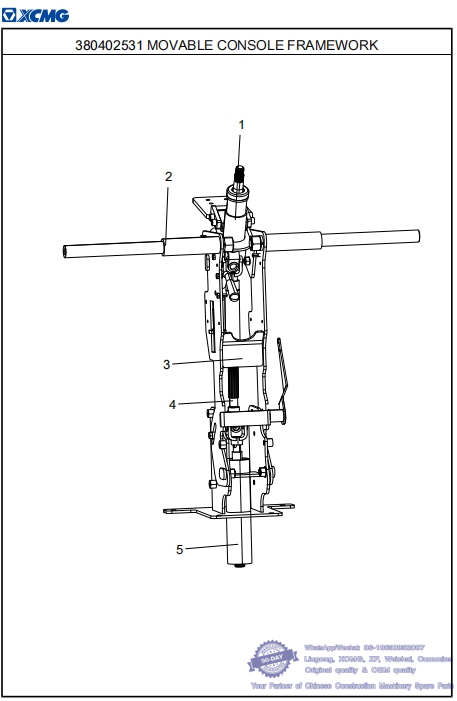

022 380402531 MOVABLE CONSOLE FRAMEWORK-- XCMG Motor Grader GR2205T Spare Parts Catalog
380402503 CONTROL PANEL ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 380402540 1 MOUNTING FRAMEWORK OF INSTRUMENT
2 380402510 1 ASSEMBLY PARTS 52 whatsapp 86-18630852087
3 380402539 1 UPPER FRAMEWORK OF MOVABLE CONSOLE
4 380402526 1 STEERING SHAFT SUBASSEMBLY 54
5 380402505 1 LOWER FRAMEWORK OF MOVABLE CONSOLE whatsapp 86-18630852087

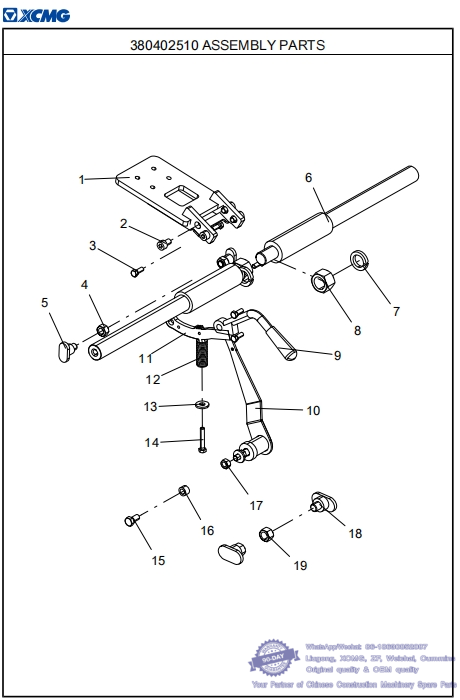

023 380402510 ASSEMBLY PARTS-- XCMG Motor Grader GR2205T Spare Parts Catalog
380402531 MOVABLE CONSOLE FRAMEWORK
No. PART NUMBER QTY NAME NOTE PAGE
1 381100966 1 INSTRUMENT TRANSITION PANEL whatsapp 86-18630852087
2 805141141 4 SCREW M8×12 (DACROMET) GB/T70.1-2008
3 805046481 6 BOLT M6×16 (DACROMET) GB/T5783-2000
4 805238366 2 NUT M10 (DACROMET) GB/T6170-2000
5 380402495 2 BOLT AT ARTICULATION POINT I
6 380402507 2 OPERATING SHAFT
7 805338321 2 WASHER 20 (DACROMET) GB/T93-1987
8 805046475 2 NUT M20 (DACROMET) GB/T6170-2000
9 380402520 1 ADJUSTING HANDLE OF STEERING WHEEL
10 381203405 1 LOCKING HANDLE
11 380402496 1 BAFFLE whatsapp 86-18630852087
12 380402509 1 SPRING
13 329900296 2 THICKENED LARGE WASHER
14 805046720 1 BOLT M6×35 GB/T5783-2000
15 805046503 1 BOLT M8×16 (DACROMET) GB/T5783-2000
16 381203408 1 SLEEVE PIPE
17 805046477 1 NUT M8 (DACROMET) GB/T6170-2000
18 380402535 2 BOLT AT ARTICULATION POINT
19 805238367 2 NUT M12 (DACROMET) GB/T6170-2000 whatsapp 86-18630852087

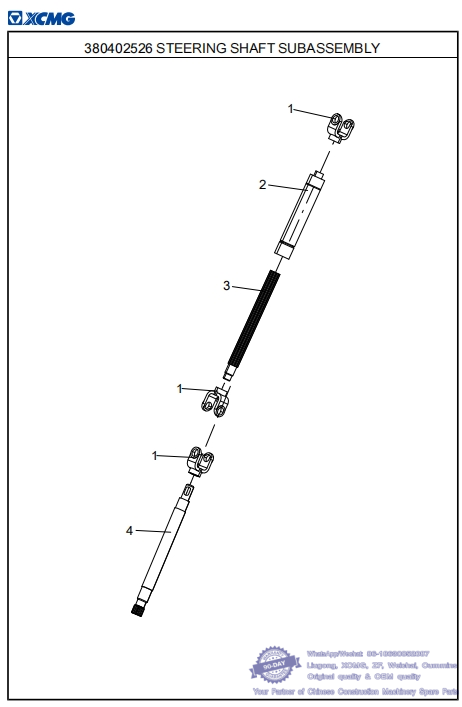

024 380402526 STEEERING SHAFT SUBASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
380402531 MOVABLE CONSOLE FRAMEWORK
No. PART NUMBER QTY NAME NOTE PAGE
1 380402511 3 CARDAN JOINT whatsapp 86-18630852087
2 380402522 1 INNER SPLINE SHAFT
3 380402537 1 SPLINE SHAFT
4 380402508 1 CONNECTING SHAFT(STEERING GEAR) whatsapp 86-18630852087

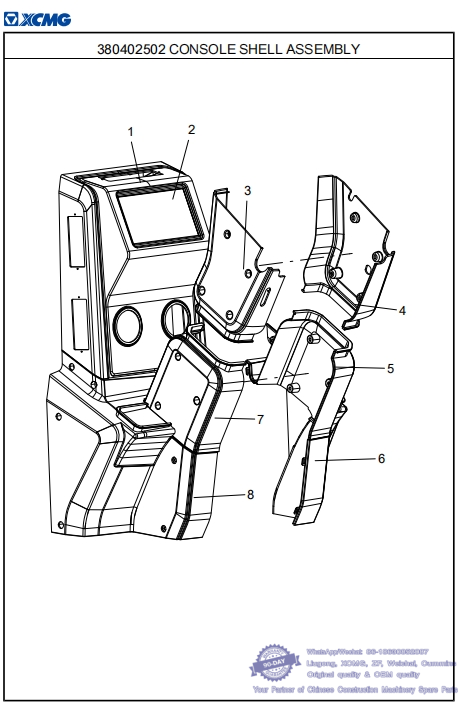

025 380402502 CONSOLE SHELL ASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
380402503 CONTROL PANEL ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 803594654 1 UPPER SHELL OF FIXED TABLE whatsapp 86-18630852087
2 803596395 1 INSTRUMENT PANEL BOARD
3 803594663 1 UPPER LEFT SHELL OF MOVABLE TABLE
4 803594662 1 UPPER RIGHT SHELL OF MOVABLE TABLE
5 803594660 1 LOWER RIGHT SHELL OF MOVABLE TABLE
6 803594664 1 LOWER RIGHT SHELL OF FIXED TABLE whatsapp 86-18630852087
7 803594661 1 LOWER LEFT SHELL OF MOVABLE TABLE
8 803594665 1 LOWER LEFT SHELL OF FIXED TABLE whatsapp 86-18630852087
