021 800357679 COUPLING-- XCMG Mining Dump Truck XDR100 Parts Catalog
331500135 POWER SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 800370115 1 SLEEVE whatsapp 86-18630852087
2 800370113 1 ALUMINUM INNER RING
3 800370118 10 ELASTIC BODY
4 800370114 1 COUPLER ALUMINUM OUTER RING
5 805338289 16 WASHER 20 GB/T97.1-2002
6 805051106 16 BOLT M20×50 GB/T5782-2000
7 805302869 12 WASHER 16 GB/T848-2002 whatsapp 86-18630852087
8 805141124 12 SCREW M16×55 GB/T70.1-2008
9 800370117 1 SHAFT SLEEVE BAFFLE
10 800370116 1 SHAFT BAFFLE PLATE
11 805046630 8 BOLT M12×30 GB/T5782-2000
12 805142419 3 SCREW whatsapp 86-18630852087

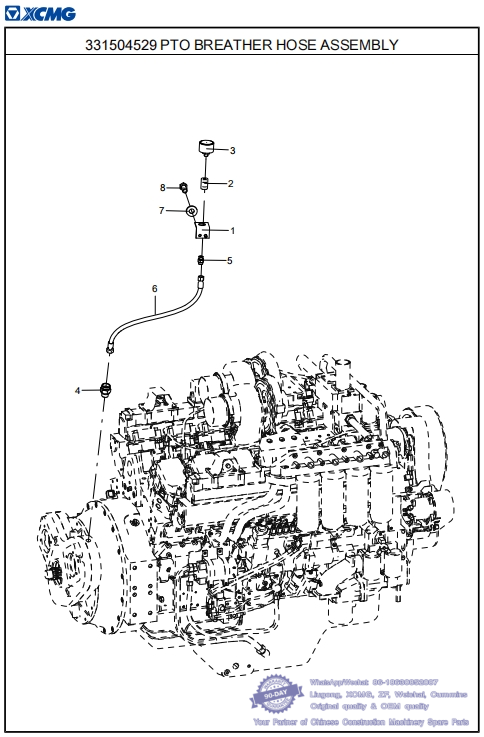

022 331504529 PTO BREATHER HOSE ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331500135 POWER SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331504530 1 PLATE whatsapp 86-18630852087
2 331500466 1 CROSSOVER COUPLING
3 803406633 1 C-SHAPED AIR FILTER
4 803183397 1 CONNECTOR
5 803177583 1 CONNECTOR BODY whatsapp 86-18630852087
6 803165322 1 HOSE ASS'Y
7 805301374 2 WASHER 12 DIN6796
8 805046630 2 BOLT M12×30 GB/T5782-2000 whatsapp 86-18630852087

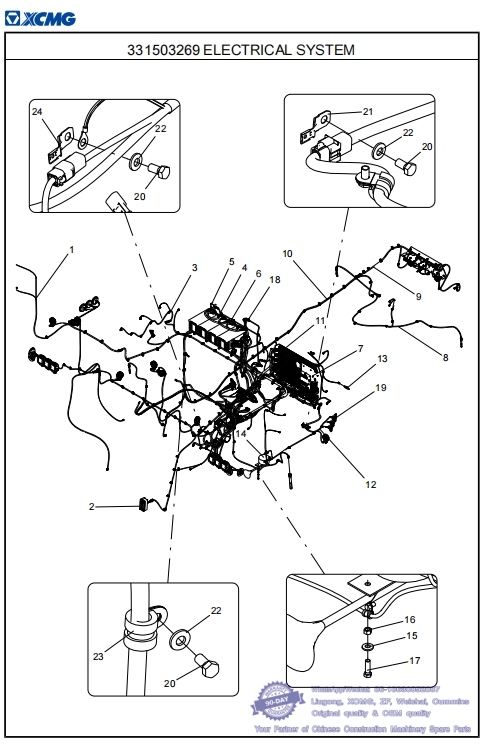

023 331503269 ELECTRICAL SYSTEM -- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
1 331502416 1 RIGHT WALKING PLATFORM WIRING HARNESS
2 803750631 1 SWITCH BOX whatsapp 86-18630852087
3 331503281 1 ENGINE HARNESS
4 331503270 1 BATTERY HARNESS ASSEMBLY 56
5 331502030 1 PROXIMITY SENSOR ASSEMBLY 58
6 803546765 4 BATTERY
7 331503273 1 CONTROL PANEL ASSEMBLY whatsapp 86-18630852087
8 331503278 1 FRONT HEADLAMP WIRING HARNESS
9 331503280 1 REAR LAMP WIRING HARNESS
10 331503279 1 FRAME HARNESS
11 331503271 1 INSTRUMENT DESK ELECTRICAL ASSEMBLY
12 331503282 1 LEFT WALKING PLATFORM WIRING HARNESS
13 803547153 2 TEMPERATURE SENSOR
14 803590082 1 TRUMPET
15 805301374 2 WASHER 12 DIN6796
16 805238367 2 NUT M12 GB/T6170-2000
17 805006287 2 BOLT M12×40 GB/T5783-2000 whatsapp 86-18630852087
18 803504780 1 FUEL SENSOR
19 331503277 1 LIGHTING ASSEMBLY 68
20 805046525 170 BOLT M10×20 GB/T5783-2000
21 819951759 1 MOUNTING CLAMP -
22 805301373 170 WASHER 10 DIN6796
23 800104621 22 RUBBER SLEEVE HOOP whatsapp 86-18630852087
24 819948100 6 MOUNTING CLAMP
024 331503269 ELECTRICAL SYSTEM -- XCMG Mining Dump Truck XDR100 Parts Catalog
331505761 XDR100 MINING DUMP TRUCK
No. PART NUMBER QTY NAME NOTE PAGE
25 800104639 3 RUBBER SLEEVE HOOP whatsapp 86-18630852087
26 801968459 17 RUBBER SLEEVE HOOP
27 801905490 48 RUBBER SLEEVE HOOP
28 801905725 5 RUBBER SLEEVE HOOP
29 803694399 1 AUXILIARY START RECEPTACLE
30 805301384 4 WASHER 8 DIN6796
31 803670733 1 MAIN POWER SWITCH
32 805238378 4 NUT M8 GB/T6170-2000 whatsapp 86-18630852087
33 805046511 4 BOLT M8×30 GB/T5783-2000
34 803683478 1 DC CONTACTOR
35 805238370 2 NUT M6 GB/T6170-2000
36 805301383 2 WASHER 6 DIN6796
37 805140594 2 SCREW M6×20 GB/T818-2000
38 803697174 4 PRESSURE SENSOR
39 805238371 4 NUT M10 GB/T6170-2000 whatsapp 86-18630852087
40 819908676 57 RUBBER SLEEVE HOOP
41 801968465 6 RUBBER SLEEVE HOO

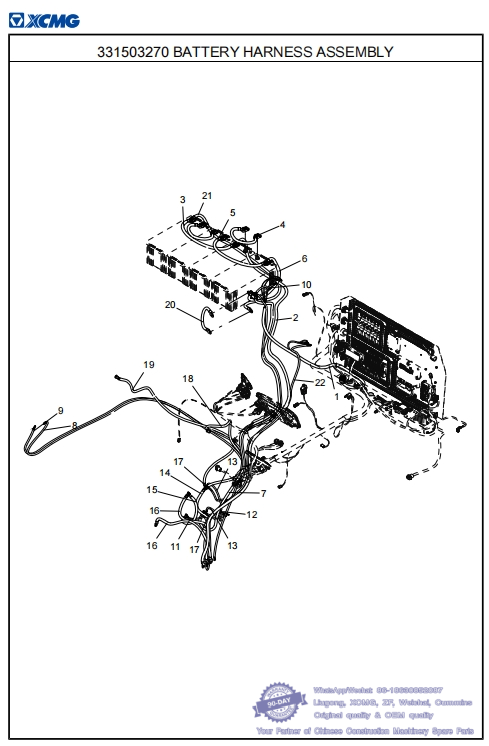

025 331503270 BATTERY HARNESS ASSEMBLY -- XCMG Mining Dump Truck XDR100 Parts Catalog
331503269 ELECTRICAL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331502417 1 RELAY WIRE HARNESS whatsapp 86-18630852087
2 803695096 1 BATTERY CABLE BATTERY 2 CATHODE -FRAME BONDING
3 803687010 1 BATTERY CABLE
4 803699010 2 BATTERY CABLE whatsapp 86-18630852087
5 803687012 1 BATTERY CABLE
6 803694831 1 BATTERY CABLE BATTERY ANODE -MAIN POWER SWITCH 1
7 803694832 1 BATTERY CABLE MAIN POWER SWITCH 2 - START MOTOR 1:BAT
8 803694833 1 BATTERY CABLE MAIN POWER SWITCH 2 - GENERATOR ANODE
9 803694834 1 BATTERY CABLE FRAME BONDING - GENERATOR CATHODE
10 803694835 1 BATTERY CABLE MAIN POWER SWITCH 2 - POWERING RELAY 1
11 803694836 1 BATTERY CABLE START MOTOR G -START RELAY: 1:85
12 803694837 1 BATTERY CABLE START RELAY:1:85 -START RELAY 2:85
13 803694838 1 BATTERY CABLE START MOTOR 1:S -START RELAY: 87
13 803694838 1 BATTERY CABLE whatsapp 86-18630852087
14 803687020 1 BATTERY CABLE
15 803687021 1 BATTERY CABLE
16 803694839 1 BATTERY CABLE START MOTOR 2:GFRAME BONDING
16 803694839 1 BATTERY CABLE START MOTOR 2:GFRAME BONDING
17 803694840 1 BATTERY CABLE START MOTOR 1:BAT -START RELAY: 30
17 803694840 1 BATTERY CABLE START MOTOR 1:BAT -START RELAY: 30
18 803691900 1 BATTERY CABLE START MOTOR 2:BAT -LEFT HEATING GRID
19 803691901 1 BATTERY CABLE START MOTOR 2:BAT -RIGHT HEATING GRID
20 803694841 1 BATTERY CABLE BATTERY MAIN SWITCH:1 - START JUMPER ANODE
21 803694842 1 BATTERY CABLE BATTERY 4 CATHODE -START JUMPER CATHODE
22 803695097 1 BATTERY CABLE FRAME BONDING 1 -FRAME BONDING 2
