Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
e

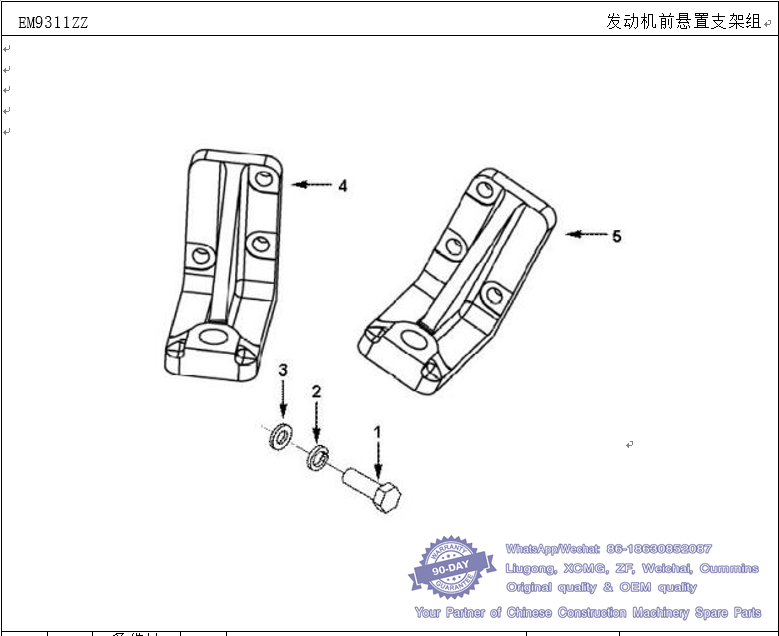

021 EM9311ZZ 发动机前悬置支架组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3335006 Y 六角头螺栓SCREW, HEXAGON HEAD CAP 6 whatsapp 86-18630852087
2 1 C3967119 Y 密封垫圈WASHER, SPRING 6
3 1 C4928962 Y 平垫圈WASHER, PLAIN 6
4 1 C4988361 Y 发动机前悬置支架SUPPORT, FRONT ENGINE 1
5 1 C4988362 Y 发动机前悬置支架SUPPORT, FRONT ENGINE 1 whatsapp 86-18630852087

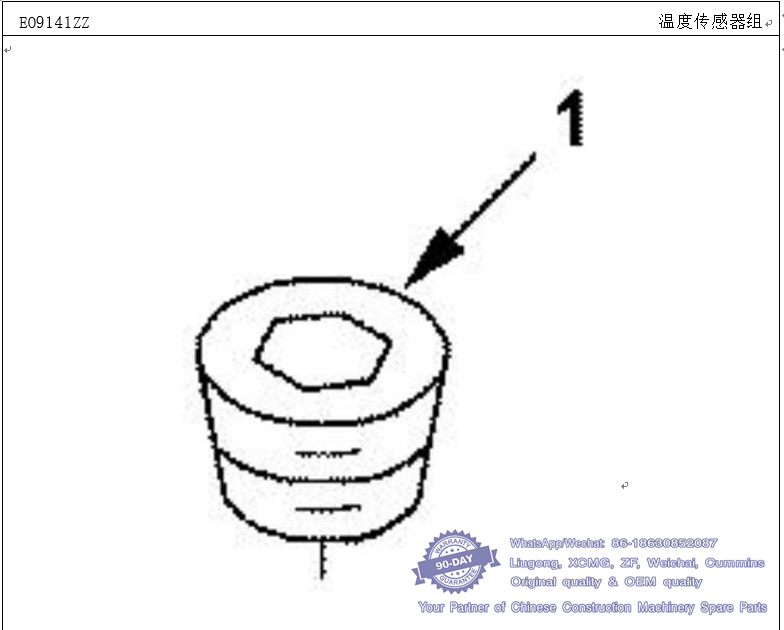

022 EO9141ZZ 温度传感器组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3008468 Y 螺堵PLUG, PIPE 1 whatsapp 86-18630852087

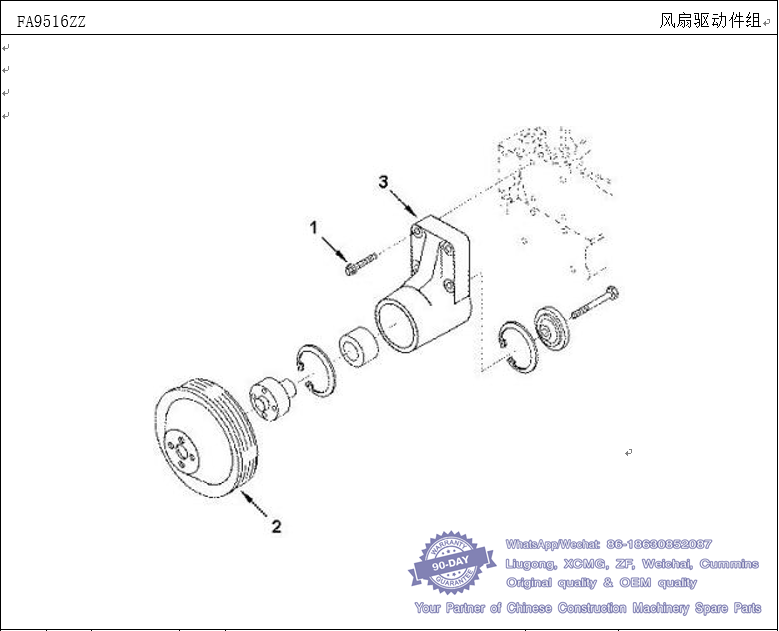

023 FA9516ZZ 风扇驱动件组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3900678 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 4
2 1 C3971283 Y 风扇皮带轮 PULLEY, FAN 1 whatsapp 86-18630852087
3 1 C4932912 Y 风扇支架SUPPORT, FAN 1

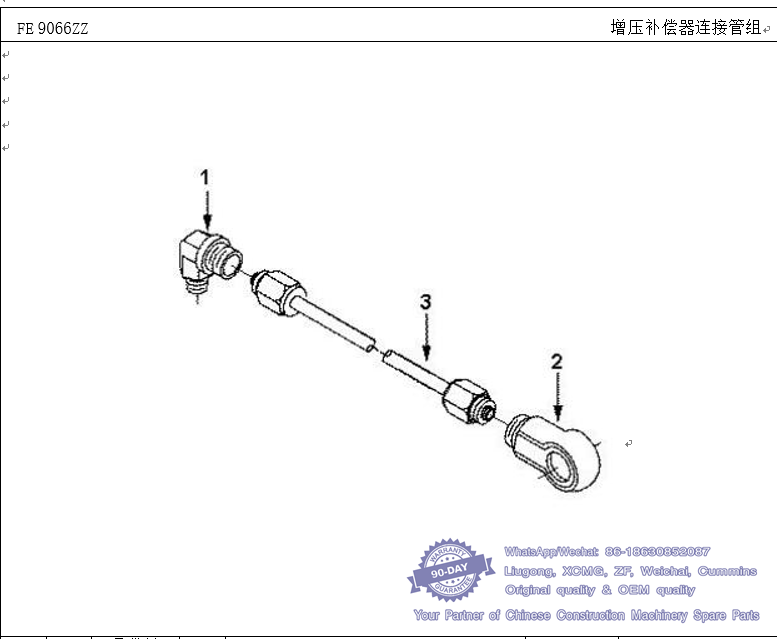

024 FE 9066ZZ 增压补偿器连接管组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3976036 Y 直角接头体ELBOW, MALE ADAPTER 1 whatsapp 86-18630852087
2 1 C3979755 Y 琶形接头CONNECTOR, BANJO 1
3 1 C4928901 Y 增压补偿器连接管TUBE, AIR FUEL CONTROL 1 whatsapp 86-18630852087

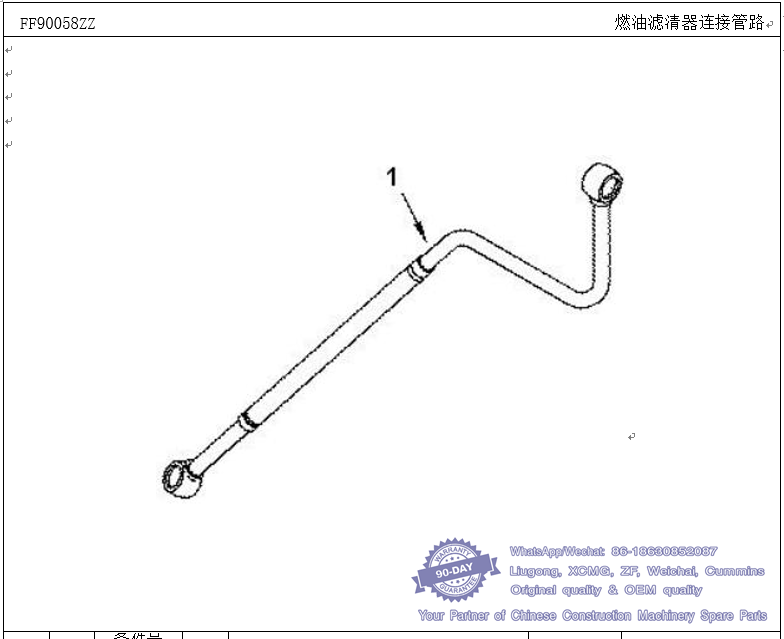

025 FF90058ZZ 燃油滤清器连接管路-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3936691 Y 燃油输油管TUBE, FUEL SUPPLY 1 whatsapp 86-18630852087

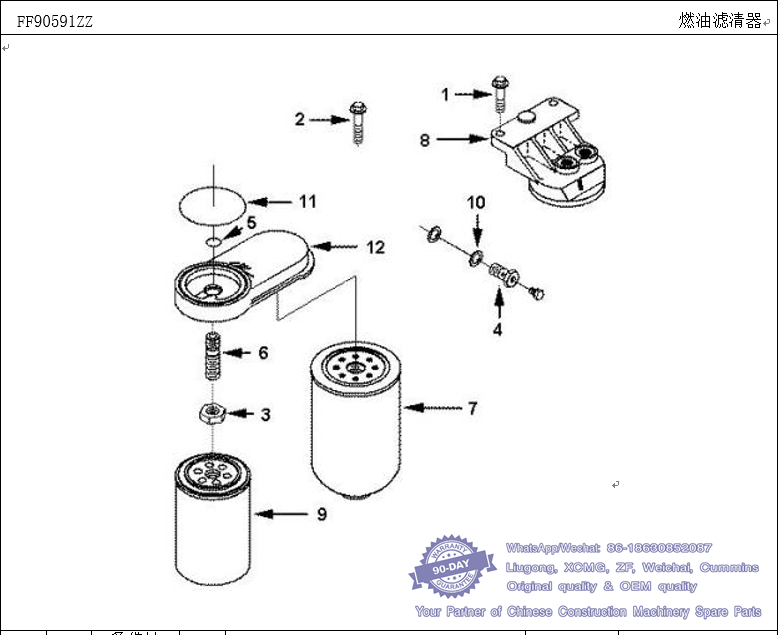

026 FF90591ZZ 燃油滤清器-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3900632 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 1 whatsapp 86-18630852087
2 1 C3900678 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 1
3 1 C3903293 Y 等边防滑六角螺母NUT, REGULAR HEXAGON JAM 1
4 1 C3905860 Y 琶形接头螺栓SCREW, BANJO CONNECTOR 1
5 1 C3906695 Y 矩形密封圈SEAL, RECTANGULAR RING 1
6 1 C3925955 Y 滤清器痤接头ADAPTER, FILTER HEAD 1 whatsapp 86-18630852087
7 1 C3930942 Y 燃油滤清器 FILTER, FUEL 1
8 1 C3930969 Y 燃油滤清器座HEAD, FUEL FILTER 1
9 1 C3931063 Y 燃油滤清器 FILTER, FUEL 1
10 1 C3963983 Y 密封垫圈WASHER, SEALING 2
11 1 C4980085 Y 矩形密封圈SEAL, RECTANGULAR RING 1 whatsapp 86-18630852087
12 1 C4989118 Y 燃油滤清器座HEAD, FUEL FILTER 1

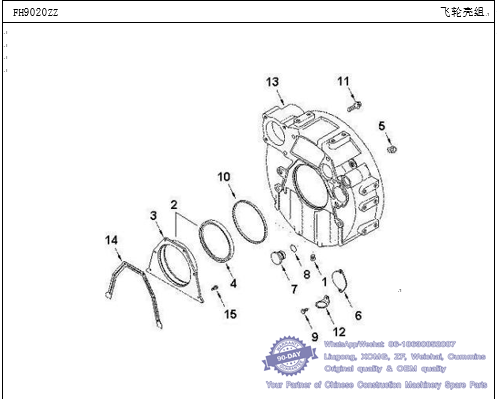

027 FH9020ZZ 飞轮壳组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3008469 Y 螺堵PLUG, PIPE 1 whatsapp 86-18630852087
2 1 C3357844ZZ Y 后油封座COVER, REAR 1
3 1 C3936904 Y 后油封座COVER, REAR 1
4 1 C3968563 Y 油封SEAL, OIL 1
5 1 C3904181 Y 螺塞PLUG, THREADED 1
6 1 C3908095 Y 盖板PLATE, COVER 1
7 1 C3910248 Y 塑性堵塞PLUG, ORING 1
8 1 C3910260 Y O形密封圈 SEAL, ORING 1 whatsapp 86-18630852087
9 1 C3912072 Y 自攻螺钉SCREW, SELF TAPPING METAL 2
10 1 C3912473 Y 矩形密封圈SEAL, RECTANGULAR RING 1
11 1 C3920447 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 8
12 1 C3928989 Y 夹子 CLIP 1
13 1 C3931716 Y 飞轮壳HOUSING, FLYWHEEL 1
14 1 C3938159 Y 后油封座密封垫GASKET, REAR COVER 1 0
15 1 C3991306 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 6 whatsapp 86-18630852087

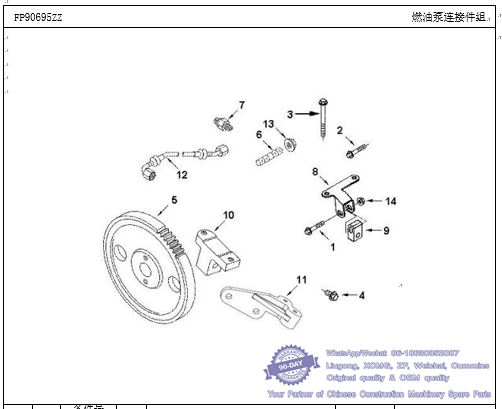

028 FP90695ZZ 燃油泵连接件组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3901445 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 1 whatsapp 86-18630852087
2 1 C3901445 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 2 93790
3 1 C3913366 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 2
4 1 C3920622 Y 六角法兰面螺栓SCREW, HEX FLANGE HEAD CA 1
5 1 C3931382 Y 燃油泵齿轮GEAR, FUEL PUMP 1
6 1 C3937123 Y 双头螺栓STUD, DOUBLE END PLAIN 4 whatsapp 86-18630852087
7 1 C3977319 Y 直通接头体CONNECTOR, MALE 1
8 1 C4936141 Y 燃油泵支架BRACE, FUEL PUMP 1
9 1 C4936142 Y 燃油泵支架SUPPORT, FUEL PUMP 1
10 1 C4936143 Y 燃油泵支架SUPPORT, FUEL PUMP 1
11 1 C4936144 Y 燃油泵支架SUPPORT, FUEL PUMP 1
12 1 C4938512 Y 组合软管HOSE, FLEXIBLE 1
13 1 C4988581 Y 六角法兰螺母NUT, HEXAGON F RANGE 4
14 1 C4991519 Y 六角螺母NUT, REGULAR HEXAGON 1 whatsapp 86-18630852087

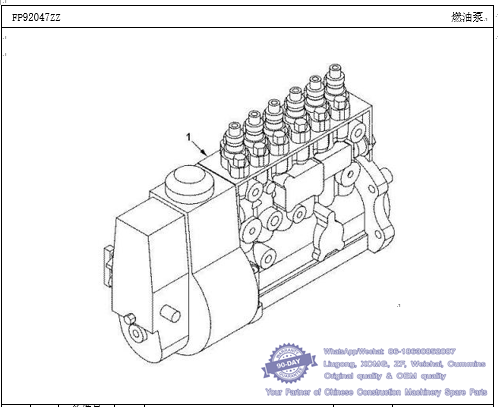

029 FP92047ZZ 燃油泵-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C5268202 Y 燃油泵PUMP, FUEL INJECTION 1 whatsapp 86-18630852087

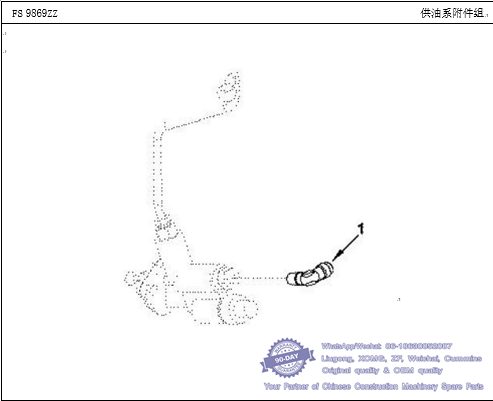

030 FS 9869ZZ 供油系附件组-- Dongfeng Cummins Diesel Engine 6BTAA5.9-C130 Parts Catalog for Lonking CDM835
序号 层次 备件号 出售 备件名称 数量 备注
NO OPTION NUMBER SALE OPTION NAME QTY REMARKS
1 1 C3976729 Y 直角接头体ELBOW, MALE ADAPTER 1 whatsapp 86-18630852087
