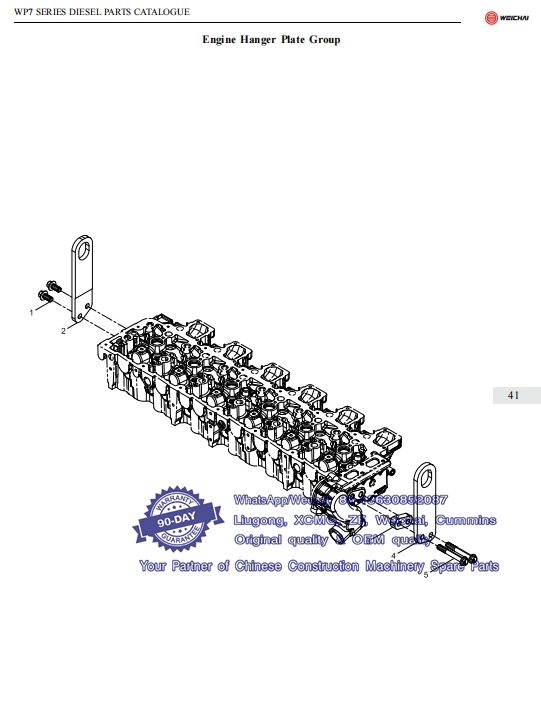

021 Engine Hanger Plate Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800040107 2 Hexagon Head Bolt
2 610800040015 1 Engine Hanger Plate
3 610800040128 1 Pad Whatsapp: 86-18630852087
4 610800040014 1 Engine Hanger Plate
5 90011430041 2 Hexagon Flange with Tooth Bolt

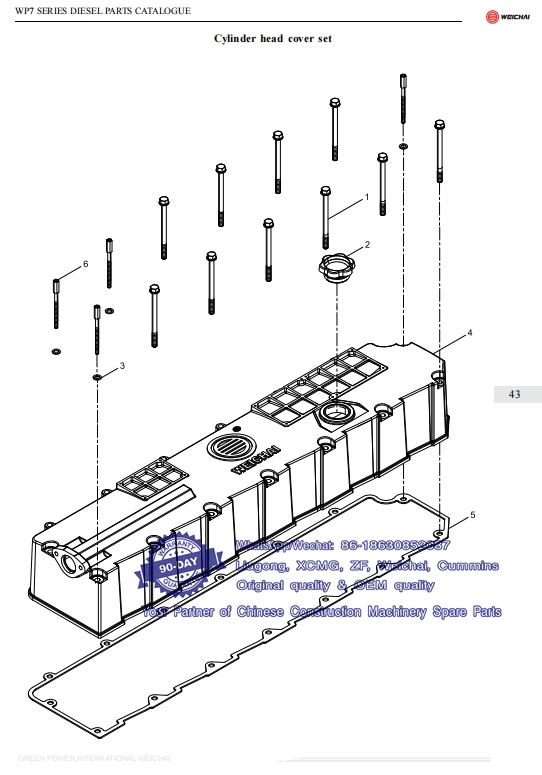

022 Cylinder head cover set——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800040144 11 Hexagon Head Bolt Whatsapp: 86-18630852087
2 1000106562 1 Oil filling port cover assembly
3 90003932023 4 Wave Spring Washer Whatsapp: 86-18630852087
4 1000419321 1 Cylinder Head Cover Assembly
5 610800040229 1 Cylinder Head Cover Gasket
6 610800040058 4 Back-up Block

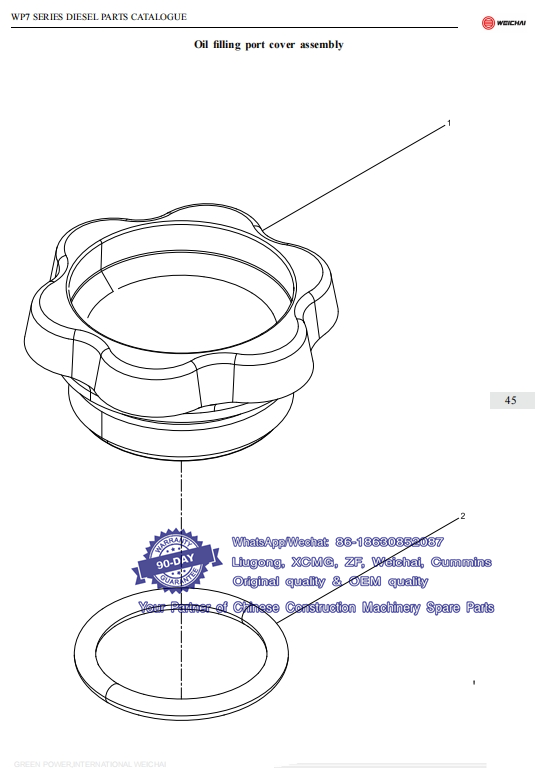

023 Oil filling port cover assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 1000101894 1 Oil Filler Cap Whatsapp: 86-18630852087
2 1000101895 1 Seal Ring

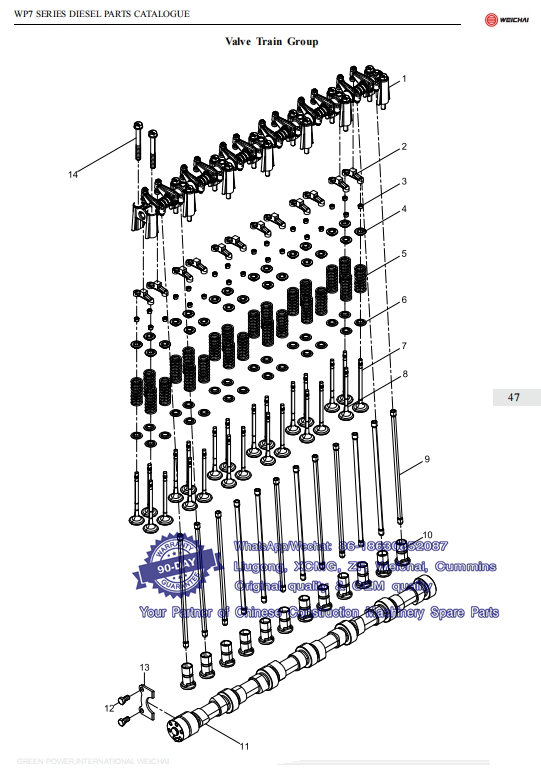

024 Valve Train Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800050156 1 Integrated Rocker Arm Shaft Assembly
2 610800050072 12 Valve Bridge Whatsapp: 86-18630852087
3 610800050009 48 Valve Collet
4 610800050010 24 Valve Spring Retainer
5 610800050029 24 Valve Spring Bottom Retainer
6 610800050030 24 Valve Spring
7 610800050049 12 Intake Valve
8 610800050050 12 Exhaust Valve Whatsapp: 86-18630852087
9 610800050122 12 Push Rod
10 610800050032 12 Tappet
11 610800050053 1 Camshaft Assembly
12 90011350026S 2 Hexagon Head Bolt Whatsapp: 86-18630852087
13 610800050036 1 Camshaft Thrust Plate
14 610800050133 14 Hexagon Head Bolt

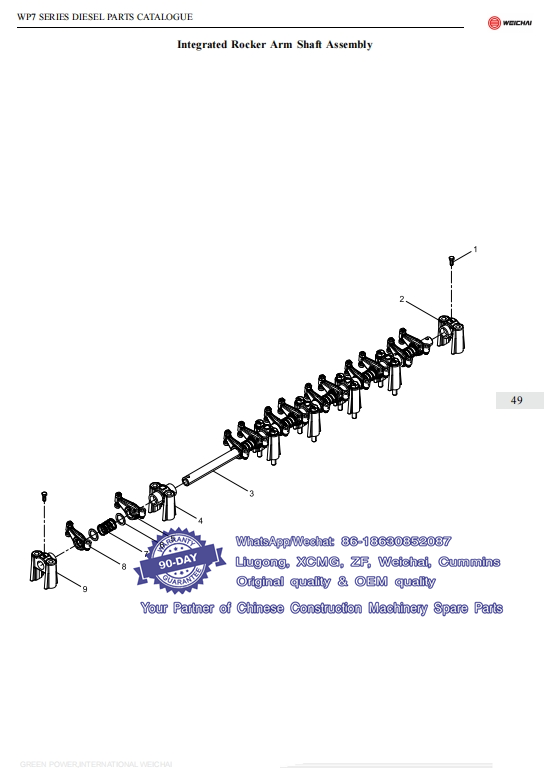

025 Integrated Rocker Arm Shaft Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 90011270068 2 Hexagon head bolt
2 610800050135 1 Rocker Arm Bracket
3 610800050039 1 Rocker Arm Shaft Whatsapp: 86-18630852087
4 610800050134 5 Rocker Arm Bracket
5 610800050151 6 Intake Rocker Arm Set
6 610800050045 12 Washer Whatsapp: 86-18630852087
7 610800050060 6 Rocker Arm Spring
8 610800050152 6 Exhaust Rocker Arm Set
9 610800050157 1 Rocker Arm Bracket

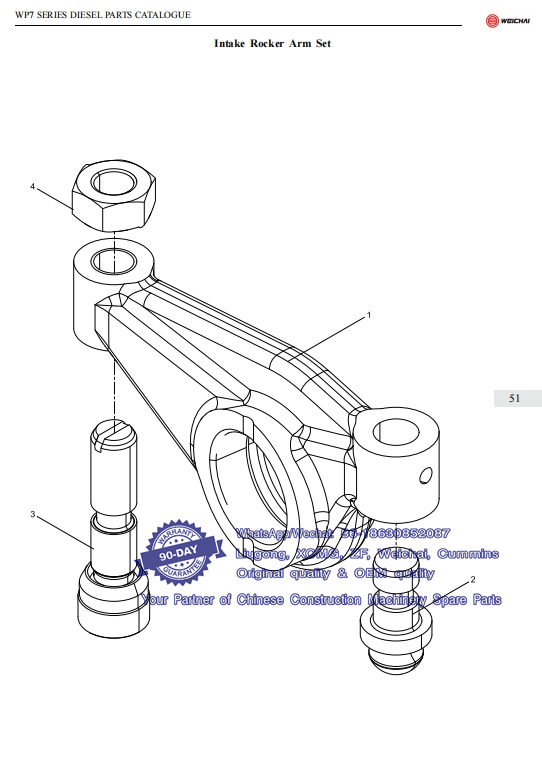

026 Intake Rocker Arm Set——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800050153 6 Intake Rocker Arm
2 610800050155 6 Ball Pin Whatsapp: 86-18630852087
3 610800050022 6
4 610800050026 6 Hexagon Lock Nut Whatsapp: 86-18630852087

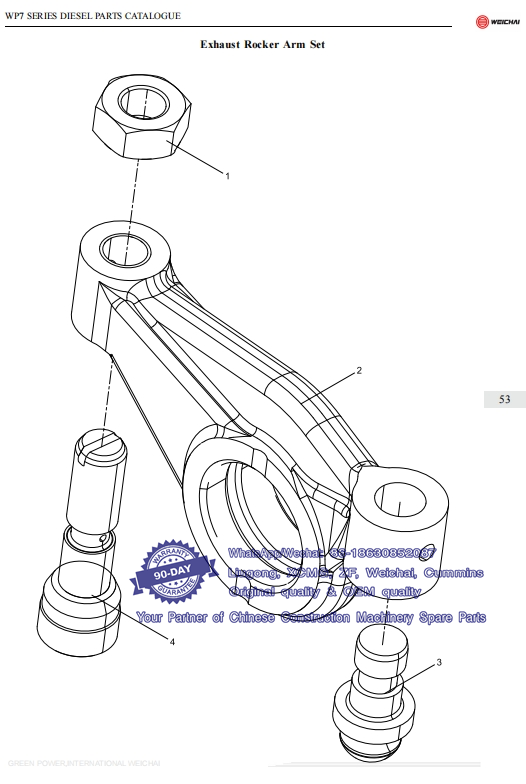

027 Exhaust Rocker Arm Set——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800050026 6 Hexagon Lock Nut
2 610800050154 6 Exhaust Rocker Arm
3 610800050155 6 Ball Pin Whatsapp: 86-18630852087
4 610800050022 6

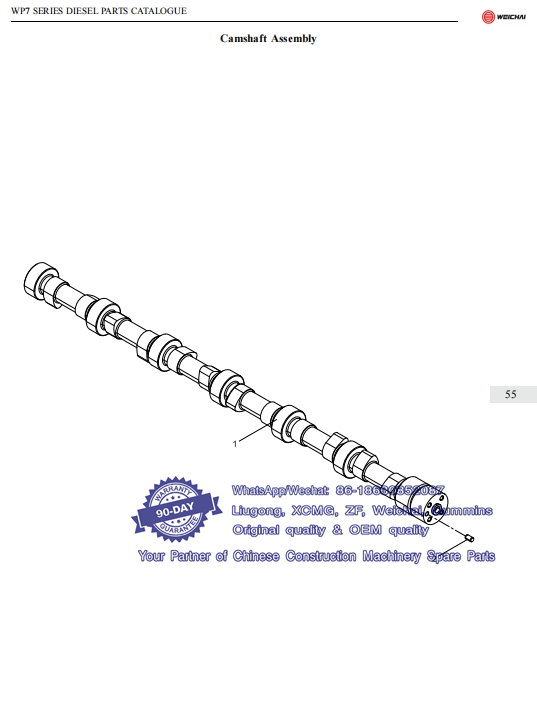

028 Camshaft Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800050020 1 Camshaft Whatsapp: 86-18630852087
2 90003901314 1 Parallel Pin

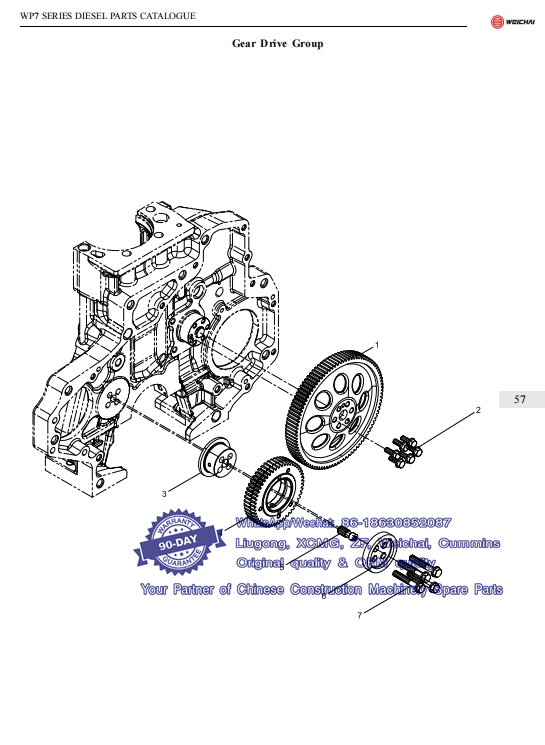

029 Gear Drive Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800050001 1 Camshaft Timing Gear
2 612600050145S 6 Hexagon Head Bolt
3 610800050003 1 Idle wheel shaft Whatsapp: 86-18630852087
4 610800050120 1 Idler Gear Assembly
5 610800050006 1 Idler Gear Shaft
6 610800050035 1 Gasket Whatsapp: 86-18630852087
7 610800050007S 4 Hexagon Head Bolt

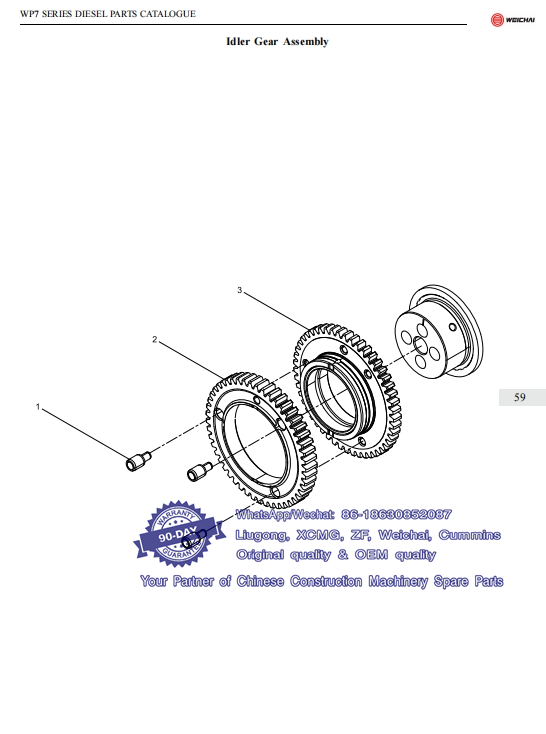

030 Idler Gear Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800050119 3 Rubber Sleeve
2 610800050114 1 Idler Gear Whatsapp: 86-18630852087
3 610800050116 1 Idler Gear Set
