3.车架与附件 Chassis and Accessories

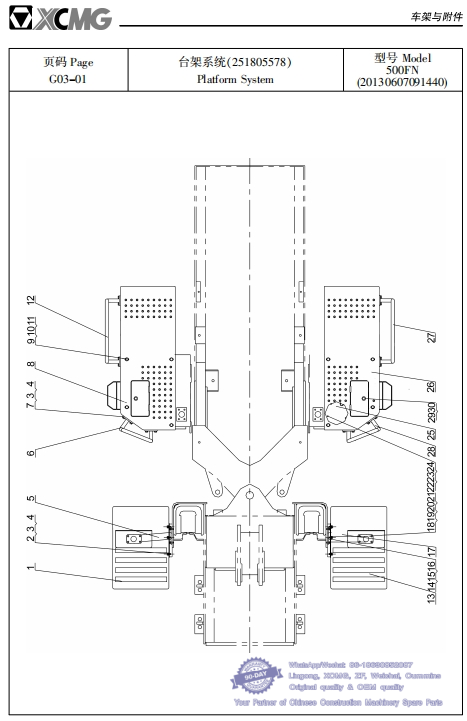

022 台架系统251805578 型号 500FN (20130607091440)
Platform System Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog

件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks

1 253004178 右挡泥板 Right Fender 1
2 805000715 螺栓 M12伊25 Bolt 6 GB/T5783-2000
3 805300020 垫圈 12 Washer 24 GB/T97.1-2002
4 805300018 垫圈 12 Washer 24 GB/T93-1987
5 252103047 右灯架 Right Lamp Bracket 1
6 251805603 右前护栏 Right Front Armrest 1
7 805000045 螺栓 M12伊40 Bolt 16 GB/T5783-2000
8 251805601 右台架焊接件 Left Platform 1
9 805000013 螺栓 M16伊35 Bolt 8 GB/T5783-2000
10 805301322 垫圈 16 Washer 8 GB/T96.2-2002
11 805300011 垫圈 16 Washer 8 GB/T93-1987
12 251805602 右后护栏 Right Rear Armrest 1
13 253004174 左挡泥板 Left Fender 1
14 805000062 螺栓 M10伊35 Bolt 8 GB/T5783-2000
15 805300017 垫圈 10 Washer 8 GB/T97.1-2002
16 805300014 垫圈 10 Washer 8 GB/T93-1987
17 252103046 左灯架 Left Lamp Bracket 1
18 805000018 螺栓 M8伊20 Bolt 8 GB/T5783-2000
19 805300069 垫圈 8 Washer 8 GB/T 97.1-2002
20 805300010 垫圈 8 Washer 8 GB/T 93-1987
21 805200045 螺母 M8 Nut 8 GB/T6170-2002
22 805002053 螺栓 M5伊15 Bolt 4 GB/T5783-2000
23 805301447 垫圈 5 Washer 3 GB93-87
24 805300119 垫圈 5 Washer 4 GB/T97.1-2002
25 251805584 圆盖板 Cover 1
26 251805581 左台架焊接件 Left Platform 1
27 251805582 左后护栏 Left Rear Armrest 1
28 251805583 左前护栏 Left Front Armrest 1
29 250400188 胶套 Cover 2
30 801968857 35 装饰条 Sealing 1

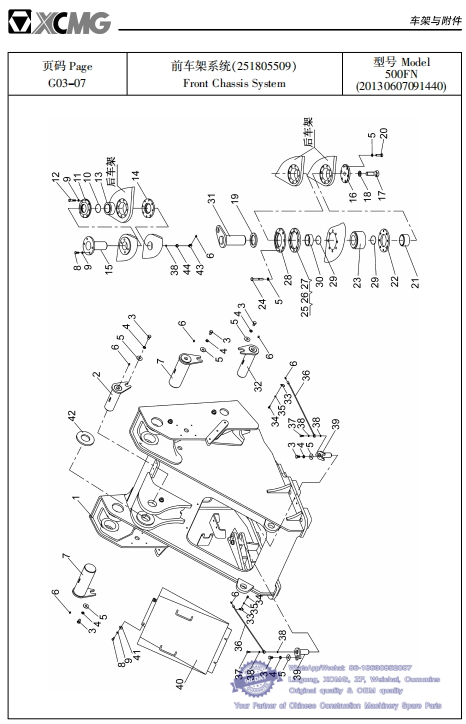

023 前车架系统251805509 型号 500FN (20130607091440)
Front Chassis System Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog

件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks

1 251805510 前车架 Front Chassis 1
2 252100622 转斗缸-车架销 Shaft Pin 1
3 805000022 螺栓 M16伊25 Bolt 7 GB/T5783-2000
4 805300111 垫圈 16 Washer 7 GB/T96.1-2002
5 805300011 垫圈 16 Washer 7 GB/T93-1987
6 801100336 油杯 M10伊1 Oil Cup 9 JB/T7940.1-1995
7 251800308 动臂-车架销 Pin 2
8 805000716 螺栓 M12伊30 Bolt 8 GB/T 5783-2000
9 805300018 垫圈 12 Washer 16 GB/T93-1987
10 801100116 O 形圈 75伊3.1 O-Ring 1
11 250300136 法兰 Flange 1
12 805000681 螺栓 M12伊65 Bolt 8 GB/T5782-2000
13 800511238 关节轴承GE70ES-2RS Bearing 1 GB/T 9163-2001
14 250300138 下法兰盘 Flange 1
15 251804280 上铰接销 Upper Shaft Pin 1
16 252903800 安装板 Plate 1
17 252903801 螺栓 Bolt 1
18 805300048 垫圈 30 Lock Washer 1 GB/T93-1987
19 251400422 垫圈 Spacer 1
20 805000028 螺栓 M16伊50 Bolt 6 GB/T5783-2000
21 252900352 下衬套 Sleeve 1
22 252900353 下轴承盖 Lower Bearing Cover Pin 1
23 800500278 轴承 7517E Bearing 2 GB/T297-1994
24 805000217 螺栓 M16伊100 Bolt 8 GB/T5782-2000
25 251400267 调整垫片 Adjusting Washer 2
26 251400313 调整垫片 Adjusting Washer 2
27 251400314 调整垫片 Adjusting Washer 2
28 252900354 上轴承盖 Upper Bearing 1
29 803164083 密封圈B100伊125伊12 Seal Ring 2 GB/T9877.1-1988
30 252900355 上衬套 Upper Shaft Bushing 1

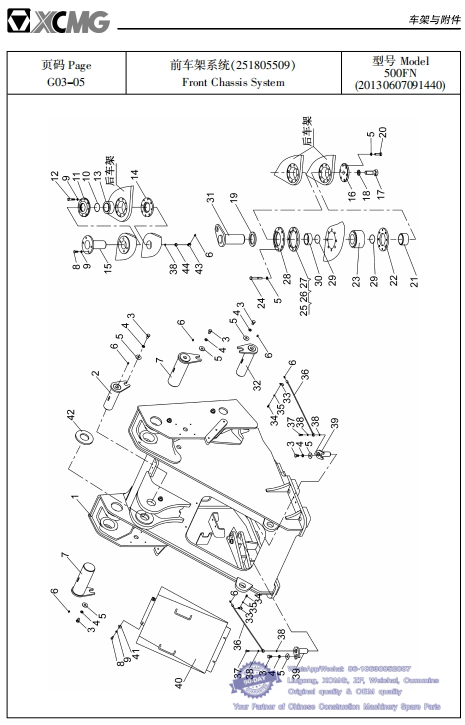

024 前车架系统251805509 型号 500FN (20130607091440)
Front Chassis System Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog

件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks

31 252903797 下铰接销 Pin 1
32 251800309 动臂缸-车架销 Pin 2
33 803604600 线卡 6600906-A1 Clamp 2
34 805000033 螺栓 M8伊16 Bolt 2 GB/T 5783-2000
35 805300010 垫圈 8 Washer 2 GB/T 93-1987
36 251804278 注油管 Left Injecting Pipe 2
37 250200189 通油螺栓 Bolt 2
38 805301409 垫圈 10 Washer 5 Q/SC1294-2000
39 251400276 转向销 Steering Pin 2
40 251805544 盖板 Cover 1
41 805300102 垫圈 10 Washer 4 GB/T 96.1-2002
42 269900193 调整垫片 Adjusting Washer 3
43 251804416 油杯弯头 Joint 1
44 805200165 锁紧螺母 M6 Nut 1 GB/T5649-1985
45 805000714 螺栓 M10伊20 Bolt 4 GB/T 5783-2000

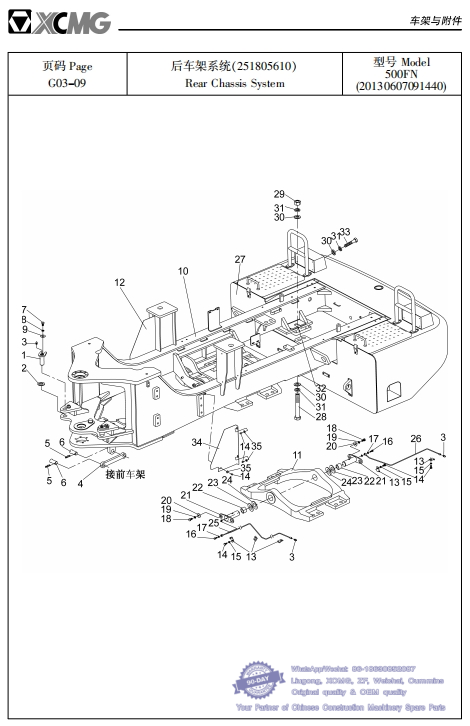

025 后车架系统251805610 型号 500FN (20130607091440)
Rear Chassis System Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog

件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks

1 251400276 转向销 Steering Pin 2
2 251901033 垫片 Shim 4
3 801100336 油杯 M10伊1 Oil Cup 4 JB/T7940.1-1995
4 251800380 连杆 Link 1
5 251500108 弹性挡簧 Elastic Spring 2
6 805601624 销轴 B32伊70 Pin 2
7 805000022 螺栓 M16伊25 Bolt 2 GB/T5783-2000
8 805300011 垫圈 16 Washer 2 GB/T93-1987
9 805300111 垫圈 16 Washer 2 GB/T96.1-2002
10 251805613 后车架 Rear Chassis 1
11 250200492 付车架 Assistant Frame 1
12 251806509 右侧板 Right Plate 1
13 803604600 线卡 6600906-A1 Clamp 5
14 805000033 螺栓 M8伊16 Bolt 9 GB/T 5783-2000
15 805300010 垫圈 8 Washer 3 GB/T 93-1987
16 250200189 通油螺栓 Bolt 2
17 805301409 垫圈 10 Washer 8 Q/SC1294-2000
18 805000699 螺栓 M14伊25 Bolt 4 GB/T5783-2000
19 805300033 垫圈 14 Washer 4
20 805300121 垫圈 14 Washer 4 GB/T96.1-2002
21 250200456 付车架销 Shaft Pin 2
22 250200493 套 Sleeve 2
23 250200178 铜垫 Washer 2
24 269900185 调整垫片 Adjusting Shim 8
25 251800601 注油管 Tube 1
26 251800602 注油管 Tube 1
27 251805369 配重(251805369) Counterweight 1
28 805002113 螺栓 M36伊3伊280 Bolt 2 GB/T5785-2000
29 805200124 螺母 M36伊3 Nut 2 GB/T6171-2000
30 805300047 垫圈 36 Washer 4 GB/T 97.1-2002
31 805300077 垫圈 36 Washer 4 GB/T 93-1987
32 251500140 调整垫片 Adjusting Washer 4
33 805002114 螺栓 M36伊3伊300 Bolt 2 GB/T5785-2000
34 251806510 左侧板 Left Plate 1
35 805300117 垫圈 8 Washer 6 GB/T96.1-2002

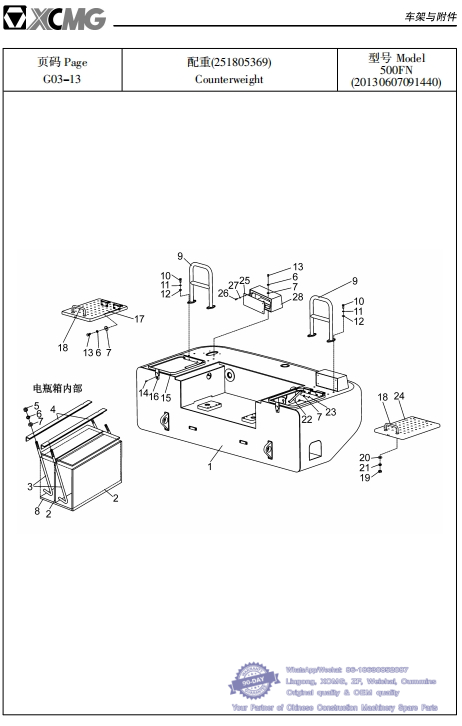

026 配重(251805369) 型号 500FN (20130607091440)
Counterweight Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog

件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks

1 251805370 配重体 Counterweight 1
2 252901232 隔板 Clap Board 6
3 252901443 拉丝 Connecting Rod 4
4 250900221 销紧角钢 Angle Iron 2
5 805200045 螺母 M8 Nut 4 GB/T6170-2002
6 805300010 垫圈 8 Washer 20 GB/T 93-1987
7 805300069 垫圈 8 Washer 24 GB/T 97.1-2002
8 250900225 垫板 Rubber 1
9 251806260 扶手 Armrest 2
10 805000716 螺栓 M12伊30 Bolt 8 GB/T 5783-2000
11 805300018 垫圈 12 Washer 4 GB/T93-1987
12 805300020 垫圈 12 Washer 8 GB/T97.1-2002
13 805000033 螺栓 M8伊16 Bolt 16 GB/T 5783-2000
14 805100266 螺钉 M4伊12 Screw 10
15 252904020 密封条 Sealing Strip 2
16 251804394 NBS1013 锁 Lock 2
17 252904972 右箱盖 Right Box Cover 1
18 252904970 扶手 Armrest 2
19 805200048 螺母 M10 Bolt 4 GB/T6170-2000
20 805300102 垫圈 10 Washer 4 GB/T 96.1-2002
21 805300014 垫圈 10 Washer 4 GB/T93-1987
22 252100434 撑杆 Support Rod 2
23 805600029 开口销 2伊25 Pin 2 GB/T91-2000
24 252904973 左箱盖 Left Box Cover 1
25 252100432 灯后盖板 Cover 2
26 805100056 螺钉 M5伊12 Bolt 8 GB/T67-2000
27 805300119 垫圈 5 Washer 8 GB/T97.1-2002
28 252100428 灯架 Bracket 2
