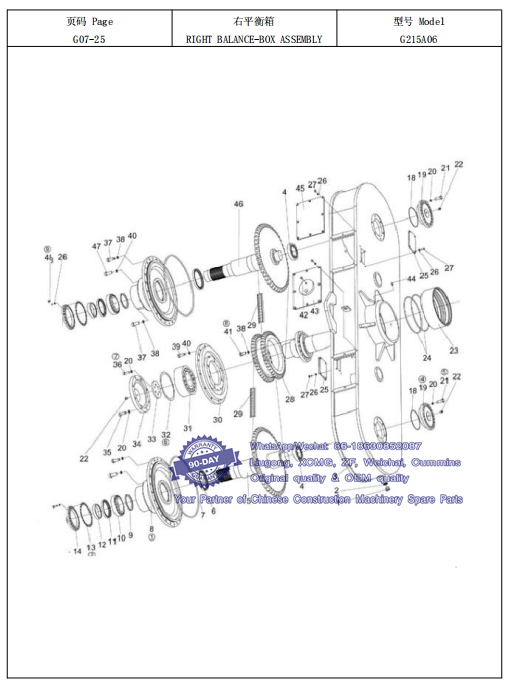

026 右平衡箱RIGHT BALANCE-BOX ASSEMBLY-- XCMG Motor Grader GR215A Spare Parts Catalogue

件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS

1 800107366 螺塞 M24X1.5 PLUG 3
2 800107355 组合密封垫 24 COMBINED SEAL WASHER 3
3 380903228 右平衡箱组件 RIGHT BALANCE-BOX ASSY. 1
4 800107332 轴承 33113 BEARING33113 2
5 800107298 链轮与轴组件 SPROCKET ASSY. 1  Whatsapp: 86-18630852087
6 800107333 油封 FB115*140*12 OIL SEAL 2
7 801138290 O 型密封圈 O-RING 2
8 800308341 连接盘 DISH 2
9 800308435 垫圈 WASHER 2
10 800107334 轴承 32018 BEARING32018 2
11 800107335 油封 FB100*125*12 OIL SEAL 2
12 800107336 隔套 SPACER 2
13 800107337 调整垫 SHIM 2
14 800107338 油封座 SEAT 2
18 800107340 O 型密封圈 135*3.1 O SEAL RING 2  Whatsapp: 86-18630852087
19 800141402 轴承座 BEARING SUPPORT 2
20 800308441 垫圈 12 WASHER 38
21 800308442 螺栓 M12X40 BOLT M12X40 24
22 800107359 油杯 M10X1 OIL CUP 6
23 800142093 支承套 SUPPORTING SLEEVE 1
24 800107341 O 型密封圈 260*5.7 O SEAL RING 2
25 800107365 盖 COVER 2
26 800308440 垫圈 8 WASHER 72
27 805046712 螺栓 M8X20 BOLT M8X20 24
28 800107297 双排链轮 SPROCKET WHEEL 1
29 800141432 滚子链 32BX1-54 ROLLER CHAIN 2
30 800107351 轴承座 BEARING SUPPORT 1
31 800107343 轴承 22319C BEARING 1
32 800107344 调整垫 SHIM 1
33 800107352 压板 PLATE 1
34 800107353 盖 COVER 1
35 800308443 螺栓 M12X35 BOLT M12X35 8
36 805046713 螺栓 M12X30 BOLT M12X30 6
37 800308445 螺钉 M16X40 SCREW M16X40 8  Whatsapp: 86-18630852087
38 800308446 垫圈 16 WASHER 60
39 800308447 螺栓 M14X1.5X40 BOLT M14X1.5X40 48
40 800308448 垫圈 14 WASHER 48
41 800308451 螺栓 M16X32 BOLT M16X32 18
42 800345911 通气塞 Z1/8″ BREATHER PLUG 3
43 800107347 盖组件 COVER 1
44 805139908 紧定螺钉 M6X16 FITTING SCREW 3
45 800107360 盖 COVER 1  Whatsapp: 86-18630852087
46 800107296 链轮与轴组件 SPROCKET ASSY. 1
47 800308449 螺钉 M16X50 SCREW M16X50 34
48 800308450 螺栓 M8X25 BOLT M8X25 48

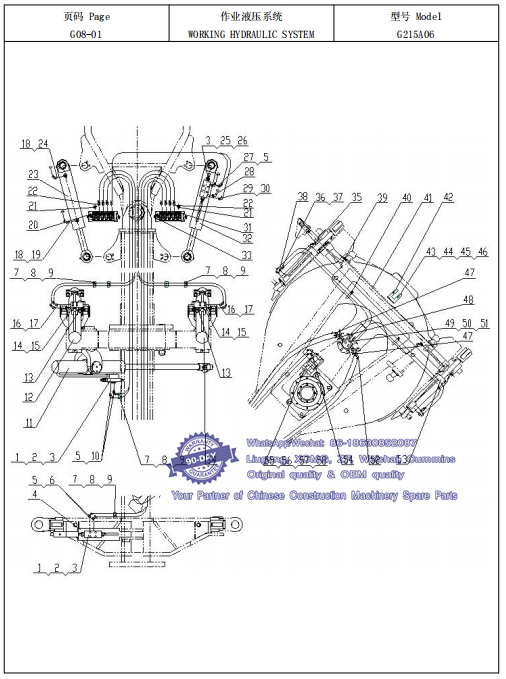

027 作业液压系统WORKING HYDRAULIC SYSTEM-- XCMG Motor Grader GR215A Spare Parts Catalogue

件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS

1 803011164 阀组 VALVE GROUP 3
2 805000021 螺栓 M8×50 BOLT M8×50 30  Whatsapp: 86-18630852087
3 805300010 GB/T93 垫圈 8 WASHER 30
4 803011060 前轮倾斜油缸 FRONT WHEEL TILT CYLINDER 1
5 803172004 直通接头 JOINT 7
6 803191165 胶管总成 HOSE ASS'Y 2
7 803190403 管夹 CLIP 14
8 805101740 螺钉 M6X20 SCREW 7
9 805200053 螺母 M6 NUT M6 7  Whatsapp: 86-18630852087
10 803191347 胶管总成 HOSE ASS'Y 2
11 803011061 铲刀摆动油缸 BLADE TILT CYLINDER 1
12 380900718 右铲刀升降油缸RIGHT BLADE HOIST CYLINDER 1
13 803192105 油口保护堵 OIL PLUG 4
14 803011165 提升阀组 LIFT VALVES 1
15 805300069 垫圈 8 WASHER 2
16 803190682 直通接头 JOINT 2
17 803191104 胶管总成 HOSE ASS'Y 4
18 803190517 直通接头 NIPPLE 11
19 803191525 胶管总成 HOSE ASS'Y 1
20 803011063 多路换向阀 VALVE ASS＇Y 1
21 803302263 螺塞 PLUG 4
22 803190779 直通接头 JOINT 16
23 380900707 右铰接转向油缸 RIGHT ARTICULATED STEERING CYLINDER 1
24 803191105 胶管总成 HOSE ASS'Y 1
25 803045151 平衡阀 BALANCE VALVE 1
26 805000075 螺栓 M8×55 BOLT 4
27 803191529 胶管总成 HOSE ASS'Y 1
28 803191530 铰接式组合接头 ARTICULATED UNION JOINT 1
29 803191811 铰接式组合接头ARTICULATED UNION JOINT 1
30 803191075 胶管总成 HOSE ASS'Y 1
31 803011064 多路换向阀 VALVE ASS＇Y 1  Whatsapp: 86-18630852087
32 380900709 左铰接转向油缸LEFT ARTICULATED STEERING CYLINDER 1
33 803192153 油口堵塞 PLUG 4
34 380900719 左铲刀升降油缸LEFT BLADE HOIST CYLINDER 1
35 803011147 铲土角变换油缸 BLADE ANGLE CHANGE CYLINDER 1
36 803190548 铰接式组合接头 ARTICULATED COMBINED UNION JOINT 2
37 803191403 胶管总成 HOSE ASS'Y 2
38 803191404 胶管总成 HOSE ASS'Y 2
39 803371269 胶管总成 HOSE ASSY 2  Whatsapp: 86-18630852087
40 803199332 卡套 60 COVER 2
41 803011016 引出油缸 BLADE OUTSTANDING CYLINDER 1
42 803270612 支架 BRACKET 1
43 805000028 螺栓 M16×50 BOLT M16X50 2
44 805203651 自锁螺母 M16 NUT 2
45 805302899 垫圈 16 WASHER 2
46 805300013 垫圈 16 WASHER 2
47 803192039 胶管总成 HOSE ASS'Y 2
48 803192038 胶管总成 HOSE ASS'Y 1
49 803190327 回转接头 ROTARY JOINT 1
50 805000715 螺栓 M12X25 BOLT 3
51 805300018 垫圈 12 WASHER 12 3
52 803192037 胶管总成 HOSE ASS'Y 4
53 380900706 左铲土角变换油缸 LEFT BLADE ANGLE CHANGE CYLINDER 1
54 803191351 胶管总成 HOSE ASS'Y 2
55 803010911 摆线马达 CYCLOIDAL MOTOR 1  Whatsapp: 86-18630852087
56 803192071 O 形密封 69X3.55 O SEAL RING 1
57 805100100 螺钉 M10×35 SCREW 2
58 805300014 垫圈 10 WASHER 10 2

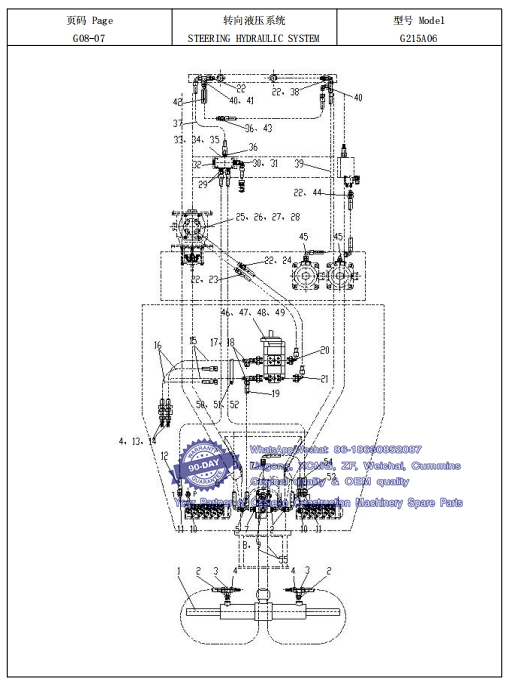

028 转向液压系统STEERING HYDRAULIC SYSTEM-- XCMG Motor Grader GR215A Spare Parts Catalogue

件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS

1 380900708 前轮转向油缸 FRONT WHEEL STEERING CYLINDER 1
2 803190517 直通接头 NIPPLE 4
3 803190777 三通组合接头 TRIPLE UNION JOINT 2
4 803190781 测压接头 PRESSURE MEASURE JOINT 2  Whatsapp: 86-18630852087
5 803172004 直通接头 JOINT 1
6 803304138 胶管总成 HOSE ASS'Y 1
7 803190768 直通接头 JOINT 2
8 803011053 转向器 REDIRECTOR 1
9 803010963 优先阀 PRIORITY VALVE 1
10 803172003 直通接头 JOINT 2
11 803172023 端直通接头 STRAIGHT ADVANCING JOINT 2  Whatsapp: 86-18630852087
12 803198264 胶管总成 HOSE ASS'Y 1
13 803173426 过壁接头 JOINT 4
14 803131880 测压接头 PRESSURE MEASURE JOINT 2
15 803198195 测压软管总成 PRESSURE MEASURE HOSE ASS'Y 2
16 803191856 测压线 PRESSURE MEASURE LINE 2
17 803191083 直通法兰组合接头 STRAIGHT ADVANCING FLANGE UNION JOINT 2
18 860100843 三通组合接头 TRIPLE UNION JOINT 2
19 803198197 胶管总成 HOSE ASS'Y 1
20 803190858 分离式法兰组件 PORTABLE FLANGE ASS'Y 1
21 803190997 分离式法兰组件 PORTABLE FLANGE ASS'Y 1
22 803190687 直通接头 JOINT 7
23 803191182 胶管总成 HOSE ASS'Y 1
24 803191183 胶管总成 HOSE ASS'Y 1
25 380901193 吸油过渡法兰 SUCTION OIL TRANSITION FLANGE 1
26 803192150 O 形密封圈 106×3.55 O SEAL RING 1
27 805100298 螺钉 M16×45 SCREW 4
28 805300011 垫圈 16 WASHER 16 4
29 803190778 直通接头 JOINT 2
30 803190682 直通接头 JOINT 1
31 803190692 直角组合接头 RIGHT ANGLE UNION JOINT 1  Whatsapp: 86-18630852087
32 803163470 堵头 PLUG 1
33 380700274 回油阀块 OVERFLOW VALVE 1
34 805000656 螺栓 M8X65 BLOT M8X65 4
35 860101055 垫圈 8 WASHER 4
36 803173414 直通接头 JOINT 2
37 803304151 胶管总成 HOSE ASS'Y 1
38 803172014 直角组合接头RIGHT ANGLE UNION JOINT 2
39 803191269 胶管总成 HOSE ASS'Y 1
40 803191468 三通组合接头 TRIPLE UNION JOINT 2
41 803166760 接头 NIPPLE 1
42 803190331 单向阀 CHECK VALVE 1
43 803300495 胶管总成 HOSE ASS'Y 1
44 803191270 胶管总成 HOSE ASSEMBLY 1
45 803191003 直通接头 JOINT 1
46 803011197 双联齿轮泵 DUPLICATE GEAR PUMP 1
47 380300729 纸垫 WASHER 1
48 805000103 螺栓 M14X35 BLOT 2
49 805300033 垫圈 14 WASHER 2
50 803199327 卡套 20 COVER 2
51 805000017 螺栓 M8×25 BOLT M8X25 2  Whatsapp: 86-18630852087
52 805200045 GB/T6170 螺母 M8 NUT 2
53 803304045 胶管总成 HOSE ASS'Y 1
54 803198198 胶管总成 HOSE ASS'Y 1
55 803190824 胶管总成 HOSE ASS'Y 2

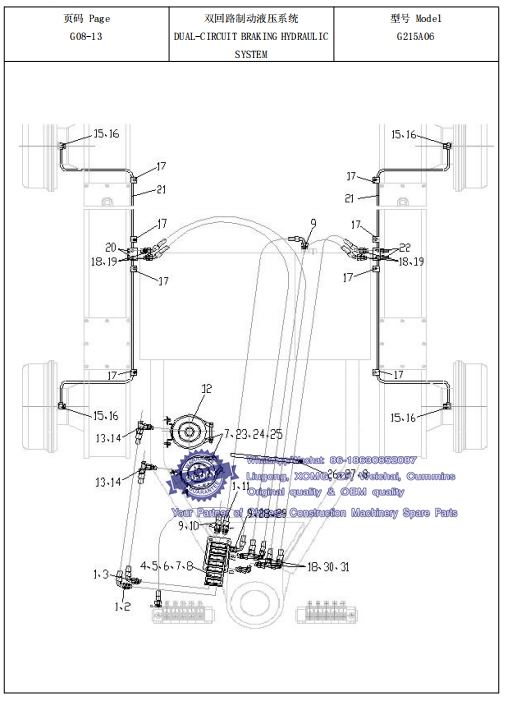

029 双回路制动液压系统DUAL-CIRCUIT BRAKING HYDRAULIC SYSTEM-- XCMG Motor Grader GR215A Spare Parts Catalogue

件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS

1 803190717 直通接头 JOINT 3
2 803191497 胶管总成 HOSE ASS'Y 1
3 803191421 胶管总成 HOSE ASS'Y 1
4 803010412 制动阀 BRAKE VALVE 1  Whatsapp: 86-18630852087
5 380700282 压板 PLATE 1
6 805000089 螺栓 M8X35 BOLT 4
7 805300010 GB/T93 垫圈 8 WASHER 12
8 805200045 GB/T6170 螺母 M8 NUT 5
9 803601023 直通接头 JOINT 3
10 803198198 胶管总成 HOSE ASS'Y 1
11 803198265 胶管总成 HOSE ASS'Y 1
12 803202752 蓄能器 ACCUMULATOR 2  Whatsapp: 86-18630852087
13 803191014 直通接头 JOINT 2
14 803190777 三通组合接头 TRIPLE UNION JOINT 2
15 805009809 螺栓 M14X1.5X32 BLOT M14X1.5X32 4
16 805300024 垫圈 14 WASHER 8
17 803190339 管夹 CLIP 8
18 803190674 直通接头 JOINT 6
19 803191070 胶管总成 HOSE ASS'Y 4
20 803192111 油口堵塞 PLUG 3
21 380901085 金属管总成 METAL TUBE ASS'Y 2  Whatsapp: 86-18630852087
22 803190557 测压接头PRESSURE MEASURE JOINT 2
23 805000033 螺栓 M8×16 BOLT M8×16 8
24 805300069 垫圈 8 WASHER 8
25 801907073 蓄能器紧固箍 ACCUMULATOR CLAMP 4
26 803199334 卡套Φ102 CLAMP 1
27 805000017 螺栓 M8×25 BOLT M8X25 1  Whatsapp: 86-18630852087
28 803300425 胶管总成 HOSE ASS'Y 1
29 803190692 直角组合接头 RIGHT ANGLE UNION JOINT 1
30 803190764 三通组合接头 TRIPLE UNION JOINT 2
31 803190761 LH10L 直角组合接头 NIPPLE 3

030 前轮驱动液压系统FRONT-WHEEL DRIVE HYDRAULIC SYSTEM-- XCMG Motor Grader GR215A Spare Parts Catalogue

件号 部件号 零件名称 数量 备注
ITEM PART NO. PART NAME Q'TY REMARKS

1 803191065 直通接头 JOINT 2
2 803191161 胶管总成 HOSE ASS'Y 2
3 803190711 直通接头 JOINT 2  Whatsapp: 86-18630852087
4 803191034 胶管总成 HOSE ASS'Y 2
5 803010458 马达 MOTOR 2
6 803190675 直通接头 JOINT 2
7 803191030 胶管总成 HOSE ASS'Y 2
8 803191004 直通法兰组合接头 STRAIGHT ADVANCING FLANGE UNION JOINT 4
9 803190732 直角组合接头 RIGHT ANGLE UNION JOINT 4
10 803303549 胶管总成 HOSE ASS'Y 2
11 803303550 胶管总成 HOSE ASS'Y 2
12 803190420 接头 NIPPLE 4  Whatsapp: 86-18630852087
13 803190737 三通组合接头 TRIPLE UNION JOINT 3
14 803130485 测压接头 PRESSURE MEASURE JOINT 3
15 803191164 胶管总成 HOSE ASS'Y 2
16 803166758 直通接头 JOINT 3
17 803191167 胶管总成 HOSE ASS'Y 2
18 803010993 马达控制阀组 MOTOR CONTROL VALVES 1
19 805100048 螺钉 M8X45 SCREW 8
20 805300010 GB/T93 垫圈 8 WASHER 20
21 803191180 胶管总成 HOSE ASS'Y 1
22 803191168 胶管总成 HOSE ASS'Y 1
23 803191001 直通接头 JOINT 2
24 803190693 直角组合接头 RIGHT ANGLE UNION JOINT 3
25 803303551 胶管总成 HOSE ASS'Y 1
26 803190386 滤油器 OIL STRAINER 1
27 805000043 螺栓 M10×30 BOLT M10×30 4
28 805300014 垫圈 10 WASHER 10 4
29 803191276 胶管总成 HOSE ASS'Y 1
30 803190999 直通接头 JOINT 1
31 803191273 胶管总成 HOSE ASS'Y 1
32 803190688 直通接头 JOINT 2
33 803191274 胶管总成 HOSE ASS'Y 2
34 380901199 吸油过渡块 OIL SUCTION BLOCK 1
35 803010551 泵 PUMP 1
36 805009814 螺栓 M14X90 BLOT M14X90 4  Whatsapp: 86-18630852087
37 805300033 垫圈 14 WASHER 4
38 805300144 垫圈 14 WASHER 4
39 805200067 螺母 M14 NUT 4
40 803191005 直通法兰组合头STRAIGHT ADVANCING FLANGE UNION JOINT 1
41 803164300 直通接头 JOINT 1
42 803191275 胶管总成 HOSE ASS'Y 1
43 803010994 比例阀组 PROPORTIONAL VALVES 1
44 805000075 螺栓 M8×55 BOLT 4
46 803190557 测压接头 PRESSURE MEASURE JOINT 1
47 803010992 回油背压阀组 OVERFLOW BACK PRESSURE VALVES 1
48 803190685 指示灯 INDICATOR LIGHT 1
49 803303552 胶管总成 HOSE ASS'Y 1
50 803190517 直通接头 NIPPLE 2
51 803601023 直通接头 JOINT 1
52 803190692 直角组合接头RIGHT ANGLE UNION JOINT 1
53 803190712 直通接头 JOINT 2
54 803191178 胶管总成 HOSE ASS'Y 1
55 803010504 多路阀 MULTILOOP VALVE 1
56 805000017 螺栓 M8×25 BOLT M8X25 6
57 805000021 螺栓 M8×50 BOLT M8×50 2  Whatsapp: 86-18630852087
58 803190725 直通接头 JOINT 1
59 803190788 直通接头 JOINT 1
60 803190758 直通接头 JOINT 2
61 803191102 直通接头 JOINT 2
62 803199333 卡套Φ74 CLAMP 1
64 805200045 GB/T6170 螺母 M8 NUT 2
65 803190736 四通接头 UNION JOINT 1
66 803191006 四通接头 UNION JOINT 1
67 803191036 三通接头 TEE JOINT 1
68 822102932 护套 L＝4M JACKET 2  Whatsapp: 86-18630852087
69 803191014 直通接头 JOINT 1
70 803190777 三通组合接头 TRIPLE UNION JOINT 1
71 803131879 测压接头 PRESSURE MEASURE JOINT 1
72 803191159 胶管总成 HOSE ASS'Y 2
73 803191038 直通接头 JOINT 1
74 801907073 蓄能器紧固箍 ACCUMULATOR CLAMP 2
75 803202743 蓄能器 ACCUMULATOR 1  Whatsapp: 86-18630852087
