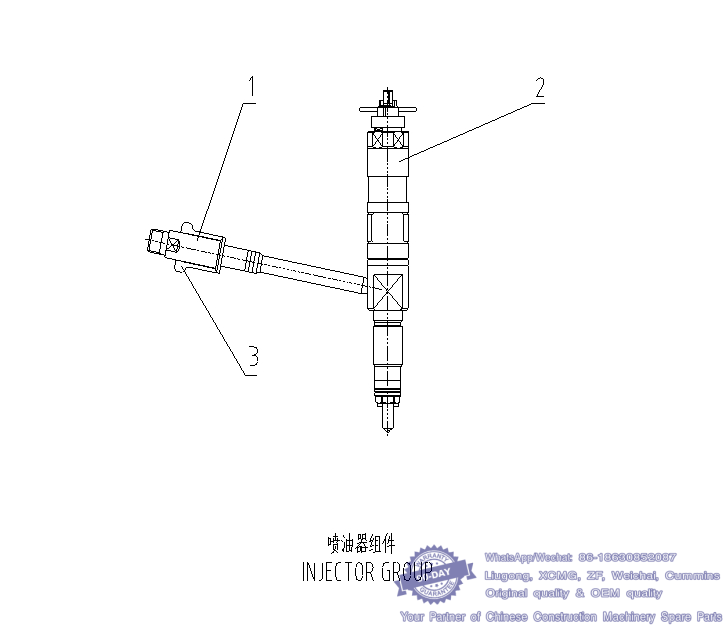

026 喷油器组件 INJECTOR GROUP S00009756+01-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 喷油器连接接头 INJECTOR CONNECTOR S00009178+01
2 喷油器部件 INJECTOR ASSY S00009158+01
3 压紧螺母 NUT D28-106-900+A whatsapp 86-18630852087

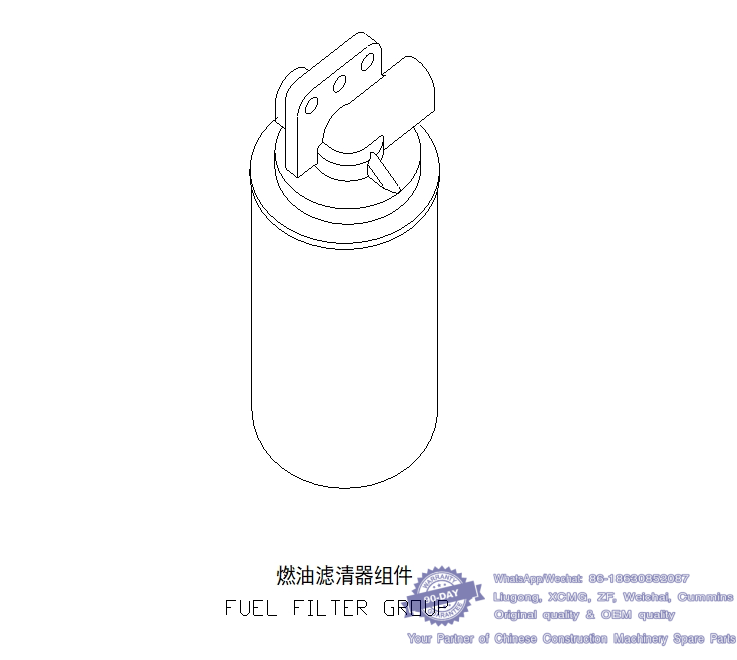

027 燃油滤清器组件 FUEL FILTER GROUP S00008901+01
-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 燃油滤清器组件 FUEL FILTER GROUP S00008901+01 whatsapp 86-18630852087

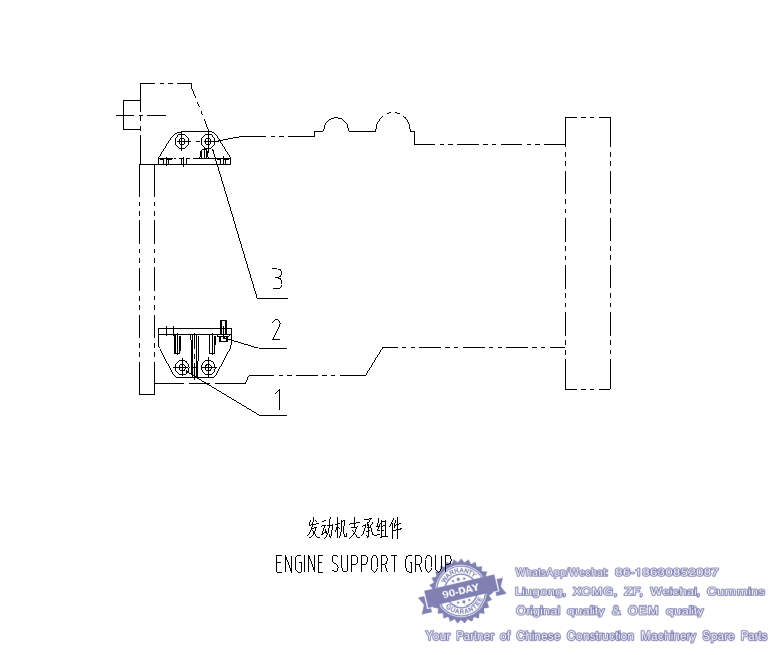

028 发动机支承组件 ENGINE SUPPORT GROUP S00008908+02
-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 左前支承焊接部件 LEFT FRONT ENGINE SUPPORT ASSY (WELDED) S00012758+01
2 Q/SC622-M12*30: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002050 whatsapp 86-18630852087
3 右前支承焊接部件 RIGHT FRONT ENGINE SUPPORT ASSY (WELDED) S00012752+01

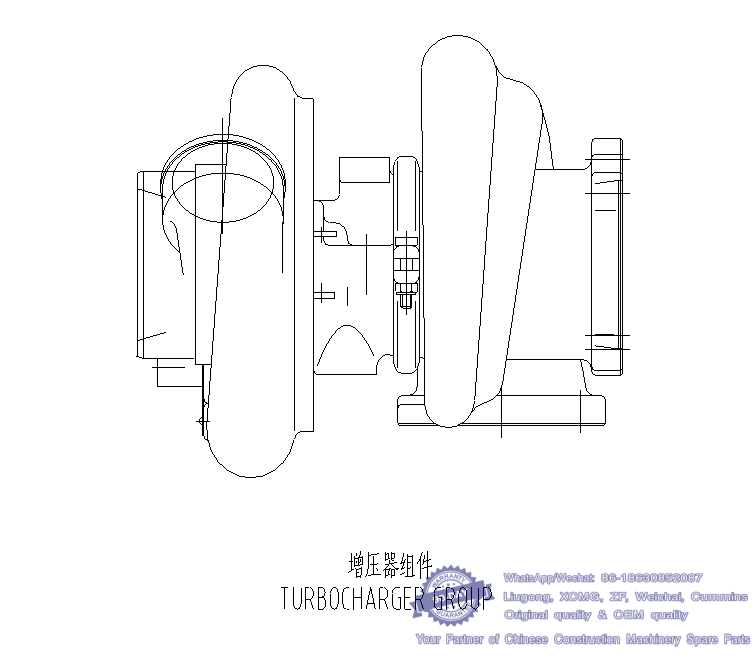

029 增压器部件 TURBOCHARGER ASSY S00008689+02
-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 增压器部件 TURBOCHARGER ASSY S00008689+02 whatsapp 86-18630852087

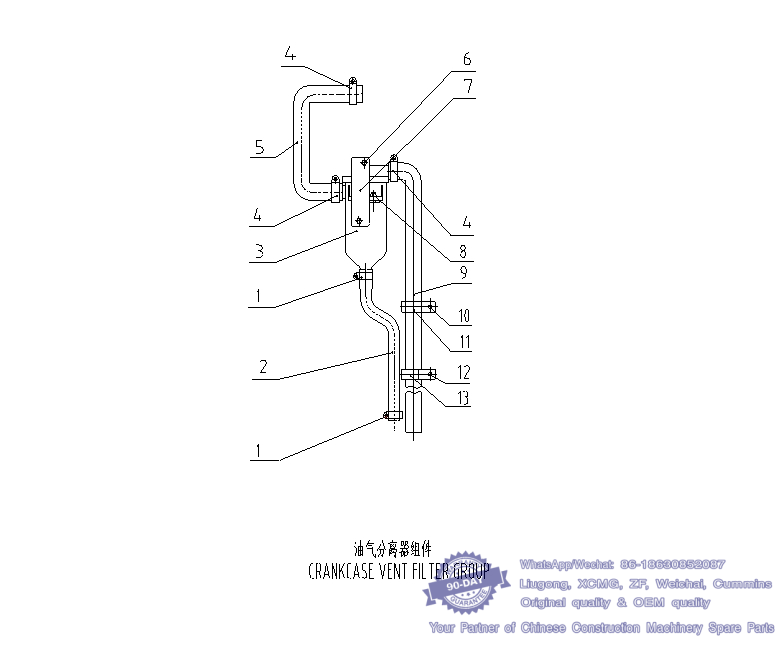

030 油气分离器组件 CRANKCASE VENT FILTER GROUP S00008900+01
-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 Q/SC1302-16~25: 喉箍 CLAMP B00001563
2 油气分离器回油管 OIL RETURN PIPE, CRANKCASE VENT FILTER S00008370+02
3 油气分离器部件 CRANKCASE VENT FILTER ASSY D42-001-30A+C
4 Q/SC1302-21~38: 喉箍 CLAMP B00001567 whatsapp 86-18630852087
5 油气分离器进气管 MIST INLET PIPE, CRANKCASE VENT FILTER S00008323+02
6 Q/SC622-M12*25: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002047
7 油气分离器支架 BRACKET, CRANKCASE VENT FILTER S00008844+01
8 Q/SC622-M6*25:六角法兰面螺栓 HEXAGON BOLTS B00002120
9 油气分离器出气管 AIR OUTLET PIPE, CRANKCASE VENT FILTER D42-500-01+A
10 Q/SC622-M8*20:六角法兰面螺栓 HEXAGON BOLTS B00002134
11 夹箍 CLAMP D42-107-31+B whatsapp 86-18630852087
12 Q/SC622-M10*20:六角法兰面螺栓 HEXAGON BOLTS B00001996
13 夹箍 CLAMP D24B-114-01+A
