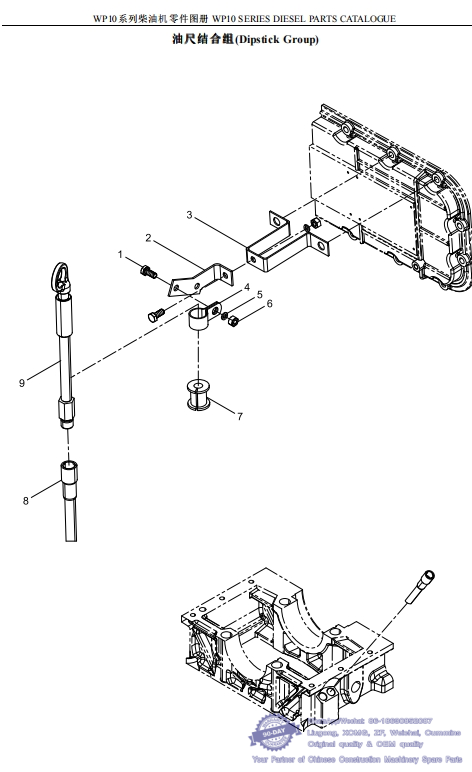

026 油尺结合组(Dipstick Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 90011350004 2 六角头螺栓 Hexagon bolt whatsapp 86-18630852087
2 612600010435 1 连接板 Connecting plate
3 612600010521 1 支架 Bracket
4 612600010647 1 单管夹片 Pipe clip
5 90014040006 2 平垫圈 Flat washer
6 90003871232 2 1型六角螺母 Hexagon nut (I) whatsapp 86-18630852087
7 612600010638 1 橡胶管箍 Rubber clip
8 612600012691 1 油标尺总成 Oil dipstick assembly
9 612600012639 1 油尺管下组件 Oil dipstick tube assembly (lower) whatsapp 86-18630852087

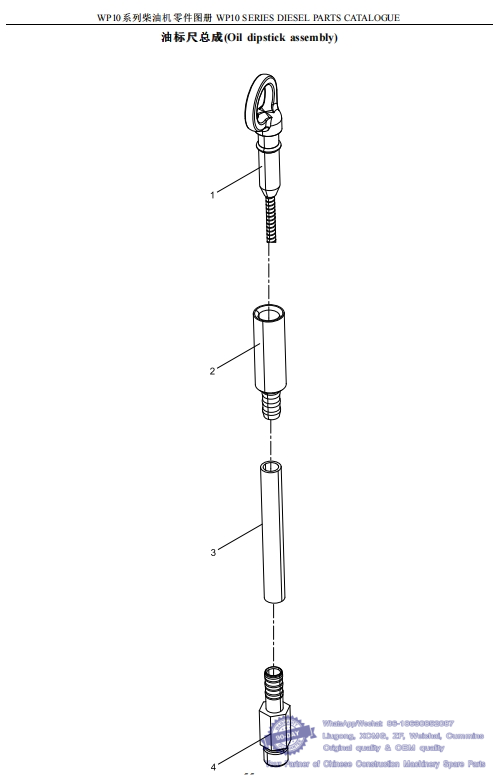

027 油标尺总成(Oil dipstick assembly)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 612600012044 1 油标尺 Dipstick whatsapp 86-18630852087
2 612600012057 1 油尺管头 Oil dipstick tube
3 612600012666 1 油尺管 Dipstick tube
4 612600012635 1 螺纹连接管 Thread Connector Pip whatsapp 86-18630852087

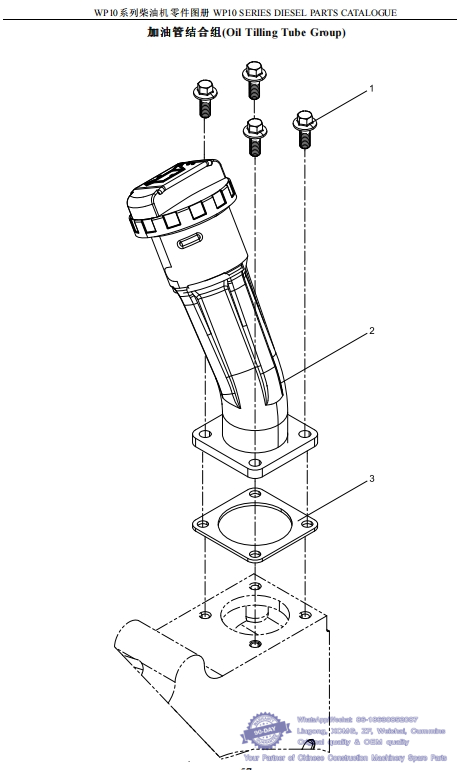

028 加油管结合组(Oil Tilling Tube Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 90011430015 4 六角法兰面承面带齿螺栓 Hexagon Flange Bolt whatsapp 86-18630852087
2 612600015335 1 加机油管组件 Oil filling pipe assembly
3 614010086 1 垫片 Gasket whatsapp 86-18630852087

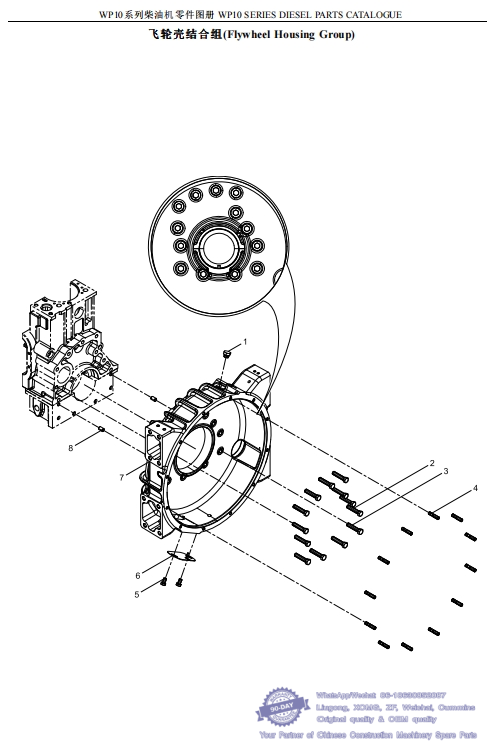

029 飞轮壳结合组(Flywheel Housing Group)-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 90003962030 1 六角螺塞 Hexagon plug
2 61500010062 7 飞轮壳螺栓 Flywheel housing bolt whatsapp 86-18630852087
3 61500010101 6 飞轮壳螺栓 Flywheel housing bolt
4 90003813537 12 双头螺柱 Stud
5 90003802511 2 六角头螺栓 Hexagon bolt
6 612630030066 1 观察孔盖板 Inspection window cover
7 612600013611 1 飞轮壳 Flywheel housing
8 90003901604 2 圆柱销 Straight pin whatsapp 86-18630852087

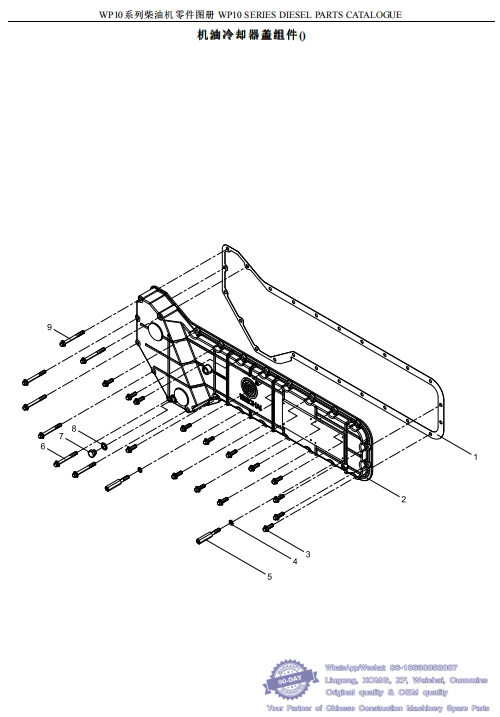

030 机油冷却器盖组件()-- Weichai Diesel Engine WP10.270-E3 Spare Parts Catalog
图序号 件号 数量 中文名称 英文名称
Pos. Teile.Number Amount Denomination Designation
1 614010084B 1 机油冷却器盖垫片 Oil cooler cover gasket whatsapp 86-18630852087
2 614010083B 1 机油冷却器盖 Oil cooler cover
3 90011410003 15 六角法兰面螺栓 Hexagon Flange Bolt
4 90003932023 2 波形弹性垫圈 Wave spiral washer
5 612600010626 2 支撑块 Supporting plate
6 90011410009 5 六角法兰面螺栓 Hexagon Flange Bolt whatsapp 86-18630852087
7 90003962020 1 六角螺塞 Hexagon plug
8 612600080200 1 密封垫圈 Seal washer
9 90011410010 2 六角法兰面螺栓 Hexagon Flange Bolt whatsapp 86-18630852087
