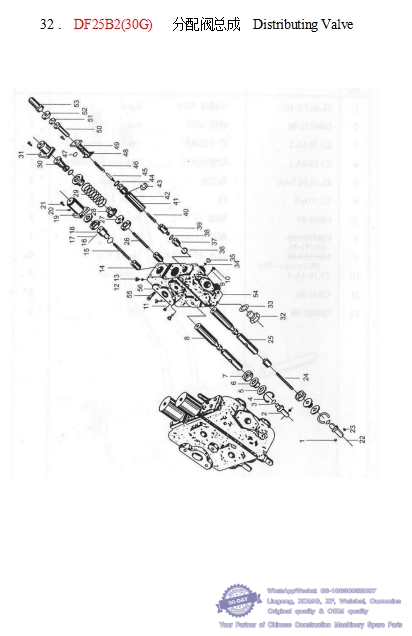

026 32 . DF25B2(30G) 分配阀总成 Distributing Valve-- XCMG Wheel Loader LW300F Parts Catalog

序号 零件代号 名 称 数量
Sr. No. Part No. Part Description Q’ty

1 GB882-86 销轴 A12f9×35 Pin Shaft 2
2 弹簧座 Spring Seat 2
3 GB1235-76 O 形密封圈 28×3.1 O-Ring 4
4 挡圈 Snap Ring 2
5 防尘圈 Dust Proof Ring 2
6 GB1235-76 O 形密封圈 40×3.5 O-Ring 2
7 SG35×56×12 骨架油封 Skeleton Oil Seal 4
8 HG4-692-67 动臂滑阀 Slide Valve 1
9 GB1235-76 O 形密封圈 16×2.4 O-Ring 1
10 螺塞 Screw Plug 1
11 GB5782-86 螺栓 M12×115 Bolt 2
12 螺塞 Screw Plug 3
13 GB1235-76 O 形密封圈 24×2.4 O-Ring 3
14 单向阀 Single Direction Valve 3
15 弹簧 Spring 1
16 钢球 7/16″ Steel Ball 2
17 GB308-64 弹簧 Spring 1
18 弹簧座 Spring Seat 1
19 定位套筒 Position Sleeve 1
20 GB93-87 垫圈 8 Washer 12
21 GB5780-86 螺栓 M8×25 Bolt 12
22 GB91-86 开口销 2×20 Pin 2
23 GB97.1-85 垫圈 12 Washer 2
24 弹簧 Spring 1
25 转斗滑阀 Tilt Plunger 1
26 弹簧 Spring 1
27 垫板 Washer 2
28 弹簧压座 Spring Gland Seat 2
29 回位弹簧 Return Spring 1
30 弹簧座 Spring Seat 1
31 端盖 End Cover 1
32 螺塞 Screw Plug 2
33 GB1235-76 O 形密封圈 40×3.1 O-Ring 3
34 螺塞 Screw Plug 3
35 GB41-86 螺母 M12 Nut 4
36 GB895-67 挡圈 20 Snap Ring 1
37 回油阀芯 Outlet Valve Stem 1
38 GB1235-76 O 形密封圈 20×2.4 O-Ring 1
39 柱塞阀芯 Valve core 1
40 弹簧 Spring 1
41 圆柱销 Column Pin 1
42 安全阀套 Safety Valve Sleeve 1
43 弹簧 Spring 1
44 GB1235-76 O 形密封圈 24×2.4 O-Ring 1
45 调整阀芯 Adjustable Valve Core 1
46 阀座 Valve Seat 1
47 JB982-77 O 形密封圈 32×3.1 O-Ring 1
48 垫圈 12 Shim 2
49 压盖 Pressing Cover 1
50 调整丝杆 Adjusting Screw 1
51 螺母 Nut 1
52 垫圈 Washer 2
53 锁紧螺母 Lock Nut 1
54 阀体 Valve Body 1
55 螺栓 Bolt 4
56 GB1235-76 O 形密封圈 50×3.1 O-Ring 1

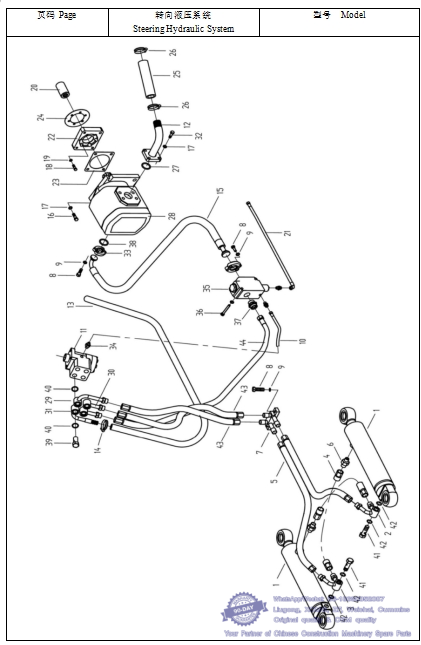

027 转向液压系统Steering Hydraulic System-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
St.No. | Part No. | Part Description | Q'ty | Remark

1 | 9301344 | 转向油缸 | Shearing Cylinder | 2
2 | 9343929 | 三通油管(左) | Tse(L) | 1
3 | 9343928 | 三通油管(右) | Tse(R) | 1
4 | 9345119 | 胶管总成 | Hose | 3
5 | 9345122 | 胶管总成 | Hose | 3
6 | 5003030 | 接头 | Joint | 2
7 | 9345125 | 接头体 | Tube | 1
8 | 4005054 | 螺栓 M10x30 | Bolt | 6 | GB5783-86
9 | 4404008 | 垫圈 10 | Washer | 8 | GB93-87
10 | 9364961 | 软管总成 | Hose | 1
11 | 5005156 | 转向器 | Radirector | 1
12 | 9364964 | 深油油管 | Steel Tube | 1
13 | 9366013 | 低压软管 | Hose | 1
14 | 4A05024 | 双钢丝环绕 28.32 | Clamp | 2 | IB3616.1-1984
15 | 9364963 | 软管总成 | Hose | 1
16 | 4004042 | 螺栓 M12x55 | Bolt | 4 | GB5782-86
17 | 4401009 | 垫圈 12 | Washer | 8 | GB93-87
18 | 4204080 | 螺钉 M8x20 | Bolt | 12 | GB70-85
19 | 4401007 | 垫圈 8 | Washer | 12 | GB93-87
20 | 9364966 | 联接套 | Joint Tube | 1
21 | 9365615 | 软管总成 | Hose | 1
22 | 9364967 | 接盘 | Flange | 1
23 | 5002507 | 纸垫 | Washer | 2
24 | 9301258 | 纸垫 | Washer | 1
25 | 9301257 | 低压软管 | Hose | 1
26 | 4A5007 | 双钢丝环绕 50.55 | Clamp | 2 | IB3616.1-1984
27 | 4827040 | O形密封圈 25.35 | O-ring | 1 | GB3452.1-1992
28 | 5006087 | 工作泵 | Pump | 1
29 | 9348657 | 油管总成 | Tube | 1
30 | 9337972 | 油管总成 | Tube | 1
31 | 9348659 | 油管总成 | Tube | 2
32 | H005068 | 螺栓 M12x35 | Bolt | 4 | GB5783-86
33 | 5003025 | 法兰组件 | Flange | 2 | FPS 1 1/4
34 | 5003031 | 接头 | Joint | 4
35 | 5001898 | 优先型流量控制阀 | Flow Amplifier valve | 1
36 | 4004038 | 螺栓 M10X90 | Bolt | 2 | GB5782-86
37 | 5005155 | 接头 | Joint | 1
38 | 4830005 | D 型圈 37.69X3.53 | O-ring | 2
39 | 9301374 | 胶接螺栓 | Bolt | 4
40 | 4829005 | 垫圈 20 | Washer | 8 | QSG1294-2000
41 | 9301348 | 胶接螺栓 | Bolt | 2
42 | 4829004 | 垫圈 18 | Washer | 4 | QSG1294-2000
43 | 9366625 | 软管总成 | Hose | 2
44 | 9366617 | 软管总成 | Hose | 1

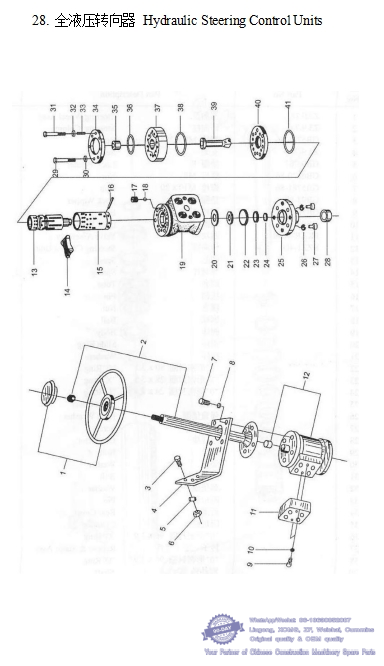

028 28. 全液压转向器 Hydraulic Steering Control Units-- XCMG Wheel Loader LW300F Parts Catalog

序号 Sr.No. 零件目录 Part No. 名 Part 称 Description 数量 Q’ty

1 Z3.9.18 方向盘 Steering Wheel 1
2 Z3.9.7 转向柱 Steering Column 1
3 GB5781-86 螺栓 M8×25 Bolt 3
4 Z3.9.2A 支架 Bracket 1
5 GB93-87 垫圈 8 Lock Washer 3
6 GB6170-86 螺母 Nut 3
7 GB5781-86 螺栓 M10×30 Bolt 4
8 GB93-87 垫圈 10 Lock Washer 4
9 GB70-85 螺栓 M12×50 Bolt 2
10 GB93-87 垫圈 12 Lock Washer 2
11 FKAR-103015 阀块 Valve Block 1
12 BZZ1-400 转向器 Steering Control Unit 1
13 阀芯 Spool 1
14 弹簧片 Spring Slice 1(组)
15 阀套 Valve Sleeve 1
16 拨销 Pin 1
17 螺套 Screw Sleeve
18 钢球 Steel Ball
19 阀体 Valve Body 1
20 滑环 Slide Ring 1
21 挡环 Washer 1
22 O 形密封圈 50×3.1 O-Ring 1
23 X 形密封圈 28×3.5 X-Ring 1
24 O 形密封圈 24×2.4 O-Ring 1
25 前盖 Front Cover 1
26 弹簧垫圈 Lock Washer 4
27 螺钉 Screw 4
28 连接块 Connector 1
29 螺栓 Bolt 7
30 垫圈 Lock Washer 7
31 限位螺栓 Bolt 1
32 铜垫圈 Copper Washer 1
33 限位销 Limit Pin 1
34 后盖 Rear Cover 1
35 限位柱 Limit Stud 1
36 O 形密封圈 96×1.9 O-Ring 1
37 转子、定子组件 Rotator & Stator 1
38 O 形密封圈 96×1.9 O-Ring 1
39 联动轴 Link Shaft 1
40 隔盘 Plate 1
41 O 形密封圈 90×3.1 O-Ring 1

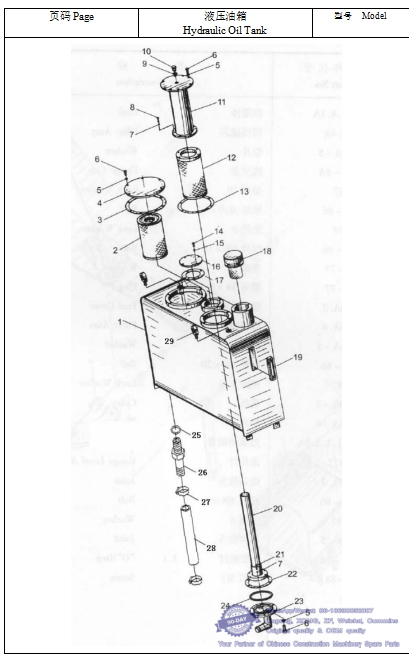

029 液压油箱Hydraulic Oil Tank-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
SxNo. | Part No. | Part Description | Qty | Remark

1 | 9364933 | 西铜华 | Pank | 1
2 | 9306448 | 西油经石 | Filler | 1
3 | 9319530 | 延片 | Wraher | 1
4 | 9204025 | 张昌10 | Flange | 22 | GB93-87
6 | 4401008 | 磁垫M10×25 | Bolt | 18 | GB5783-86
7 | 4005033 | 延函6 | LockWraher | 12 | GB93-87
8 | 4401008 | 磁垫M6×18 | Bolt | 6 | GB5783-86
9 | 4005312 | 延函14 | Wraher | 1 | JB1102-77
10 | 4839002 | 磁垫M16+15 | Plug | 1 | JB1000-77
11 | 4814004 | 欧油集成 | Cover | 1
12 | 9309154 | 欧油经石 | Filler | 1
13 | 9309192 | 延片 | Wraher | 1
14 | 9309170 | 磁垫M8×20 | Bolt | 4 | GB5783-86
15 | 4005000 | 延函8 | Wraher | 1 | GB93-87
16 | 4401007 | 延函 | Cover | 1
17 | 9318088 | 延片 | Wraher | 1
18 | 9318071 | 加油器油器 | DilFiller |
19 | 5002151 | 硬位计 | LevelGauge |
20 | 5000093 | 欧油装头 | Point |
21 | 9309188 | 磁垫M6×30 | Bolt | 6 | GB5783-86
22 | 4005022 | 延函6 | Wraher | 12 | GB93-87
23 | 4401008 | 张兰装头 | Flange Joint |
24 | 9349597 | O形密封圈115×355 | D-drug | 1 | GB3452.1-1992
25 | 4827045 | 延函27 | Wraher | 1 | QSCI294-2000
26 | 9349542 | 张头 | Point | 1 | JB316.1-1984
27 | 4A03024 | 双侧丝环缝25-32 | Clamp |
28 | 9349798 | 低压软管 | Flow |
29 | 4213004 | 螺钉MI6 | Bolt | 2 | GB825-88

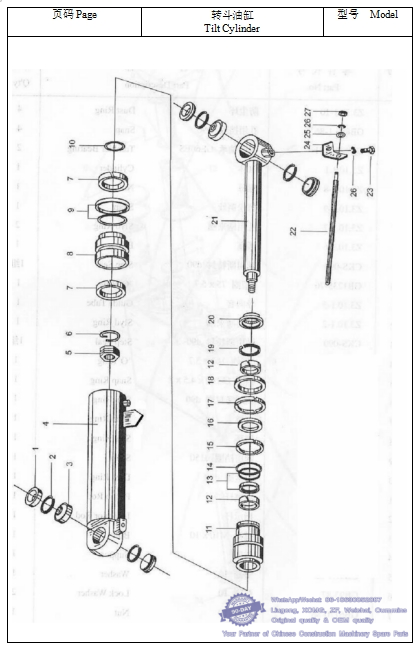

030 转斗油缸 Tilt Cylinder-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
SxNo. | Part No. | Part Description | Q'ty | Remark

1 | 9302666 | 轴用油箱 (d15) | Snap Ring Cover | 1 | GB894-1-86
2 | 9302667 | 轴承 | Snap Ring | 1 |
3 | 9302667 | 卡链 | Snap Ring Cover | 1 |
4 | 9302668 | O形密封圈 160X3.7 | O-drag | 1 | GB1235-76
5 | 9302668 | 油箱 | Snap Ring Cover | 1 |
6 | 9302669 | 防油箱 (d90) | Seal Ring | 1 | CK-090
7 | 9302669 | U形阀 90X10X11.4 | U-drag | 1 | B3900JF95008
8 | 9302669 | 轴用润滑油 95X25X34 | Supporting Ring | 2 |
9 | 931242 | 滑轮盘 (d30) | Ring | 1 | CKS-d90
10 | 931242 | 导向套 | Guide Skews | 1 |
11 | 971002 | 配件 | Cylinder Body | 1 |
12 | 971002 | 弹簧防油箱 | Seal Ring | 4 | 900+390B0-03
13 | 971002 | 孔用油箱 D90 | Snap Ring | 4 | GB893-1-86
14 | 4710016 | 关节轴承 GB60ES | Bearing | 2 | GB304-5-81
15 | 9320672 | 螺母 | Nut | 1 |
16 | 9320670 | 活塞 | Piston | 1 |
17 | 9320671 | 孔用润滑油 160X3.2X14.7 | Supporting Ring | 2 |
18 | 9320671 | 轴承箱 D160 | QingRing | 1 | CKW-160
19 | 9320671 | O形密封 75X3.7 | O-drag | 1 | GB1235-76
20 | 9320671 | 活塞杆 | Piston Rod | 1 |
