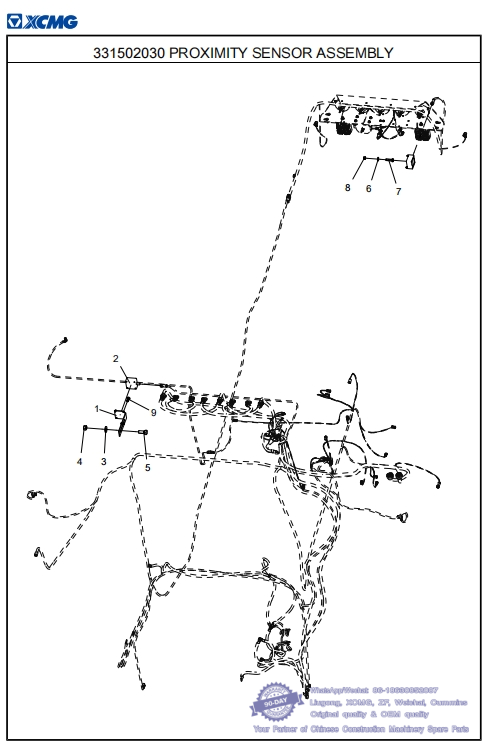

026 331502030 PROXIMITY SENSOR ASSEMBLY-- XCMG Mining Dump Truck XDR100 Parts Catalog
331503269 ELECTRICAL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331500017 1 FRONT MOUNTING PLATE whatsapp 86-18630852087
2 803548507 2 PROXIMITY SENSOR
3 805301384 2 WASHER 8 DIN6796
4 805238378 2 NUT M8 GB/T6170-2000
5 805002062 2 BOLT M8×20 GB/T5783-2000 whatsapp 86-18630852087
6 805301382 4 WASHER 5 DIN6796
7 805140016 4 SCREW M5×20 GB/T818-2000
8 805238482 4 NUT M5 GB/T6170-2000 whatsapp 86-18630852087
9 805140014 4 SCREW M5×12 GB/T818-2000

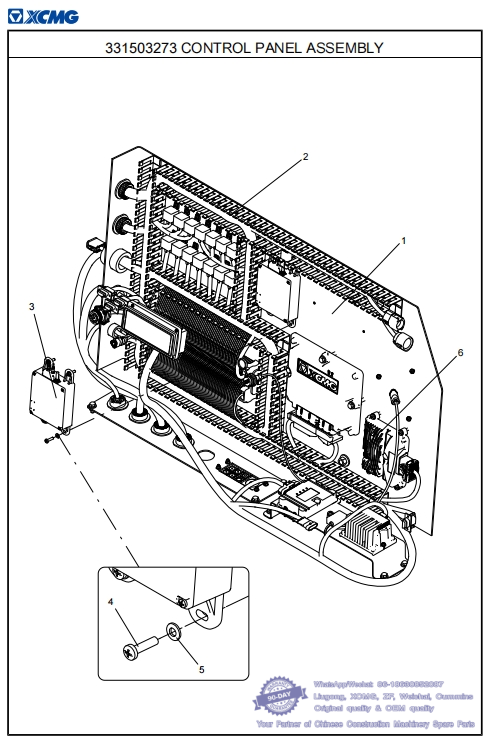

027 331503273 CONTROL PANEL ASSEMBLY -- XCMG Mining Dump Truck XDR100 Parts Catalog
331503269 ELECTRICAL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331505371 1 CONTROL PANEL whatsapp 86-18630852087
2 803608842 1 RELAY
3 803590846 1 GPSCONTROLLER
4 805140016 13 SCREW M5×20 GB/T818-2000
5 805301382 17 WASHER 5 DIN6796 whatsapp 86-18630852087
6 331503142 1 CONTROLLER

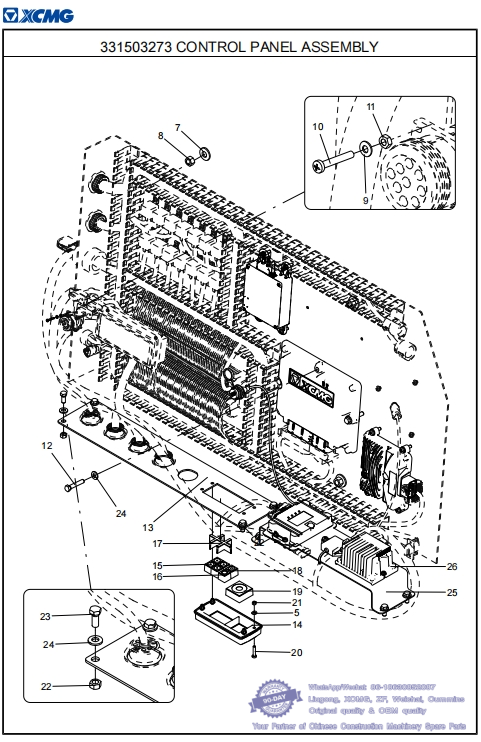

028 331503273 CONTROL PANEL ASSEMBLY -- XCMG Mining Dump Truck XDR100 Parts Catalog
331503269 ELECTRICAL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
7 805301374 4 WASHER 12 DIN6796 whatsapp 86-18630852087
8 805238367 4 NUT M12 GB/T6170-2000
9 819950479 8 WASHER 3 DIN6796
10 805140043 8 SCREW M3×20 GB/T818-2000
11 805200079 8 NUT M3 GB/T6170-2000
12 805046515 3 BOLT M8×45 GB/T5783-2000
13 331503275 1 LINE CROSSING BOARD
14 803748887 1 THROUGH-WALL SEAT
15 803748871 4 SMALL PLUG INSERT BLOCK whatsapp 86-18630852087
16 803748878 1 SMALL INSERT BLOCK
17 803748881 1 H TYPE GRILLE
18 803748873 1 SMALL INSERT BLOCK
19 803748876 1 BIG PLUG INSERT BLOCK
20 805140890 4 SCREW M5×25 GB/T818-2000
21 805238482 8 NUT M5 GB/T6170-2000
22 805238378 4 NUT M8 GB/T6170-2000
23 805046508 8 BOLT M8×20 GB/T5783-2000
24 805301384 11 WASHER 8 DIN6796 whatsapp 86-18630852087
25 331503276 1 MOUNTING PLATE
26 312602062 1 DC-DCINVERTER

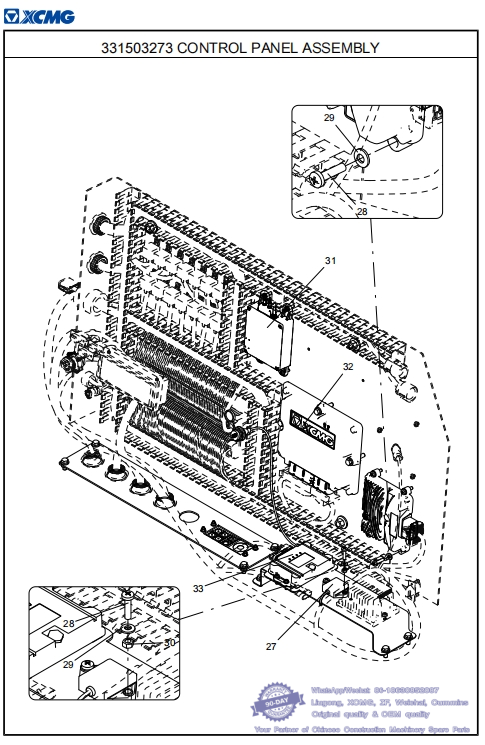

029 331503273 CONTROL PANEL ASSEMBLY -- XCMG Mining Dump Truck XDR100 Parts Catalog
331503269 ELECTRICAL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
27 803544449 1 DUAL-AXIS TILT ANGLE SENSOR whatsapp 86-18630852087
28 805139911 6 SCREW M6×25 GB/T818-2000
29 805301383 6 WASHER 6 DIN6796
30 805238370 2 NUT M6 GB/T6170-2000 whatsapp 86-18630852087
31 803590845 1 GPSCONTROLLER
32 803746293 1 MAIN CONTROLLER
33 803751421 1 MAIN ENGINE OF VEHICLE-MOUNTED DIAGNOSIS SYSTEM

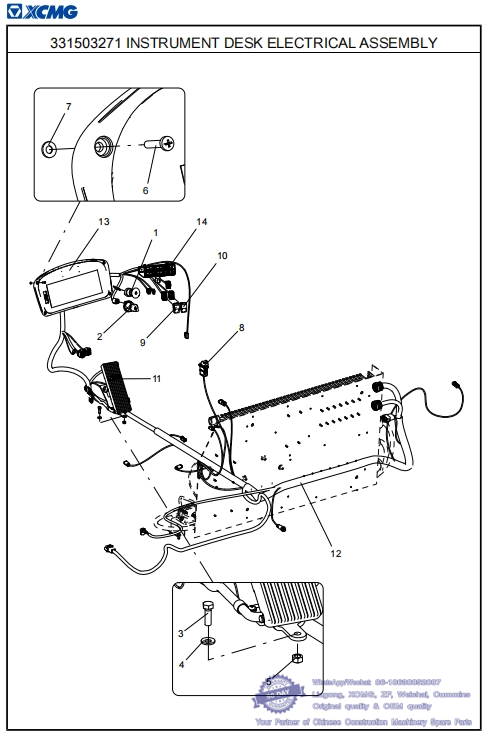

030 331503271 INSTRUMENT DESK ELECTRICAL ASSEMBLY -- XCMG Mining Dump Truck XDR100 Parts Catalog
331503269 ELECTRICAL SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 318601443 1 EMERGENCY STOP SWITCH whatsapp 86-18630852087
2 803680102 1 IGNITION SWITCH
3 805046509 3 BOLT M8×25 GB/T5783-2000
4 805301384 3 WASHER 8 DIN6796
5 805238378 3 NUT M8 GB/T6170-2000
6 805140012 4 SCREW M4×20 GB/T818-2000
7 805338225 4 WASHER 4 DIN6796
8 803687616 1 PARKING BRAKE SWITCH whatsapp 86-18630852087
9 803699949 1 TASSWITCH
10 803801297 1 LADDER LAMP SWITCH
11 800339619 1 ACCELERATOR PEDAL
12 331503272 1 INSTRUMENT DESK HARNESS
13 803589336 1 MONITOR
14 803686876 1 CONTROL PANEL 13-KEY whatsapp 86-18630852087
