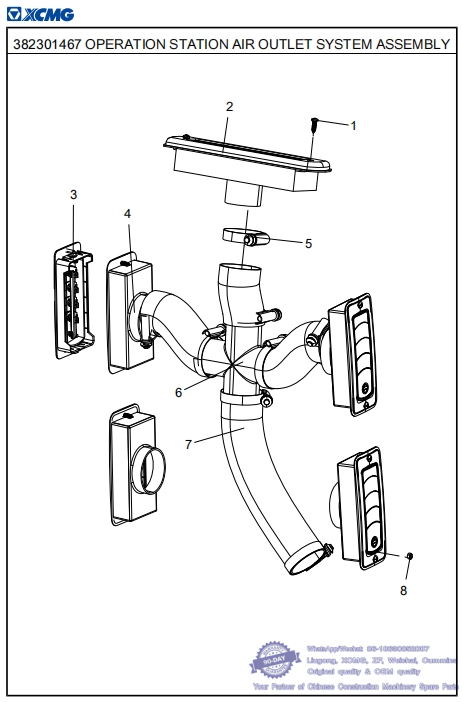

026 382301467 OPERATION STATION AIR OUTLET SYSTEM ASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605191 CAB
026 382301467 OPERATION STATION AIR OUTLET SYSTEM ASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605191 CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 805141173 10 SCREW ST4.2×16-C-H GB/T845-1985 whatsapp 86-18630852087
2 803594646 1 VENT AIR CONDITIONER
3 382301466 4 LOUVER OUTLET
4 803596282 4 LOUVER BLADE REAR SEAT
5 801972884 8 SCREW CLAMP
6 381202660 1 AIR OUTLET FOUR-WAY CONNECTION
7 803593006 1 CORRUGATED PIPE
8 805238481 1 NUT M4 GB/T6170-2000 whatsapp 86-18630852087

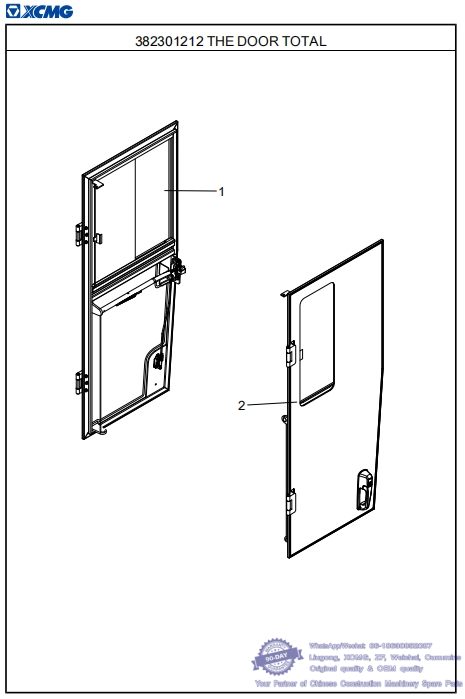

027 382301212 THE DOOR TOTAL-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605191 CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 382301214 1 ASSEMBLY OF RIGHT DOOR 62 whatsapp 86-18630852087
2 382301281 1 ASSEMBLY OF LEFT DOOR 64

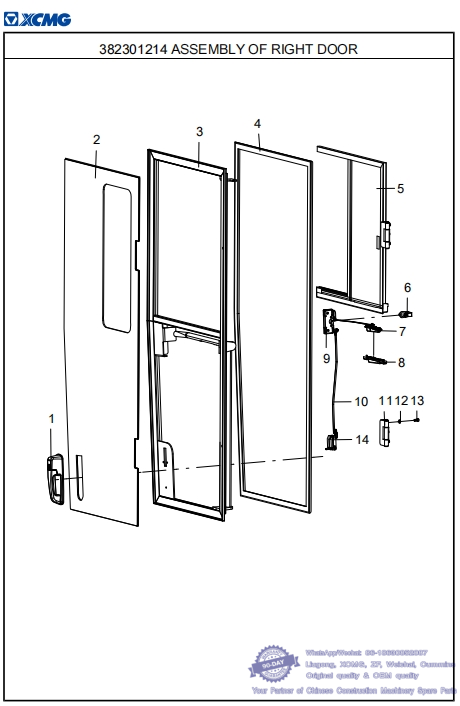

028 382301214 ASSEMBLY OFF RIGHT DOOR-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301212 THE DOOR TOTAL
No. PART NUMBER QTY NAME NOTE PAGE
1 380401649 1 DOOR HANDLE whatsapp 86-18630852087
2 382301269 1 RIGHT DOOR GLASS
3 380402194 1 ASSEMBLY OF RIGHT DOOR WELDING
4 382301462 1 RIGHT DOOR RUBBER STRIP
5 382301211 1 SLIDING WINDOW OF RIGHT DOOR
6 380401652 1 STOP
7 380402291 1 RIGHT DOOR CONNECTING ROD TWO whatsapp 86-18630852087
8 380401650 1 BUTTON
9 380402297 1 RIGHT DOOR LOCK
10 380402296 1 RIGHT DOOR CONNECTING ROD ONE
11 380401648 2 HINGE
12 805338276 6 WASHER 8 (DACROMET) GB/T97.1-2002
13 805046503 6 BOLT M8×16 (DACROMET) GB/T5783-2000
14 380402299 1 BINDINY MECHANISM whatsapp 86-18630852087

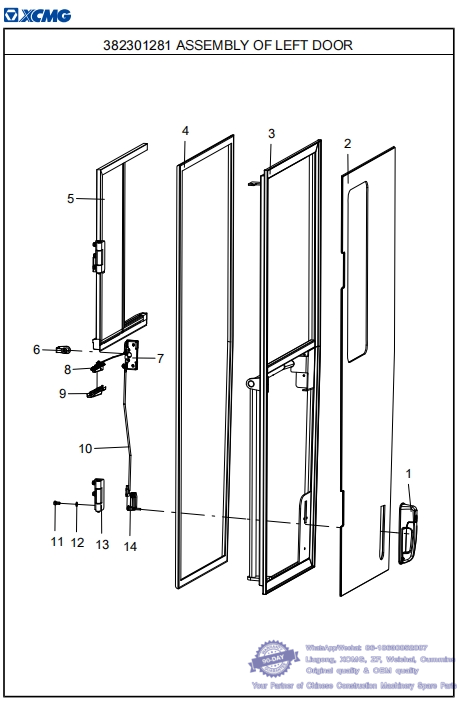

029 382301281 ASSEMBLY OFF LEFT DOOR-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301212 THE DOOR TOTAL
No. PART NUMBER QTY NAME NOTE PAGE
1 380401649 1 DOOR HANDLE whatsapp 86-18630852087
2 382301213 1 LEFT DOOR GLASS
3 380402143 1 ASSEMBLY OF RIGHT DOOR WELDING
4 382301461 1 LEFT DOOR RUBBER STRIP
5 382301280 1 SLIDING WINDOW OF LEFT DOOR
6 380401652 1 STOP
7 380401651 1 LEFT DOOR LOCK
8 380402295 1 LEFT DOOR CONNECTING ROD TWO
9 380401650 1 BUTTON whatsapp 86-18630852087
10 380402298 1 LEFT DOOR CONNECTING ROD ONE
11 805046503 6 BOLT M8×16 (DACROMET) GB/T5783-2000
12 805338276 6 WASHER 8 (DACROMET) GB/T97.1-2002
13 380401648 2 HINGE
14 380402299 1 BINDINY MECHANISM whatsapp 86-18630852087

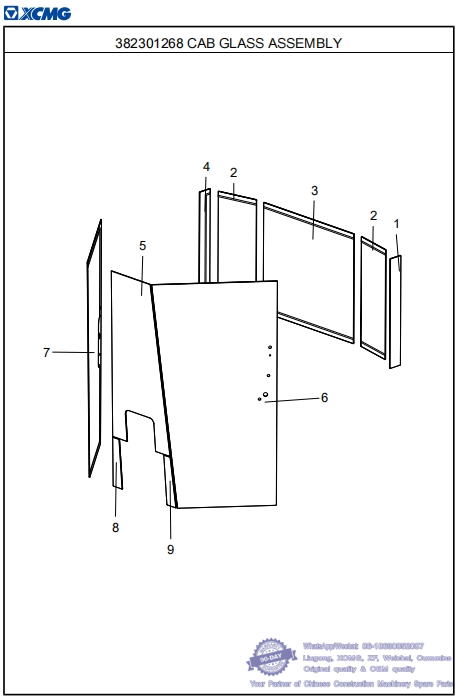

030 382301268 CAB GLASS ASSEMBLY-- XCMG Motor Grader GR2205T Spare Parts Catalog
380605191 CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 380402236 1 GLASS whatsapp 86-18630852087
2 380402135 2 LEFT REAR GLASS
3 380402266 1 REAR GLASS
4 380402243 1 GLASS
5 382301246 1 FRONT GLASS
6 382301261 1 LEFT FRONT GLASS whatsapp 86-18630852087
7 382301262 1 RIGHT FRONT GLASS
8 382301243 1 FRONT BOTTOM GLASS RIGHT
9 382301245 1 FRONT BOTTOM GLASS LEFT whatsapp 86-18630852087
