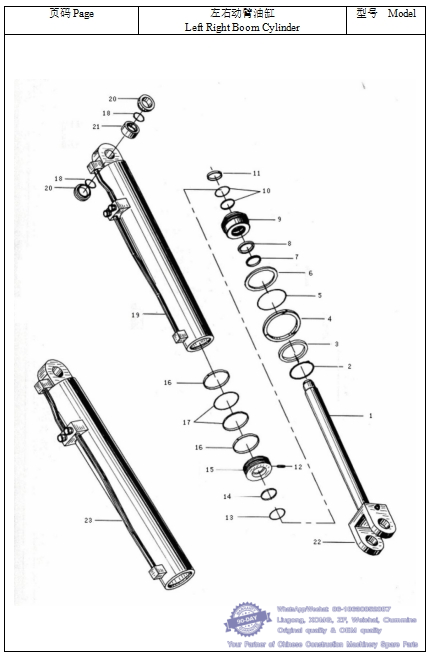

031 左右动臂油缸Left Right Boom Cylinder-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
SrNo. | Part No. | Part Description | QTy | Remark

1 | 活塞杆 | Piston Rod | 1 | GB8941-86
2 | 挡圈 115 | Snap Ring | 1 |
3 | 挡环 | Snap Ring | 1 |
4 | 卡环 | Key | 1 |
5 | O 型密封圈 125×5.7 | O-Ring | 1 | GB1235-76
6 | 挡圈 | Snap Ring | 1 |
7 | 防尘圈 d70 | Dust Ring | 1 | CK-63
8 | U 形圈 70X83X11.4 | U-Ring | 1 | CKG-063
9 | 导向套 | Guide Sleeve | 1 |
10 | 新特封 d70 | Step Ring | 1 | CK8-063
11 | 轴用环壳圈 | Steal Ring | 2 | 夹布粉座
12 | 螺钉 M8×16 | Screw | 1 | GB79-85
13 | O 型密封圈 75X3.1 | O-Ring | 1 | GB1235-76
14 | 挡圈 | Snap Ring | 2 |
15 | 活塞 | Piston | 1 |
16 | 孔用环壳圈 | Slyg Ring | 2 | 夹布粉座
17 | 格来圈 D125 | Glyg Ring | 1 | CKW-110
18 | 挡圈 90 | Snap Ring | 2 | GB8931-86
19 | 缸体(左) | Cylinder Body | 1 |
20 | Φ60 骨架防尘圈 | Dust Ring | 2 | 9000-93000-40
21 | 关节轴承 GE60ES | Beating | 1 | GB304-581
22 | 活塞杆头 | Piston Rod Head | 1 |
23 | 缸体(右) | Cylinder Body（Right） | 1 |

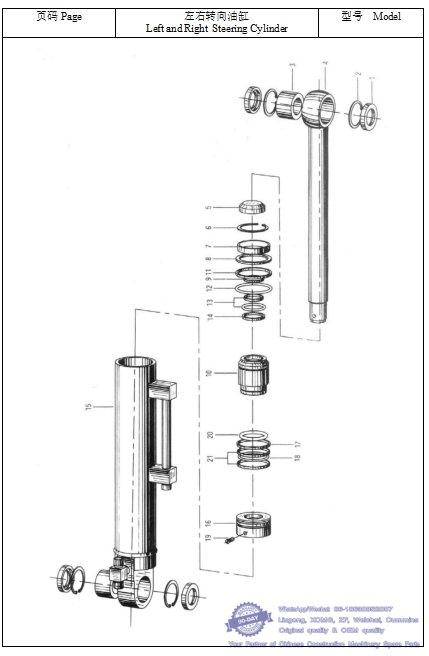

032 左右转向油缸Left and Right Steering Cylinder-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 名称代码 | 名称 | 数量 | 备注
S.No. | Part No. | Part Description | Q'y | Remark

1 | 9331143 | 防尘环 | Dust Ring | 4 | GB893.1-86
2 | 4410039 | 挡圈 62 | Snap Ring | 4 | GB893.1-86
3 | 4710013 | 关节轴承 GE40ES | Bearing | 2 | GB304.5-81
4 | | 活塞杆 | Piston Rod | 1 |
5 | | 防尘圈 | Dust Ring | 1 |
6 | 4412048 | 挡圈 72 | Snap Ring | 1 | GB894.1-86
7 | 9331155 | 挡圈 | Snap Ring | 1 |
8 | 9331136 | 卡环 | Snap Ring | 1 |
9 | | U形圈 | U-Ring | 1 |
10 | | 导向套 | Guide Slaves | 1 |
11 | 4802234 | O 型密封圈 69×5.3 | O-Ring | 1 | GB3452.1-82
12 | | 挡圈 | Snap Ring | 1 |
13 | | 新桥封 45 | Ring | 1 |
14 | 9331137 | 轴用杯架 | Ring | 2 |
15 | | 缸体(左) | Cylinder Body (Left) | 1 |
16 | | 缸体(右) | Cylinder Body (Right) | 1 |
17 | 9331141 | 活塞 | Piston | 1 |
18 | 9331140 | 孔用杯架 | Slyd Ring | 2 |
19 | | 箱壳圈 | Glyd Ring | 1 |
20 | 4207060 | 螺钉 M8×25(左) | Screw (Left) | 1 | GB79-85
21 | 4207061 | 螺钉 M8×30(右) | Screw (Right) | 1 | GB79-85
22 | 4802219 | O 型密封圈 45×5.3 | O-Ring | 1 | GB3452.1-82
23 | | 挡圈 | Snap Ring | 2 |

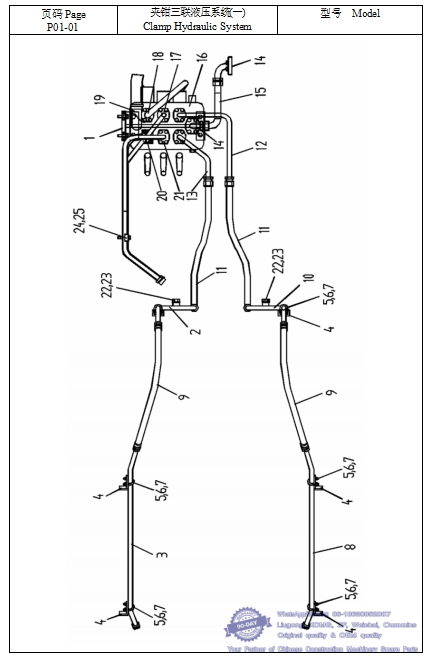

033 夹钳三联液压系统(一) Clamp Hydraulic System-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
8r.No. | Part.No. | PartDescription | Qty | Remark

1 | 9304919 | 分配阀支线 | Breaket | 1
2 | 9353800 | 前车装硬管（左） | Tube | 1
3 | 9353797 | 动臂右油管 | Tube | 1
4 | 9304363 | 支架板 | Breaket | 6
5 | 4827047 | 垫圈8 | Washar | 14 | GB93-87
6 | 4301008 | 螺母JAS | Nut | 14 | GB617036
7 | 9304364 | U型螺栓 | U-Bolt | 6
8 | 9353806 | 动臂左油管 | Tube | 1
9 | 9353799 | 软管总成 | Hose | 4
10 | 9353803 | 前车装硬管（左） | Tube | 1
11 | 9348294 | 软管总成 | Hose | 2
12 | 9348289 | 硬管总成 | Tube | 1
13 | 9348291 | 硬管总成 | Tube | 1
14 | 5003025 | 法兰组件 | Flange | 2
15 | 9364980 | 软管总成 | Hose | 1
16 | 5000332 | 多路网 | ControlValve | 1
17 | 9348283 | 分配阀至转斗缸后腔油管 | Tube | 1
18 | 9348280 | 分配阀至动臂缸后腔油管 | Tube | 1
19 | 9301451 | 钢管 | Tube | 1
20 | 9348276 | 分配阀至动臂缸前腔油管 | Tube | 1
21 | 9348286 | 分配阀至转斗缸前腔油管 | Tube | 1
22 | 4644004 | 螺套M14X1.5 | Bolt | 2 | JBI000-77
23 | 4529002 | 垫圈14 | Washar | 2 | QSCI2942000
24 | 9300638 | 管夹 | Clamp | 1
25 | 9300700 | 管夹 | Clamp |

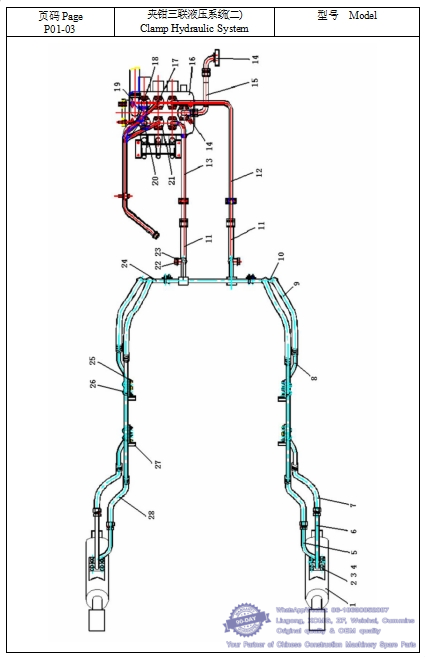

034 夹钳三联液压系统(二)Clamp Hydraulic System-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
Sr.No. | PartNo. | PartDescription | Qty | Remark

1 | 9306452 | 天猫油缸 | Clamp cylinder | 2 | ZL150E101A
2 | 4005054 | 螺栓M10X30 | Bolt | 16 | GB5783.86
3 | 4401007 | 垫圈8 | Washer | 16 | GB49547
4 | 4827047 | 0型密封圈28X3.55 | "O"Ring | 4 | GB3421-1992
5 | 9348304 | 大旋钢管 | Tube | 2 | LWJ320F1018
6 | 9348301 | 小旋钢管 | Tube | 2 | LWJ320F1017
7 | 9348319 | 软管总成 | Hose | 2 | LWJ320F1015
8 | 9348318 | 动臂钢管 | Tube | 4 | LWJ320F1014
9 | 9348317 | 软管总成 | Hose | 4 | LWJ320F1013
10 | 9348311 | 前车残硬管（左） | Tube | 1 | LWJ320F1011
11 | 9348294 | 软管总成 | Hose | 2 | LWJ320F1021
12 | 9348289 | 硬管总成 | Tube | 1 | LWJ320F1015
13 | 9348291 | 硬管总成 | Tube | 1 | LWJ320F1016
14 | 5003025 | 法兰组件 | Flange | 2 | W370G07.013
15 | 9364980 | 软管总成 | Hose | 1 | W370G07.012
16 | 5000332 | 多路阀 | ControlValve | 1 | DF25.3B
17 | 9348283 | 分配阀垂转斗缸后腔结管 | Tube | 1 | LWJ320F1013
18 | 9348280 | 分配阀至动臂缸前腔结管 | Tube | 1 | LWJ320F1012
19 | 9301451 | 钢管 | Tube | 1 | Z310.5
20 | 9348276 | 分配阀至动臂缸后腔结管 | Tube | 1 | LWJ320F1011
21 | 9348286 | 分配阀垂转斗缸前腔结管 | Tube | 1 | LWJ320F1012
22 | 4644004 | 螺塞M14X1.5 | Bolt | 2 | JB1000-77
23 | 4829002 | 垫圈14 | Washer | 2 | QSC1234-2000
24 | 9348313 | 前车残硬管（右） | Tube | 1 | LWJ320F1012
25 | 4301008 | 螺母MB | Nut | 20 | GB6170.86
26 | 9304364 | U型螺栓 | U-bolt | 10 | ZLC30E10.2
27 | 9327824 | 支架板 | Baselet | 2 | ZL130E01.0-2
28 | 9348320 | 软管总成 | Hose | 2 | LWJ320F1019

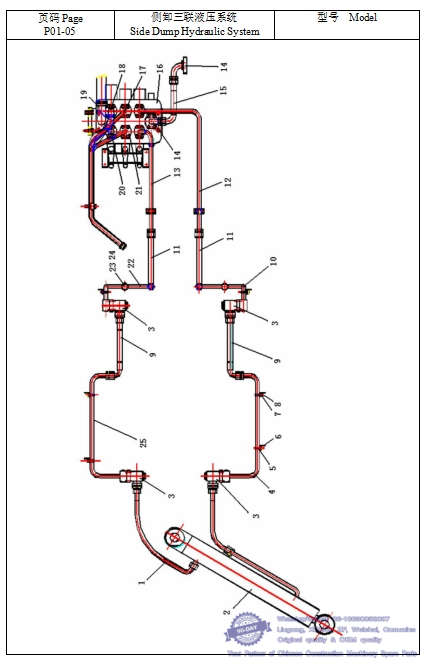

035 侧卸三联液压系统Side Dump Hydraulic System-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
SrMo | PartNo. | PartDescription | Qty | Remark

1 | 9348320 | 软管总成 | Hose | 2 |
2 | 9304841 | 明轴定位 | List cylinder | 1 |
3 | 9340888 | 回转管接头 | Circumgrated Joint | 4 |
4 | 9348306 | 防滑定钢管 | Tube | 1 |
5 | 9304364 | 广型螺栓 | “U” Bolt | 6 |
6 | 9304363 | 螺钉 | Bracket | 6 |
7 | 4401007 | 垫圈 8 | Washar | 12 | GB93-87
8 | 4301008 | 螺钉 M8 | Nut | 12 | GB6170-86
9 | 9348302 | 软管总成 | Hose | 2 |
10 | 9353496 | 前车装模管（左） | Tube | 1 |
11 | 9348294 | 软管总成 | Hose | 2 |
12 | 9348289 | 硬管总成 | Tube | 1 |
13 | 9348291 | 硬管总成 | Tube | 1 |
14 | 5003025 | 法兰组件 | Flange | 2 |
15 | 9364980 | 软管总成 | Hose | 1 |
16 | 5000332 | 多路阀 | Control Valve | 1 |
17 | 9348283 | 分配阀套转斗缸后部油管 | Tube | 1 |
18 | 9348280 | 分配阀套动销缸前部油管 | Tube | 1 |
19 | 9301451 | 钢管 | Tube | 1 |
20 | 9348276 | 分配阀套动销缸后部油管 | Tube | 1 |
21 | 9348286 | 分配阀套转斗缸前部油管 | Tube | 1 |
22 | 9353493 | 前车装模管（右） | Tube | 1 |
23 | 4614004 | 螺钉 M14X1.5 | Bolt | 2 | JB1000-77
24 | 4829002 | 垫圈 14 | Washar | 2 | QSC1294-2000
25 | 9348303 | 防滑定钢管 | Tube | 1 |
