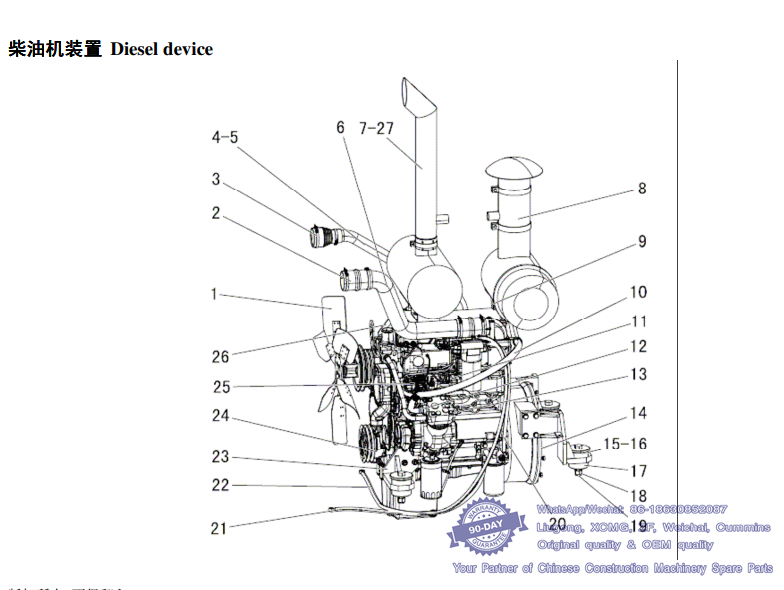

031 柴油机装置 Diesel device -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 风扇 Fan W210420000A FS660X41F-A 1 whatsapp 86-18630852087
2 进气管端硅胶管 Hose Z5A60400800 2
3 硅胶管 Hose Z3A60103300 1
4 中冷器进气管 Hose Z3A60101000 1
5 压气机端硅胶管 Hose Z5A60400700 1
6 中冷器出气管 Hose Z3A60101100 1
7 消声器总成(ZL30)1104-010 Muffer (ZL30)1104-010 W213800000A 1
消声器 Muffer W213800001A
引射管 Muffer W213800002A
消声器连接胶管 Pipe W213800003A
8 空滤器 639C Air filter639C W47031000 1 whatsapp 86-18630852087
空滤器滤芯 Filter W010250080
9 进气胶管 Pipe Z3A60100600 1
10 空压机进气管 Pipe Z5B604049 1
11 加油支架 Bracket Z3B602006 1
12 空压机进气接头 Fitting Z5A60401300 1
13 油水分离器进出气接头 Fitting Z310340020 ZL30D-34-3 1
14 飞轮过渡盘 Transition case Z3B602001 1
15 右前支架组件 Right front Bracket Z3B602003 1
16 左前支架组件 Left front Bracket Z3B602002 1
17 1104_减震器组件 1104_Shock absorber Z3A60102900 4
18 尼龙锁紧螺母 M20 LocknutM20 B050212017 GB/T889.1-2000 4
20 螺栓 M20×130 Bolt M20×130 B040810037 GB/T5782-2000 4
21 柴油管 Hose Z3B602012 1 whatsapp 86-18630852087
24 燃油管 Hose Z3A60101600 1
25 柴油机回油管（L=1050） Hose Z320820020 1
26 右后支架组件 Right front Bracket Z3B602004 1
27 左后支架组件 Left rear Bracket Z3B602005 1
柴油机 Diesel W213500000A 1 whatsapp 86-18630852087

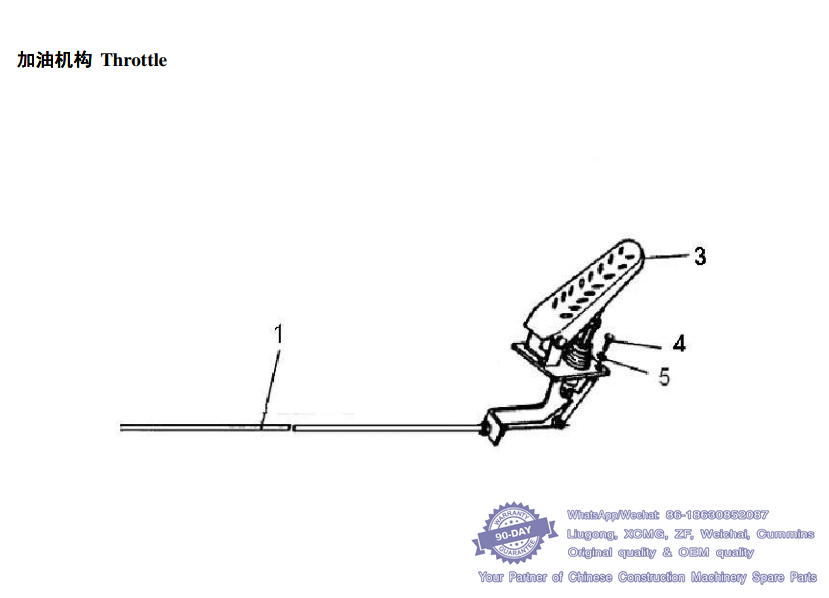

032 加油机构 Throttle -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 油门软轴 Push-pull cable pedal W47046000 1 whatsapp 86-18630852087
3 油门踏板 Throttle pedal W110001840 1
4 螺栓 M6×20 Bolt M6×20 B040910620 GB/T5783-2000 3
5 垫圈 6 Washer6 B060110602 GB93-87 3 whatsapp 86-18630852087

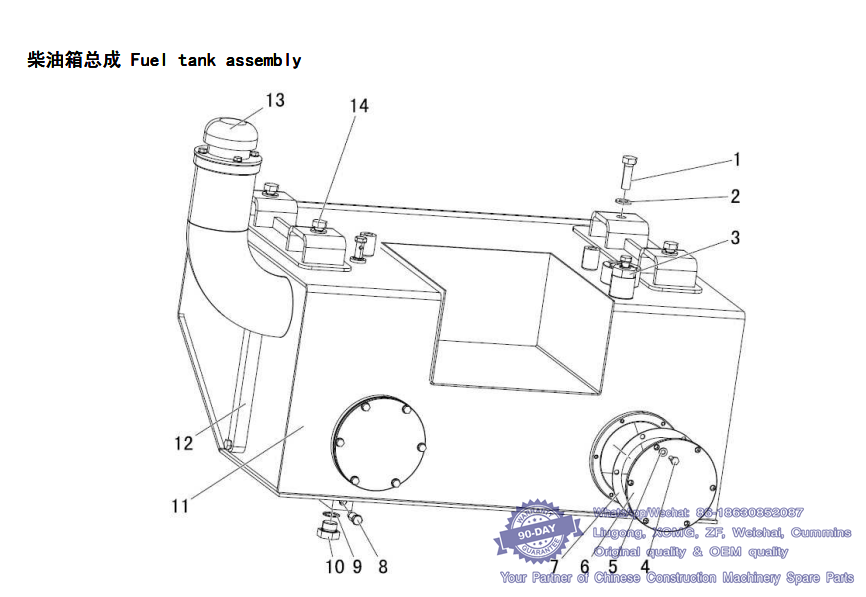

033 柴油箱总成 Fuel tank assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 螺栓 M16X50 Bolt M16X50 B040911650 4 whatsapp 86-18630852087
2 垫圈 Washer B060411603 4
3 吸回油口组件 Oil port assembly Z3B013022 1
4 螺栓 M8X20 Bolt M8X20 B040910820 16
5 垫圈 8 Washer8 B060410802 16
6 法兰盘 Flange Z5B01301300 2
7 密封垫 II GasketII Z320200060 2
8 放油阀芯 Oil release valve spool Z320130020 1 whatsapp 86-18630852087
9 O 型圈 O-ring B160120265 1
10 螺堵 Plug Z5B01302500 1
11 柴油箱组件（PEC） Fuel tank assembly（PEC） NZ3B54300100 1
12 液位计 oil level gauge W110021286 1
13 加油滤清器 Refueling filter W110001460 1
14 回油管组件 Oil pipe assembly Z1B013041 1 whatsapp 86-18630852087

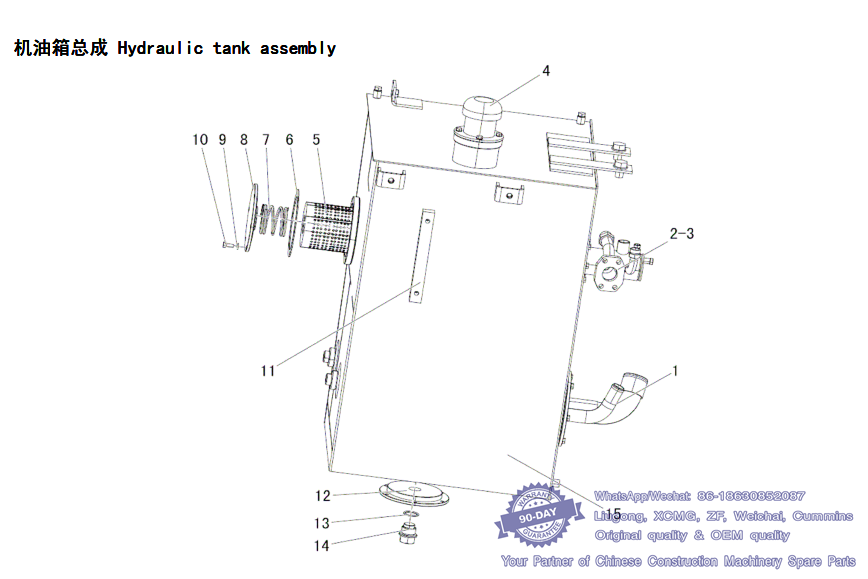

034 机油箱总成 Hydraulic tank assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 吸油法兰总成 Flange Z3A50000100 1 whatsapp 86-18630852087
2 回油法兰总成 Flange Z3A50000300
3 密封垫 I GasketI Z320200030 2
4 加油滤清呼吸器 Filter respirator W380000000A 1
5 回油滤网 YLX-51-H(30F) Return oil screen W110005650 1
6 密封垫Ⅱ GasketⅡ Z320200060 ZL30F.20-6 2
7 弹簧 Spring Z320200041 1
8 滤网顶盖 Screen cover Z320200050 ZL30F.20-5 1 whatsapp 86-18630852087
9 垫圈 8 Washer8 B060410802 GB/T97.1-2002 28
10 螺栓 M8×20 BoltM8×20 B040910820 GB/T5783-2000 28
11 液位计 L=200 oil level gauge L=200 W110021285 1
12 清洗口法兰 Cleaning port flange Z5A01300400 1
13 O 形圈 32.5×3.55 O-ring 32.5×3.55 B160130325 GB/T3452.1-2005 1
14 放油螺塞 Purge cock Z640060320 1
15 机油箱总成(帕金斯 C 系列用) Hydraulic tank NZ3B54400000 1 whatsapp 86-18630852087

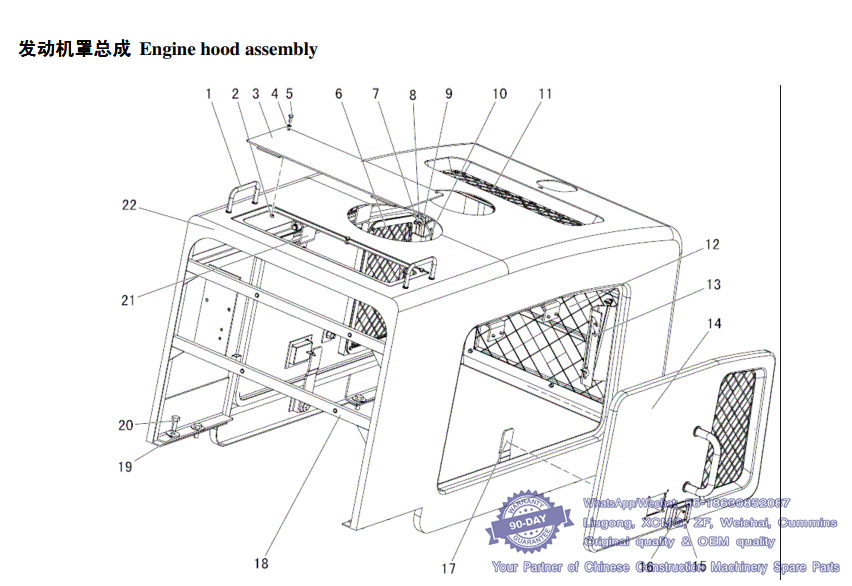

035 发动机罩总成 Engine hood assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 把手 Handle Z3B01202500 2 whatsapp 86-18630852087
2 螺母 M8 NutM8 B050330807 11
3 前上盖 Upper cap Z3B01201100 1
4 垫圈 8 Washer8 B060410802 27
5 螺栓 M8×20 BoltM8×20 B040910820 3
6 右侧门总成 Right door assembly Z3B01200900 1
7 开口销 3×20 Cotter pin3×20 B080210320 4
8 销轴 B8×28 Pin mandrelB8×28 B080330828 2
9 支撑杆组件 Rod assembly Z3B512031 2 whatsapp 86-18630852087
10 键止板 II PlateII 1
11 上部格栅总成 Upper grill Z3B01201700 1
12 后格栅 Rear grill Z3B01202000 1
13 键止板 I PlateI 1
14 左侧门总成 Left hand door assembly Z3B01200200 1
15 机罩锁(WM)504J Lock(WM)504J W110002390 2
16 螺钉 M5×16 Threaded screw M5×16 B010810516 8
17 锁止板 Lock plate 2
18 骨架 Bracket 1
19 垫圈 16-200HV Washer16-200HV B060331602 8
20 螺栓 M16×40 BoltM16×40 B040911640 8
21 铰链组件 Hinge assembly Z6B01203800 4
22 玻璃钢发动机罩(配件.贴花) Engine hood NZ3B54200110 1 whatsapp 86-18630852087

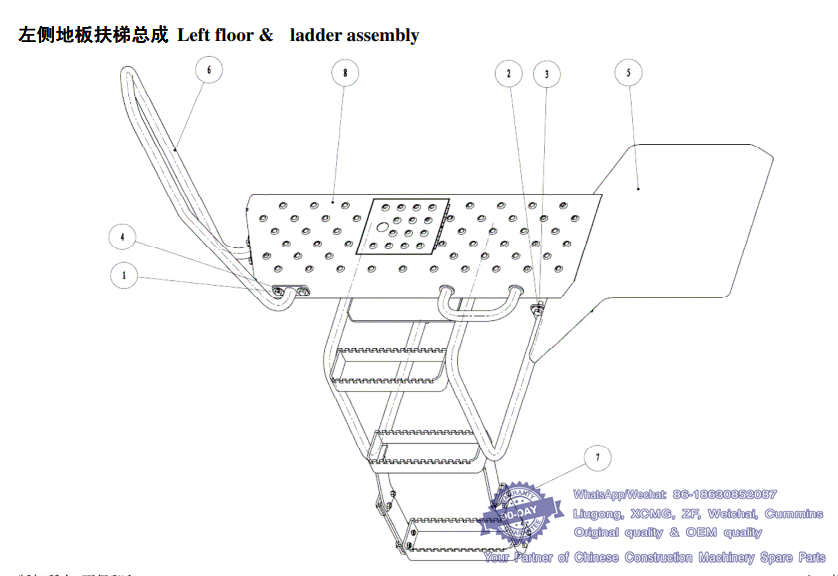

036 左侧地板扶梯总成 Left floor & ladder assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 螺栓 M10X30 Bolt M10X30 B040911030 8 whatsapp 86-18630852087
2 螺栓 M12X30 Bolt M12X30 B040911230 8
3 垫圈 12 Washer 12 B060331203 8
4 垫圈 10 Washer 10 B060331003 8
5 左支撑板总成 Left bracket assembly Z3A02500300 1 whatsapp 86-18630852087
6 左前扶手组件 Left Front Grab Z3A02503200 1
7 左侧扶梯 Left ladder Z3B02500100 1
8 左侧地板组件 Side floor (L) Z3B02501000 1 whatsapp 86-18630852087

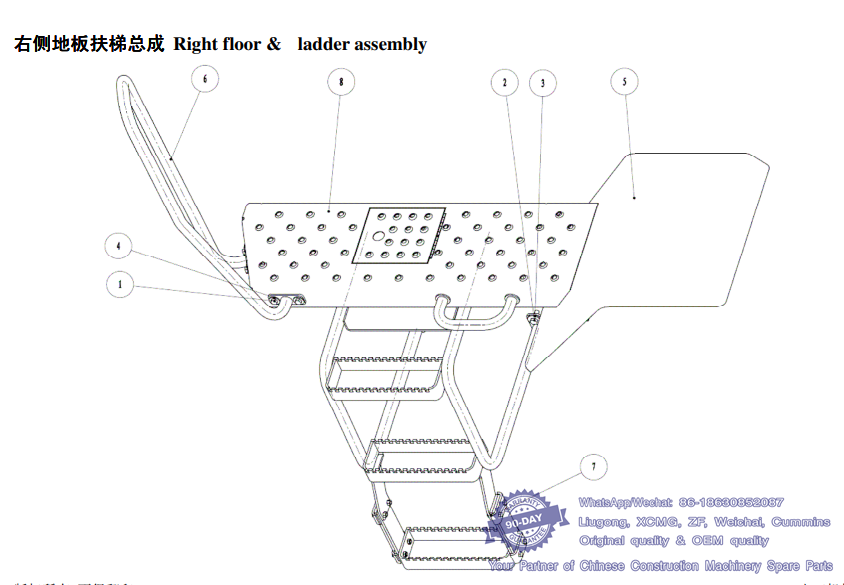

037 右侧地板扶梯总成 Right floor & ladder assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 螺栓 M10X30 Bolt M10X30 B040911030 8 whatsapp 86-18630852087
2 螺栓 M12X30 Bolt M12X30 B040911230 8
3 垫圈 12 Washer 12 B060331203 8
4 垫圈 10 Washer 10 B060331003 8
5 左支撑板总成 Left bracket assembly Z3A02500300 1
6 左前扶手组件 Left Front Grab Z3A02503200 1
7 左侧扶梯 Left ladder Z3B02500100 1
8 左侧地板组件 Side floor (L) Z3B02501000 1 whatsapp 86-18630852087

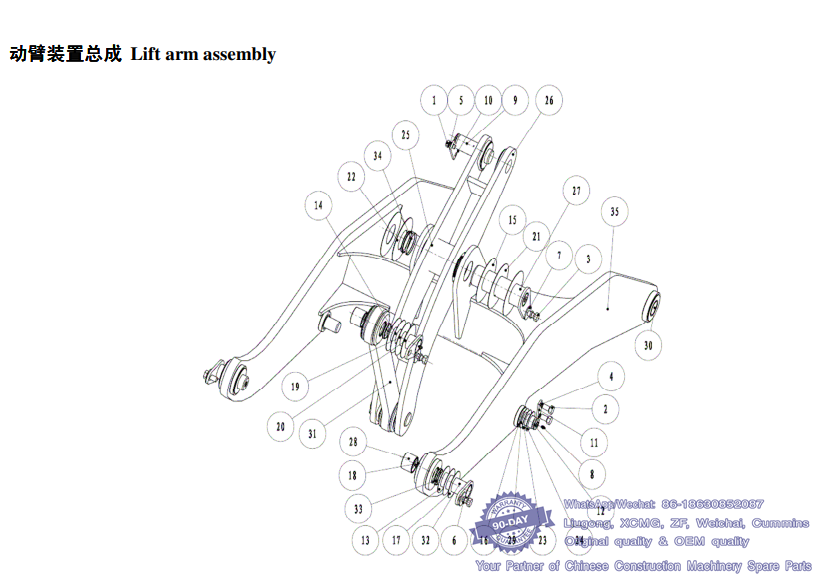

038 动臂装置总成 Lift arm assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 螺栓 M16X30 Bolt M16x30 B040911630 4 whatsapp 86-18630852087
2 螺栓 M20X35 Bolt M20x35 B040912035 4
3 螺栓 M12X30 Bolt M12x30 B040911230 4
4 垫圈 12 Washer 12 B060111203 4
5 垫圈 16 Washer 16 B060111604 4
6 垫圈 20 Washer 20 B060112005 4
7 垫圈 20 Washer 20 B060332004 4
8 油杯 M10X1 Oil cup M10x1 B150101000 8
9 销轴 Pin Z310010010 2
10 定轴板 Shaft positioning plate Z310010020 2
11 定轴板 Shaft positioning plate Z310010030 2
12 销轴 Pin Z310010040 2
13 调整垫 I Adjusting gasket I Z310010070 12 whatsapp 86-18630852087
14 调整垫 I Adjusting gasket I Z310010080 2
15 调整垫 I Adjusting gasket I Z310010090 2
16 调整垫 I Adjusting gasket I Z310010100 2
17 调整垫 II Adjusting gasket II Z310010110 12
18 调整垫 III Adjusting gasket III Z310010120 6
19 调整垫 II Adjusting gasket II Z310010130 2
20 调整垫 III Adjusting gasket III Z310010140 1
21 调整垫 I Adjusting gasket I Z310010150 2
22 调整垫 I Adjusting gasket I Z310010160 1
23 调整垫 I Adjusting gasket I Z310010170 2
24 调整垫 I Adjusting gasket I Z310010180 1
25 衬套 Bushing Z310010201 1
26 摇臂 Rocker arm NZ310010210110 1
27 摇臂销轴 Rocker arm pin Z310010280 1
28 衬套 I Bushing I Z310010561 4
29 衬套 Bushing Z310010571 2
30 衬套 Bushing Z310010581 2
31 拉杆 Linkage rod NZ33102004020 1
32 动臂铲斗销轴总成 Pin assembly Z310010760 3
33 油封 FB60X70X6 Oil seal B160420006 8
35 动臂 Lift arm Z331020011 1
防尘圈(动臂,拉杆前端) Dust seal Z331010130 6 whatsapp 86-18630852087

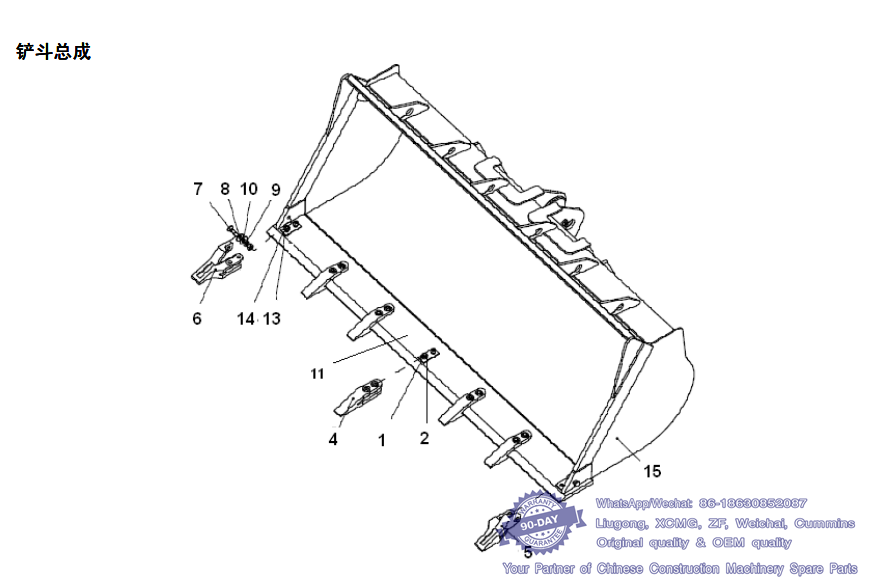

039 铲斗总成 Bucket assembly -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 螺栓 M20×80 Bolt M20×80 B040812080 GB35-88 10 whatsapp 86-18630852087
2 螺母 M20 NutM20 B050332018 GB/T6170-2000 10
4 中间齿 Middle teeth W110008116B 5
5 边斗齿（左） Bucket teeth(l) W110008115B 1
6 边斗齿（右） Bucket teeth(r) W110008117B 1 whatsapp 86-18630852087
7 边齿螺栓 Bolt B040442055 2
8 调整垫 Ddjustment shim Z3B103008 2
9 垫圈 Washer B060412003 2
10 调整垫 Ddjustment shim Z3B103009 2
11 主刃板 Cutting edge Z3B104003 1
13 调整垫片 Trimmed gasket Z3B103006 7
14 调整垫片 Trimmed gasket Z3B103007 7
15 三方标准斗总成 Bucket assembly NZ3B10400100 1 assembly code
卸料限位块 Limited block Z3B104023 2
收斗限位块 Load limited block Z331010120 2 whatsapp 86-18630852087

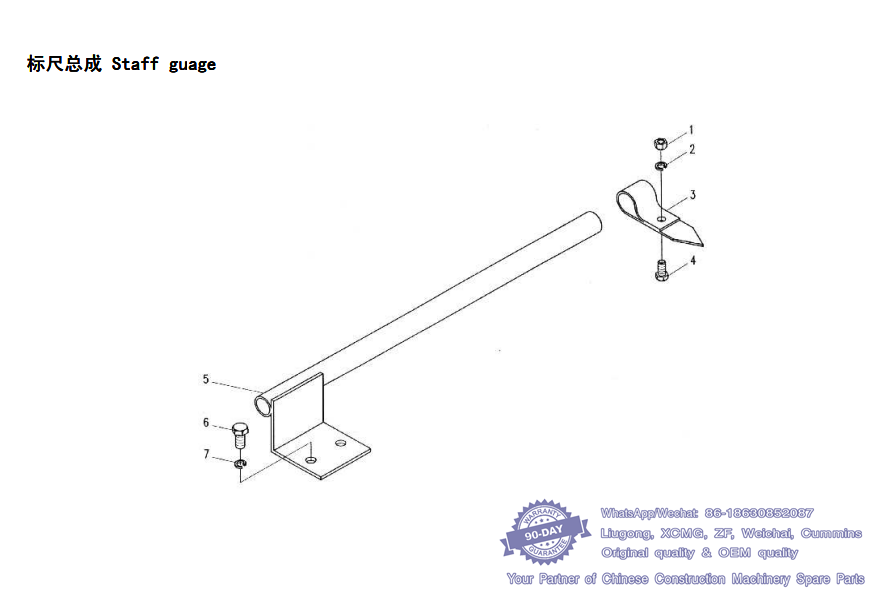

040 标尺总成 Staff guage -- SEM Wheel Loader SEM639C Spare Parts Catalog
序号 零件名称 零件编码 规格/代号 数量 备注
SER.NO Part name Part code Specification Quantity Remarks
1 螺母 M8 Nut M8 B050330807 GB/T6170-2000 1 whatsapp 86-18630852087
2 垫圈 8 Washer8 B060110802 GB93-87 1
3 箭头 Arrowhead Z510290020 1
4 螺栓 M8X16 Bolt M8X16 B040910816 GB/T5783-2000 1
5 标尺 Staff guage Z310410020 1
6 螺栓 M10X20 Bolt M10X20 B040911020 GB/T5783-2000 2
7 垫圈 10 Washer 10 B060111003 GB93-87 2 whatsapp 86-18630852087
