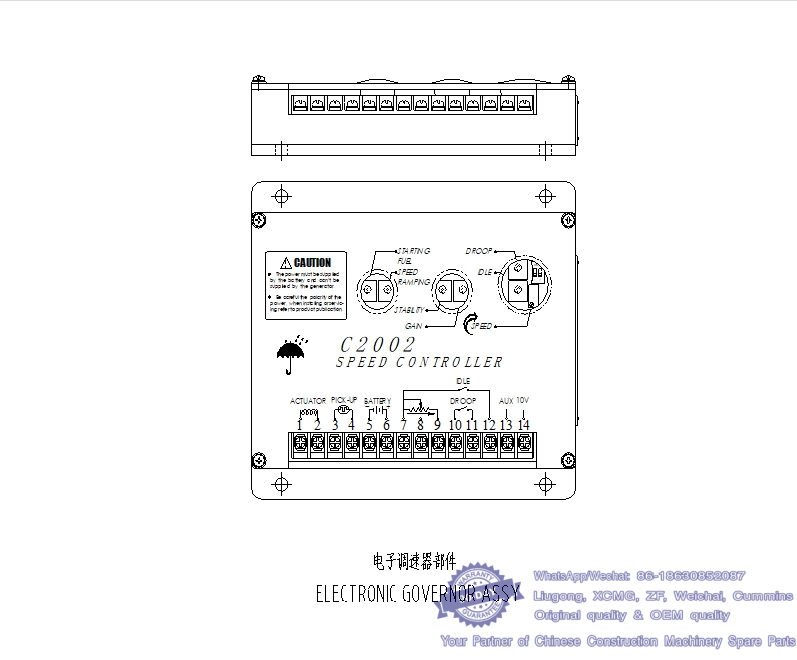

031 电子调速器部件 ELECTRONIC GOVERNOR ASSY S00009177+02-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 电子调速器部件 ELECTRONIC GOVERNOR ASSY S00009177+02 whatsapp 86-18630852087

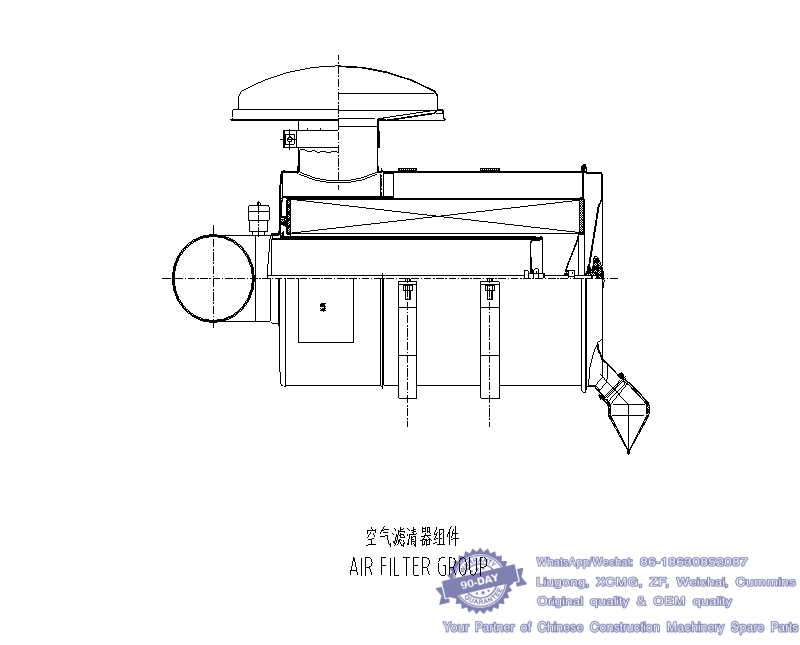

032 空气滤清器组件 AIR FILTER GROUP S00008909+02-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 空气滤清器组件 AIR FILTER GROUP S00008909+02 whatsapp 86-18630852087

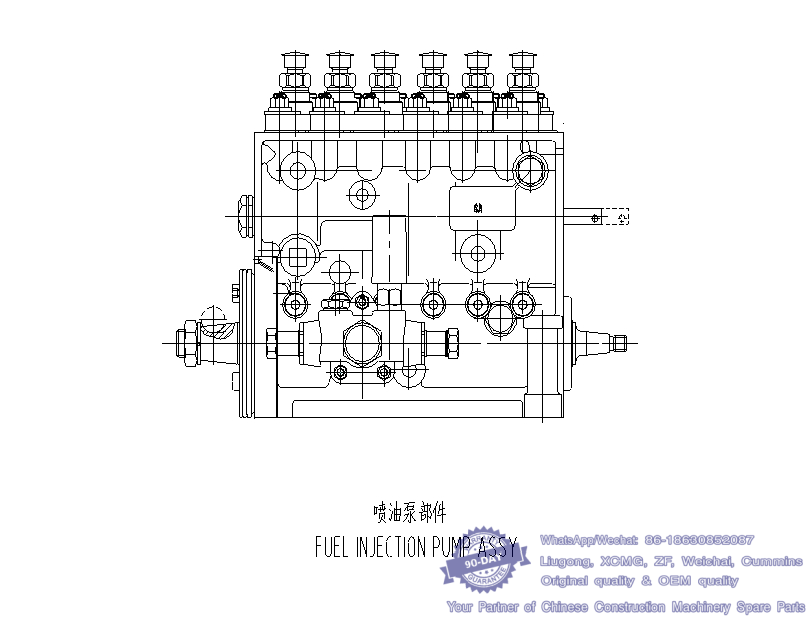

033 喷油泵部件 FUEL INJECTION PUMP ASSY S00004227+01-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 喷油泵部件 FUEL INJECTION PUMP ASSY S00004227+01 whatsapp 86-18630852087

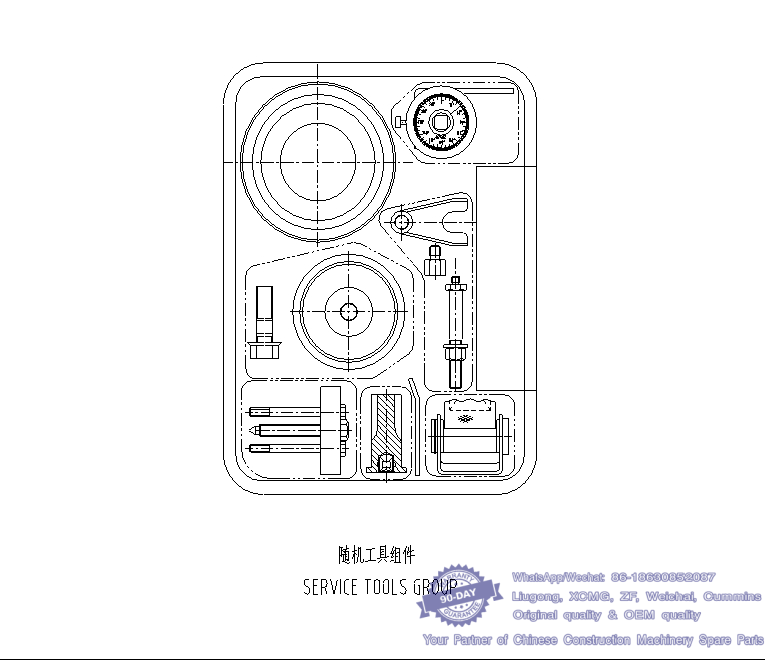

034 随机工具组件 SERVICE TOOLS GROUP D49-000-34+A-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 随机工具组件 SERVICE TOOLS GROUP D49-000-34+A whatsapp 86-18630852087

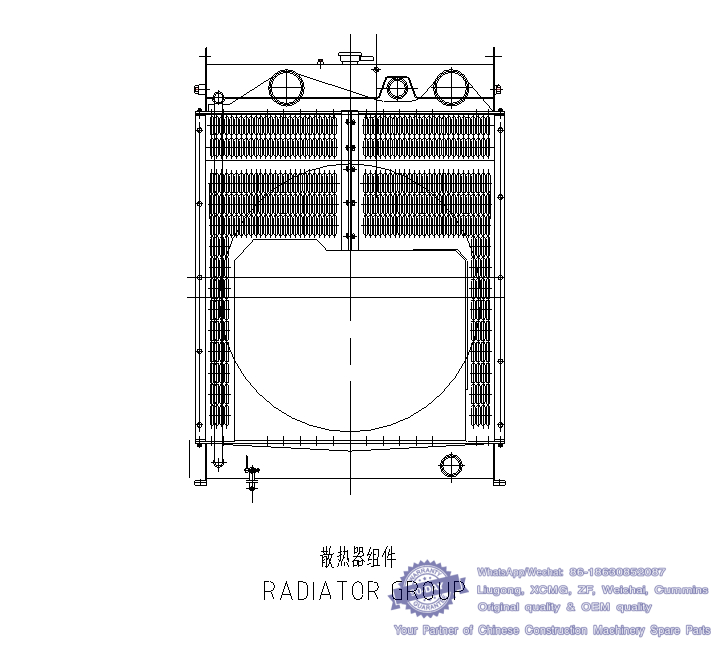

035 散热器组件 RADIATOR GROUP S00008397+04-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 散热器组件 RADIATOR GROUP S00008397+04 whatsapp 86-18630852087

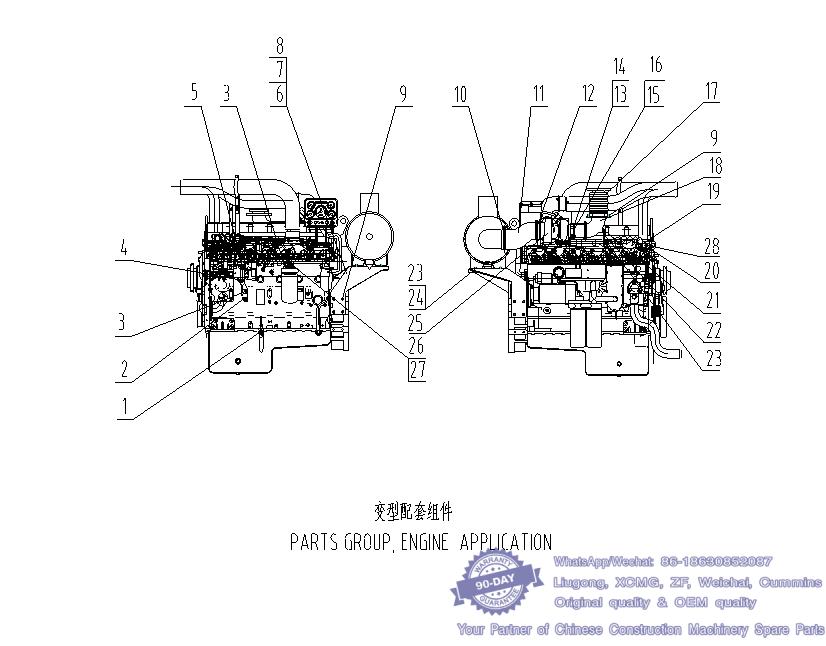

036 变型配套组件 PARTS GROUP, ENGINE APPLICATION S00008904+04-- Shangchai Engine SC9D340D2 DBL2382 Parts Catalog
标号 / No. 零件名 Designation 零件号 / Order No.
1 油尺及油尺管部件 OIL DIPSTICK AND TUBE ASSY D00-037-904+A
2 喷油泵支架 BRACKET, FUEL INJECTION PUMP S00007929+03
3 Q/SC622-M10*30-ZN.D: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED B00002003
4 油泵托架 BRACKET, FUEL INJECTION PUMP D02A-173-40+C
5 Q/SC622-M10*90-ZN.D: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002034 whatsapp 86-18630852087
6 空滤器支架连接板 CONNECTING PLATE, ARI FILTER BRACKET S00010011+01
7 空滤器左支架 AIR FILTER BRACKET(LEFT) S00010013+01
8 空滤器右支架 AIR FILTER BRACKET(RIGHT) S00010024+01
9 Q/SC622-M12*25-ZN.D: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002049
10 Q/SC1092-135:弹簧卡箍 SPRING CLAMP B00001533
11 进气弯管 AIR INTAKE PIPE ELBOW S00008962+04
12 Q/SC1092-110:弹簧卡箍 SPRING CLAMP B00001532 whatsapp 86-18630852087
13 涡轮出口盖板 PLATE, OUTLET-TURBINE D13-114-30+A
14 涡轮出口盖板垫片 GASKET, OUTLET PLATE-TURBINE D13-113-01+A
15 GB/T899-GM8-M8*25-8.8-Y: 双头螺柱 STUD B00001137
16 GB/T6170-M8-Y:1型六角螺母 HEXAGON NUT (TYPE 1) B00000793
17 波形膨胀节 EXPANSION CONNECTOR D00-158-01+A
18 排气弯管 EXHAUST PIPE ELBOW D00-118-02+B
19 Q/SC587.1-M18*1.5: 六角头螺塞 HEXAGON PIPE PLUG B00001728 whatsapp 86-18630852087
20 Q/SC587.1-M16*1.5: 六角头螺塞 HEXAGON PIPE PLUG B00001727
21 Q/SC622-M10*25-ZN.D: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002000
22 排气弯管撑板 PLATE, EXHAUST PIPE ELBOW S00009361+05
23 Q/SC622-M8*25-ZN.D: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002138
24 GB/T6177-M8-ZN.D:六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD B00000847
25 增压器隔热罩部件 HEAT SHIELD, TURBOCHARGER S00009243+01
26 燃油滤清器支架 BRACKET, FUEL FILTER S00008328+02
27 Q/SC622-M12*30-ZN.D: 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) B00002053
28 Q/SC1294-16:复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001548
起动机与蓄电池连接线装配部件 STARTING MOTOR AND BATTERY ASSY 774-11-010+A
蓄电池连接线装配部件 BATTERY ASSY 761-11-020A+A whatsapp 86-18630852087
