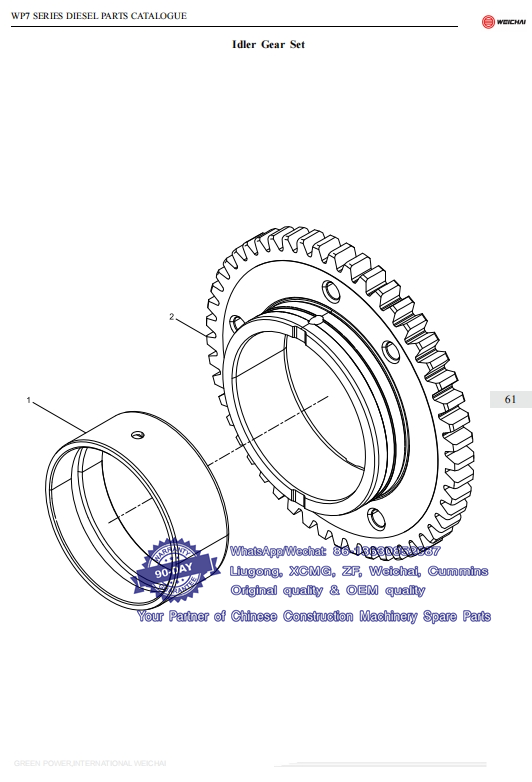

031 Idler Gear Set——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800050115 1 Roller Bush
2 610800050113 1 Idler Gear Whatsapp: 86-18630852087

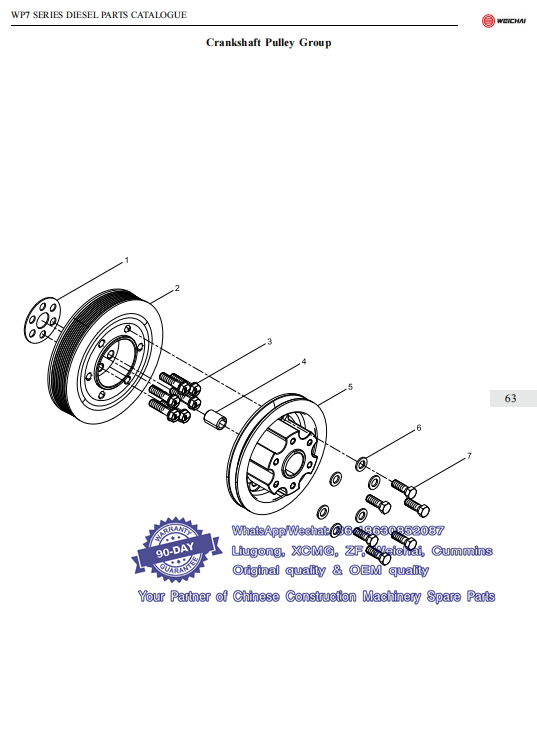

032 Crankshaft Pulley Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800020020 1 Plate Whatsapp: 86-18630852087
2 610800020066 1 Torsional Vibration Damper
3 610800020021 6 Bolt
4 610800020013 1 Spring-Type Straight Pin
5 1001378649 1 Crankshaft Pulley Whatsapp: 86-18630852087
6 90003932016 6 Wave Spring Washer
7 90011270022 6 Hexagon head bolt

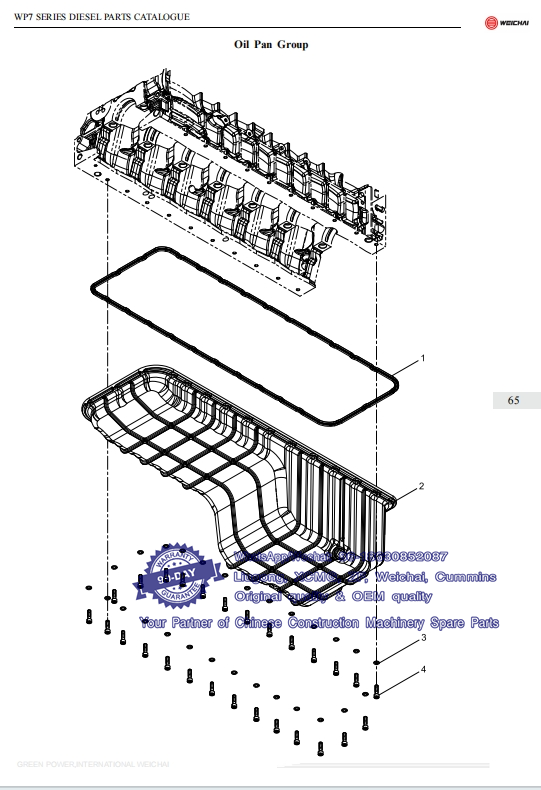

033 Oil Pan Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800150098 1 Gasket Whatsapp: 86-18630852087
2 1001007944 1 Oil Pan Assembly
3 90003932023 29 Wave Spring Washer
4 90013550007 29 Inner Hexagon Socket Head Cap Screw

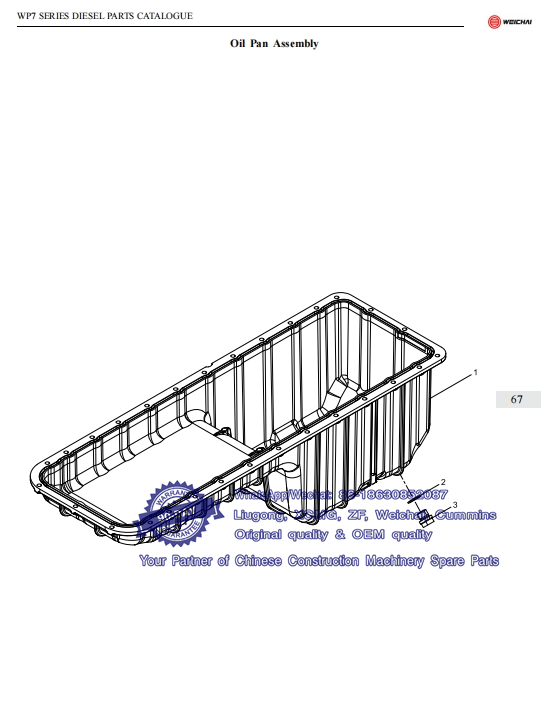

034 Oil Pan Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800150133 1 Oil Pan
2 13023363 1 Unit washer Whatsapp: 86-18630852087
3 1000965789 1 Oil Drain Plug

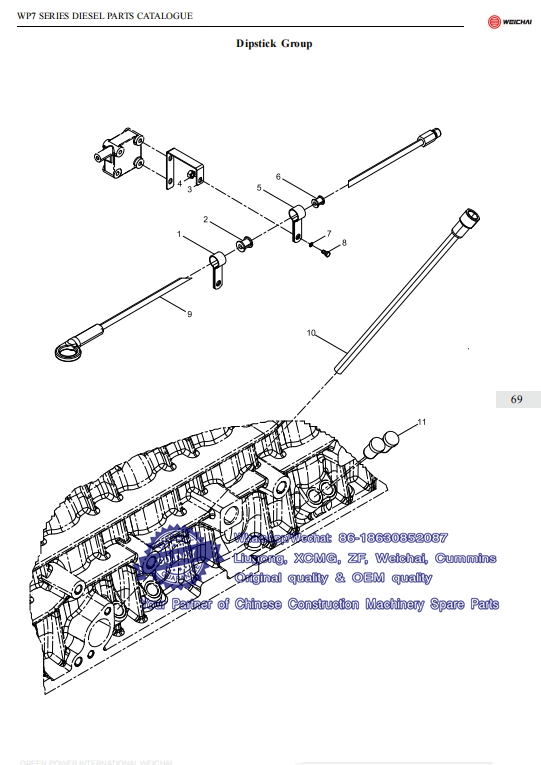

035 Dipstick Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 612600010447 1 Pipe Clamp
2 612600010446 1 Rubber Hoop
3 610800010111 1 Bracket Whatsapp: 86-18630852087
4 90003871252 1 Hexagon Nuts, Style 1
5 610800010067 1 Pipe Clamp
6 612600010638 1 Rubber Hoop
7 90003932023 1 Wave Spring Washer
8 90003802419 1 Hexagon Head Bolt Whatsapp: 86-18630852087
9 610800010109 1 Dipstick Assembly
10 610800010508 1 Dipstick Pipe Below Set
11 612600010538A 2 Dipstick Pipe Connector

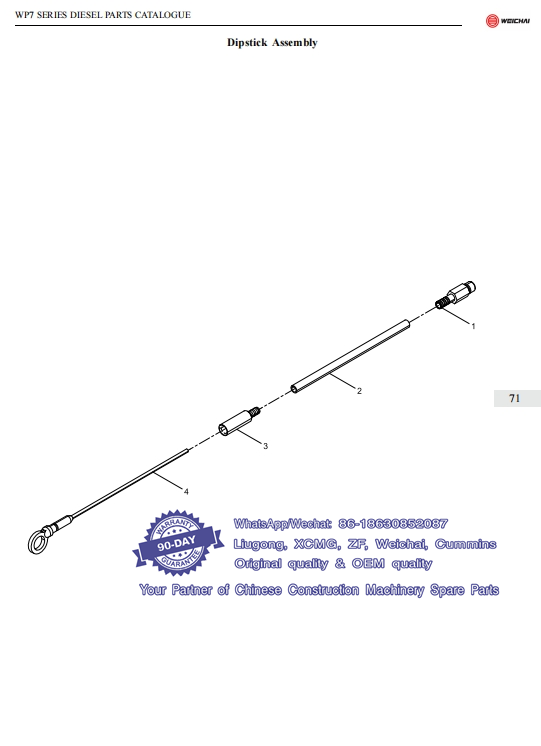

036 Dipstick Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 612600012635 1 Conversion Adapter
2 610800010110 1 Dipstick Pipe Whatsapp: 86-18630852087
3 612600012057 1 Dipstick Pipe Connector
4 612600012054 1 Dipstick Whatsapp: 86-18630852087
037 Oil Pump Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800010035 2 Dowel Pin Whatsapp: 86-18630852087
2 610800070242 1 Lubricating Oil Pump
3 90011400022S 6 Hexagon Flange Bolt
4 610800070217S 2 Hexagon Flange Bolt
5 610800070243S 1 Hexagon Flange Bolt
038 Oil Strainer Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800070306 1 Gasket Whatsapp: 86-18630852087
2 610800070419 1 Lubricating Oil Suction Strainer
3 90011400009S 2 Hexagon flange bolt, heavy series
039 Oil Cooler Group——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800060215 2 Dowel Pin Whatsapp: 86-18630852087
2 610800070196 1 Oil Cooler Cap Gasket
3 90011400010 5 Hexagon flange bolt, heavy series
4 610800070119 2 Hexagon Head Bolt
5 90011400040 2 Hexagon flange bolt, heavy series
6 610800070120 4 Hexagon Head Bolt
7 610800070197 1 Oil Cooler Assembly
8 612600062400 1 Conversion Adapter Whatsapp: 86-18630852087
9 612600080200 1 Washer
040 Oil Cooler Assembly——Weichai WP7 SERIES DIESEL PARTS CATALOGUE
Pos. Teile.Number Amount Designation
1 610800070195 1 Oil Cooler Cap
2 610800070130 2 O-ring Whatsapp: 86-18630852087
3 610800070203 1 Oil Coole
