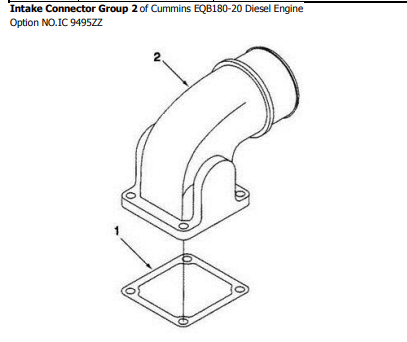

031 Intake Connector Group 2 of Cummins EQB180-20 Diesel Engine Option NO.IC 9495ZZ -- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 C3938158 Inlet Connection Tube Pad 1
2 C4938405 Intake Over 1

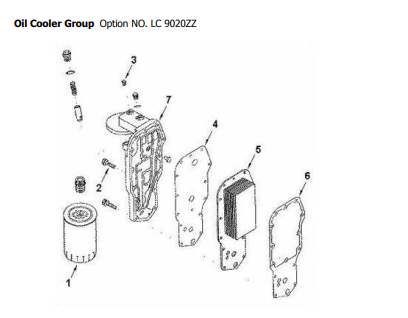

032 Oil Cooler Group Option NO. LC 9020ZZ -- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 1012N-010 Oil Filter ASSY 1
2 C3900632 Hexagon Flange Head Screw 14
3 C3906619 Hex Head Tapered Screw 1
4 C3942915 Filter Seat Gasket 1
5 C3957544 Oil Cooler Core 1
6 C4932124 Oil Cooler Core Gasket 1
7 C4934217 Oil Cooler Seat ASSY 1

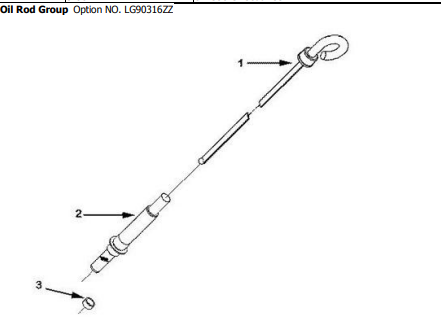

033 Oil Rod Group Option NO. LG90316ZZ -- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 A3907712 Oil Rod ASSY 1
2 A3922886 Oil Rod Tube ASSY 1
3 C3900955 Bowl Shape Plug 2
034 Oil Pump Group of Cummins EQB180-20 Diesel Engine Option NO. LP 9064ZZ-- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 1011N-010-A2 Oil Pump ASSY 1
2 Q150B0830 Hexagon Head Screw 4
035 Cylinder Refueling ASSY Group of Cummins EQB180-20 Diesel Engine Option NO. OB 9702ZZ -- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 A3901859 Hexagon Flange Head Screw 2
2 A3906696 Rectangle Sealing Ring 1
3 A3960717 Oil Cover of Cylinder Refueling ASSY 1
036 Oil Sump Group Option NO. OP 9006ZZ -- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 C3900630 Hexagon Flange Head Screw 2
2 C3902425 Sealing Washer 1
3 C3915703 Oil Pan of Oil Sump 1
4 C3920773 Sealing Washer 2
5 C3921992 Oil Suction Pipe ASSY 1
6 C3924147 Oil Sump Screw 1
7 C3924148 Screw of Oil Sump 1
8 C3938157 Flange Gasket 1
037 Oil Pan Installed Group Option NO. OP 9702ZZ -- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 C3900630 Hexagon Flange Head Screw 2
2 C3920400 Hexagon Flange Head Screw 36
3 C3959052 Oil Sump Gasket of Oil Pan 1
038 Cylinder Head ASSY of Cummins EQB180-20 Diesel Engine Option NO. PP 9995-01ZZ -- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 3957912 Valve Stem Seal 12
2 A3900276 Valve Spring 6
3 A3901117 Intake Valve 6
4 A3901607 Vent Valve 6
5 A3916691 Valve Spring 6
6 A3921394 Head Gasket 1
7 C3008465 Hexagon Flange Head Screw 1
8 C3008468 Hexagon Flange Head Screw 1
9 C3008469 Hexagon Flange Head Screw 1
10 C3920779 Cylinder Head Bolts 6
11 C3920780 Cylinder Head Bolts 14
12 C3957913 Valve Spring Seat 12
13 C3966454 Cylinder Head Shape With Bowl Tucked 1
14 A3902606 Bowl Shape Plug 5
15 D3900250 Valve Lock Blocks 24
039 Performance Parts Group of Cummins EQB180-20 Diesel Engine Option NO. PP40193ZZ -- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 A3283576ZZ Injector ASSY 1
2 A3283562 Injector Belt Gasket ASSY 6
3 C3909356 Rectangle Sealing Ring 6
4 C3280102ZZ Camshaft ASSY 1
5 A3907431 Camshaft Gear 1
6 C3283179 Camshaft of Performance Parts 1
7 C3900227 Hexagon Head Screw 2
8 C3902332 Woodruff Key of Performance Parts 1
9 C3927155 Camshaft Thrust Pad 1
10 C3971966ZZ The Piston Connecting Rod ASSY 1
11 A3901170 Connecting Rod Bearing 12
12 C3904531 Center Compression Ring 6
13 C3918315 Up Compression Ring 6
14 C3920691 Hole With Elastic Block Circle 12
15 C3926631 Piston of Performance Parts 6
16 C3932520 Oil Ring ASSY 6
17 C3934047 Piston Pin of Performance Parts 6
18 C3942581 Connecting Rod ASSY 6
19 A3941476 Connecting Rod Bushing 1
20 C3900919 Conneting Rod Bolt 2
040 Supercharger Group of Cummins EQB180-20 Diesel Engine Option NO. PP98731ZZ-- Cummins Diesel Engine EQB180-20 Spare Parts Catalog
NO. PART NO. PART NAME QTY
1 A3901356 Supercharger Gasket 1
2 C3818823 Stud Bolt of Supercharger 4
3 C3818824 Hexagon Flange Head Screw Nut 4
4 C4051052 Turbocharger ASSY 1
