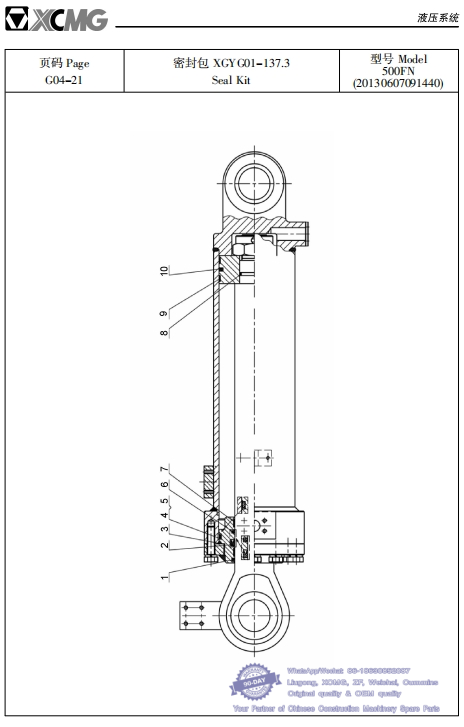

032 密封包 XGYG01-137.3 型号 500FN (20130607091440)
Seal Kit Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 803268430 防尘圈 Wiper 1
2 803268431 杆密封 Rod Seal 1
3 803197190 O 形圈 185伊3.1 O-Ring 1 GB/T1235-1976
4 803195734 O 形圈 180伊5.7 O-Ring 1 GB/T1235-1976
5 803268432 挡圈渊油缸用冤 Backup Ring 1 D180X171X2
6 803268433 斯特封 Step Seal 1
7 803268434 杆用支撑环 Support Ring 2
8 803196407 O 形圈 75伊5.7 O-Ring 1 GB/T1235-1976
9 803268435 活塞用支撑环 Support Ring 2
10 803268436 格莱圈 Glyd Ring 1

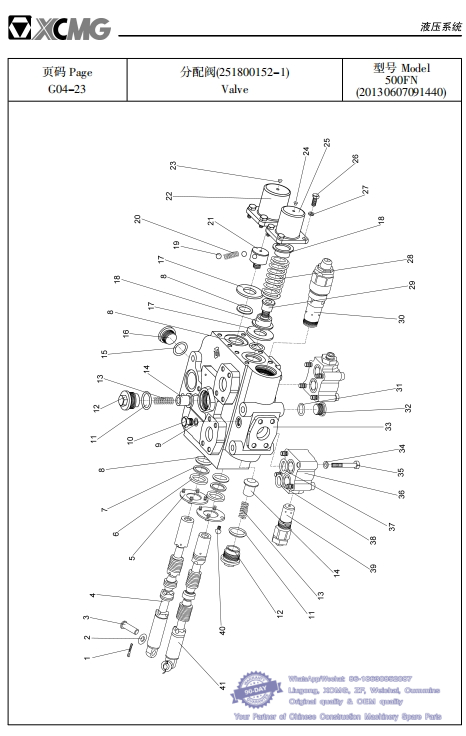

033 分配阀(251800152-1)型号500FN(20130607091440)
Valve Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 251800152-101516-01 开口销 4伊20 Pin Shaft 2 Gb91-86
2 251800152-101516-02 垫圈 12 Washer 2 Gb97.2-85
3 251800152-101516-03 圆肩销 Pin 2 Df-32-01
4 251800152-101516-04 动臂阀杆 Slide Valve 1 Gdf-32芋-03a
5 251800152-101516-05 压板 Plank 2 Gdf-32-04
6 251800152-101516-06 CK28 防尘圈 Dust Ring 2 Ck28
7 251800152-101516-07 垫圈 Washer 2 Gdf-32-02
8 251800152-101516-08 O 形圈 27.7伊3.55 O-Ring 2 Gb3452.1-82
9 251800152-101516-09 O 型圈 11.8伊2.1 O-Ring 1 Gb3452.1-82
10 251800152-101516-10 测压口堵头 Screw Plug 1 Gdf-32-18
11 251800152-101516-11 O 形圈 31.5伊3.55 O-Ring 2 Gb3452.1-82
12 251800152-101516-12 单向阀座 Single Direction Seat 2 Gdf-32-05
13 251800152-101516-13 单向阀弹簧 Single Direction Spring 2 Gdf-32-07
14 251800152-101516-14 单向阀 Single Direction Valve 2 Gdf-32-08
15 251800152-101516-15 O 形圈 32伊3.1 O-Ring 1 Gb1235-76
16 251800152-101516-16 螺塞 Screw Plug 1 Df-32-20a
17 251800152-101516-17 垫板 Plank 2 Gdf-32-09a
18 251800152-101516-18 弹簧压座 Spring Seat 2 Gdf-32-11
19 251800152-101516-19 钢球 7/16" Steel Ball 2 Gb308-77
20 251800152-101516-20 弹簧 Spring 1 407428
21 251800152-101516-21 弹簧座 Spring Seat 1 Gdf-32-15
22 251800152-101516-22 端盖 End Cover 1 Gdf-32-14b
23 251800152-101516-23 端盖橡胶塞 End Cover Rubber Stuff 1 Gdf-32-20
24 251800152-101516-24 端盖橡胶塞 End Cover Rubber Stuff 1 Gdf-32-19
25 251800152-101516-25 端盖 End Cover 1 Gdf-32-12b
26 251800152-101516-26 螺栓 M8伊20 Bolt 8 Gb21-76
27 251800152-101516-27 垫圈 8 Washer 8 Gb93-76
28 251800152-101516-28 回位弹簧 Spring 1 Gdf-32-16
29 251800152-101516-29 弹簧座 Spring Seat 1 Gdf-32-10a
30 860117810 GDF32 -17.5 主 安全阀 (浙江高宇)(备件)Safety Value 1
31 251800152-101516-30 O 形圈 21.2伊2.65 o-Ring 1 Gb3452.1-82
32 251800152-101516-31 螺塞 Screw Plug 1 Gdf-25-18b
33 251800152-101516-32 主阀体 Main Valve Body 1 Gdf-32-01c
34 251800152-101516-33 垫圈 10 Washer 8 Gb93-87
35 251800152-101516-34 螺栓 M10伊60 Bolt 8 Gb5782-86
36 251800152-101516-35 过载阀体 Over Loading Valve 2 Zl50106c1-01
37 251800152-101516-36 O 形圈 32伊3.1 o-Ring 2 Gb1235-76
38 860117811 GDF32 -17.5 高 压过载阀(备件)(浙江高宇) Over Loading Value 2
39 860117812 GDF32 -17.5 低 压过载阀(备件)(浙江高宇) Over Loading Value 1
40 251800152-101516-37 GDF32 -17.5过载阀 (浙江高宇低 压)(备件)Over Loading Value 1
41 251800152-101516-38 螺钉 M6伊11 Bolt 8 Gb67-85
42 251800152-101516-39 转斗阀杆 Tilt Plunger 1 Gdf-32芋-06a

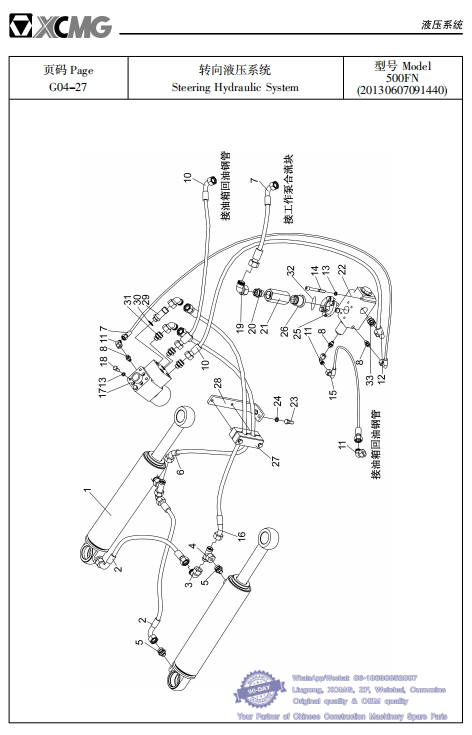

034 转向液压系统 型号 500FN (20130607091440)
Steering Hydraulic System Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 803069946 转向油缸 Cylinder 1
2 251805576 软管总成 Hose Assembly 2
3 803164795 弯头 Adapter 2
4 803164788 三通接头 Adapter 2
5 803164743 接头 Adapter 4
6 251806231 软管总成 Hose Assembly 1
7 251805639 软管总成 Hose Assembly 1
8 803164242 接头 Connector 3
9 251805642 软管总成 Hose Assembly 1
10 251806263 软管总成 Hose 1
11 803164793 弯头 Adapter 3
12 251805644 软管总成 Hose Assembly 1
13 805300014 垫圈 10 Washer 6 GB/T93-1987
14 805100086 螺钉 M10伊90 Screw 2 GB/T 70.1-2008
15 251805645 软管总成 Hose Assembly 1
16 251806232 软管总成 Hose Assembly 1
17 803004084 转向器总成 Steering Control Unit 1
18 805000727 螺栓 M10伊25 Bolt 4 GB/T 5783-2000
19 803163638 弯头 Elbow 1
20 803164756 接头 Adapter 1
21 803073807 单向阀 Check Valve 1
22 803004061 优先型流量控制阀 Valve 1
23 805000715 螺栓 M12伊25 Bolt 2 GB/T 5783-2000
24 805300018 垫圈 12 Washer 2 GB/T93-1987
25 803164828 法兰组件 Flange 1
26 251805652 法兰接头组件 Flange Assembly 1
27 252101608 管夹 Pipe Clamp 1
28 251800630 支板 Plank 1
29 251800629 接头 Connector 1
30 805301413 垫圈 20 Washer 1
31 803164899 接头 Adapter 3
32 803164229 O 型密封圈 O-Ring 1
33 803164332 接头 Adapter 1

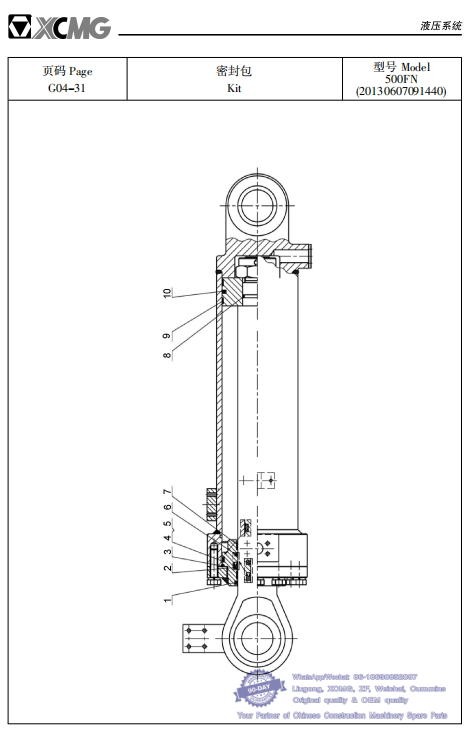

035 密封包 型号500FN (20130607091440)
Kit Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 803268448 防尘圈 Dust-Proof Ring 1 XGYG0-FC-d45
2 803195209 O 形圈 95伊3.1 O-Ring 1 GB/T1235-1976
3 801100234 O 型密封圈 O-Ring 1 GB/T3452.1-1992
4 803268450 杆密封 Rod Seal 1 XGYG01-YF-D45
5 803268452 挡圈 Backup Ring 1 D90X81X2
6 803197171 O 形圈 90伊5.7 O-Ring 1 GB/T1235-1976
7 803268486 斯特封 Step Seal 1 XGYG01-SF-D90
8 803268470 活塞用支撑环 Support 2 XGYG01-ZH-D90
9 803196592 O 形圈 50伊3.1 O-Ring 1 GB/T1235-1976
10 803268460 格莱圈 Glyd Ring 1 XGYG01-GL-D90

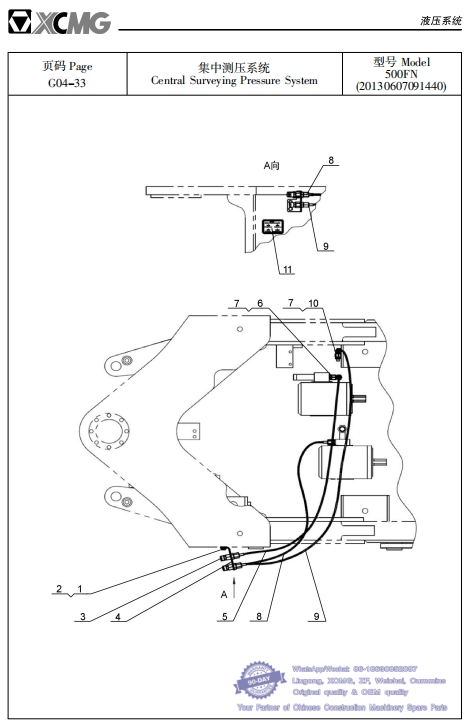

036 集中测压系统 型号 500FN (20130607091440)
Central Surveying Pressure System Model 500FN (20130607091440)-- XCMG Loader LW500FN Parts Catalog
件号 部件号 零件名称 数量 备注
Item Part No. Part Name Qty Remarks
1 805000018 螺栓 M8伊20 Bolt 2 GB/T5783-2000
2 805300010 垫圈 8 Washer 2 GB/T 93-1987
3 252110311 测压接头总成 Piezometric Joint Assembly 3
4 251805158 安装板 Moounting Plete 1
5 252110317 测压线 Piezometric Harness 1
6 805002295 接头 Connector 2
7 803164245 接头 Connector 2
8 252110315 测压线 Piezometric Harness 1
9 252110316 测压线 Piezometric Harness 1
10 803166753 接头 Adaptor 1 GE10L1/8NPT
11 253101078 测压标识 Piezometric Decal 1
