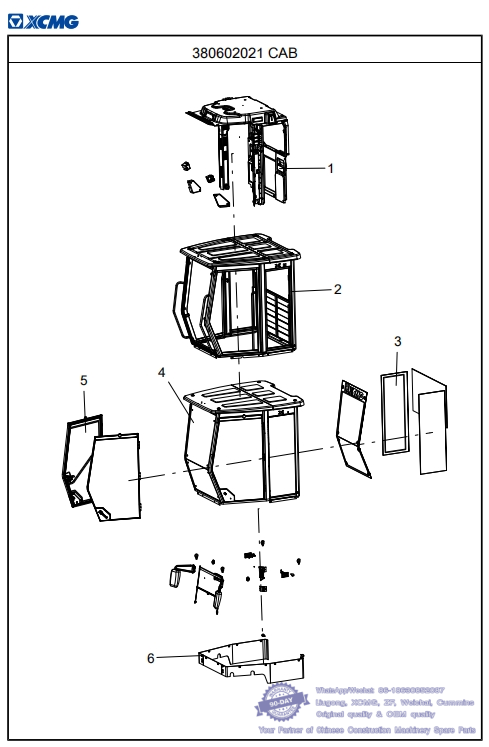

036 380602021 CAB-- XCMG Motor Grader GR215 Spare Parts Catalog
380900013 GR215DIIIMOTOR GRADER
No. PART NUMBER QTY NAME NOTE PAGE
1 3806020241CAB UPHOLSTERY ASSY whatsapp 86-18630852087
2 3806018471WELDING ASSEMBLY OF THE CAB
3 380602023 1 GLASS ASSY 80
4 3806020261CAB ELECTRICAL ASSEMBLY whatsapp 86-18630852087
5 380602022 1 CAB DOOR ASSEMBLY 82
6 380602320 1 CAB ASSEMBLY ASSY 88

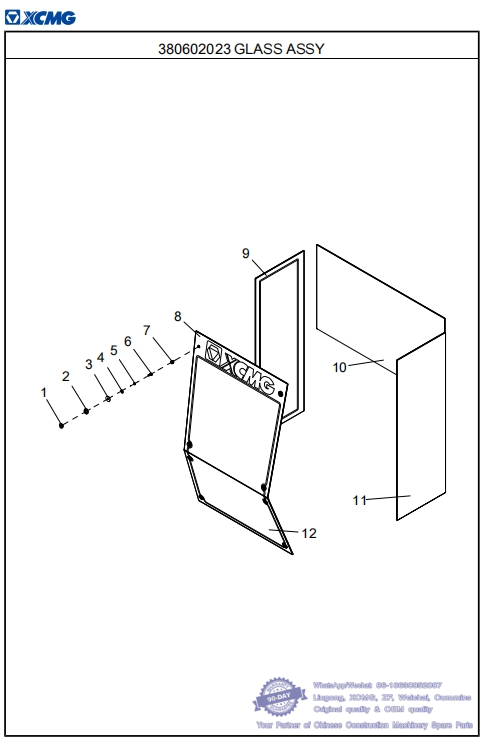

037 380602023 GLASS ASSY-- XCMG Motor Grader GR215 Spare Parts Catalog
380602021 CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 8021012868AIRTIGHT COVER
2 8021012878SEALING GASKET whatsapp 86-18630852087
3 8021012888SEALING GASKET
4 805338266 8 WASHER 8 (DACROMET) GB/T96.1-2002
5 805338259 8 WASHER 8 (DACROMET) GB/T93-1987
6 805046507 8 BOLT M8×20 (DACROMET) GB/T5783-2000
7 2270003548SCREW CAP
8 3806020271UP FRONT GLASS whatsapp 86-18630852087
9 3806020281RIGHT REAR GLASS
10 3806020291REAR GLASS
11 3806020301LEFT REAR GLASS
12 3806020311DOWN FRONT GLASS whatsapp 86-18630852087

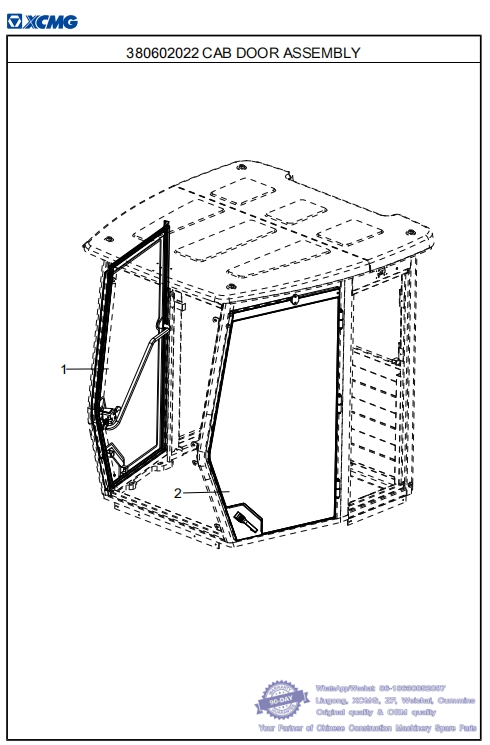

038 380602022 CAB DOOR ASSEMBLY-- XCMG Motor Grader GR215 Spare Parts Catalog
380602021 CAB
No. PART NUMBER QTY NAME NOTE PAGE
1 380602035 1 ASSEMBLY OF RIGHT DOOR 84 whatsapp 86-18630852087
2 380602034 1 ASSEMBLY OF LEFT DOOR 86

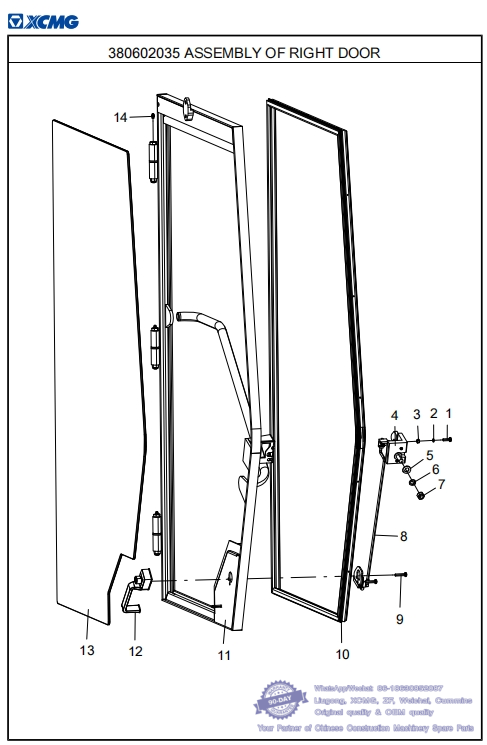

039 380602035 ASSEMBLY OF RIGHT DOOR-- XCMG Motor Grader GR215 Spare Parts Catalog
380602022 CAB DOOR ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 805140594 4 SCREW M6×20 (DACROMET) GB/T818-2000
2 805338258 4 WASHER 6 (DACROMET) GB/T93-1987
3 805238370 2 NUT M6 (DACROMET) GB/T6170-2000 whatsapp 86-18630852087
4 8015410181RIGHT DOOR LOCK
5 805338280 1 WASHER 12 (DACROMET) GB/T97.1-2002
6 805338261 1 WASHER 12 (DACROMET) GB/T93-1987
7 805238372 1 NUT M12 (DACROMET) GB/T6170-2000
8 8015410371RIGHT DOOR LEVER
9 805100252 3 SCREW M6×30 GB/T818-2000 whatsapp 86-18630852087
10 8019700451SEALING STRIP
11 3806020371ASSEMBLY OF RIGHT DOOR WELDING
12 8015410161HANDLE
13 3806020331RIGHT DOOR GLASS whatsapp 86-18630852087
14 801103117 3 GREASE CUP M6 JB/T7940.1-1995

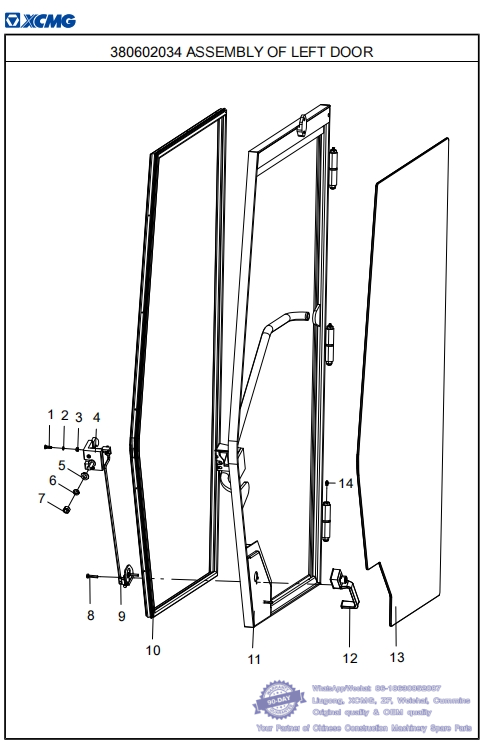

040 380602034 ASSEMBLY OF LEFT DOOR-- XCMG Motor Grader GR215 Spare Parts Catalog
380602022 CAB DOOR ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 805100054 4 SCREW M6×20 GB/T819.1-2000 whatsapp 86-18630852087
2 805338258 2 WASHER 6 (DACROMET) GB/T93-1987
3 805238370 2 NUT M6 (DACROMET) GB/T6170-2000
4 8015410141LEFT DOOR LOCK
5 805338280 1 WASHER 12 (DACROMET) GB/T97.1-2002
6 805338261 1 WASHER 12 (DACROMET) GB/T93-1987
7 805238372 1 NUT M12 (DACROMET) GB/T6170-2000 whatsapp 86-18630852087
8 805101742 3 SCREW M6×30 GB/T67-2008
9 8015410361LEFT DOOR LEVER
10 8019710991SEALING STRIPL=4600
11 3806020361ASSEMBLY OF RIGHT DOOR WELDING whatsapp 86-18630852087
12 8015410161HANDLE
13 3806020321LEFT DOOR GLASS
14 801103117 3 GREASE CUP M6 JB/T7940.1-1995
