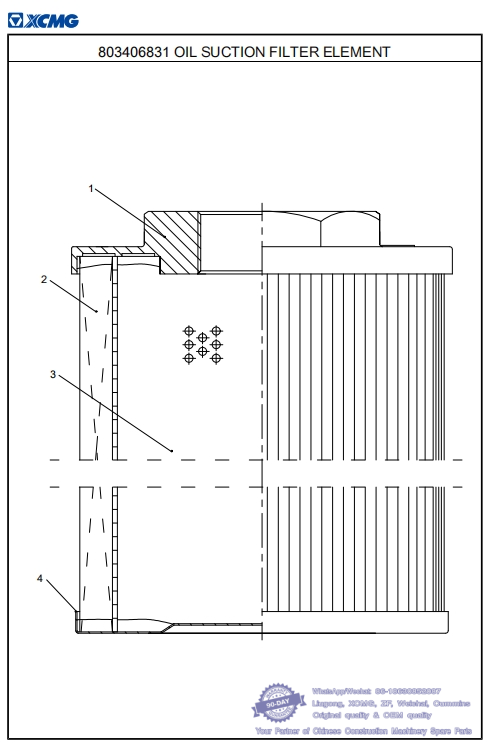

036 803406831 OIL SUCTION FILTER ELEMENT -- XCMG Mining Dump Truck XDR100 Parts Catalog
331500686 OIL TANK
No. PART NUMBER QTY NAME NOTE PAGE
1 804200015 1 UPPER END COVER whatsapp 86-18630852087
2 804200016 1 FILTERING LAYER COMPONENT
3 804200017 1 SKELETON whatsapp 86-18630852087
4 804200018 1 LOWER END COVER

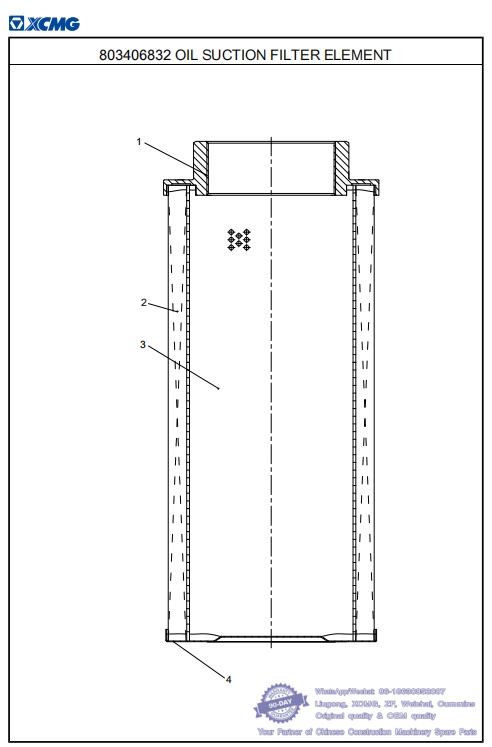

037 803406832 OIL SUCTION FILTER ELEMENT -- XCMG Mining Dump Truck XDR100 Parts Catalog
331500686 OIL TANK
No. PART NUMBER QTY NAME NOTE PAGE
1 804200019 1 UPPER END COVER whatsapp 86-18630852087
2 804200020 1 FILTERING LAYER COMPONENT
3 804200021 1 SKELETON
4 804200022 1 LOWER END COVER whatsapp 86-18630852087

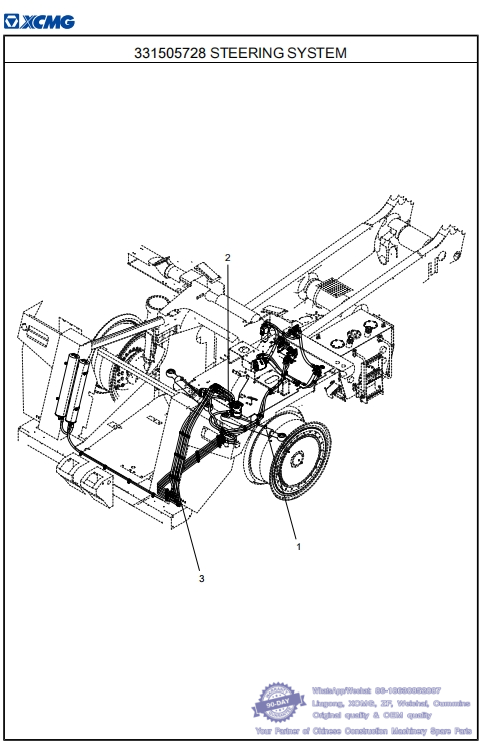

038 331505728 STEERING SYSTEM .-- XCMG Mining Dump Truck XDR100 Parts Catalog
331504658 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 331500033 1 STEERING CYLINDER 84 whatsapp 86-18630852087
2 331505725 1 DRIVER'S CAB STEERING PART 88
3 331505724 1 FRAME STEERING PART 92 whatsapp 86-18630852087

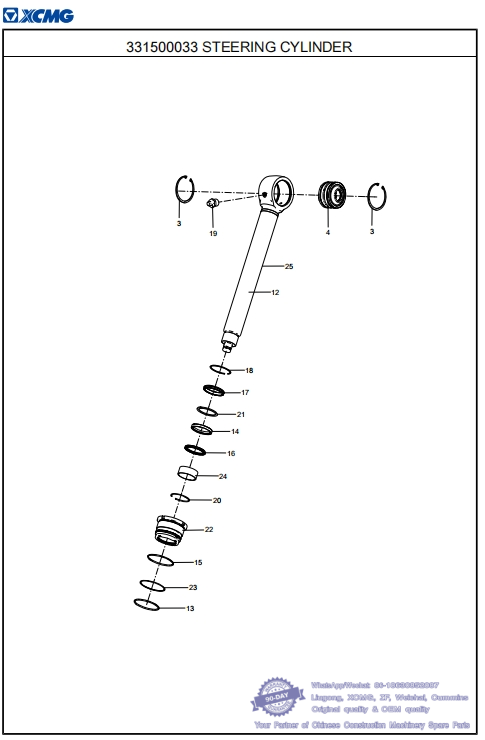

039 331500033 STEERING CYLINDER -- XCMG Mining Dump Truck XDR100 Parts Catalog
331505728 STEERING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 804200208 1 CYLINDER BODY whatsapp 86-18630852087
2 803077910 2 OIL PORT BLOCKAGE
3 805403081 4 HOLD WASHER 110
4 800554862 2 OSCILLATING BEARING GEK50XS-2GS/S
5 804200216 2 HOLD WASHER39×35×1
6 801100600 1 O-RING whatsapp 86-18630852087
7 804200209 1 PISTON
8 805141477 1 SCREW M10×20 GB/T77-2007
9 800511576 1 STEEL BALL6.5
10 804200217 2 GUIDE RING110×105×9.7 whatsapp 86-18630852087
11 803499183 1 ORIFICE SEALING RING110×94.5×6.3
12 804200206 1 PISTON ROD

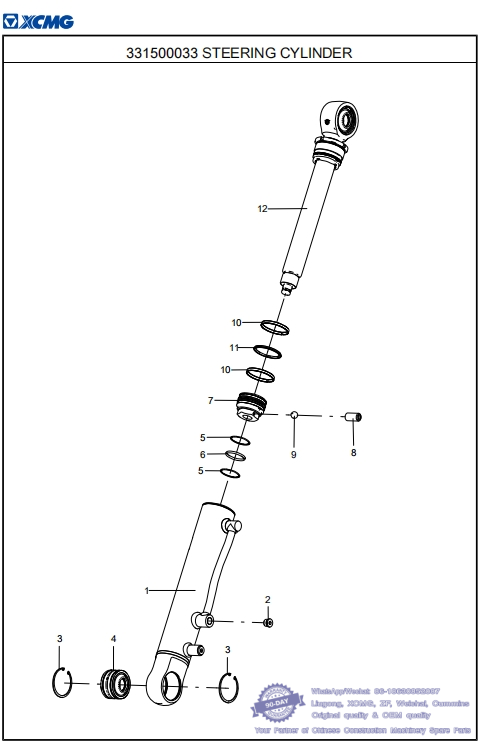

040 331500033 STEERING CYLINDER -- XCMG Mining Dump Truck XDR100 Parts Catalog
331505728 STEERING SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
13 803499182 1 ORING104.37×3.53 whatsapp 86-18630852087
14 860138484 1 SEALING RING FOR ROD 75×90×10
15 860200599 1 O-RING
16 860138483 1 BUFFER RING 75×90.5×6.3
17 804200213 1 DUSTPROOF WASHER75×89×8
18 804200214 1 DUST-PROOF LOOP CHECK RING94×2 whatsapp 86-18630852087
19 801103157 2 GB/T1152-2000OIL CUPM10×1
20 804200210 1 STEEL CABLE BAFFLE RING FOR HOLED75/86×3
21 804200215 1 SPLIT DAMPING RING90×75×3
22 804200207 1 SLEEVE GUIDE
23 804200212 1 HOLD WASHER110.5×105×1.5
24 804200211 1 SLIDING BUSHING75×80×30 whatsapp 86-18630852087
25 331505594 1 STEERING CYLINDER SEALED PACKET
