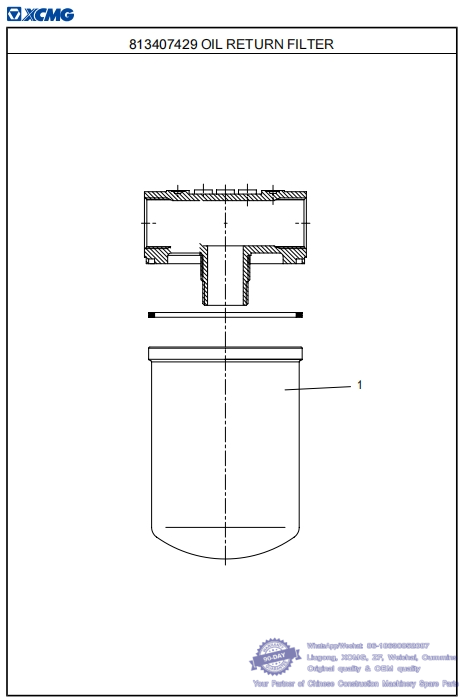

036 813407429 OIL RETURN FILTER-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301597 HYDRAULIC OIL TANK
No. PART NUMBER QTY NAME NOTE PAGE
1 813407445 1 FILTER ELEMENT whatsapp 86-18630852087
037 803190351 AIR FILTER WITH LOCK-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301597 HYDRAULIC OIL TANK
No. PART NUMBER QTY NAME NOTE PAGE
1 860510676 1 MOUNTING FLANGE
2 860510677 1 GASKET whatsapp 86-18630852087
3 860510678 1 OIL FILLER STRAINER

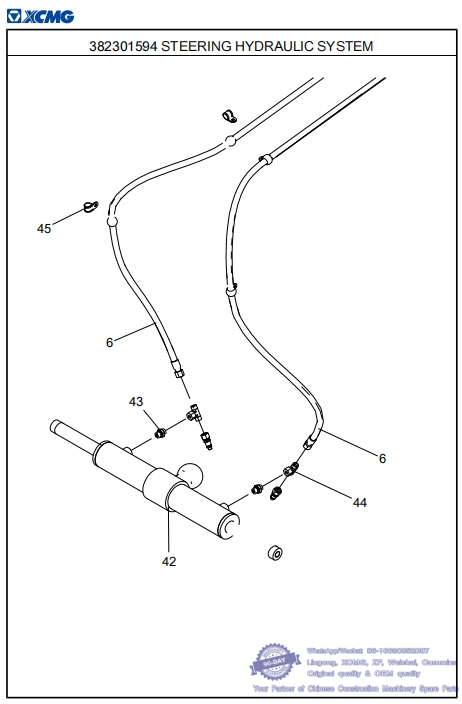

038 382301594 STEERING HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
6 803398620 2 HOSE ASSEMBLY whatsapp 86-18630852087
42 803087366 1 FRONT WHEEL STEERING CYLINDER 96
43 803103852 2 JOINT
44 803184017 2 JOINT
45 803199327 7 CUTTING SLEEVE Φ20 TJBC whatsapp 86-18630852087

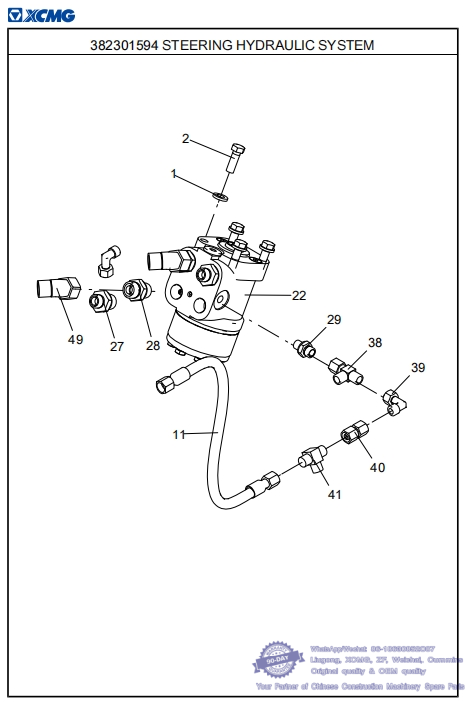

039 382301594 STEERING HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
1 329900302 4 THICKENED FLAT WASHER whatsapp 86-18630852087
2 805046416 4 BOLT M10×30 (DACROMET) GB/T5783-2000
11 803104142 1 HOSE ASSEMBLY
22 804018090 1 FULL HYDRAULIC STEERING GEAR
27 803172365 2 JOINT
28 803195587 3 JOINT
29 803104484 2 JOINT whatsapp 86-18630852087
38 803104594 1 JOINT
39 803171722 3 JOINT
40 803171907 1 JOINT
41 803192992 1 SHUTTLE VALVE
49 803309219 2 JOINT whatsapp 86-18630852087

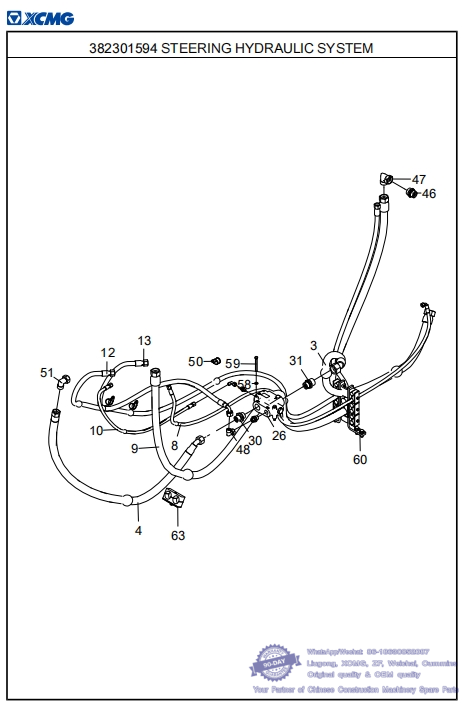

040 382301594 STEERING HYDRAULIC SYSTEM-- XCMG Motor Grader GR2205T Spare Parts Catalog
382301591 HYDRAULIC SYSTEM
No. PART NUMBER QTY NAME NOTE PAGE
3 813499736 1 HOSE ASSEMBLY whatsapp 86-18630852087
4 803483926 1 HOSE ASSEMBLY
8 803177428 1 HOSE ASSEMBLY
9 803382244 1 HOSE ASSEMBLY
10 803196015 1 HOSE ASSEMBLY
12 803270533 1 HOSE ASSEMBLY
13 803402550 1 HOSE ASSEMBLY
26 803084381 1 PRIORITY VALVE 94
30 803270786 1 JOINT
31 803104494 1 JOINT
46 803100723 1 JOINT whatsapp 86-18630852087
47 803103798 1 JOINT
48 803103775 1 JOINT
50 803199329 3 CUTTING SLEEVE Φ26 TJBC
51 803379383 1 JOINT
58 329900301 2 THICKENED FLAT WASHER
59 805046523 2 BOLT M8×80 (DACROMET) GB/T5783-2000
60 381201595 1 HINGED PIPE CLAMP SET
63 803444485 1 PIPE CLAMP whatsapp 86-18630852087
