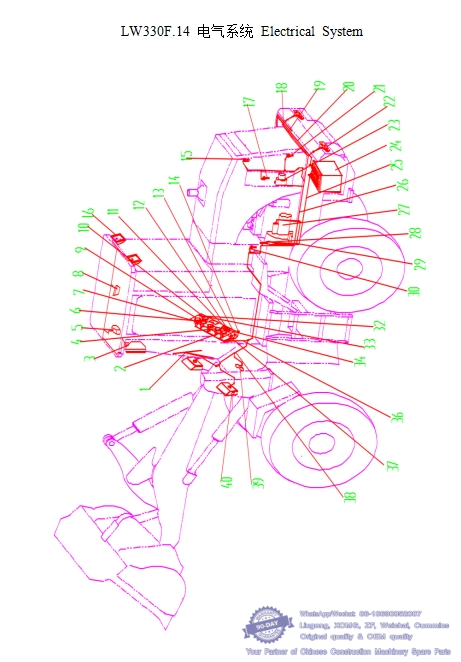

036 LW330F.14 电气系统 Electrical System-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
SrNo. | Part No. | Part Description | QTy | Remark

1 ZD2312-24V 雨刮器 Wiper 1
2 YT-202Z（0~0.8Mpa） 发动机油压表 Engine Oil Pressure Meter 1
3 XGGD04 工作大灯 Working Lamp 2
4 DW-2Z(40-120 °) 水温表 Water temperature Meter 1
5 SGF-03 电风扇 fan 1
6 ZHD-300F 指示灯组 Signal Lamp 1
7 YT-202Z（0~1.2Mpa） 气压表 Air Pressure Meter 1
8 CS130 室内顶灯 Head Lamp 1
9 DW-2FT(40-140℃) T/M 油温表 T/M Oil Temperature Meter 1
10 HOURS52 小时计 积时表 Timer 1
11 JK932-300F 翘板开关 Switch 1
12 XGFM24 蜂鸣器 Warning Buzzer 2
13 SG21-2 闪光器 Flasher 1
14 XGBX508-2 保险丝盒 Fuse Box 1
15 LW330F.14-2 发动机油压管 Oil Pressure pipe 1
16 XGGD05 后大灯 Rear Lamp 2
17 XGSWG-Z3/8 温度传感器 Temperature Sensor 1
18 XGXD850-10 电瓶线 Battery Wire 1
19 LW330F.14.4 后灯线束 Tail Lamp Wire Assembly 1
20 XGXD550-10 电瓶线 Battery Link Wire 1
21 XGW YK210B 000 压力开关 Pressure switch 1
22 XH8-2L2 后信号灯 Rear signal Lamp 2
23 FDJ 发电机 Alternator 1
24 6-QW-120 蓄电池 Battery 2
25 XGXD1900-10 蓄电池-总开关连线 Battery switch Wire 1
26 300F.11.3A 后车架线束 Rear Chassis Wire Assembly 1
27 MD 马达 Motor 1
28 DK2312A 电源总开关 Switch 1
29 XGXD550-10 电瓶线 Battery Wire 1
30 XGYWG-M14×1.5 温度传感器 Temperature Sensor 1
32 JK260 起动按钮 Starter switch 1
33 JK424 钥匙开关 Key switch 1
34 DY242 型-2A(24V) 电压表 Voltage gauge 1
36 330F.11.2 仪表盘线束 Instrument Wire 1
37 300F.10.3 仪表操作台 Instrument platform 1
38 300F.11.1A 前车架线束 Front Chassis Wire Assembly 1
39 DL50BD/G-24V 喇叭 Horn 1
40 XGGD03 前大灯 Front Lamp 2

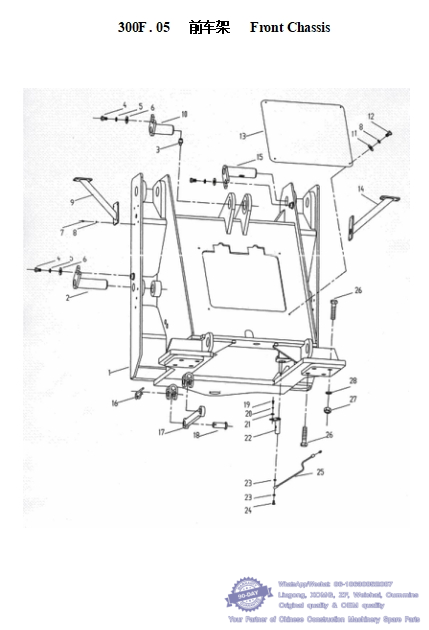

037 300F . 05 前车架 Front Chassis-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
SrNo. | Part No. | Part Description | QTy | Remark

1 300F.05.1A 前车架 Front Chassis 1
2 300F.05.3 动臂缸销 Lift Cylinder Pin 2
3 JB/T7940.1-1995 油杯 M10×1 Crease Cup 5
4 GB5783-86 螺栓 M16×25 Bolt 5
5 GB93-87 垫圈 16 Washer 5
6 GB97.1-85 垫圈 16 Washer 5
7 GB5783-86 螺栓 M8×20 Bolt 8
8 GB93-87 垫圈 8 Lock Washer 8
9 LW330F(II).08.12 右前大灯架 Front Lamp Bracket(R) 1
10 320E.8.3 转斗缸后销轴 Tilt Cylinder Pin Shaft 1
11 GB97.1-85 垫圈 8 Washer 4
12 GB5783-86 螺栓 M8×20 Washer 4
13 LW320F(I).18.2 前罩板 Front Cover Plate 1
14 LW330F(II).08.11 左前大灯架 Front Lamp Bracket(L) 1
15 300F.05.2 动臂销 Lift Arm Pin 2
16 85Z.7-15 弹簧销 Spring Pin 2
17 85Z.7-12 连杆 Lock Link 1
18 GB882-86 销 B32×70 Pin 2
19 GB5783-86 螺栓 M10×20 Bolt 2
20 Z3.8-13 垫圈 Washer 6
21 GB93-87 垫圈 10 Lock Washer 2
22 320E.8.4 前转向销 Front Steering Pin 2
23 JB982-77 垫圈 10 Lock Washer 4
24 ZL40.8.4-1 通油螺栓 Bolt 2
25 Z3.8.12.1 注油管 Oil Injecting Tube 2
26 GB5785-86 螺栓 M24×2×240 Bolt 8
27 GB6176-86 螺母 M24×2 Nut 8
28 GB93-87 垫圈 24 Lock Washer 8

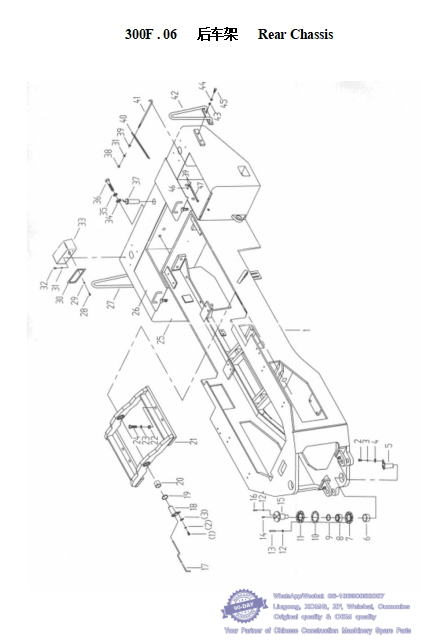

038 300F . 06 后车架 Rear Chassis-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
SrNo. | Part No. | Part Description | QTy | Remark

1 300F.06.1A 后车架 Rear Chassis 1
2 GB5783-86 螺栓 M10×20 Bolt 4
3 Z3.8-13 垫圈 Washer 4
4 GB93-87 垫圈 10 Lock Washer 4
5 320E.8.3 后转向销 Rear Steering Pin 2
6 Z3.8-7 钢套 Steel Sleeve 2
7 Z3.8-11 下法兰 Lower Flange 2
8 GB304.5-81 关节轴承 GE60ES Knuckle Bearing 2
9 GB1235-76 O 形圈 O-Ring 2
10 Z3.8-14 调整垫片 Washer n
11 Z3.8-10 上法兰 Upper Flange 2
12 GB93-87 垫圈 12 Lock Washer 20
13 GB5782-86 螺栓 M12×60 Bolt 12
14 JB/T7940.2-1995 油杯 45°M10×1 Grease Cup 2
15 Z3.8.6 铰接销 Articulating Pin 2
16 GB5783-86 螺栓 M12×30 Bolt 8
17 Z3.8.10A 注油管 Oil Injecting Pipe 2
18 Z3.8.5 副车架销 Chassis Pin 2
19 ZL40.8-11 铜垫 Copper Washer 2
20 Z3.8-2 套 Bushing 2
21 LW330F.8.7 副车架 Auxiliary Chassis 1
22 Z3.2-1 螺母 M24×2 Nut 8
23 GB93-87 垫圈 24 Washer 8
24 Z3.2-2 螺栓 M24×2×220 Bolt 8
25 LW330F(II).08.10 配重 Counter Weight 1
26 LW330F(II).08.10.2 LW330F(II).08.10.3 左箱盖 右箱盖 Left Box Cover Right Box Cover 11
27 530D.8.6 右后扶手架 Rear Handrail(R) 1
28 GB67-85 螺钉 M5×12 Screw 8
29 GB97.1-85 垫圈 5 Washer 12
30 Z5G.6.9-1 灯后盖板 Rear Cover Plate 2
31 GB93-87 垫圈 8 Lock Washer 12
32 GB5783-86 螺栓 M8×16 Bolt 12
33 Z5G.6.9.3 灯架 Lamp Bracket 8
34 GB97.1-85 垫圈 24 Washer 2
35 GB93-87 垫圈 24 Lock Washer 4
36 GB5782-86 螺栓 M12×60 Bolt 4
37 Z3G.8.15A 牵引销 Towing Pin 1
38 GB6170-86 螺母 M8 Nut 4
39 GB97.1-85 垫圈 8 Washer 12
40 LW330F(II).08.10-1 紧锁角钢 Angle Steel 2
41 LW330F(II).08.10-2 紧固螺栓 Bolt 4
42 530D.8.5 左后扶手架 Rear Handrail(L) 1
43 GB97.1-85 垫圈 16 Washer 4
44 GB93-87 垫圈 16 Lock Washer 4
45 GB5783-86 螺栓 M12×30 Bolt 4
46 GB91-86 开口销 2×20 Pin 2
47 Z5G.6.9.6 撑杆 Supporting 2

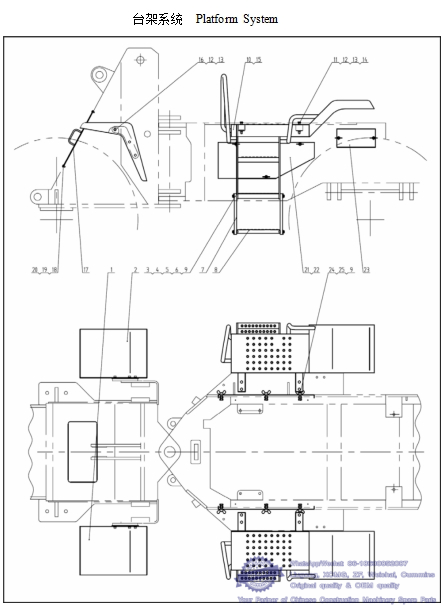

039 台架 Platform-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
Sr.No. | PartNo. | Part Description | Qty | Remark

1 | 9364748 | 左挡泥板 | LeftFender | 1 |
2 | 9364766 | 右挡泥板 | RightFender | 1 |
3 | 9358431 | 压板 | Plate | 3 |
4 | 4005057 | 螺栓M10X45 | Bolt | 16 | GB5783-86
5 | 4401008 | 垫圈10 | Wabler | 16 | GB93-87
6 | 4404009 | 垫圈10 | Wabler | 16 | GB97.1-85
7 | 9364749 | 橡胶板 | Rubber Plate | 4 |
8 | 9364750 | 踏梯 | Ladder | 2 |
9 | 4301009 | 螺母M10 | Nut | 18 | GB6170-86
10 | 9364751 | 左底梯 | LeftLadder | 1 |
11 | 4004047 | 螺栓M12X90 | Bolt | 8 | GB5783-86
12 | 4404010 | 垫圈12 | Wabler | 22 | GB97.1-85
13 | 4401009 | 垫圈12 | 14 | GB93-87
14 | 4338005 | 螺母M12 | Nut | | GB6182-86
15 | 9364759 | 右底梯 | RightLadder | 1 |
16 | 4005069 | 螺栓M12X40 | Bolt | 6 | GB5783-86
17 | 9340600 | 前基板 | Front Cover | 1 |
18 | 4005040 | 螺栓M8X20 | Bolt | 4 | GB5783-86
19 | 4404007 | 垫圈8 | Wabler | 4 | GB93-87
20 | 4404008 | 垫圈8 | Wabler | 4 | GB97.1-85
21 | 9339877 | 左挡板 | LeftPlate | 1 |
22 | 9339878 | 右挡板 | RightPlate | 1 |
23 | 9357555 | 挡板 | Plate | 2 |
24 | 4005055 | 螺栓M10X35 | Bolt | 10 | GB5783-86
25 | 4315007 | 螺母M10X1.5 | Nut | 10 | GB62-88

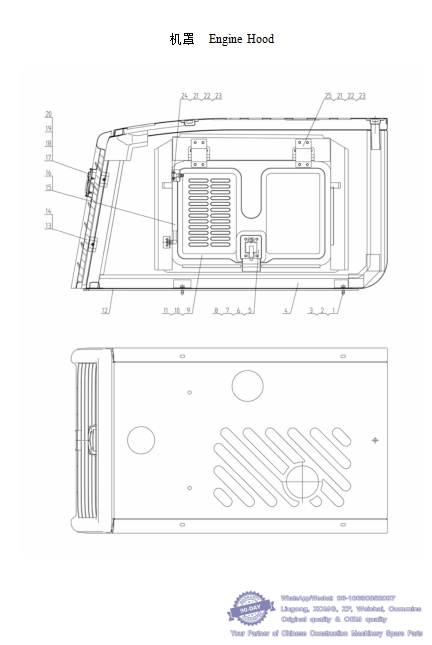

040 机罩Engine Hood-- XCMG Wheel Loader LW300F Parts Catalog

序号 | 零件代号 | 名称 | 数量 | 备注
Sr.No. | Part No. | Part Description | Q'ty | Remark

1 | 4005068 | 螺栓 MIZX35 | Bolt | 4 | GB5783-86
2 | 4401009 | 垫圈 12 | Washer | 4 | GB93-87
3 | 4404010 | 垫圈 12 | Washer | 4 | GB97.1-85
4 | 9363782 | 机套焊接总成 | Hood Wald,ABXX | 1 |
5 | 9363762 | 门锁 | Lock | 2 |
6 | 4005029 | 螺栓 M6X16 | Bolt | 8 | GB5783-86
7 | 4401006 | 垫圈 6 | Washer | 8 | GB93-87
8 | 4400407 | 垫圈 6 | Washer | 8 | GB97.1-85
9 | 9363765 | 左门总成 | Left Door | 1 |
10 | 9363770 | 右门总成 | Right Door | 1 |
11 | 9363763 | 密封条 | Sealing | 2 |
12 | 9363779 | 连接垫 | Cushion | 1 |
13 | 9363780 | 后挡塞 | Rear Hood | 1 |
14 | 9363760 | 防震垫 | Cushion | 1 |
15 | 9363761 | 气弹簧 | Air Spring | 2 |
16 | 4301008 | 螺母 MS | Nut | 2 | GB6170-86
17 | 9363764 | 标数 | Symbol | 1 |
18 | 4301006 | 螺母 MS | Nut | 3 | GB6170-86
19 | 4401005 | 垫圈 5 | Washer | 3 | GB93-87
20 | 4404006 | 垫圈 5 | Washer | 3 | GB97.1-85
21 | 4005040 | 螺栓 MSX20 | Bolt | 20 | GB5783-86
22 | 4401007 | 垫圈 8 | Washer | 24 | GB93-87
23 | 4404008 | 垫圈 8 | Washer | 24 | GB97.1-85
24 | 9363799 | 固定支架 | Support | 2 |
25 | 9363750 | 门锁 | Hinge | 4 |
